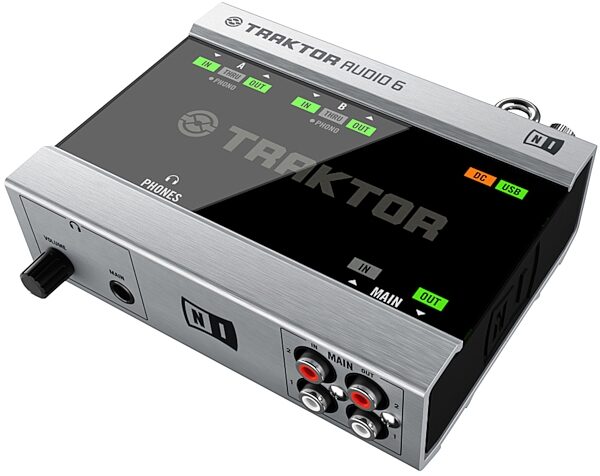

Native Instruments Traktor Audio 6 DJ Audio Interface

Product Description

Get ready to unleash the full sonic potential of your tracks with Native Instrument Traktor Audio 6, the high-gain audio interface for DJs who demand premium sound quality and extra-loud output. Traktor Audio 6 boasts six inputs and six outputs and is destined to be the centerpiece of your live or studio setup.

This premium DJ audio interface is built on the established and award-winning design of NI audio and hardware gear: Extra-robust metal casing, high-end Cirrus-Logic(r) AD/DA converters, brand-new chip technology and completely revised driver architecture ensure top sound quality and low latency for professional use on stage and in the studio.

Full Flexibility

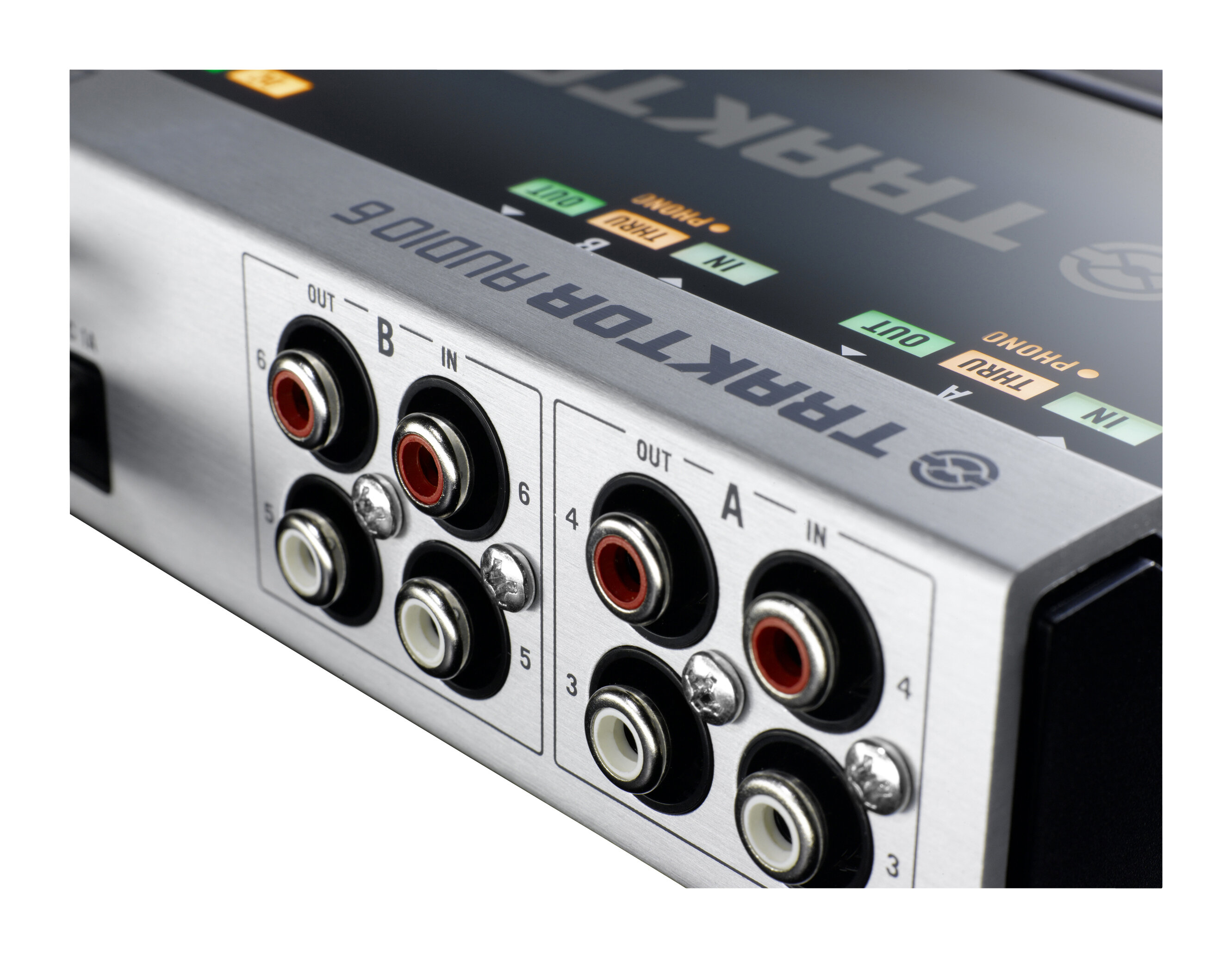

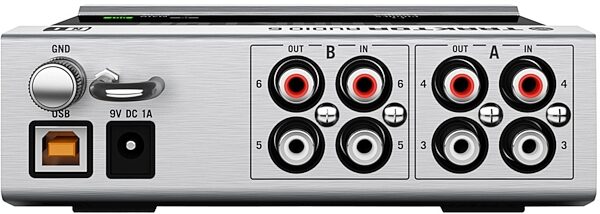

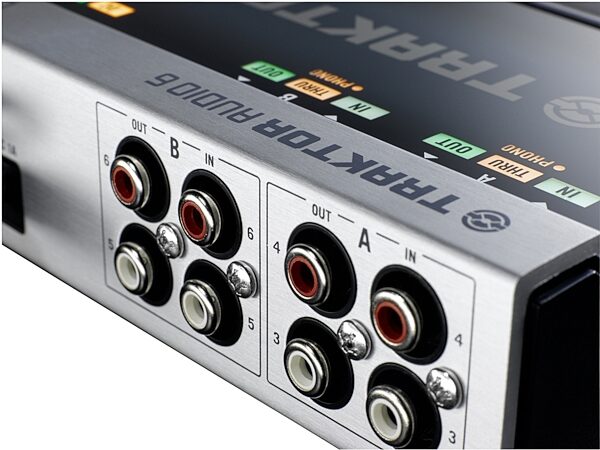

Connect up to three stereo sources simultaneously. The two included phono preamps allow the connection of two turntables so you can digitize your vinyl collection in highest quality or record other external audio sources.

Installation Friendly

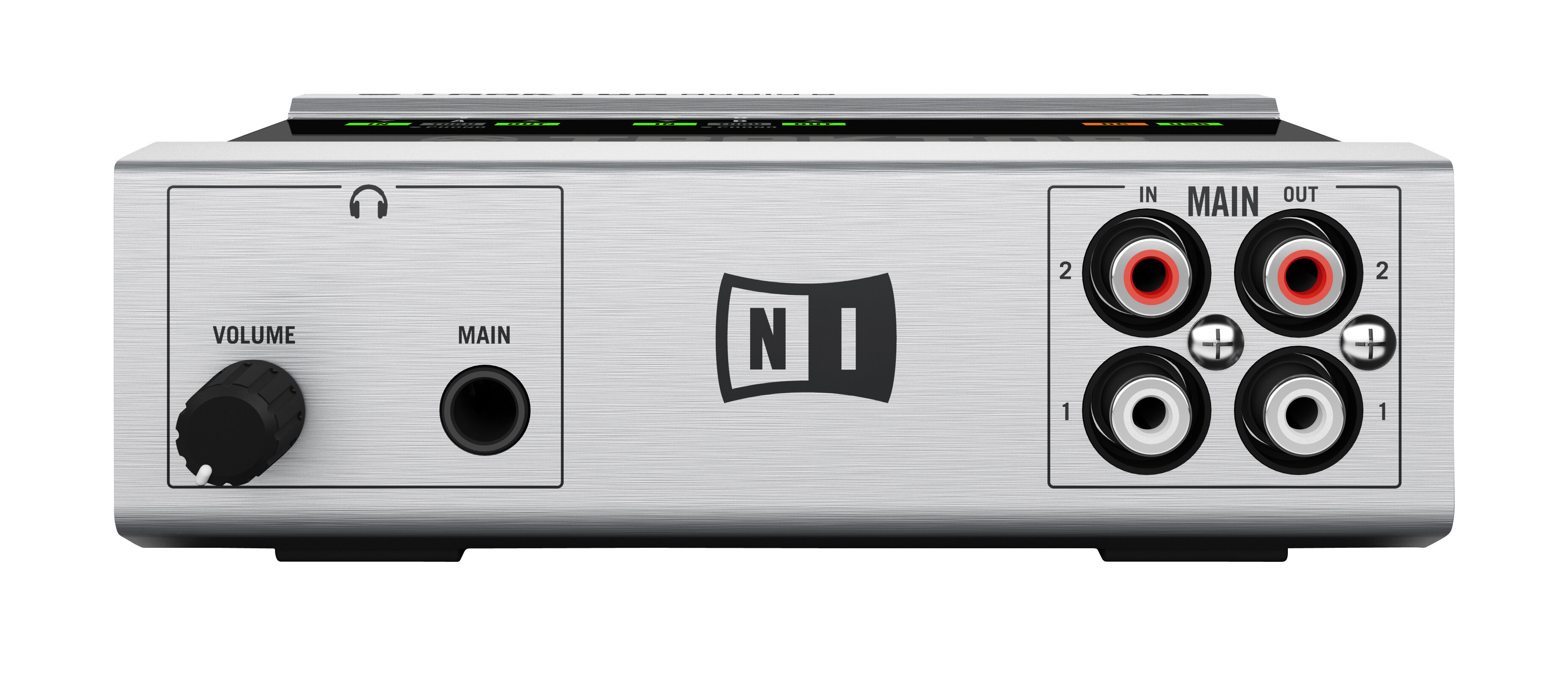

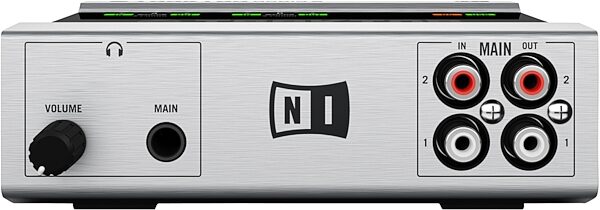

Even with two stereo channels routed to your external DJ mixer, the convenient front stereo input and output is perfectly tailored for DJs who wish to use Traktor effects as send and return FX units on their mixer. In addition, they offer extra flexibility if you're DJing with Traktor's Sample Decks and Loop Recorder.

Auto Detection and Setup Wizard

The new Auto Detection makes connecting and disconnecting your audio interface a breeze - even while there are tracks playing in Traktor. Assisted by the Setup Wizard with a drop-down menu of interfaces, just select your interface and setup (internal or external mixer). The Wizard assigns inputs and outputs for you. In the future, Traktor detects when the same audio interface is connected via USB and automatically sets up your preferred routing again.

When disconnected, Traktor automatically switches back to the internal computer soundcard. For further safety, Traktor Audio 6 will revert to their user definable start-up configuration when USB is disconnected which is Direct Thru by default.

What's New Compared to Audio 4 DJ

Traktor Audio 6 is the successor of Audio 4 DJ and now comes with enhanced connectivity, better sound quality, better usability and even lower latency:
- 2 more inputs and outputs - features a pair of stereo inputs and outputs on the front of the unit, ideal for setting up Send & Return effects through your DJ mixer or routing Traktor's Sample Decks or Loop Recorder. The ins and outs have been consolidated for maximum ease-of-use.
- New processor and new audio drivers - better audio performance with low-latency drivers ensures a rock-solid foundation to your DJ sets.
- New 'Direct Thru' mode - possibility to run Traktor Audio 6 with its power supply only (no computer, no multicore cables), perfect for club installations or as the "hub" of your home studio setup.

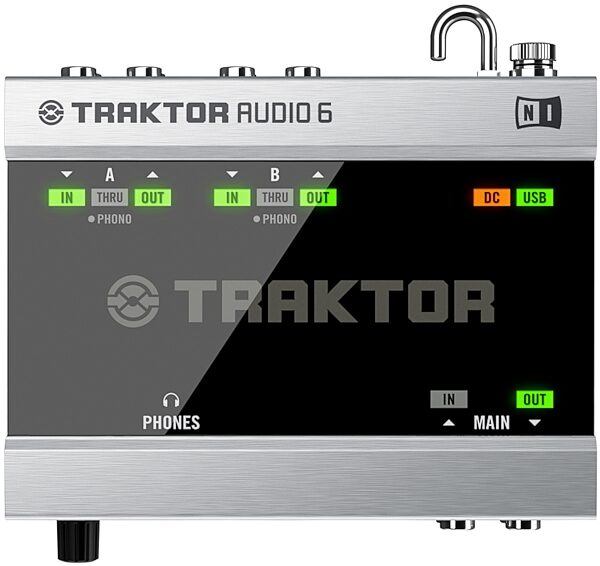

- Improved visual feedback - larger, clearer LEDs communicate essential info on the unit's top panel.
- Audio Control Panel - software application that allows you to test and configure your NI device (e.g. set different sample rate, set up audio routing).

Installation Friendly

Besides premium sound quality, low latency and ultimate connectivity, this interface also boasts many other advanced features specifically designed for club use:

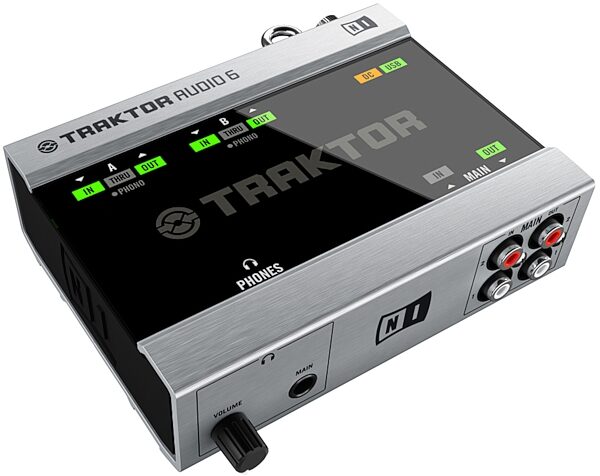

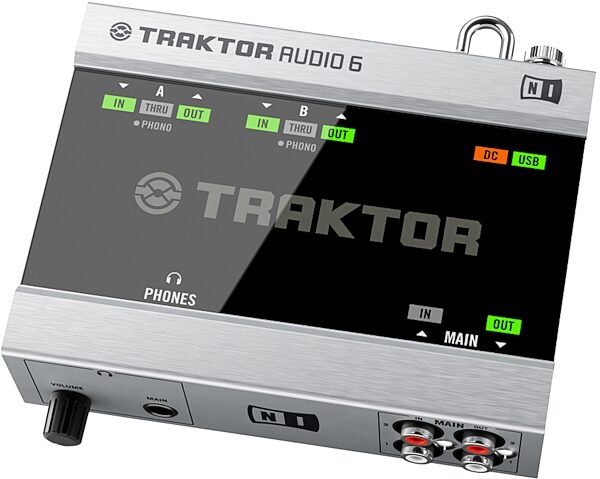

The convenient status LEDs on the upper panel give instant visual feedback on input and output activity, so you know if your setup is hooked up and working correctly. Now it's also possible to run the Traktor Audio 6 via its power supply only, as a "Direct Thru" unit. This means the soundcard is capable of passing through a signal from other equipment (turntables / CD players) without being connected to your computer - so switching between DJs or different setups is finally made simple - perfect for permanent club installations.

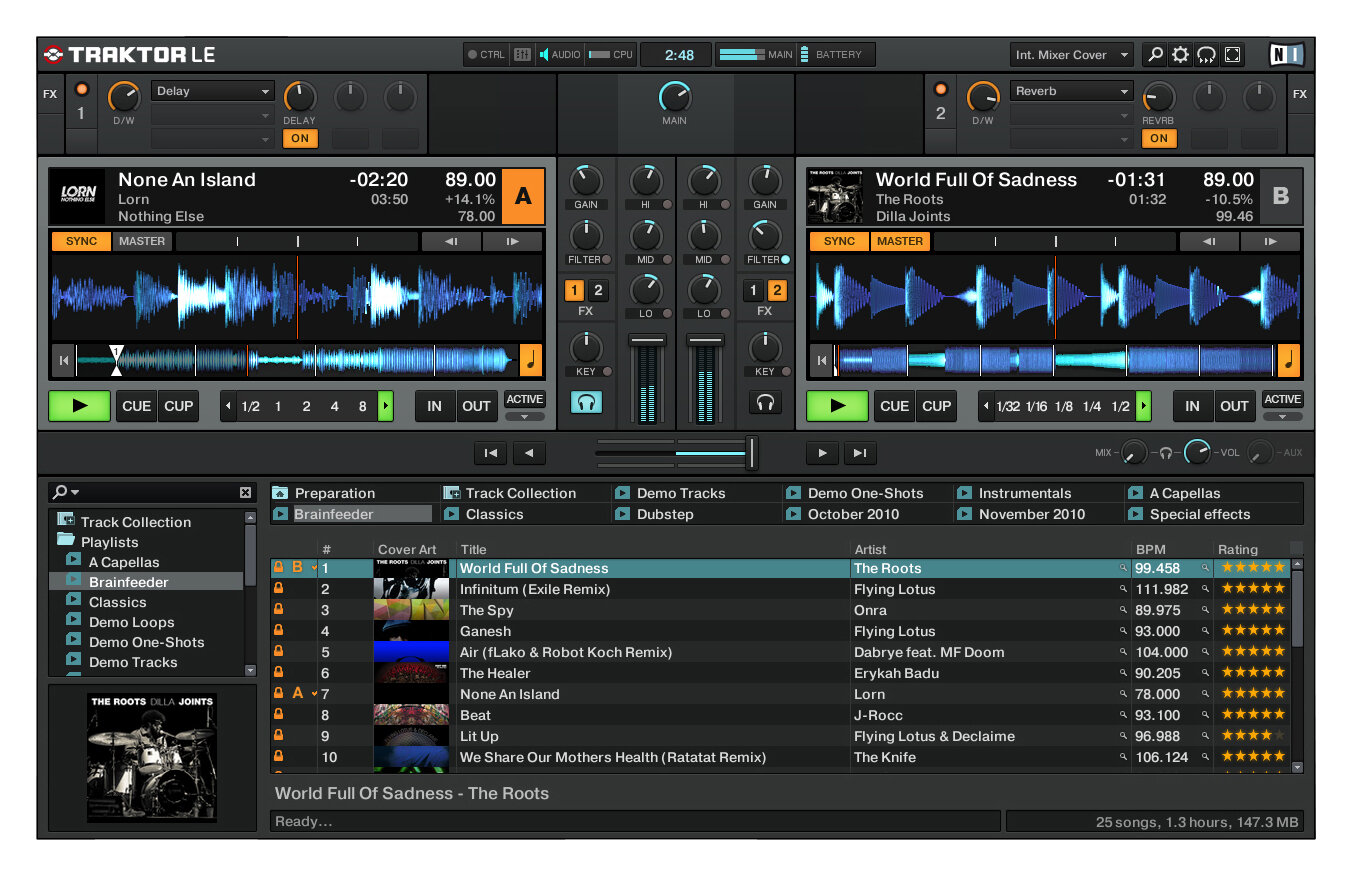

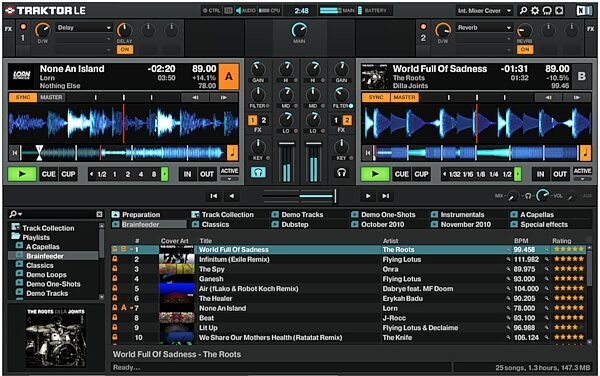

Traktor LE 2

This DJ software provides two playback decks to spin tracks directly from your hard drive, with full iTunes(r) integration and iPod(r) compatibility.

The new TruWave colored waveforms and amazing beat-sync functions make it simple to use the advanced looping, cueing and effects - so go beyond ordinary mixing.

Features

- Professional DJ audio interface with studio-grade sound quality
- Six inputs and six outputs - two preamps to connect your turntables
- Extra-loud output levels pack enough punch to rock the biggest clubs
- High-quality 24-bit / 96kHz Cirrus Logic AD/DA converters

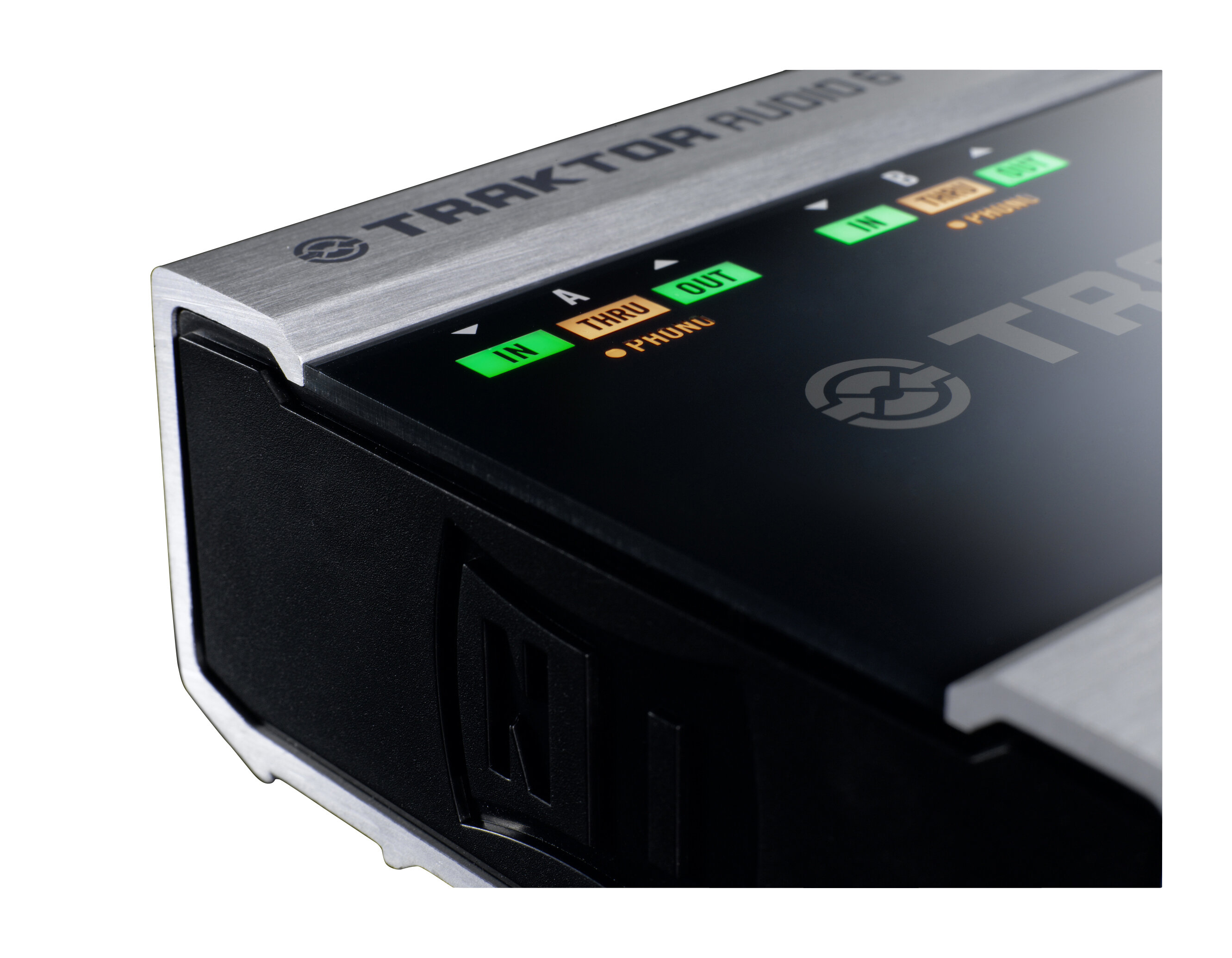

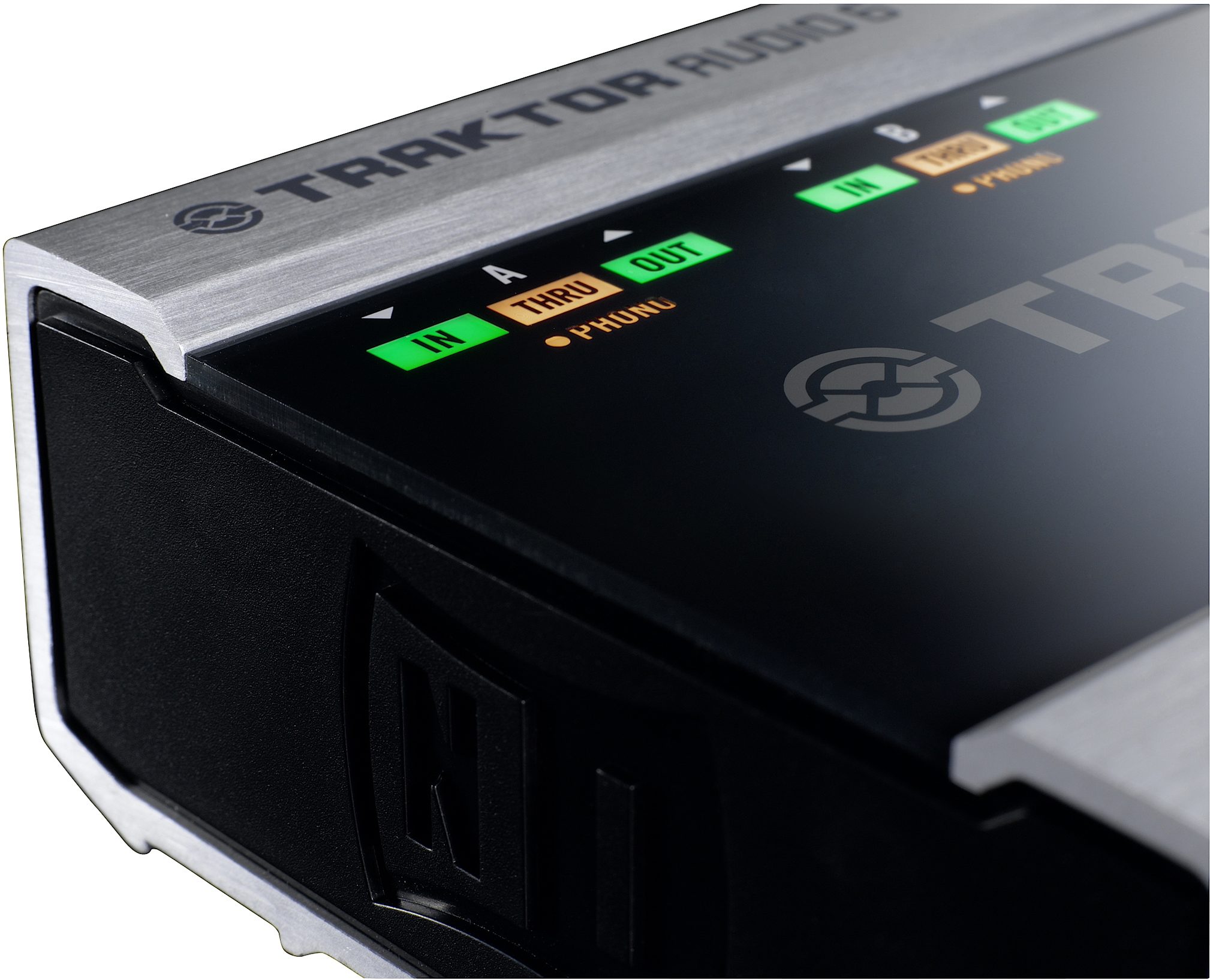

- Compact dimensions with sturdy metal casing for heavy duty feel
- New low latency Mac(r) and PC drivers for tightest possible response
- 12 status LEDs for visual monitoring of signal chain
- "Direct Thru" mode allows use without computer, on power supply only*
- Compatible with all DJ, performance and audio software
- Includes Traktor DJ software so you can start mixing right away zZounds is an authorized dealer of Native Instruments products.

Audio Converters (Inputs A/D):
Channels (A/D, D/A): 6, 6
Sample Rates: 44.1, 48, 88.2, 96 kHz
Bit Resolution: 24-bit
Converter: Cirrus Logic

Line Inputs:
Input Impedance: 47 kOhm

A/D-D/A to Output:
Full Scale Input Level: +12 dBu, 3.08 Vrms
Gain: -2.6 dB
Dynamic Range (A weighted): 98.9 dB (A)
THD+N (Full Scale Level): 0.018 %
Frequency Response (96 kHz), -1 dB: 13 Hz - 45 kHz

Direct Thru:
Max. Input Level: +13.35 dBu, 3.6 Vrms
Gain: -4.55 dB
Dynamic Range (A weighted): 107.8 dB (A)
THD+N (Max. Level): 0.0027 %
Frequency Response, -1 dB: 13 Hz - 73 kHz

Phono Inputs:
Input Impedance: 47 kOhm

A/D-D/A to Output:
Full Scale Input Level @ 1 kHz: -22.2 dBu, 60 mVrms
Gain @ 1 kHz: +31.5 dB
Dynamic Range (A weighted) @ 1 kHz: 95.8 dB (A)
THD+N @ 1KHz: 0.02%
Frequency Response: IEC curve +/- 1 dB

Direct Thru:
Max Level @ 1 kHz: -16.2 dBu, 120 mVrms
Gain @ 1kHz: +29.1 dB
Dynamic Range (A weighted) @ 1 kHz: 96.9 dB (A)
THD+N @ 1KHz: 0.01 %
Frequency Response: IEC curve +/- 1 dB

Line Outputs (D/A):
Full Scale Output Level: +9.6 dBu, 2.35 Vrms
Dynamic Range (A weighted): 101.8 dB (A)
THD+N: 0.008%
Frequency Response (96 kHz), -1 dB: 9 Hz - 45 kHz

Headphone Output:
Maximum Output Level @ 10 kOhm: 11,3 dBu, 3,55 Vrms
Maximum Output Power: 40 mW @ 100 Ohms, 15 mV @ 33 Ohms
Dynamic Range (A weighted): 101.9 dB (A)
THD+N (Max Level, high Imp, 100 Ohms): 0.011%
Frequency Response (96 kHz), -1 dB: 9 Hz - 45 kHz

Native Instruments Traktor Audio 6 System Requirements

Windows(r) XP (latest Service Pack, 32 Bit) or Windows Vista (latest Service Pack, 32/64 Bit) or Windows 7 (latest Service Pack, 32/64 Bit), Intel(r) Pentium 4(r) or Intel Core(tm) or AMD Athlon(tm) 64, 2 GB RAM

Mac OS(R) X 10.5 (latest update) or 10.6 (latest update), Intel Core Duo, 2 GB RAM

Supported Drivers
ASIO(r)
Core Audio
DirectSound(r)
WASAPI

Dimensions
44 x 137 x 134 mm / 1.7 x 5.4 x 5.3"
Weight: 750g / 1,65 lbs

Power
Power Supply Via USB 2.0 interface, 5V 500mA bus power. Additional 9V 1200mA Power Supply will be available separately for using Direct Thru mode.
