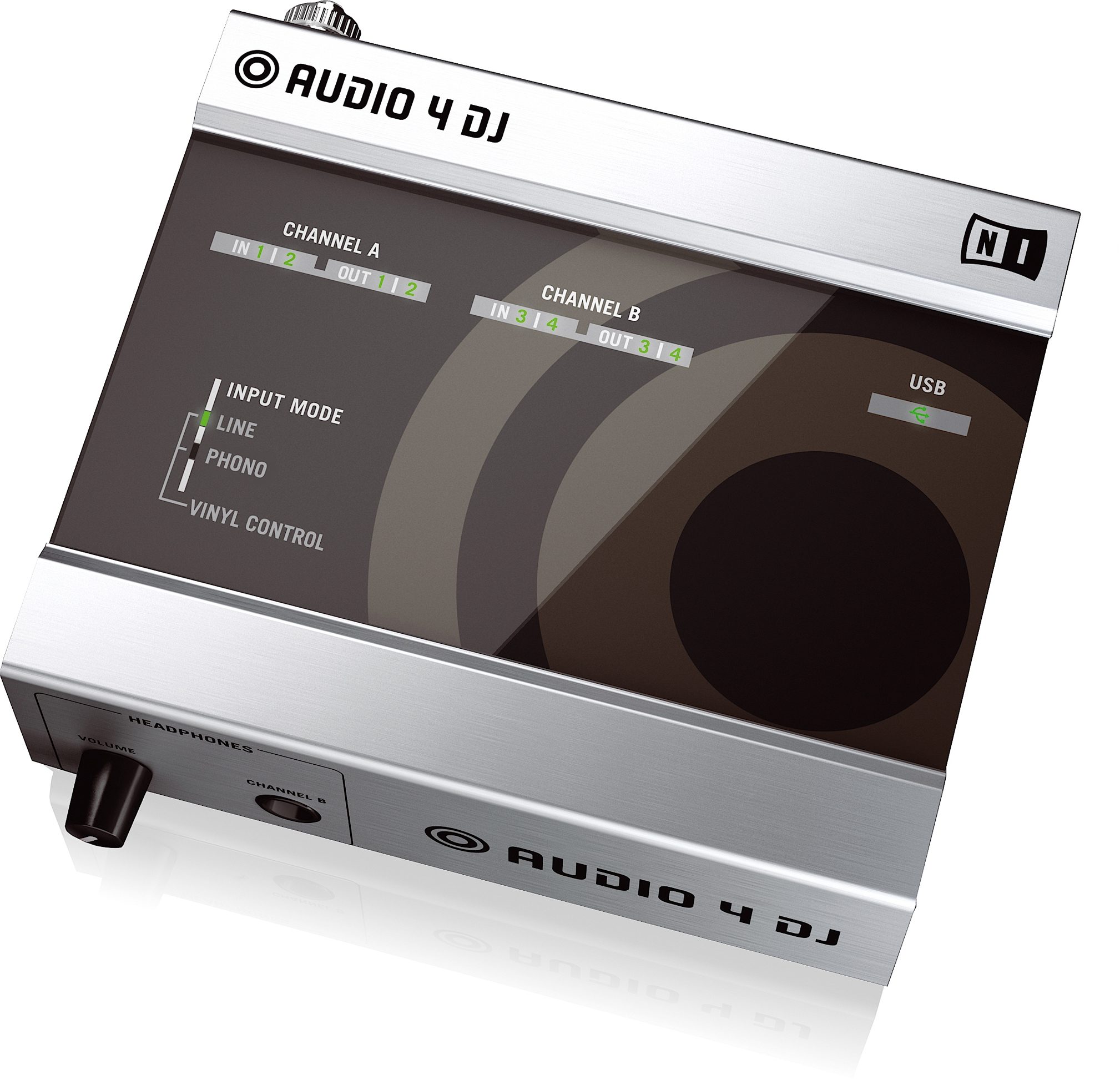

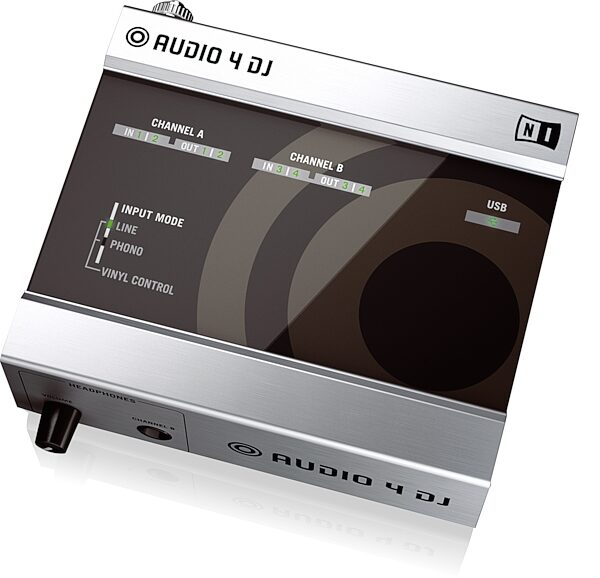

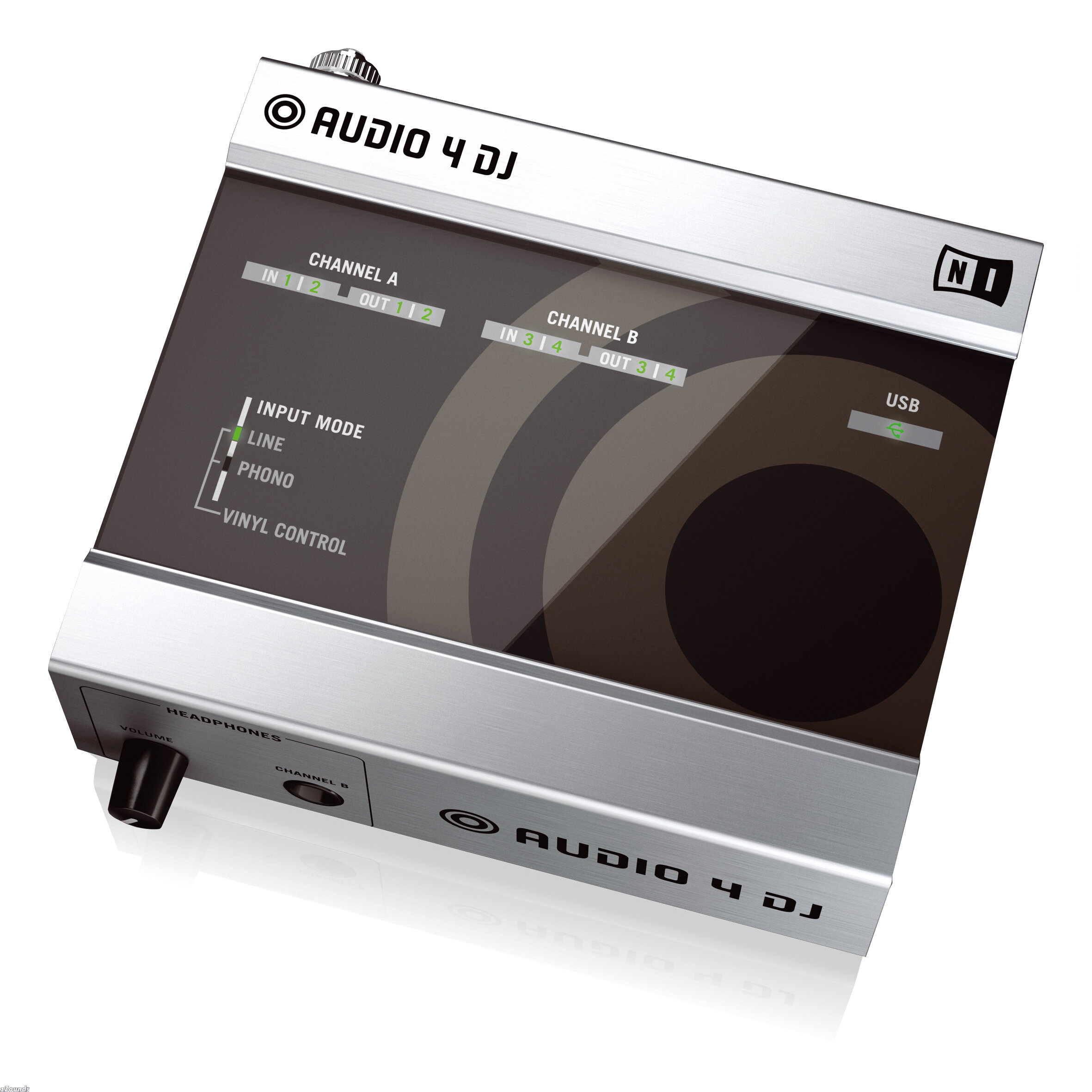

Native Instruments Audio 4 DJ Audio Interface

Get ready to unleash the full sonic potential of your tracks with Audio 4 DJ, the compact audio interface for DJs who demand premium sound quality. With all the connections you need in one sturdy and portable design, this hardware is destined to be the centerpiece of your DJ set-up - at home and in the club. It also allows you to record live sets and digitize your vinyl collection*.
* Additional software required to digitize vinyl collections

Get Connected

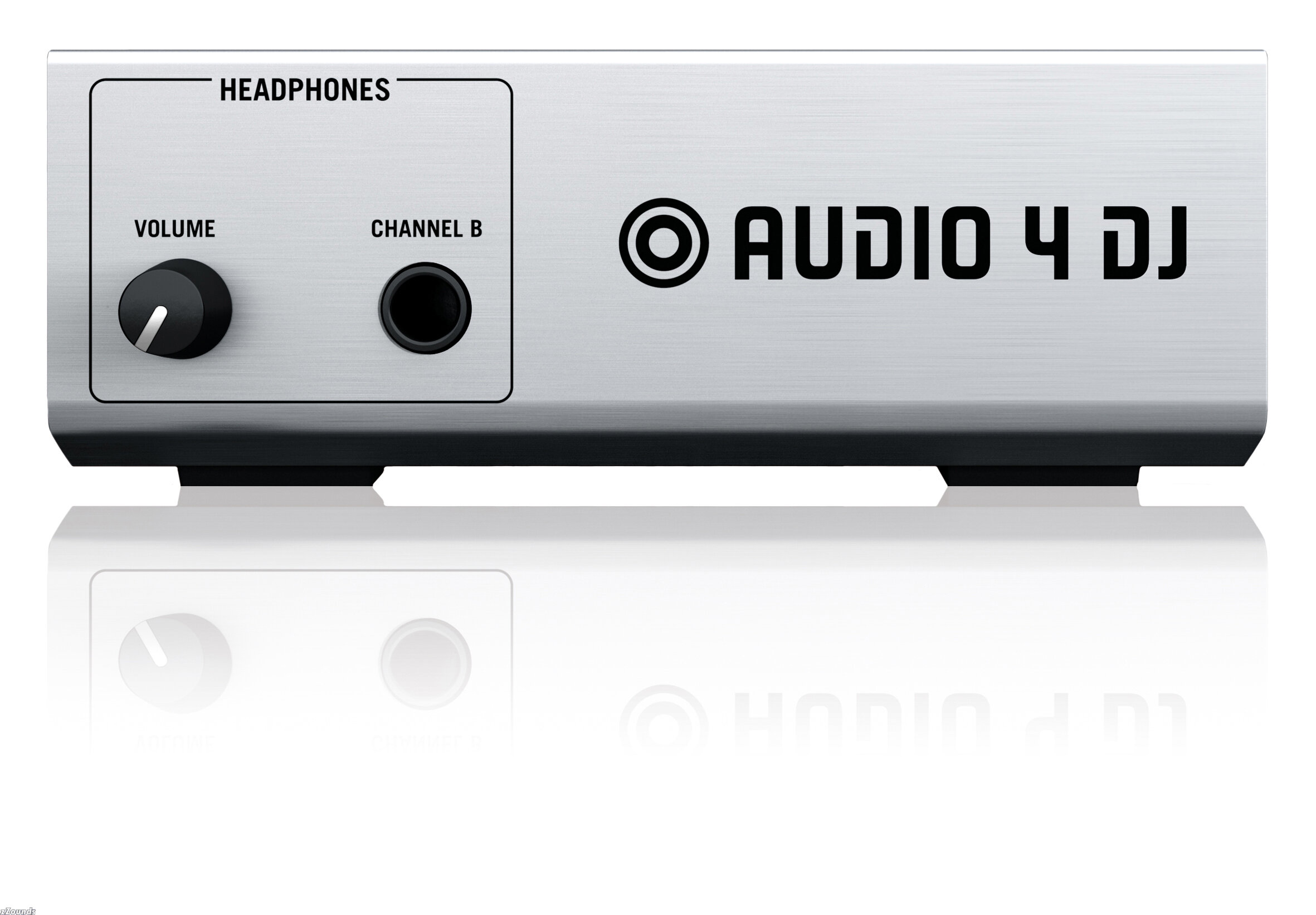

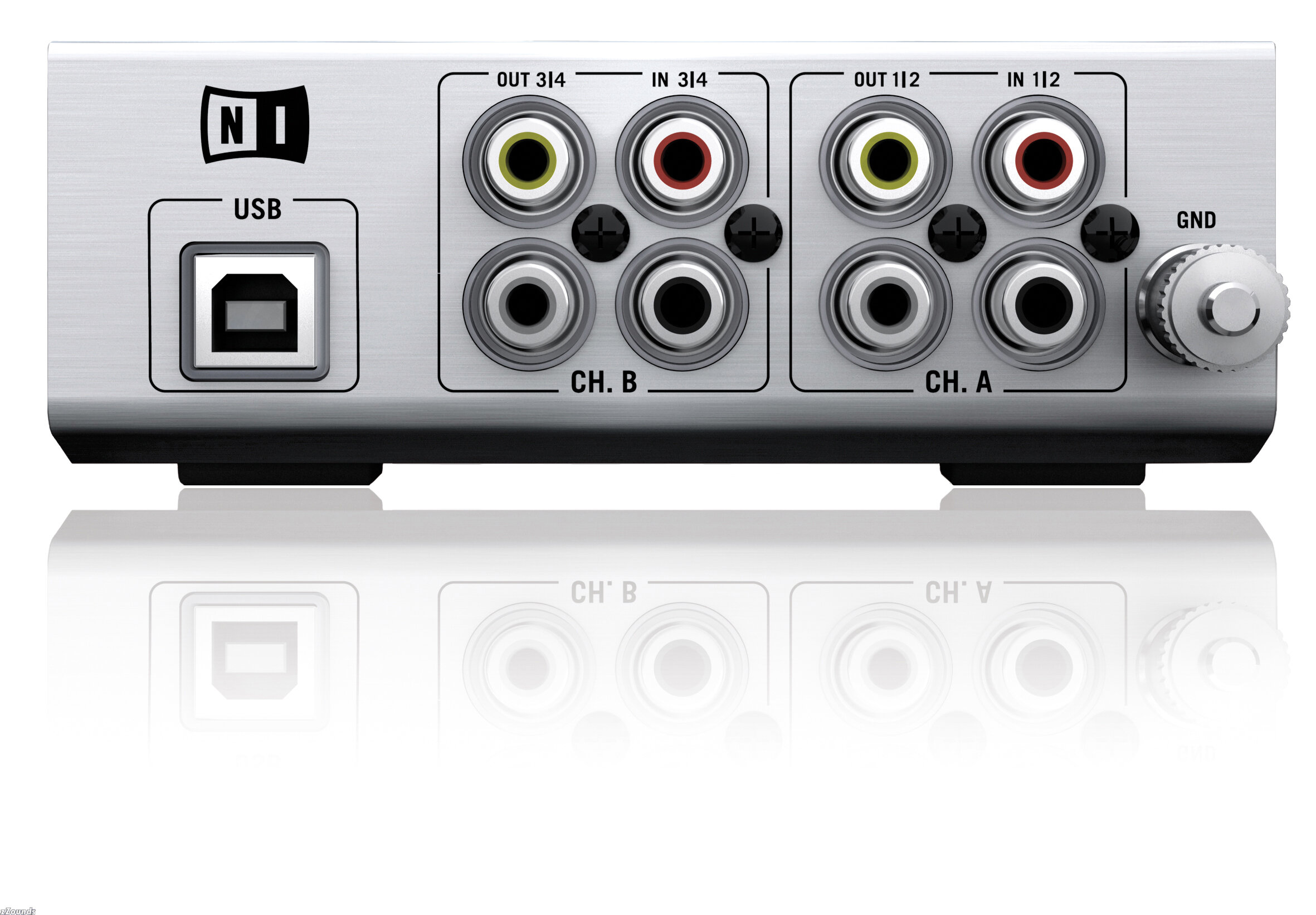

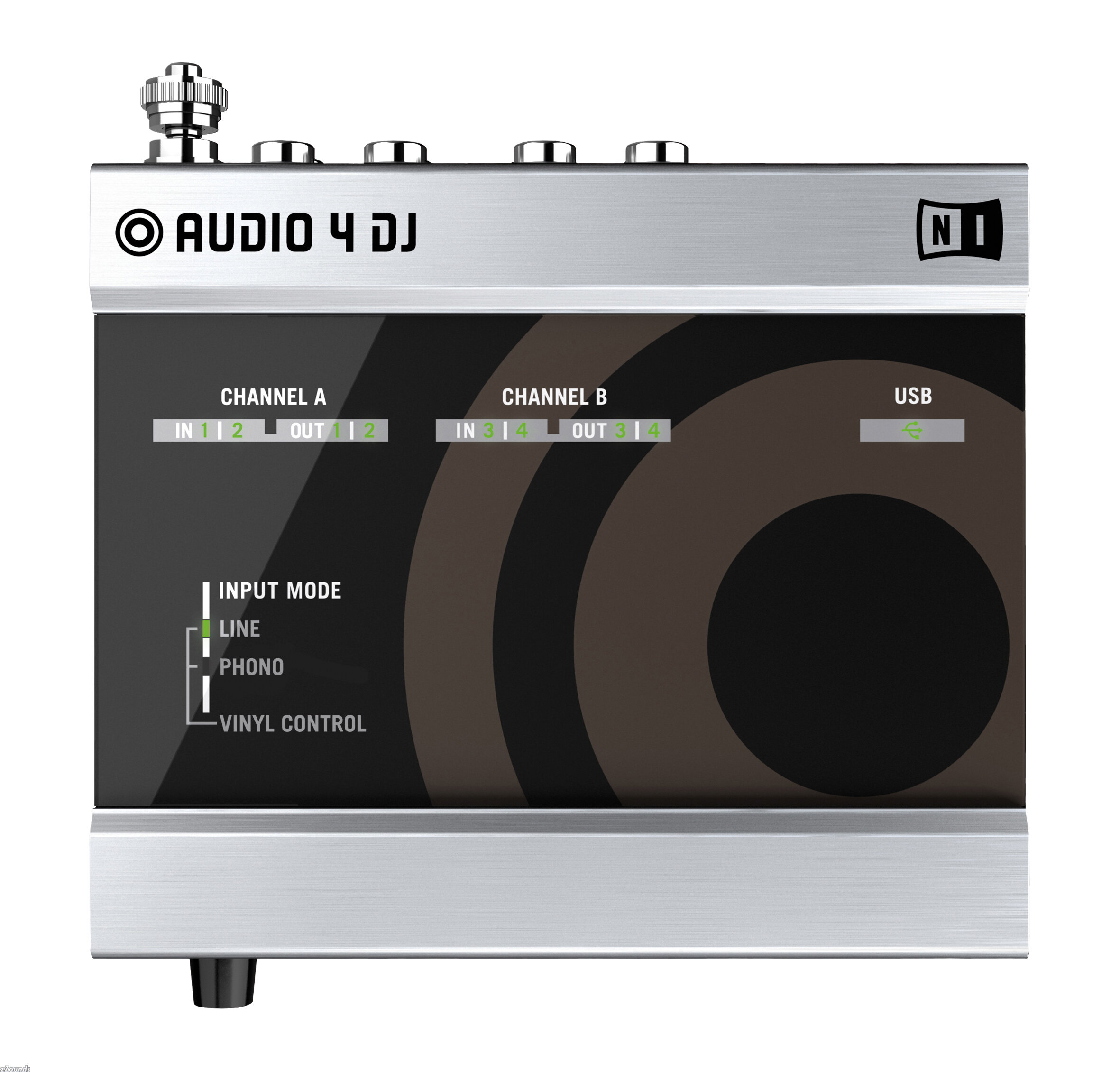

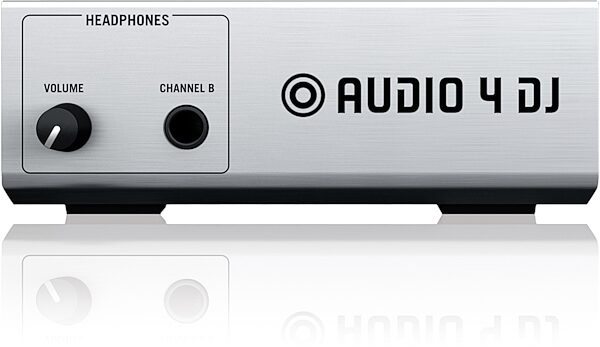

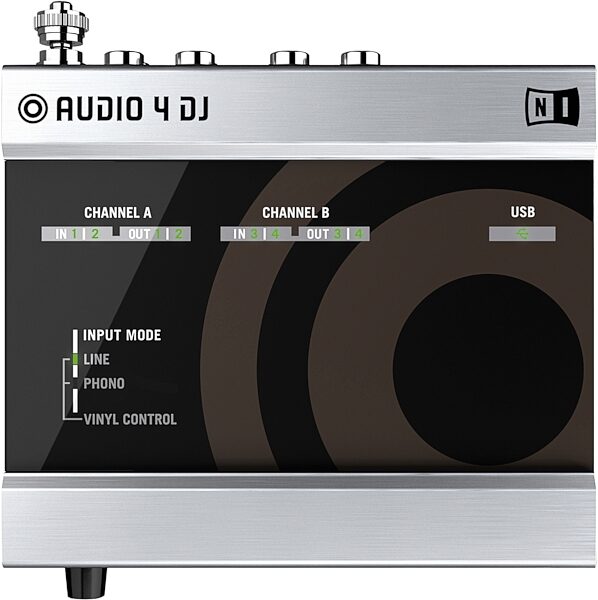

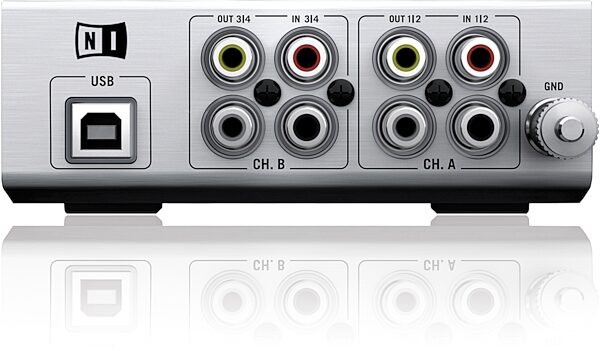

Four switchable inputs and four hi-gain outputs let you make the connection between your DJ performance software and an external mixer or PA. The USB 2.0 connector provides both the interface with your computer and power for the Audio 4 DJ. A high-power 1/4" headphone jack with an independent volume knob, plus eight status LEDs ensure complete audio-visual control.

Brilliant Sound Quality
Optimal sound quality is guaranteed with super high-end Cirrus Logic(R) AD/DA converters. Ultra low-latency drivers, hi-gain output levels (providing up to 9.7 dBu on all channels), and the ultra-wide frequency response affirm the Audio 4 DJ's professional credentials. The uncompromising sound quality and clarity will reveal every detail of your music.

Included Software
Audio 4 DJ comes with a versatile software package to get you mixing and making music straight out of the box.

The included software consists of the products below...

TRAKTOR 3 LE
TRAKTOR 3 LE comes with two fully featured playback decks and an integrated 2-channel mixer with 3-band EQ. Advanced features include intuitive drag-and-drop track loading, beat-accurate looping, auto-sync, four master effects and more.

KORE PLAYER & KORE SOUNDPACK
If you also like to produce your own music, the included KORE PLAYER offers a wide range of premium sounds for use in any sequencer. KORE PLAYER is a software instrument with six sound engines under the hood. The library contains over 600 MB of tweakable, production-ready sounds. The included KORE SELECTION SOUNDPACK gives you a total of 119 instrument and 16 effect sounds.

TRAKTOR PRO Demo Version
Try out Native Instruments' latest professional DJ software: TRAKTOR PRO sets the standard for power, reliability, and creativity in DJing. Mix digital files on 4 decks, using the high quality internal mixer or external hardware, and over 20 unbelievable effects.

Technical Info

System Requirements
Windows(R)Windows(R) XP Pentium or Athlon 1.4 GHz, 512 MB RAM, USB 2.0 port, Service Pack 2

MAC OS(R) X 10.4, G4 1.4 GHz or Intel(R) Core(TM) Duo 1.66 GHz, 512 MB RAM, USB 2.0 port

Dimensions
4 (101 mm) x 4.8 (121 mm) x 1.7 in. (42 mm)

Weight: 1.1 lb (511 grams)

Supported Drivers
ASIO(TM), Core Audio(TM), DirectSound(R)

Power Supply
Power Supply Via USB 2.0 interface, 5V 500mA bus power. No additional power supply or battery is needed.

Audio Inputs (A/D)
Channels: 4

Sample Rate: 44.1, 48, 88.2, 96 kHz

Bit Resolution: 16, 24-bit

Converter: Cirrus Logic

Line Inputs
Input Impedance: 1 MOhm

Full Scale Level: + 12,5 dBu

SNR (weighted): 99,7 dBu

THD+N: 0,019%

Frequency Response +/-1 dBu: 10 Hz-40 kHz

Dynamic Range codec: 105 dBu

Phono Inputs
Input Impedance: 47 KOhm

Full Scale Level @ 1 kHz: - 21,2 dBu

SNR (weighted) @ 1 kHz: 87,2 dBu

THD+N @ 1KHz: 0,09%
Frequency Response +/-1 dBu: 10 Hz-40 kHz

Audio Outputs (D/A)
Channels: 4

Sample Rate: 44.1, 48, 88.2, 96 kHz

Bit Resolution: 16, 24-bit

Converter: Cirrus Logic

Line Outputs
Output Impedance: 100 Ohms

Maximum Output Level: +9,6 dBu

SNR (weighted): 100 dBu

THD+N: 0,006%

Frequency Response +/- 1 dBu: 10 Hz-40 kHz

Dynamic Range codec: 105 dBu

Headphone Output
Load Impedance: 16 Ohms - 600 Ohms

Maximum Output Level (100 Ohm load): 1,55 V RMS (load 100Ohm), 3,1V RMS (no load)

SNR (weighted): 93 dBu

THD+N (100 Ohms): 0,016%

Frequency Response +/- 1 dBu: 10 Hz-40 kHz
