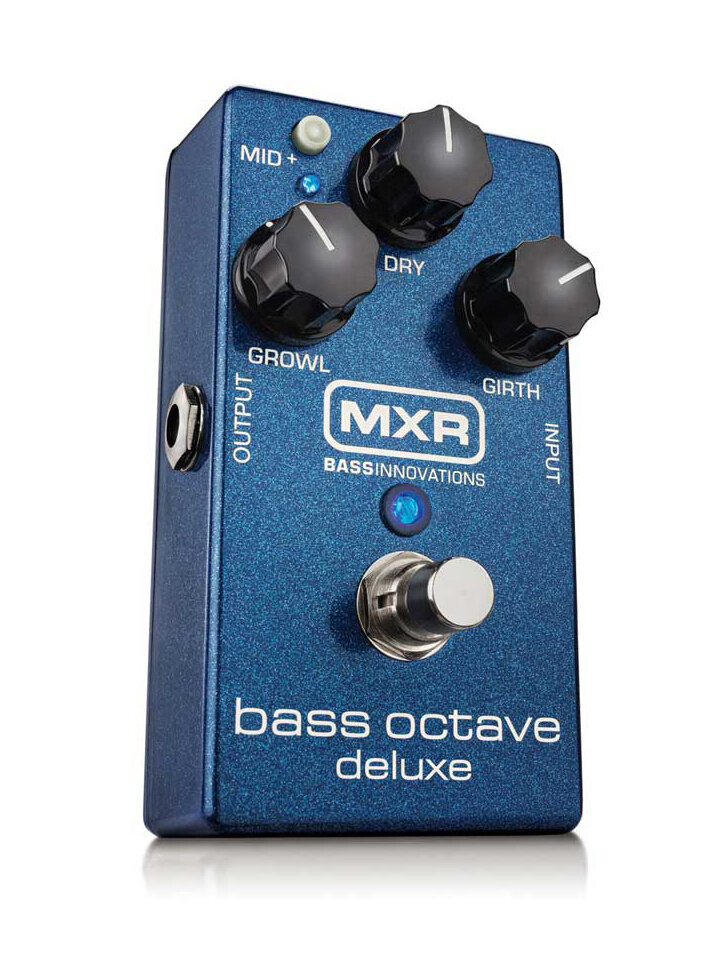

MXR M288 Bass Octave Deluxe Pedal

This dual-voice bass octave pedal from MXR Bass Innovations offers the sound, functionality and tone-shaping options that you've been craving for your bass rig. Compact, lightweight and easily powered by a single 9-volt battery, the M288 Bass Octave pedal utilizes MXR's own 18-volt Constant Headroom Technology (CHT) that provides the kind of studio-performance headroom and superior tracking you've only dreamed about until now.

Features
- Constant Headroom Technology (CHT) for exceptional headroom and tracking

- True Bypass

- Organic Analog Tone

- Two independent octave voices

- Mid+ Switch adds a midrange boost at user selected frequency

- Lightweight and durable aluminum housing

- Compact size that fits any pedal board

Use the Dry knob to mix your direct bass signal with the octave effect, or hit the Mid+ switch to add up to +14dB of internally adjustable low-mid punch (400Hz) or midrange pop (850Hz). Bass players will love the two separately processed and individually voiced octave controls--Growl (for throaty, midrange octave-below tone) and Girth (for deep and smooth octave below).

The Bass Octave Deluxe comes in a durable, lightweight aluminum casting and has the same high-quality jacks and switches that have made MXR pedals the road-ready standard on pedal-boards around the world for over 30 years.

Technical Info

Specifications
Input Impedance: 1 Mohm (Effect On)

Bypass: True Bypass

Signal to Noise: 94dBV A-weighted (Vref 1V RMS)

Output Impedance: 600 ohms

Octave Frequency Bandpass: 8Hz-46Hz, -3dB

Trigger Threshold: 70dBV @ 100Hz

Dry Output Control: -infinity/+2.5dB (MID+ out)

Dry Output Response: 20Hz to 20 kHz, +0/-1dB, -3dB @10Hz

MID+ Switch: Dry Signal Midrange Boost
- 400Hz or 850Hz, Internally Selectable
- +4dB to +14dB, Internally Adjustable

Girth Control: -infinity/+1dB @ 100Hz

Growl Control: -infinity/+6dB @ 100Hz

Power Requirement:
- Standard 9-volt battery
- 9VDC adapter with 5.5mm x 2.1mm positive barrel & negative center

Current Draw: 14mA
