Product DescriptionAs the first-ever "hybrid" audio interface of its kind, the MOTU UltraLite-mk3 Hybrid provides flexible and mobile operation via FireWire or hi-speed USB2 connectivity to a Mac or PC computer, with professional audio quality at samples rates up to 192 kHz and plenty of I/O, including two mic/instrument inputs, six line-level analog inputs, ten channels of analog output, stereo S/PDIF and a stereo headphone output.

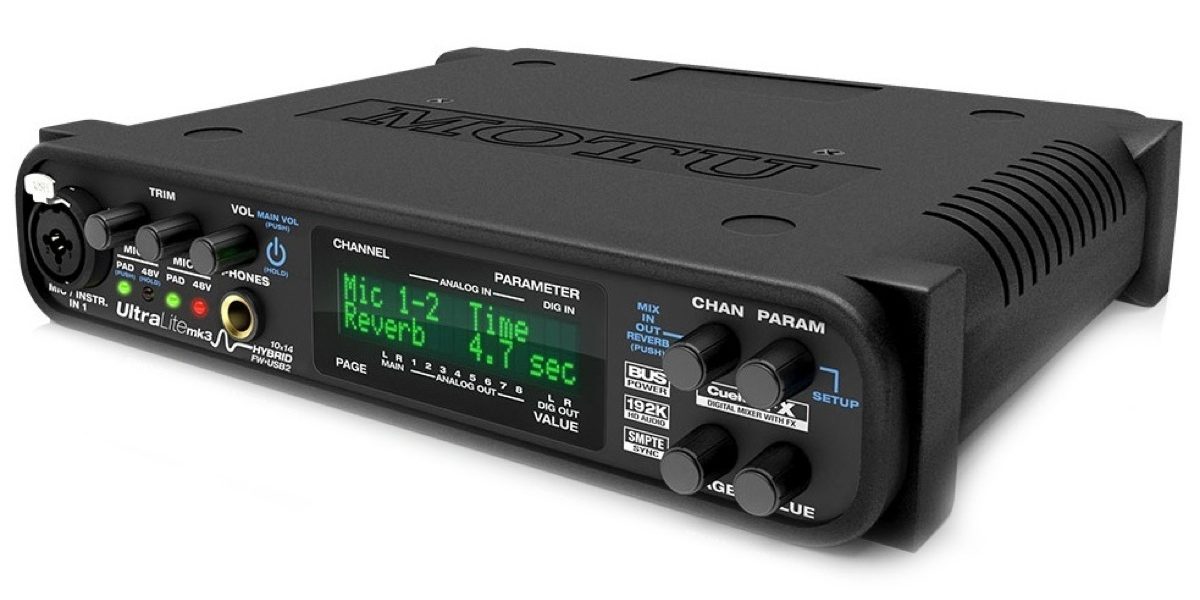

Housed in a rugged, compact half-rack enclosure you can take anywhere, the UltraLite-mk3 Hybrid is equally well-suited for studio and stage, with or without a computer. As an interface or standalone mixer, the UltraLite-mk3 Hybrid provides 10 separate inputs and 14 separate outputs.
Connect all of your studio gear, including microphones, guitars, synths, keyboards, drum machines, effects processors and even MIDI devices. Record, monitor, route and process all of these live inputs using the professional on-board CueMix FX digital mixer -- with no latency and no processor strain on your computer. Apply hardware DSP-driven effects processing to inputs, outputs, and busses independent of your host computer. Add Classic Reverb(TM) with lengths up to 60 seconds. Further sculpt your sound with 7-band parametric EQ featuring filter types carefully modeled after British analog console EQs. Choose between two forms of compression: a conventional compressor and the Leveler(TM), an accurate model of the legendary LA-2A(TM) optical compressor that provides vintage, musical automatic gain control.

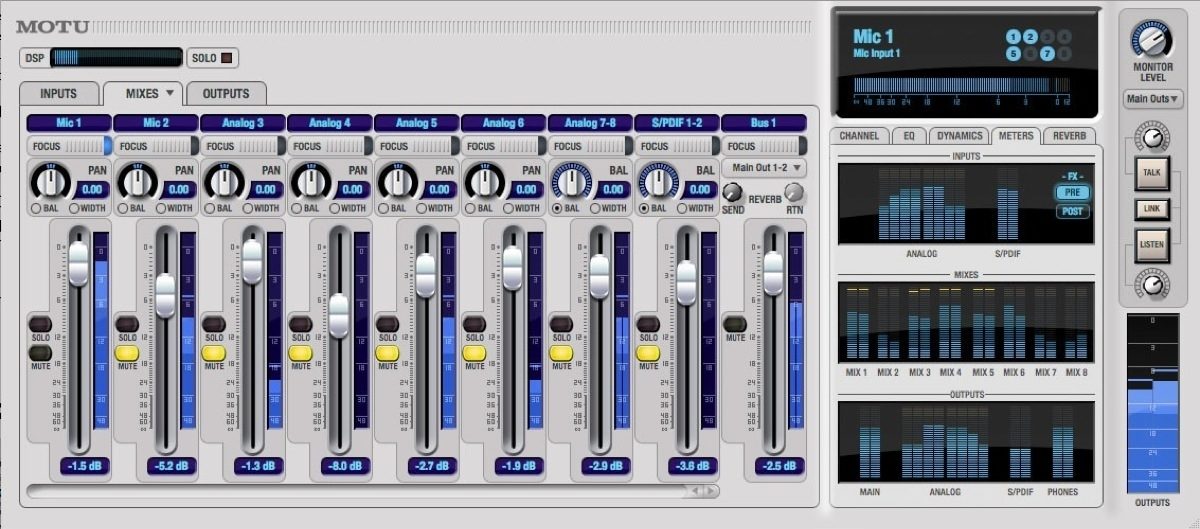

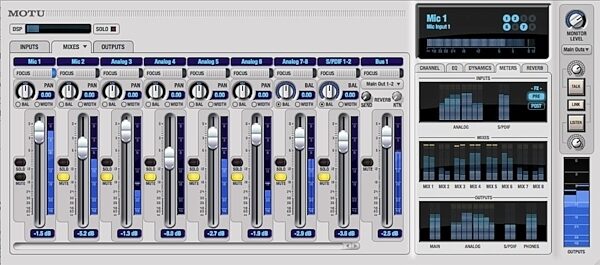

The included CueMix FX cross-platform mixing software provides attractive graphic mixing, graphic editing of parametric EQ, and a convenient tabbed interface for quick access to all features in one window. Use the CueMix FX to tune your guitar and other instruments. Advanced signal analysis tools include a full-screen real-time FFT display, spectrogram "waterfall" display, oscilloscope, X-Y plot and linear or polar phase analysis.
After programming the on-board mixing in the studio, unplug the UltraLite-mk3 Hybrid from the computer and take it on the road for operation as a stand-alone mixer with effects. All mixing and effects parameters are adjustable using the front panel backlit LCD.
The UltraLite-mk3 Hybrid provides cross-platform compatibility with Mac and Windows and all of your favorite audio software and host-based effects via WDM/ASIO/Core Audio drivers. Or you can use the included AudioDesk workstation software for Mac, with 24-bit recording/editing and 32-bit mixing/processing/mastering.
Comprehensive I/OThe Ultralite-mk3 Hybrid allows you to connect a wide variety of studio gear, including microphones, guitars, synths, keyboards, drum machines, effects processors and more.

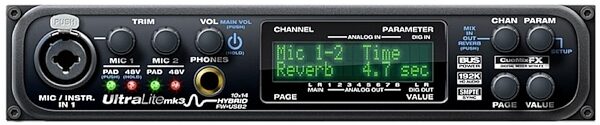

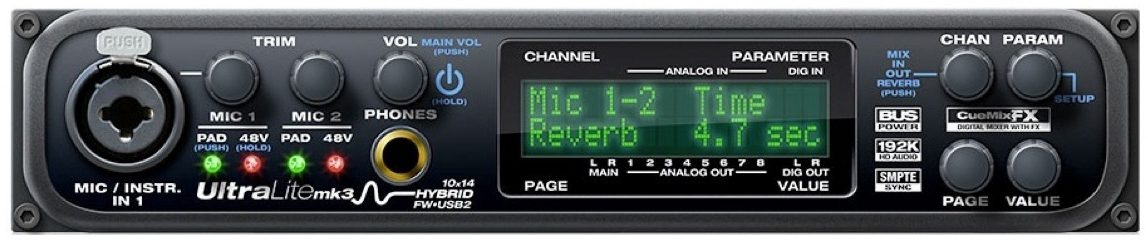

Front panel I/O
The Ultralite-mk3 Hybrid's front-panel volume knob controls the headphone or main outputs with the press of a button. Additionally, the knob can be programmed to control any combination of outputs (analog and/or digital). For example, it can control monitor output for an entire 5.1 or 7.1 surround mix.
Digitally controlled analog input trimAll of the UltraLite-mk3 Hybrid's analog inputs are equipped with digitally controlled analog trim controls that allow adjustments in precise 1 dB increments. The mic/guitar input trims can be adjusted using front-panel digital rotary encoders that provide feedback in the front panel LCD. All analog inputs, including eight TRS analog inputs, can be trimmed using the CueMix FX control software for Mac and Windows.
This allows you to fine-tune your trim settings for synths, effects modules and a wide variety of analog inputs for optimum levels. Different trim configurations can then be saved as files on disk for instant recall.

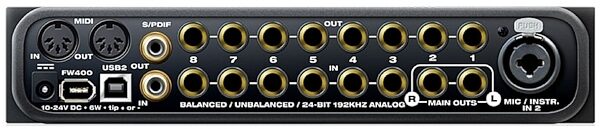

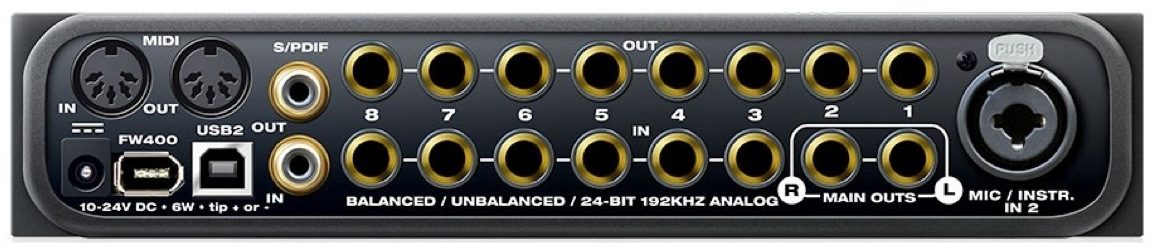

Rear panel I/OSix balanced (TRS) 24-bit analog inputs and ten outputs can operate at sample rates up to 192 kHz (a total of eight analog inputs and ten analog outputs). RCA S/PDIF connectors also supply independent stereo digital I/O.
Control room monitoringPowered monitors can be plugged directly into the outputs of the UltraLite-mk3 Hybrid and you can attenuate the output from the software or the front-panel VOL control. Main out volume is not limited to stereo operation: quad, 5.1, 7.1 and even user-defined configurations are available. You can even program the UltraLite-mk3 Hybrid to control all 14 outputs with the VOL knob.
zZounds is an authorized dealer of Mark of the Unicorn (MOTU) products.
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 6 lbs
MOTU offers a 2 year warranty on all Firewire interfaces and all Video/Audio interfaces. USB MIDI interfaces and PCI Audio interfaces carry a 90 day warranty.
If you have additional warranty questions, please contact the manufacturer at 617-576-2760
