Provides 8 MIDI IN, 8 MIDI OUT, and 128 MIDI channels. Plug-and-play compatible with all Macintosh and Windows software. Sixteen convenient, 1-touch front-panel presets (8 factory and 8 user programmable). Software console for both Mac and Windows provides comprehensive routing, merging, and muting.
Converts and stripes SMPTE in all frame formats (24, 25, 29.97 drop and non-drop, and 30). SMPTE jam sync with adjustable freewheeling for drop-out free sync. Supports MIDI Machine Control. Serves as either an MMC master or slave; distributes MMC transport commands to all other MMC devices. Pedal input for momentary foot switch or audio click-to-MIDI conversion. Internal power supply (no wall-warts!).
The MIDI Express XT takes full advantage of USB, giving you increased MIDI throughput, better timing accuracy, support for "hot-swapping" and plug-and-play expansion. Need to connect another sound module or synth? No problem. Just add another MOTU USB MIDI interface via a standard USB hub.
No other MIDI interface offers this much value at such an affordable price.
Features
MIDI Time Stamping (MTS) ready
MIDI interface for Macintosh and Windows
Stand-alone MIDI patchbay/merger/processor
SMPTE tape sync in all formats
8x8 MIDI merge matrix -connects any device to any other
Front panel presets
8 independent MIDI IN
8 independent MIDI OUT
128 MIDI channels
Supports MIDI Machine Control transport messages
Pedal input for momentary foot switch
Audio click input - converts audio click into MIDI data
16 presets with 8 programmable, battery-backed memory
Recalls setups via MIDI patch change
Includes software for Macintosh and Windows
Internal Power Supply
MIDI Processing
Merge any inputs to any outputs
Route any inputs to any outputs
Mute any MIDI data on any cable
Re-channelize on input and output
Synchronization
SMPTE time code (LTC) generator and reader
Converts LTC to MIDI Time Code (MTC) to sync a Mac, PC, or any other devices to SMPTE time code
Converts all SMPTE frame rates (24, 25, 29.97 drop, 29.97 non-drop, 30)
Stripes SMPTE time code in all frame rates (24, 25, 29.97 drop, 29.97 non-drop, 30)
Converts MIDI Time Code to SMPTE time code
SMPTE "Jam Sync" with adjustable freewheeling for dropout-free sync
Supports MIDI Machine Control -- serves as either an MMC master or slave, distributes MMC transport commands to all other MMC devices
Technical Info
Custom-designed VLSI technology

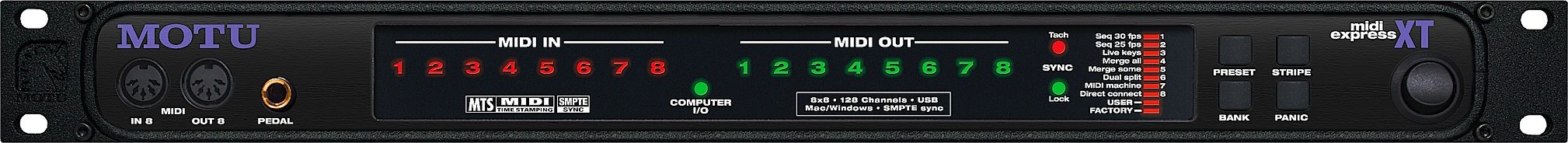

Front panel buttons and LED's for choosing presets (8 factory, 8 user)
Front panel SMPTE stripe button
Front panel SMPTE lock and tach LEDs
Status lights for MIDI IN/OUT and computers

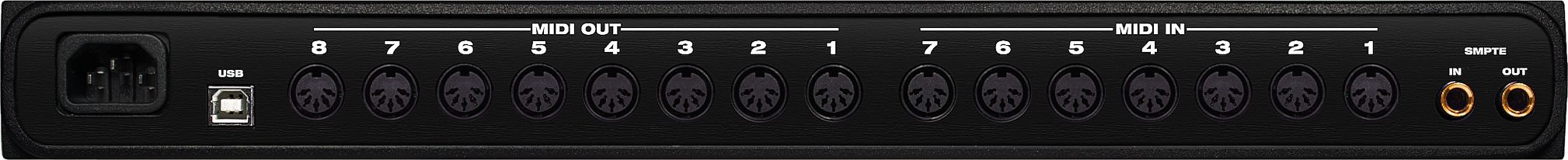

Front panel MIDI IN and OUT ports
Panic button
17 MIDI connectors
2 SMPTE 1/4 in. phone (line level)
1 pedal 1/4 in. phone input (configurable for switch pedal or click-to-MIDI conversion)
1 Mac mini-DIN 8 serial
1 IEC power connector (switchable 115V - 220V)
Included Accessories
Software console for Macintosh and Windows
1 power cord
1 USB Cable
