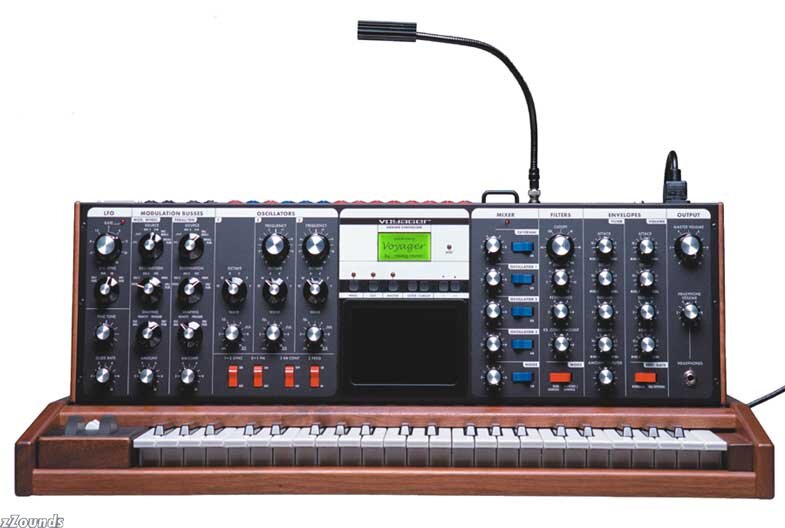

Moog Music Minimoog Voyager Performer Analog Synthesizer

The Minimoog Voyager Performer Edition is a real analog synthesizer in the tradition of the original Model D minimoog. It adds modern features like MIDI, a touch surface controller, preset memory, and many new synthesis features. If you want THE Moog sound, this is it. Period. This has Bob Moog's legendary synthesizer design expertise in its circuits. Say no more. It sounds amazing, looks amazing, and feels amazing. There is no substitute. Treat yourself to a feast of the senses. The Minimoog® Voyager Synthesizer is a monophonic (one note at a time) analog performance synthesizer. It incorporates virtually all of the sound resources and functions of the original Model D Minimoog, which was produced by Moog Music, Inc. from 1970 to 1982. It has many new additional features, including a three dimensional touch surface, MIDI IN and MIDI OUT implementation, extensive patching facilities, and a large number of new panel features.

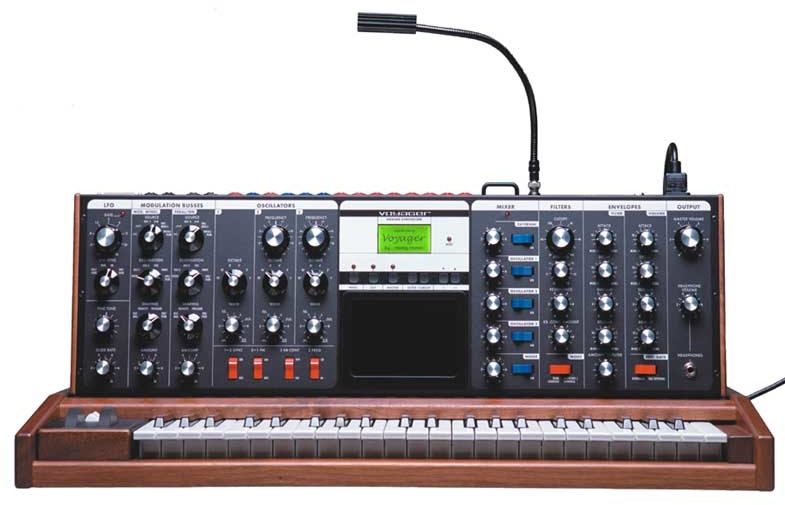

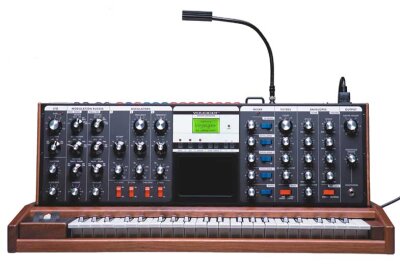

Minimoog® Voyager Performer Edition
Moog Music presents the award-winning minimoog Voyager Performer Edition, an all analog performance synthesizer incorporating virtually all of the functions of the original minimoog synthesizer, produced from 1971 to 1984, and a number of new features that bring makes this the minimoog for the 21st Century.

This investment will last you a life-time. The Voyager is paneled in oak with a stunning custom finish. Features include 3 ultra-stable oscillators, dual moog filters, 4-stage analog envelope generators, flexible modulation busses, and much much more...

The signal path starts with a bank of three wide-range, high-stability voltage controlled oscillators, one noise source, and one audio preamplifier for externally-applied audio signals. The sound modifiers are two Moog filters and one stereo VCA (Voltage Controlled Amplifier). Modulation sources are two ADSR (Attack Decay Sustain Release) envelope generators and one multiwaveform LFO (Low Frequency Oscillator).Control devices include a 44-key keyboard with velocity and afterpressure outputs, pitch bend and modulation wheels, a three dimensional touch surface, and many control/pedal input jacks.

The Minimoog® Voyager has a hinged, multi-position panel and a solid hardwood cabinet. The power supply accepts any power voltage from 100 volts to 240 volts.

Technical Info

Specifications
Oscillators Module
Three wide-range, high stability VCO's (Voltage Controlled Oscillators) with continuously-variable waveforms.

Frequency controls (2) vary the frequencies of Oscillators #2 and #3 over a +/-7 semitone range with respect to Oscillator #1.

Mixer Module
Five-input mixer for combining the audio sources prior to filtering. Input Level controls (5) adjust the relative levels of the oscillator, noise, and external audio input signals.

Input switches (5) enable the player to quickly switch individual audio signals in and out.

External Level LED enables the player to set the correct external audio signal level.

Filters Module
Dual mode filter module includes dual lowpass and highpass-lowpass filtering. Dual lowpass mode consists of two Moog lowpass-resonant filters in parallel, one per output channel. Highpass-lowpass mode consists of Moog lowpass filter in series with a highpass filter.

Cutoff control sweeps the frequencies of both filters throughout the audio range.

Spacing control sets the spacing between the frequencies of the two filters, over a +/-3 octave range.

Resonance control adjusts the resonance of both filters, from none (pure lowpass response) to filter oscillation.

KB Cont Amount control sets how much the filters open and close as the player presses different keys on the keyboard.

Dual Lowpass/Highpass-Lowpass switch selects between dual lowpass operation or highpass-lowpass operation.

Envelopes Module
The Envelopes Module generates two wide-range ADSR (Attack Decay Sustain Release) envelopes. The Filter Envelope sweeps the filter and is available for modulation shaping. The Volume Envelope shapes the overall volume. ATTACK controls (2) determine the attack times of the envelopes.

LFO Module
Low Frequency Oscillator generates triangular, square, Sample & Hold, and smoothed Sample & Hold waveforms for use as modulating signals. RATE control sets the LFO rate over the range 0.2 Hz (one cycle every five seconds) to 50 Hz (fifty times a second).

Modulation Busses Module
Selects the sources, destinations, and shaping signals for the MOD WHEEL bus and the EXT PEDAL/ON bus. SOURCE selectors (2) selects the modulation source from the LFO triangle or square waveforms, Oscillator# 3, sample and hold, the external modulation input (MOD2) or noise.

Output Module
Headphones jack: 1/4 in. TRS phone jack for regular headphones.

Glide and Fine Tune Module
Glide varies the speed at which the keyboard voltage changes, from instantaneous to several seconds.
Fine Tune adjusts the overall tuning of the instrument.

V 1.5 Software Capabilities
Voyager Software developed by Rudi Linhard of Lintronics.
Rudi is also responsible for the software development of the LAMM (Lintronics Advanced Memorymoog); the LMC (Lintronics MIDI Converter for minimoog and other vintager analog synthesizers); and the Ethervox MIDI theremin. Lintronics website is www.lintronics.biz

Front Panel Storage and Recall:
Except for the Fine Tuning control, the settings of all front panel controls, selectors, and switches are stored in the nonvolatile digital memory. A total of one hundred twenty eight front panel presets may be stored for instant recall.

Transmission and Reception of Keyboard Data Via MIDI:
Polyphonic note-on and note-off with velocity can be transmitted (Note numbers 53-96).The Voyager responds to note-on (0-127) messages monophonically user defineable note priority. The Voyager's Front Panel Controls respond to MIDI CCs.

Uploading and Downloading of Bankd of Settings Via MIDI:
Program banks may be uploaded and downloaded via MIDI System Exclusive. Individual Presets may also be transferred by this method.

Updating of Operating Software Via MIDI:
The instrument's operating software can be updated via MIDI files (.syx Sysex files) which will be available on Moog Music's web site in the Support Docs and Software section.

Player Control Interfaces
44 KEY KEYBOARD produces Pitch, Gate, Velocity, and Pressure control outputs.

Three Dimensional Touch Surface provides three continuously-variable control signals which are derived from the up-down and left-right position of the player's finger, and the amount of area with which the player makes contact to the surface.

Pedal/Control Inputs
These ten jacks have red nuts. They accept either expression pedals or control voltages, and control the following performance parameters:
Volume
Pan
Filter Cutoff
Waveform
Pitch
Mod2 - External Modulation Source
Mod1 - External Control of the pedal Mod. bus
Sample and Hold IN
Envelopes Rate
LFO Rate

Accessory Port
The Accessory port delivers the Control Voltage and gate signals generated inside the Voyager to a standard DB-25 connector. This is designed for use with the VX-351 Voyager CV Expander.

Other
LFO Sync: A footswitch or gateapplied to this input will reset the LFO waveform to the beginning of its cycle.

Envelopes Gate: A footswitch or gate applied to this input will start the envelopes.

Sample and Hold Gate: A gate signal applied to this jack will trigger a new sample and hold voltage.

Release: A foot switch plugged into this jack will have the same effect as depressing the corresponding switch on the left hand controller panel.

Mixer Ext In: Plug any instrument-level or line-level audio signal in this jack to combine with the oscillator and noise signals prior to filtering.

Mix Out/Filter Audio In: The output of the audio mixer appears here, before being fed to the filter. Normally, the Mixer output is bridged directly to the filter input. If you plug something into this jack, that breaks the normal connection. Using a standard insert cable (1/4" TRS plug to two 1/4" TS plugs) this jack can be used as an effects loop for external processing of the Mix before it goes to the filter.

Left(Mono) and Right Audio Outputs: The audio outputs are 1/4 " unbalanced outputs. The two output channels are summed to mono when only the left(mono) output is used.

12V Lamp: The BNC Lamp Socket provides 12VDC for a gooseneck lamp.

MIDI In, Thru, and Out Connectors: Standard MIDI connectors for interfacing with other MIDI gear.

Power Input: The Voyager's power input accepts a standard power cable. The Voyager works from 100-250 VAC, 50-60 Hz.

Dimensions (W x H): 30 1/2 in. x 12 in. (when fully upright); 3 in. high x 18 in. deep (when flat).

Weight: 40 lbs.
