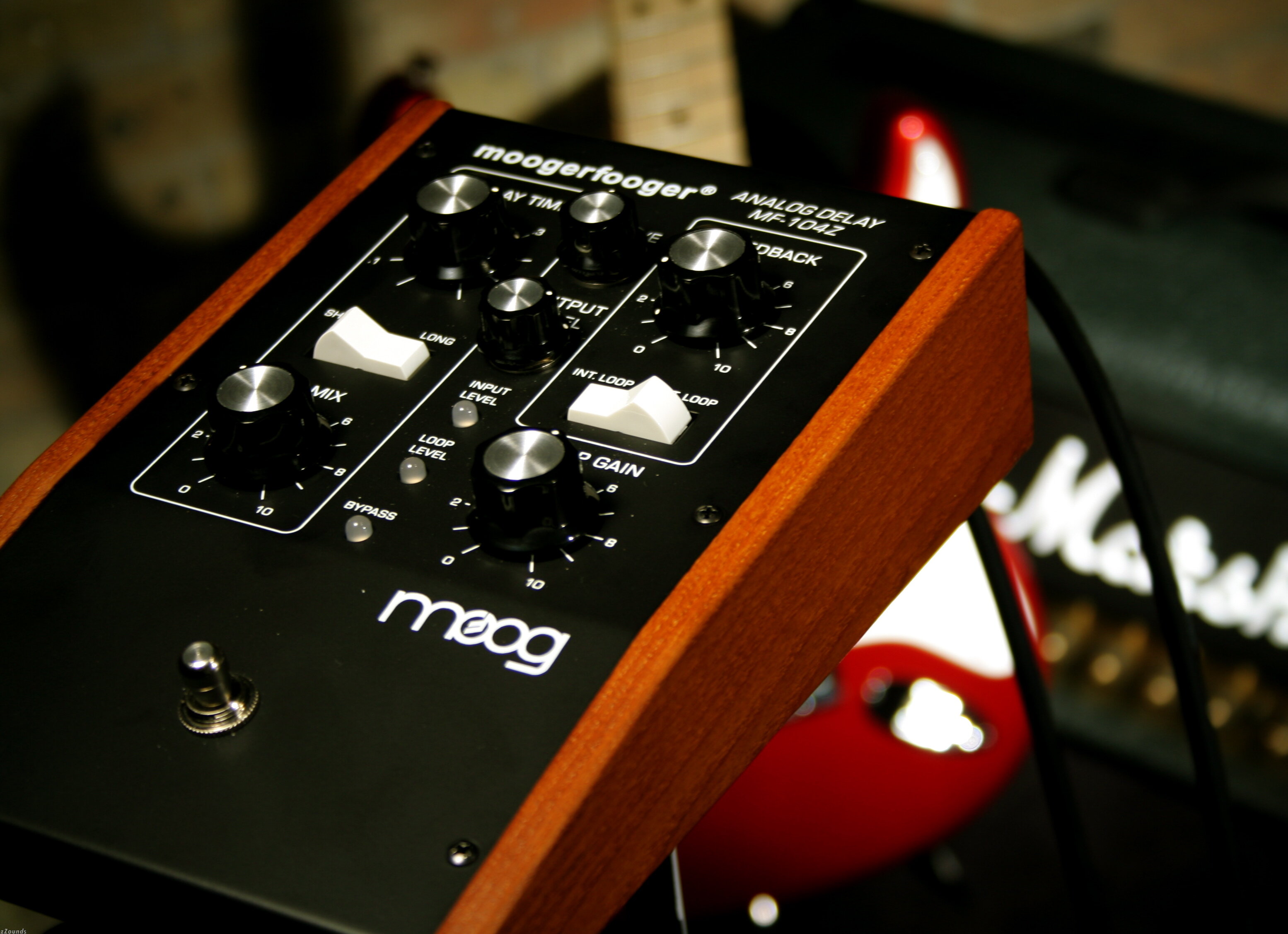

Moog Music MF104Z Moogerfooger Analog Delay Pedal

The new 'Z' from Moog Music is a 1000 msec totally analog delay. One Full Second of analog delay time makes the MF-104Z the longest standalone analog delay module on the market. That's exciting but the reason many of you have been clamoring for Moog to build a delay (again) is the unmistakable sound, quality, and flexibility of this newest Moogerfooger.

Technical Info

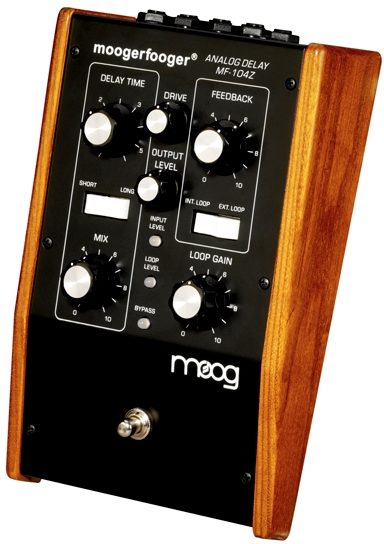

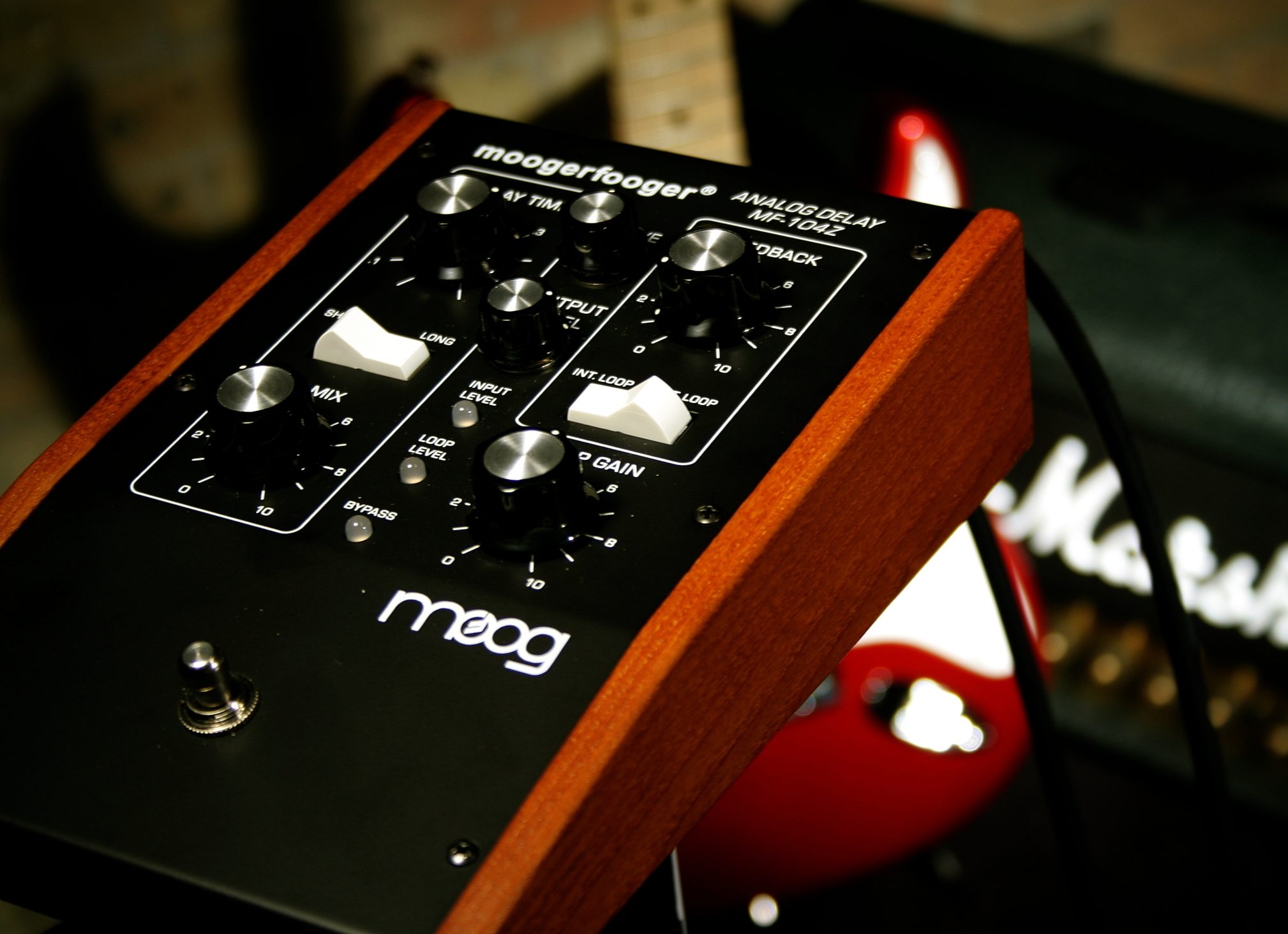

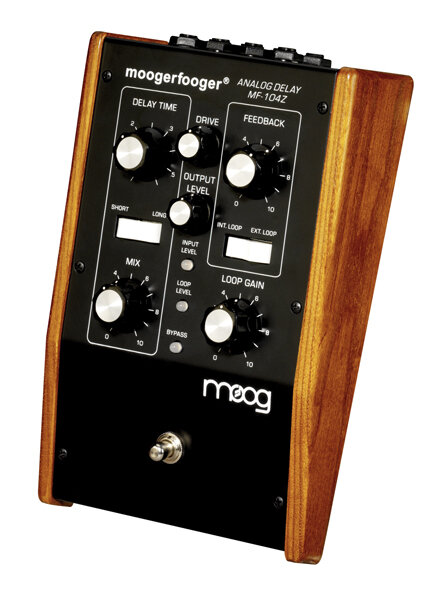

The MF-104Z sounds fantastic and like all Moogerfoogers it has controls that allow you to vary the sound in a variety of ways that you can only do with a Moogerfooger. Controls include:

Drive and Output Levels allow you to set-up the Z to match the type of signal you want to delay from low level signals (vocals,guitar) to strong signals (studio console output, drum machine). The Z is designed to work with them all.

Delay time: from slightly less than 50 msec to slightly more than 1000 msec.

Mix: Pot Control from completely Dry to completely Wet or anything in between.

Feedback Control mixes a portion of the delayed signal with the signal from your instrument. Feedback control can generate a single echo, sustaining echoes, or echoes that build up in chaotic ways.

Switchable Internal Loop / External Loop selects the feedback path. In the Internal Loop position the feedback path goes directly from the output of the delay back to the input. In the External Loop position the feedback path goes through the Loop Out Jack and the Loop In Jack. This gives you an opportunity to insert signal processing in the feedback path, thereby enabling processing of the echoes as they are generated. Very cool with another Moogerfooger (unbelievable with the MuRF).

Loop Gain controls the signal level which is applied to the Loop In jack when the -External Loop is on.

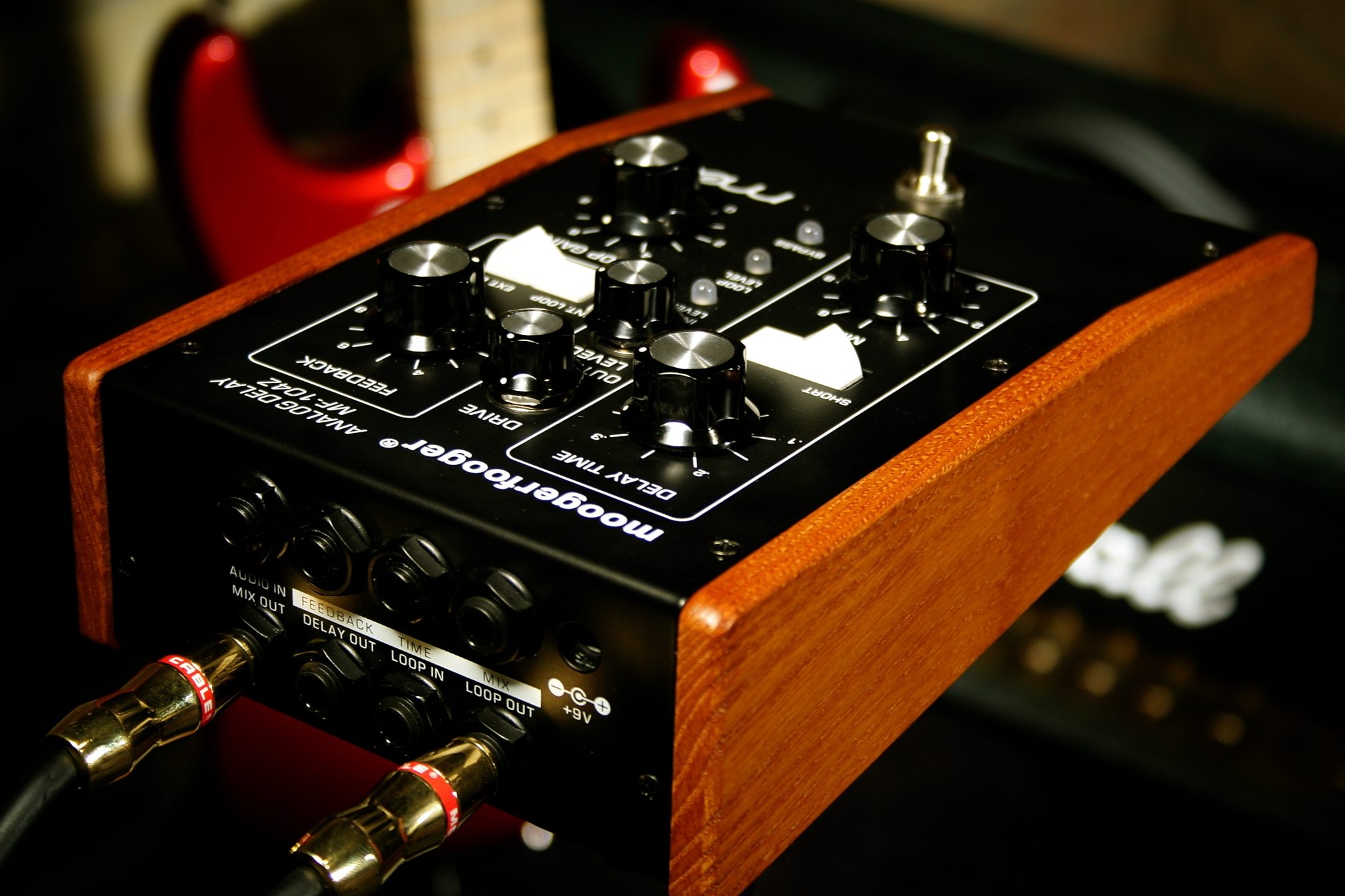

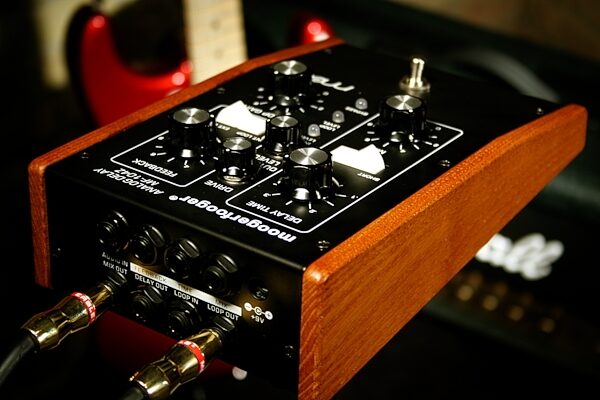

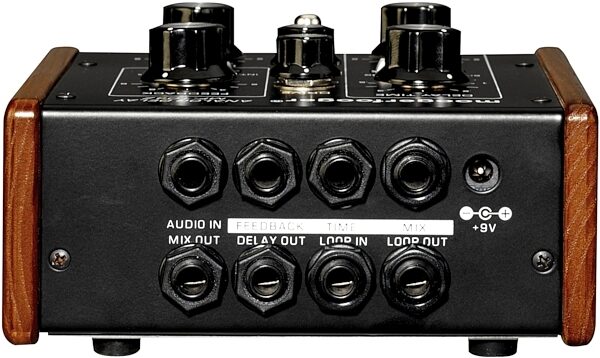

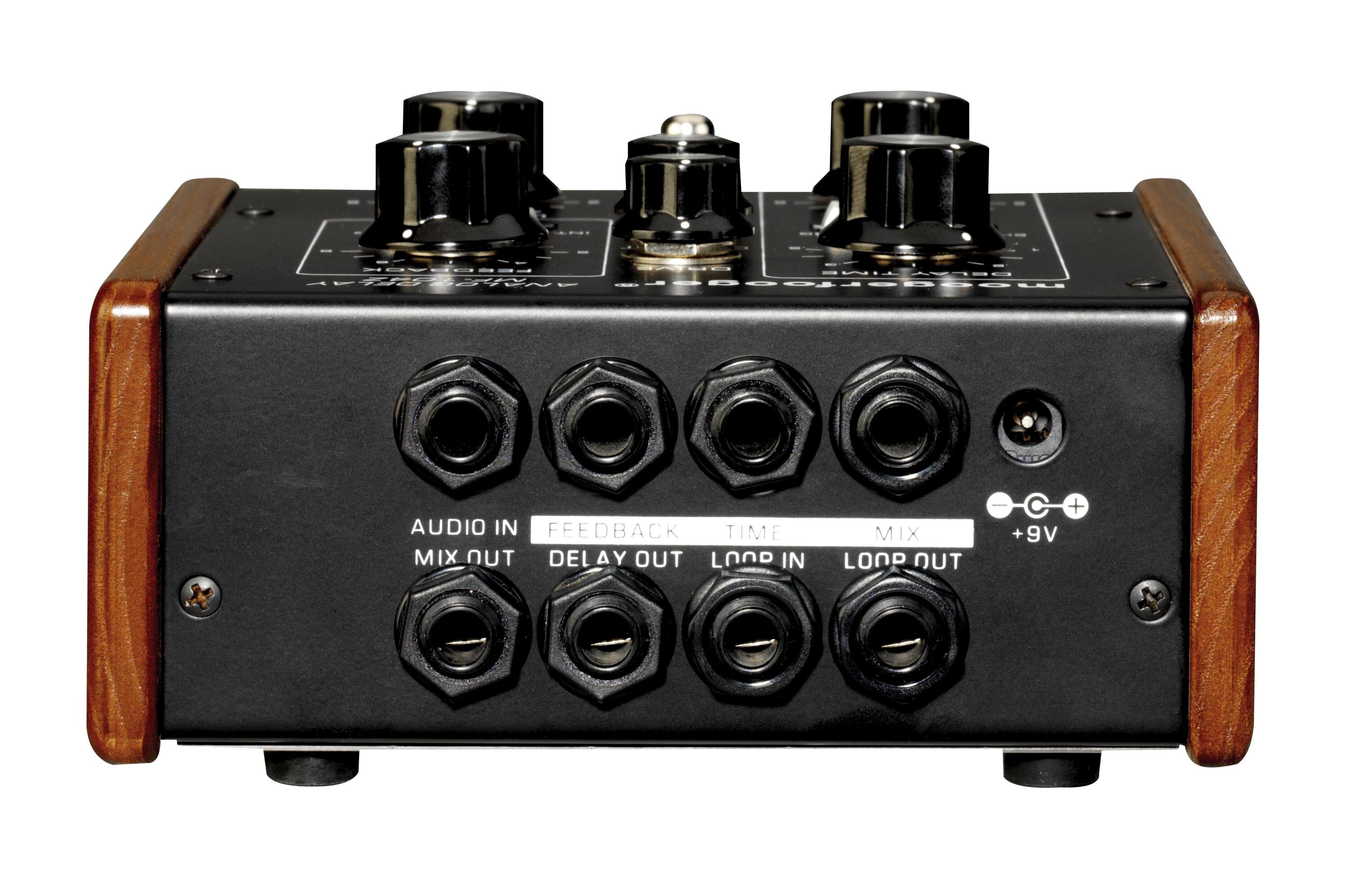

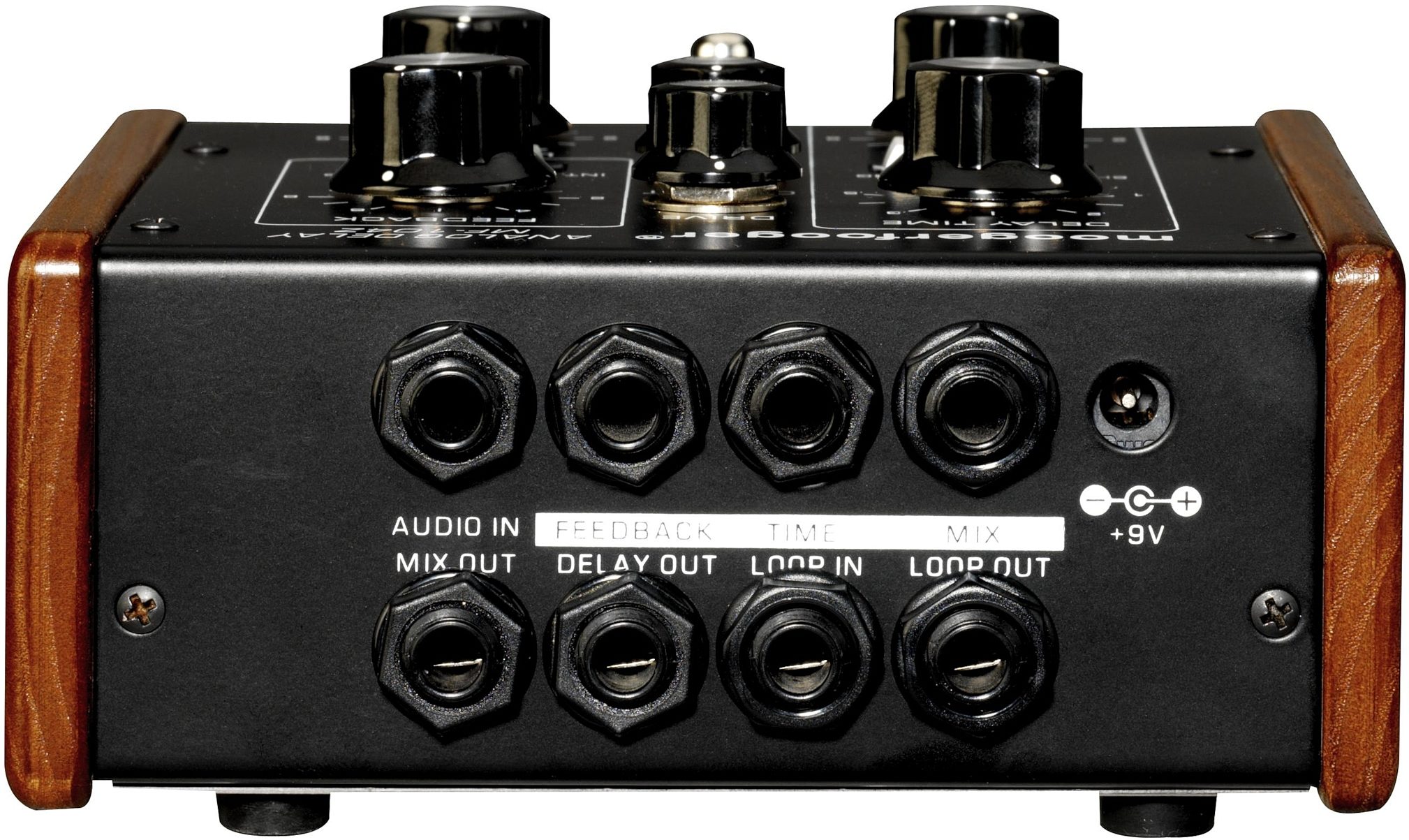

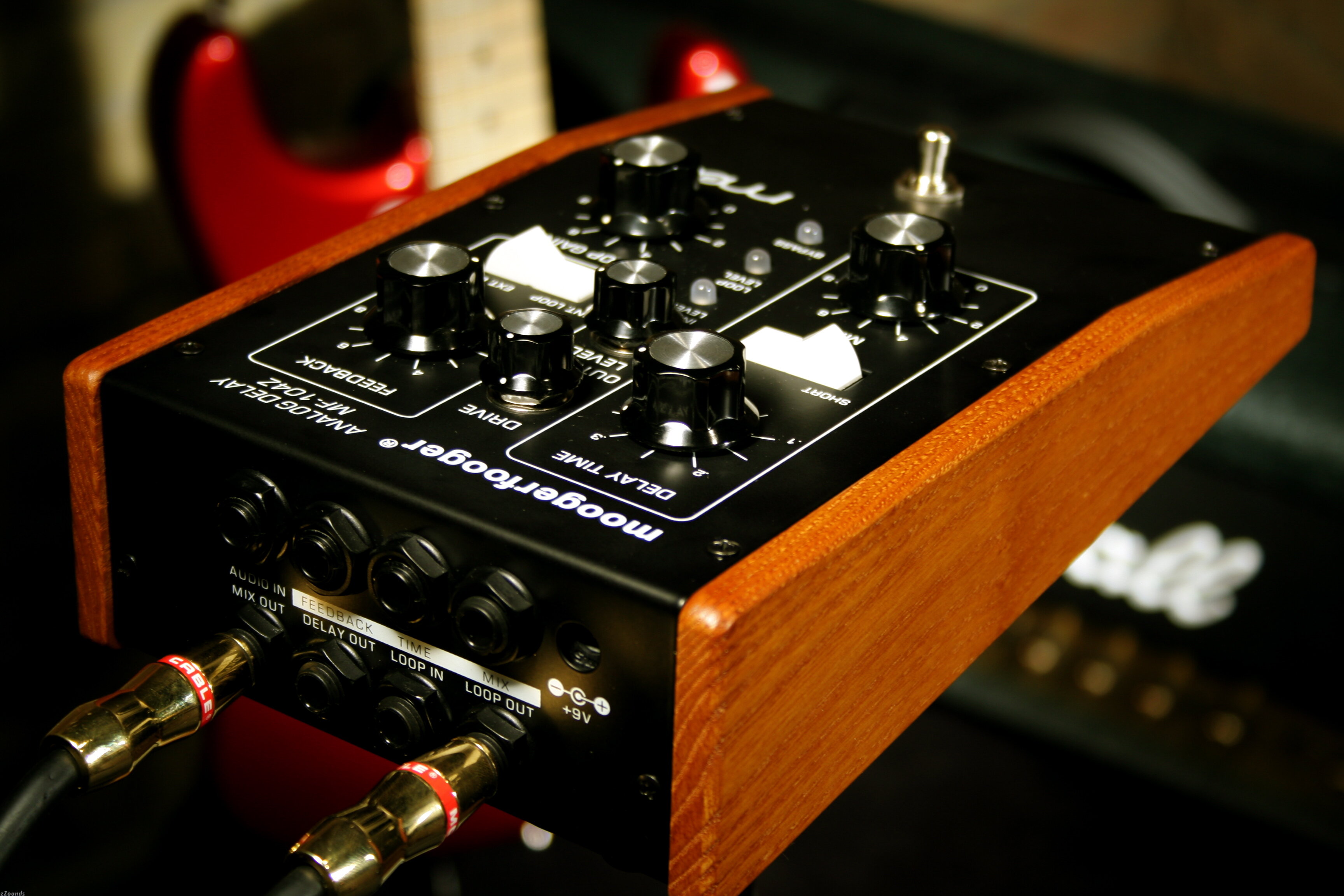

Here is a listing of the jack inputs and outputs on the back of this incredible effect:

Inputs:

Audio In

Feedback Amount, Delay Time, and Wet/Dry Mix each of these can be controlled from a Moog Expression Pedal thru individual jacks on the back of the Z.

Outputs:

Mix Out and Delay Out - the Output Level on the front panel adjusts the levels of the direct and delayed signals that appear at the Mix Out and Delay Out.

AND..
Loop In and Loop Out as previously mentioned.

The MF-104Z will be shipping in September but due to the uncertainty of supply we strongly suggest you reserve yours today. You can order directly from Moog or click on the DEALER tab above to find the dealer nearest you or an online store.
