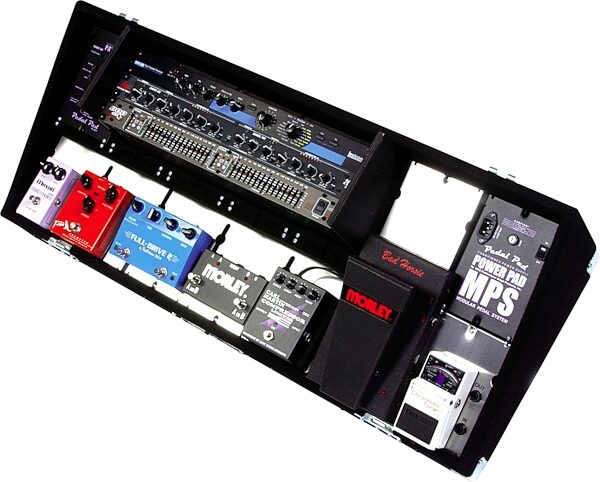

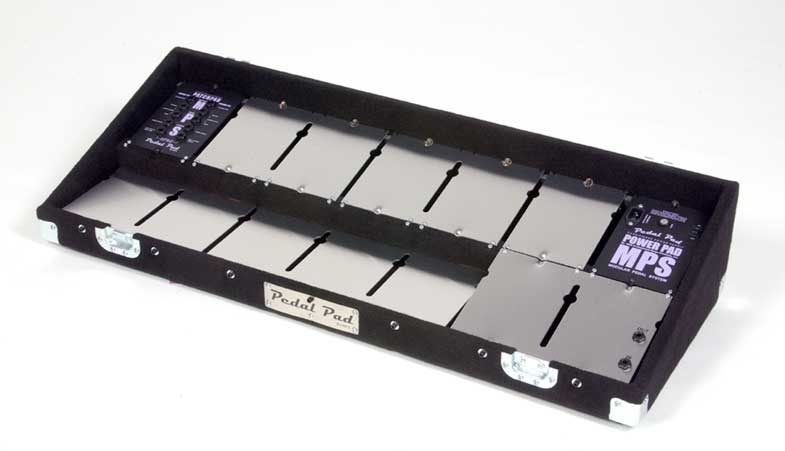

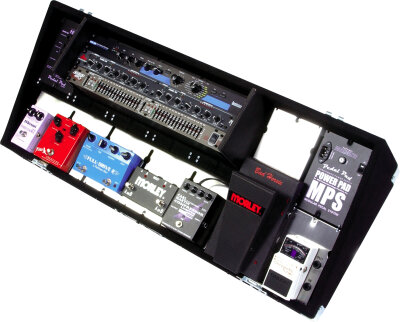

MKS Professional MPSXL Pedal Pad Pedalboard

The Pedal Pad MPS-XL features a patented adjustable pitch pedal surface and heavy-duty aluminum pads with channel-routing slots. This model includes Pedal Pad's signature power supply, Power Pad, and their new Patch Pad stereo routing module. This model is designed to be extra-long with 3-space rack mount or space for more pedals.

What is Pedal Pad
Dreaming of the perfect pedal board? Well stop dreaming! MKS Professional Stage Products has effectively bridged the gap between custom and entry level equipment by producing a modular design that allows players the ability to customize their own set-up for a fraction of the cost!

What contributes to Pedal Pad's quality design?
Every component they use is the best quality available and there is no injection molding

Pedal Pad's MPS comes with Power Pad power supply with eight 9-Volt DC outputs and a 110-Volt AC output

Pedal Pad's weight, when fully loaded, is balanced and carries like a 2-12 amplifier

Point to point audio minimizes signal loss

Aluminum mounting surface provides superior adhesion of industrial grade hook and loop tape (included) so pedals stay put

Every Pedal Pad is handmade by experienced professionals

What makes Pedal Pad convenient to use?
Nearly limitless wiring options

Lighter weight, rugged design makes packing and carrying even easier

New quick-release features allow players to access signal routing - no tools needed!

Stair Step mounting surface gives better visibility of pedals and easier access to you during practice or performance - You don't have to "point your toe" to hit the right pedal

Quick and easy setup and tear-down. Just pop off the top, plug in, and play!

Adjustable pitch mounting surface provides maximum comfort, especially when using Wah and Volume pedals

How does Pedal Pad protect your equipment investment?
Dedicated guitar input maximizes pedal life and makes plugging in your guitar effortless

Fully enclosed cabinet protects pedals, maintains settings, makes for easy transport, and creates "stackability"

Pedal Pad wears through the roughest rides! It's tough, rugged construction, metal corners, and heavy duty lockable latches give it what we call "road worthiness"

2 sets of rubber feet provide non-slip stability and minimize cabinet wear in transport and during performance

Technical Info

Power Pad
Voltage: 120 VAC 5C/60Hz

Input Current: 6 Amps (fuse protected)

Output Voltage: 120 VAC

Output Voltage: 9 Volts DC (8 outputs)

DC Current: 1 Amp Total

Spike Protection: Line to Neutral and Line to Ground

Max Spike Energy: 70 Joules

Max Surge Current: 6500 Amps

Max Clamping Voltage: 680 Volts

Response Time: 1 Nanosecond

Connections: AC In - IEC style grounded cord (10 foot) DC Out - 2.1mm (IS), 5.5mm (OS)

Includes 8 DC cables for connecting pedals to power pad.
