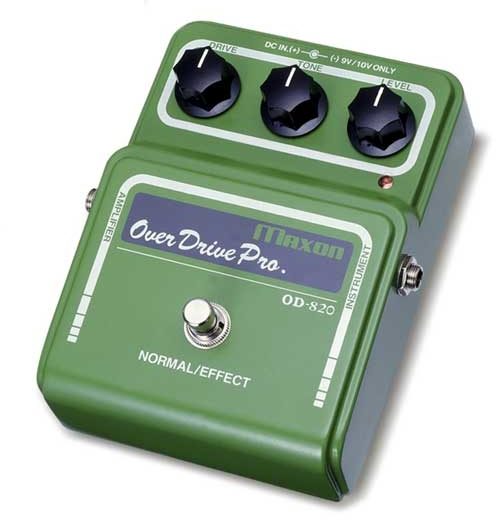

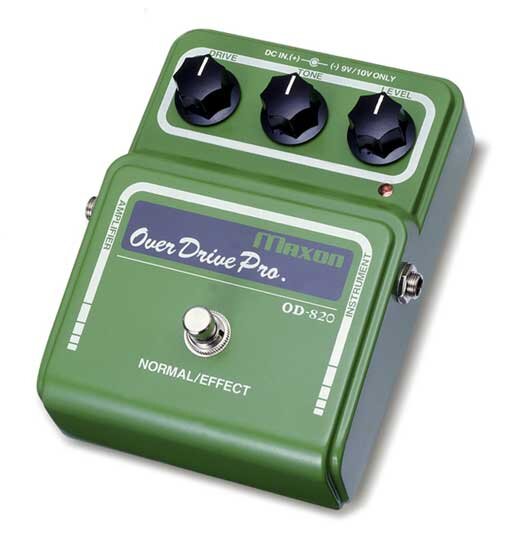

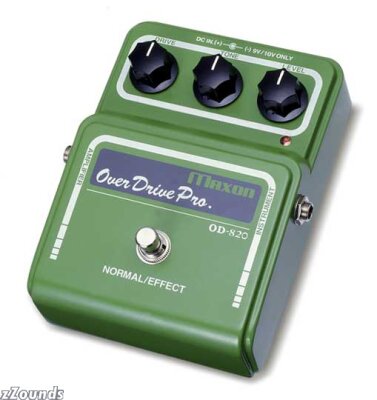

Maxon set the standard for overdrives with the OD808 - now they raise the bar with the OD820! Unique voltage-doubling circuitry offers increased headroom, yielding the smoothest, warmest, most transparent overdrive ever! The OD820's specially designed circuit reacts precisely to every picking nuance and playing dynamic, making any instrument or amplifier come alive! Features true bypass switching and 9-volt battery.
Vintage Series
"So amazing, they're already classics." At Maxon, they don't believe you should have to wait 20 years for your effects to become classics. That's why they developed the Maxon Vintage Series - the absolute ultimate incarnations of 5 of the most popular effects for guitar. Find out what it really means to own a classic - own a Maxon Vintage Series Effect today!
About Maxon
Since their humble beginnings as a guitar pickup manufacturer in 1966, Nisshin Onpa Co., Ltd. (Maxon) has strove to supply musicians with the ultimate tools of the trade. Highly respected for their manufacturing prowess, Nisshin Onpa has designed and manufactured some of the most famous music products of our time, including many of the most sought-after guitar effects units and wireless systems from today's top suppliers. In addition, Nisshin's own brand of Maxon products has achieved a legendary status among Tone Freaks and Gearheads across the globe due to their superior quality and unsurpassed tone.
Over 30 years since their inception, Nisshin Onpa is once again offering Maxon products to the discerning musician. Their line of Reissue Series compact Guitar effects and the all-new line of Vintage Series effects are the absolute ultimate tone machines and offer uncompromised sound and superior manufacturing quality for those of us who will accept nothing less than the best.
Technical Info
Input Impedance: 500K ohms
Input Jack: Õ in. standard phone jack
Output Impedance: 10K ohms
Output Jack: Õ in. standard phone jack
Output: 1
Controls: Drive, Tone, Level
Switch: Normal/Effect
Max Output Level: 16dBu
Equivalent Input Noise (A-weighted): -107dB
Residual Noise (A-weighted): -98dB
Max Amplitude: 46dB
Delay Time: n/a
Power Supply: 9V Manganese dry cell battery (S-006P) x 1 or special AC adaptor
Power Voltage: DC9V (Battery)
Current Consumption: 19mA (9V)
Dimensions (W x D x H): 117 x 150 x 60 mm
Weight: 500g
Accessories:
9V Manganese dry cell battery (S-006P) x 1
Warranty Card x 1
User's Manual x 1
