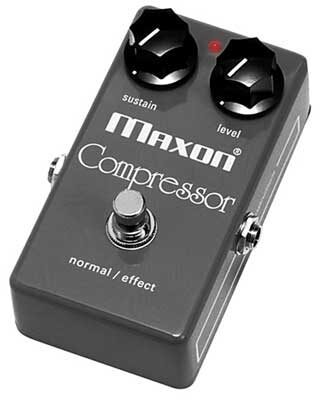

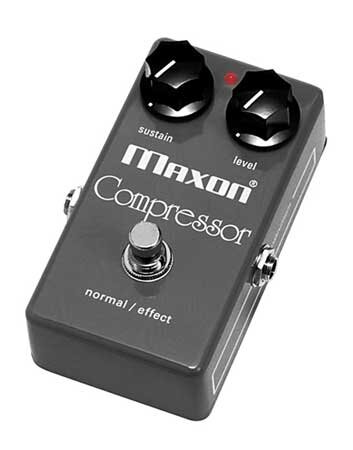

Maxon CP101 Compressor Pedal

The CP101 provides clean, smooth compression with low-noise. Unlike other compressors, the CP101 doesn't alter an instrument's attack characteristics, providing a more natural response. The CP101 can be used to increase an instrument's sustain or to limit signal peaks for a smooth, even output. The CP101 works perfectly with bass, electric, or semi-acoustic guitar.

Reissue Series
No matter how fast technology advances, some things just cannot be improved upon. The mark of true genius is the company that recognizes this fact and works to preserve tradition, rather than re-invent it.

Introducing Maxon Reissue Effects. Faithful reproductions of their legendary 1970's product line, the Maxon Reissue Effects offer today's musician an unparalleled sonic palette that has defined the tones of legendary Guitarists for the past 3 decades. True to the original designs, each model's circuit is 100% analog and hand-assembled by masters of the craft with over 30 years experience in the field of effect design and construction. Packaged in a time-tested chassis, only the highest quality components are used to assure a lifetime of trouble-free performance.

Forget about boutique "clones" that promise but don't deliver. Maxon did it first, they did it best, and they're doing it again. Maxon Reissue Effects: The perfect sounds of the past, available in the present. Get yours today.

About Maxon
Since their humble beginnings as a guitar pickup manufacturer in 1966, Nisshin Onpa Co., Ltd. (Maxon) has strove to supply musicians with the ultimate tools of the trade. Highly respected for their manufacturing prowess, Nisshin Onpa has designed and manufactured some of the most famous music products of our time, including many of the most sought-after guitar effects units and wireless systems from today's top suppliers. In addition, Nisshin's own brand of Maxon products has achieved a legendary status among Tone Freaks and Gearheads across the globe due to their superior quality and unsurpassed tone.

Over 30 years since their inception, Nisshin Onpa is once again offering Maxon products to the discerning musician. Their line of Reissue Series compact Guitar effects and the all-new line of Vintage Series effects are the absolute ultimate tone machines and offer uncompromised sound and superior manufacturing quality for those of us who will accept nothing less than the best.

Technical Info

Input Impedance: 500K ohms

Input Jack: 1/4 in. standard phone jack

Output Impedance: 10K ohms

Output Jack: 1/4 in. standard phone jack

Switch: Normal/Effect

Dimensions (W x D x H): 61 x 112 x 35mm

Accessories:
9V Manganese dry cell battery (S-006P) x 1
Warranty Card x 1
User's Manual x 1

Output: 1

Controls: 2

Maximum Input Level: 2 dBu

Maximum Output Level: 0 dBu

Noise: -100 dBu

Maximum Compression: 42 dB

Current Consumption: 11 mA 9V, 12 mA 10V

Weight: 270 g
