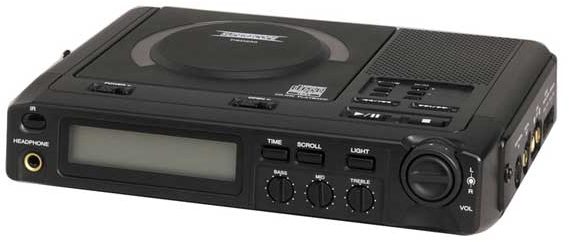

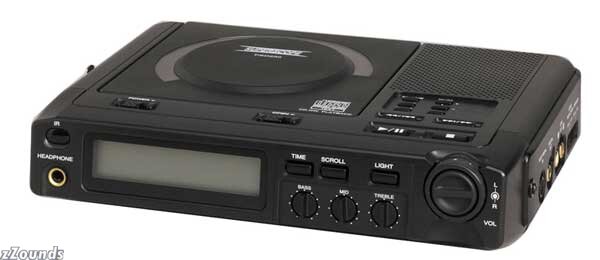

Superscope PSD220 Performing Arts Portable CD Player

Music educators who have seen the new Superscope PSD230/220 CD players are buzzing with excitement. That's because these innovative products are ideal for music and dance practice, with controls so intuitive that even beginners can operate them.

For even more control during practice, a segment of a track can be selected and continually replayed until mastered. Step through an entire track or CD by making the endpoint of one loop the beginning point of the next one. In addition, a voice reduction system within the unit effectively reduces the lead vocals on many CDs, allowing a practicing musician to better hear the instrumentals or a vocalist to sing along as the new lead.

The PSD220 is specifically designed for those situations that require tempo change only, such as aerobics, dance, and instrument practice. Both PSD220 and PSD230 include many other professional features, such as analog and digital stereo outputs for connection to powered speakers or a recording device, 3-band EQ for tone balancing, CD-TEXT display, and 3-way power, as well as built-in speaker and headphone jack with volume control. Play compilations recorded on CD-R or CD-RW discs.

Features
Music practice made easy

No software or computers required

Change tempo without affecting key

Change key one octave without changing tempo

Step-through A-B loops

Take the battery-operated PSD220 or PSD230 anywhere in its hardshell optional carrying case

Technical Info

Tempo Control: ± 50% in 1% steps, without altering the key

Program Play: programmable track selection/playback

A-B Repeat: create practice loops between selected start and stop points

Disc/Track Repeat: repeat 1 or all tracks

Single Track Play: automatically cues tracks to audio, and, after playing, cues up the next track

Button Lock: prevents accidental Tempo/Key adjustment

Built-in Speaker: for instant playback

3-Band EQ: bass, mid, and treble controls

Headphone output: 1/4 in. jack socket

Analog Output: RCA stereo outputs

Digital Output: Coaxial out

Foot Pedal Input: 1/4 in.

CD-RW Playback: compatible with CD, CD-R, and CD-RW

Anti-Shock: 10-second memory buffer

Built-in Infra Red Receiver: accepts RC5 remote control commands

Optional Infra Red Remote Control: RC300

Optional Rechargeable Battery: RB430

Playback System: Compact Disc Digital Audio

Number of Channels: 2

Compatible Discs: CD-DA, CD-R, CD-RW (8CM and 12CM)

Sampling Frequency: 44.1 kHz

Quantization: 16-bit linear/channel

Tempo Control: ± 50%, ± 0.5%

Frequency Range: 20Hz ~ 20,000Hz, ± 3dB

Wow and Flutter: Precision of Quartz

Dynamic Range: >68dB

S/N Ratio: >68dB

Channel Separation @ 1kHz: >50dB

THD (Total Harmonic Distortion) @ 1kHz: <0.1%

Analog Output Level (RCA): 500mV RMS

Digital Output Level (RCA): 0.5Vp-p (75W)

Speaker Output Power: 400mW (Dist. 10%)

Power Requirement Input: 6v, 1200mA

Power Consumption: 6.8W

Alkaline battery Life: 3 hours, approximately

Optional Nicad Battery Life: 4 hours, approximately

Dimensions (W x H x D): 9.76 x 2.13 x 7.20 in.

Net Weight: 2.4 lbs.

Operating Temperature: +41 to 90 degrees F

Operating Humidity: 5 ~ 90% (without dew)
