Marantz CDR632 CDR/RW CD Recorder

Enter Marantz's newest standalone CD-RW recorder, the CDR632: positioned to make full-featured professional CD recording technology available to virtually any installation where the highest quality audio recording is desirable. Rackable in a 2U space, this professionally solid workhorse plays and records on standard CD-R and CD RW discs. In addition, it will play MP3 files for hours and hours of playback from a single disc.

Marantz took care to pack the CDR632 with features specifically requested by the installation market like Programmable Auto-Track Increment, Pitch Control, Level dependent Sync Recording, Single Play Mode, Power-on Play and more. Analog, digital and optical input and output, complete with integrated sample rate conversion, are just a few examples of the meticulous design and engineering that went into the CDR632. CD-text can be programmed and read right from the front panel. Programmable fade-in/fade out recording allows your clients recording technique to be as good as their Marantz Professional CD-R sounds and the list goes on.

Features:
CD-R and CD-RW Recorder and Player

Compatible with most discs CD-R data, CD-R for digital audio, CD-RW data, CD-RW for digital audio

Marantz Minute Track with Adjustable Time or Level-dependent Auto Track Increment

Plays MP3s for hours of playback from one disc

MP3 directory navigation

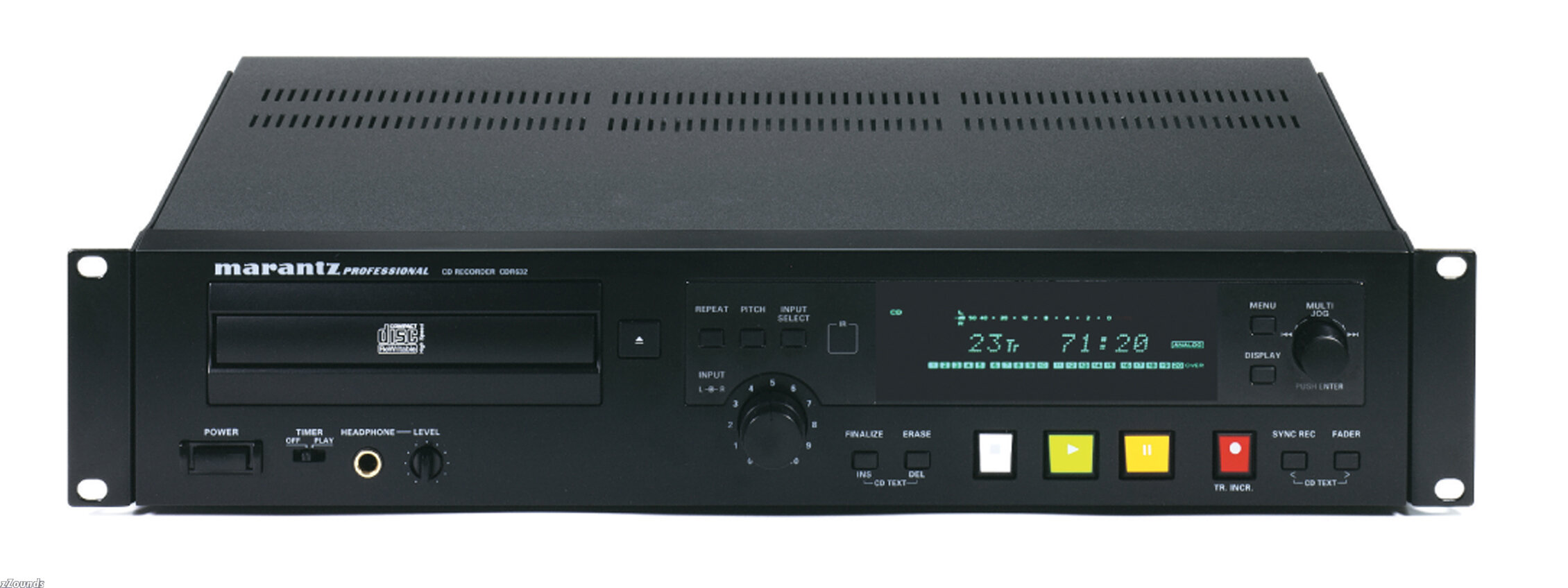

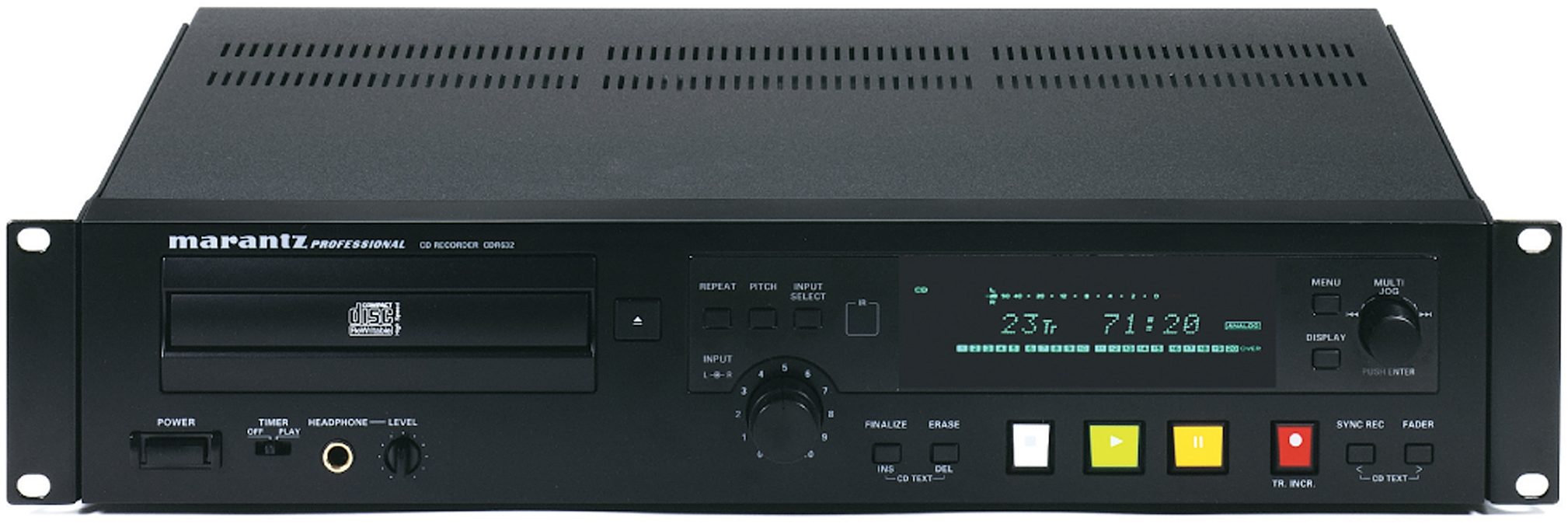

CD-text display and CD-text input from front panel

Plays unfinalized CD-Rs and CD-RWs

Adjustable pitch control on playback

Continuous, Shuffle, Programmable and Single playback modes

Power-on Play

Sample rate converter

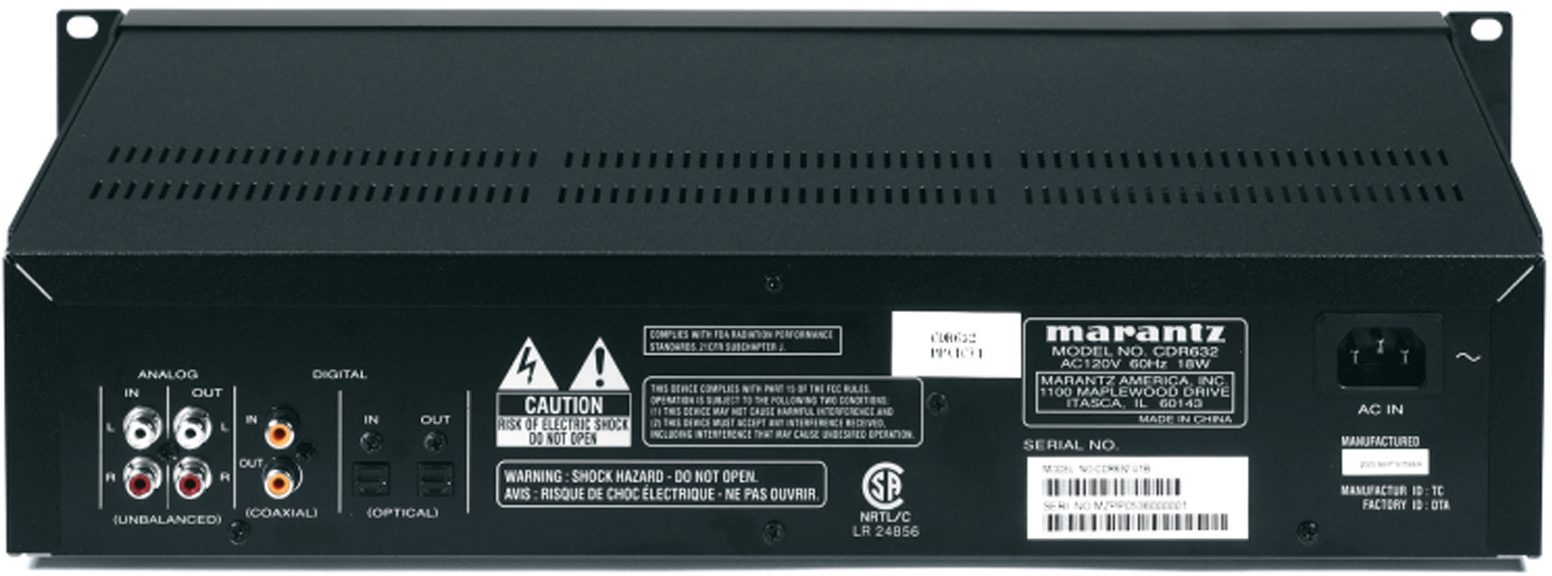

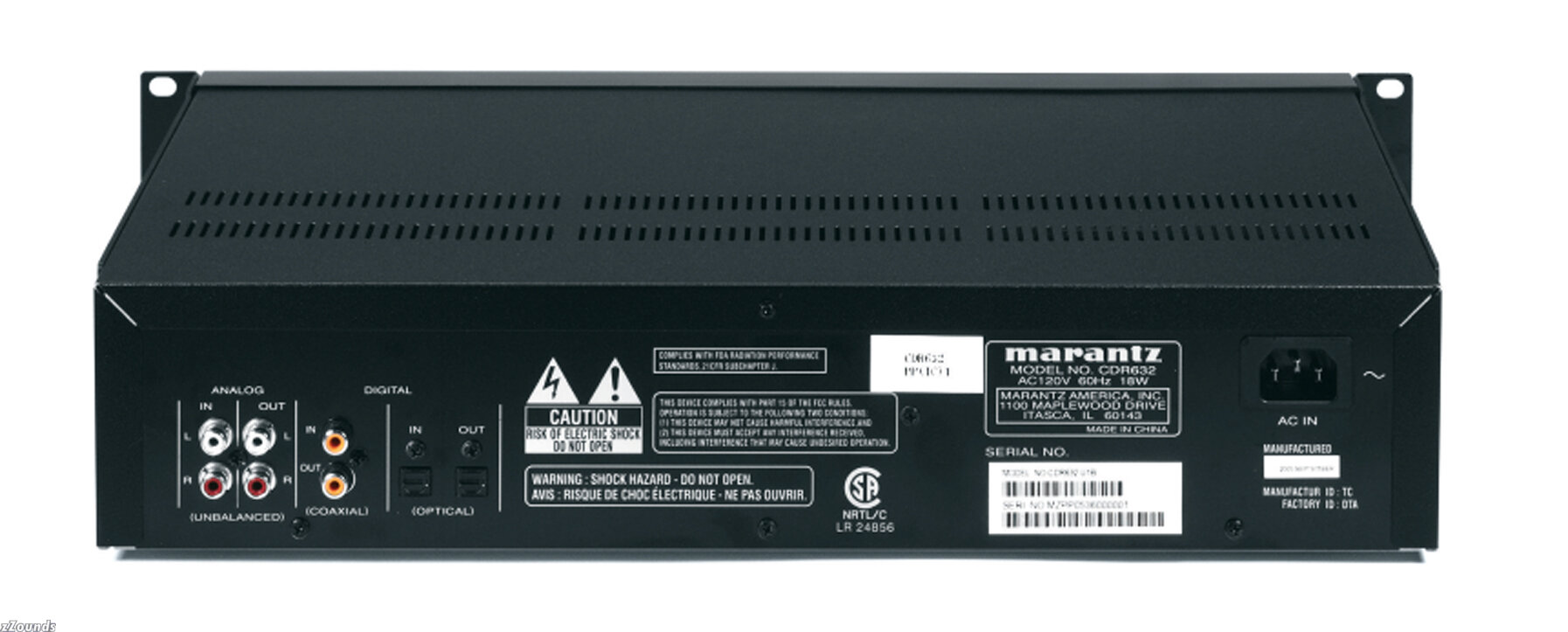

Analog, Digital (S/PDIF) and Optical digital (TOS Link) inputs and outputs

Auto-Fade In and Out with programmable time

Sync (Level Dependent) Recording

On-the-fly Manual Track Increment from front panel or remote

Racks in a 2U space

Compatibility
The CDR632 may be the last CD recorder you ever consider for installation. It has analog and digital I/O's to interface with most audio gear, and uses most recordable or re-recordable disc on the market. It can even play back MP3's from CD-ROM discs, and unfinalized CD-R's and CD-RW's.

Professional Functionality
Not every installation has an engineer to run the show. The CDR632 includes convenience features like Marantz Minute Track with programmable auto-track increment, sync-recording, and programmable fade in/out to make your clients recordings sound great with a minimum amount of effort. The Single Play function plays one track and then stops. Your client doesn't have to worry about running to th machine or aiming the remote before the next track starts. Power-on play allows clients to start playback simply by powering on their system. The CDR632 even offers pitch control. Houses of Worship and other presentation venues will appreciate the ability to match the key of a soundtrack to the vocal range of their performers.

Quality
Don't forget, it's coming from Marantz Professional. They pioneered CD recording over a decade ago, and they've been designing and engineering studio quality, commercial grade audio gear since the 60's. The loyal customer base is no accident. They know that Marantz builds smartly designed, great sounding, exceedingly reliable equipment because those are the tools they use to make a living. If you know who Marantz is, we're preaching to the choir. If not, consider the CDR632 for your next installation.

Technical Info

Recordable Discs: CD-R, CD-RW

Quantization Bit Depth: 16-bit linear

Sampling Frequency: 44.1 kHz

Frequency Response:
20Hz-20KHz 0.8 dB (playback)
1.0 dB (recording)

S/N:
95 dB or better (playback)
90 dB or better (recording)

Dynamic Range:
95 dB or better (playback)
90 dB or better (recording)

Distortion:
0.006% or less (playback)
0.008% or less (recording)

Channel Separation:
90 dB or better (playback: 1 kHz)
80 dB or better (recording: 1 kHz)

Wow and Flutter: Below Measurable Limits (less than 0.001%)

Analog Inputs: Unbalanced Input RCA

Nominal Input Level: 10 dBV (at full scale: -16 dB)

Minimum Input Level: 19 dBV or higher (minimum input level that can be adjusted to nominal level (full scale -16 dB))

Input Impedance 22 kHz 10% (unbalanced)

Analog Outputs: Unbalanced Output RCA Phono

Nominal Output Level: 10 dBV 2 dB (at full scale: 16 dB)

Maximum Output Level: +6 dBV 2 dB

Output Impedance: 600 10% (unbalanced)

Phones Output: Stereo Phone Jack (1/4 in.): 20 mW or greater 32 load

Digital Output:
COAXIAL RCA Phono (IEC-60958 Type II)
OPTICAL TOSLINK (IEC-60958 Type II)

Power Supply: 120 VAC0, 60 Hz

Current Consumption: 18 W

Dimensions: 19 x 3.9 x 12.11 in. (width x height x depth)

Weight: 10.8 lbs.

This pro-quality CD-recorder boasts an advanced feature set for all you duplication needs. Programmable auto-track increment, pitch control, level dependent sync recording, and more give you complete control over the project. Analog, digital, and optical I/O for easy integration, plus MP3 support for thousands of songs on disk!
