Mackie TT System32 Digital Mixing System

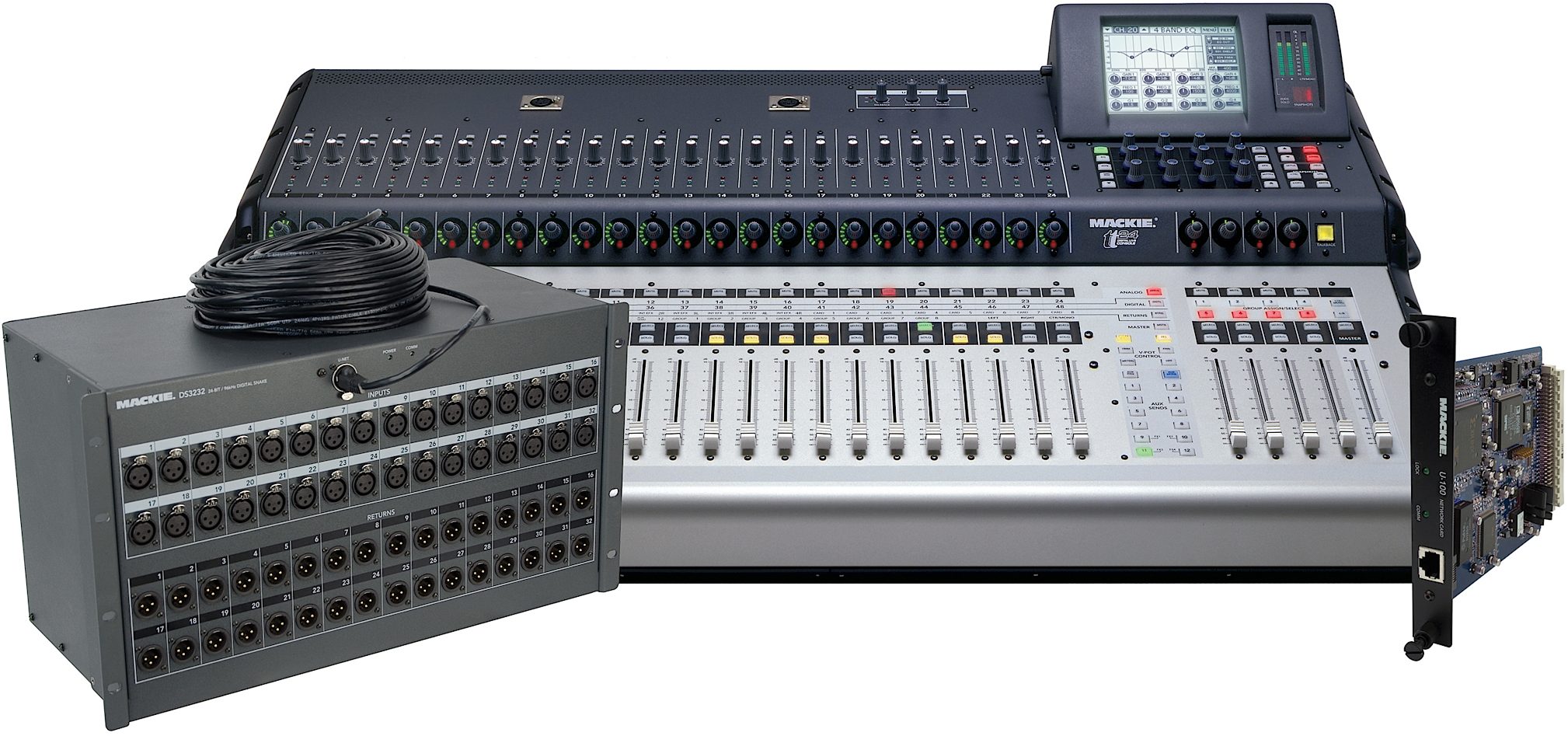

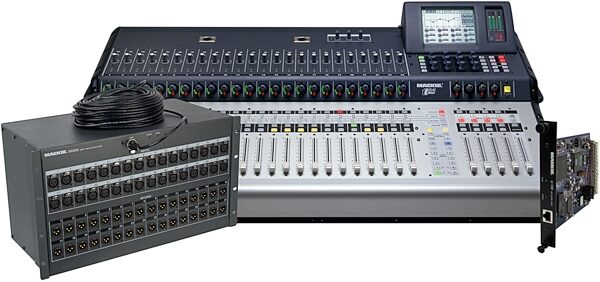

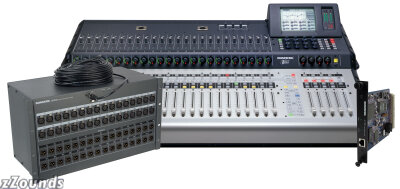

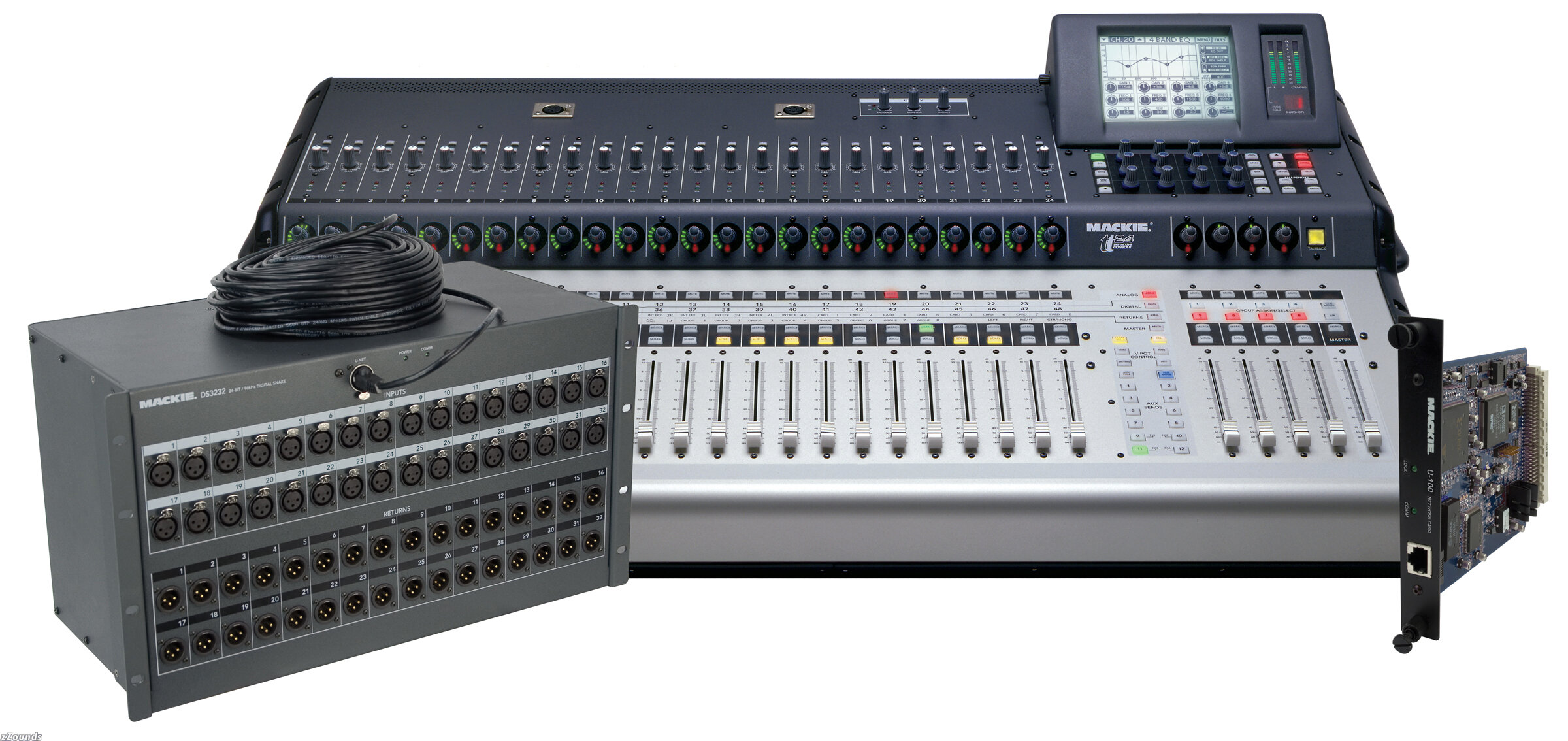

The TT System32 combines Mackie’s powerful TT24 Digital Live Sound Console with the DS3232 Digital Snake and everything needed to connect the two for a complete, plug and play digital live mixing solution-just add stacks and racks. TT System32 provides stage-to-console connectivity via the DS3232 digital snake with 32x32 analog I/O, 32 ultra high-quality Mackie mic preamps, and full, remote recall and control of all preamp settings (gain, pad, phantom power) all through a single, lightweight Cat5 cable (up to 300 feet). A complete DSP package (gate, compressor and EQ) is available for all 32 input channels, 8 more than the stock TT24’s DSP channel count. Includes a U-100 Network Card and 100-foot Cat5 cable for out of the box mixing capability in just a few minutes. TT System32 saves you money by adding complete, remote stage connectivity and control at a previously “console-only” price point.

Features:
24-bit/96kHz digital mixer and snake system designed for live applications

Includes TT24 console, DS3232 snake, U-100 card and 100 ft. Cat5 cable for plug and play mixing in minutes

56 high-quality Mackie mic preamps (32 with remote-controllable gain, pad and Phantom Power on DS3232)

32 channels of DSP (4-band Parametric EQ / Comp / Gate / Variable HPF) for every snake input channel

DS3232 provides 32x32 analog I/O (XLR) on stage-up to 300 feet away

U-100 Network Card included for lightweight Cat5 connectivity between snake and console

29 x 100mm motorized faders and 24 multi-function V-Pots with metering

Quick Mix section featuring 5-inch touchscreen LCD provides fast access to primary live mixing functions

Instant recall of all mix settings via 99 snapshots

99 user presets for storing and recalling Venue, Channel and EFX settings

Left/Right/Center (Mono) and 12 Aux outputs feature 6-band EQ with Kill filters and Comp/Limiter

Aux Mode for single-button switching between FOH and monitor console configurations

How much of your pre-show routine is spent tweaking knobs and setting levels? This digital mixing system offers instant recall of all preamp settings, so you only need to tweak for the room! Features 56 total I/O channels at 24/96, with full DSP support. Compact and lightweight for the road. Includes TT24 mixing console, 32-channel digital snake, network card and 100' cat5 cable for board/snake connectivity.
