Mackie Onyx 400F FireWire Audio Interface

There are plenty of FireWire audio interfaces on the market today. But if you're a musician or engineer who insists on absolute quality, then the Onyx 400F Studio Recording Preamp with 192kHz FireWire I/O is the pre-eminent professional choice. Jointly developed by the analog engineering experts at Mackie and the digital gurus at Echo, the 400F brings superior sound, robust construction, and several "world's first" features to those looking to record to Mac or PC. And it comes bundled with Mackie's popular Tracktion 2 software for easy recording right out of the box.

The Basics
The Onyx 400F is a 10-channel premium mic preamp and FireWire audio interface featuring four boutique-quality Onyx mic preamps. These highly acclaimed preamps offer superior headroom, sonic detail, and clarity vs. the competition -- delivering 123dB dynamic range and an amazing .0007% THD --and a sound that has been widely praised as exceptionally "open" and "revealing." The Onyx 400F also offers TRS inserts for inserting your favorite outboard gear into your signal path before sending it to your Mac or PC, plus an internal 10 x 10 DSP Matrix Mixer with full recall and 64-bit floating point processing -- a feature not found on any other FireWire interface, at any price.

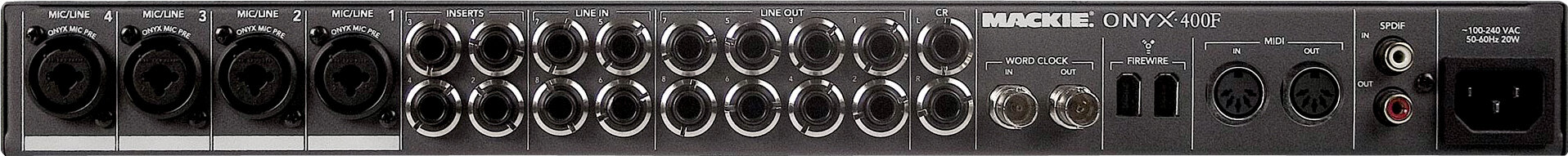

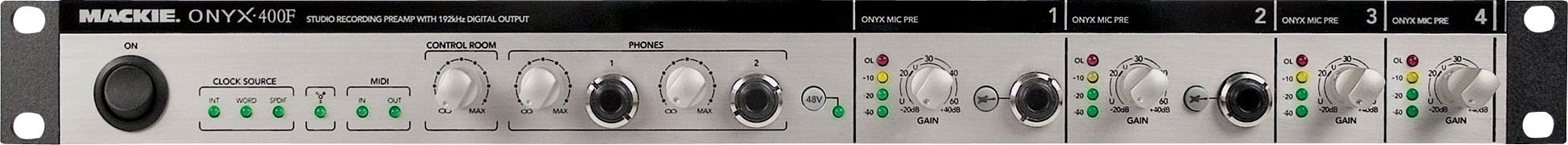

With four Onyx mic preamps and four line inputs, the 400F is the ideal box for tracking anything from smaller overdub-style projects to a full band. Operation is refreshingly straightforward. You simply plug in your mics and instruments to the front or rear panel, and plug a FireWire cable into your Mac or PC. The 400F's eight individual outputs can be used for surround mixing, or for sending four discrete stereo headphone mixes to a headphone amp like one of our new HM Series. For overdubs, the 400F's dual headphone outputs give both the engineer and musician their own headphone outs with independent volume control. And the internal 10 x 10 Matrix Mixer allows near-zero-latency routing of any input to any output, completely independent of your computer, with full recall capabilities.

Engineered to over-perform.
A common question regarding the sound quality of any digital audio interface is often "What converters does it use?" Specifically, the Onyx 400F features mastering-grade 24-bit/192kHz AKM

Technical Info

For the PC
Microsoft Windows XP SP1 or later

Pentium 4, Celeron, or Athlon XP processor

256 MB RAM

For the Mac
OS X 10.3.9

G4 processor

256 MB RAM

Great-sounding 24/192 audio interface! Eight channels of analog I/O, plus S/PDIF digital I/O. Four Onyx mic pres with inserts and phantom power. Four line inputs, 8 line outputs. Front panel instrument inputs and headphone jacks. Word clock and MIDI I/O. Includes Tracktion 2 for Mac/PC.
