Produce rich, clean sound with this Mackie 2-way loudspeaker. It features high-def audio processing, 1200-watt peak power and innovative acoustic correction. One speaker included.
1 Person rated this product:
Rate and Review This Product
Mackie has earned a reputation for bringing high-end technology into designs that fit the needs and budgets of the working musician. The Mackie HDA High-Definition Arrayable Powered Loudspeaker System exemplifies this philosophy, delivering superior performance and unparalleled sonic quality in the most cost-effective constant curvature line array ever created. Powered by 1200W of peak system power, with a coverage pattern of 110* x 20*, the compact 12-inch 2-Way HDA loudspeakers are highly configurable. With acoustic and mechanical design by the award-winning engineering experts at EAW and patented HD audio processing, HDA offers proven line array performance and technology at a price point attainable by more users than ever before.
Watch this video from Mackie demonstrating the power of the HDA system:

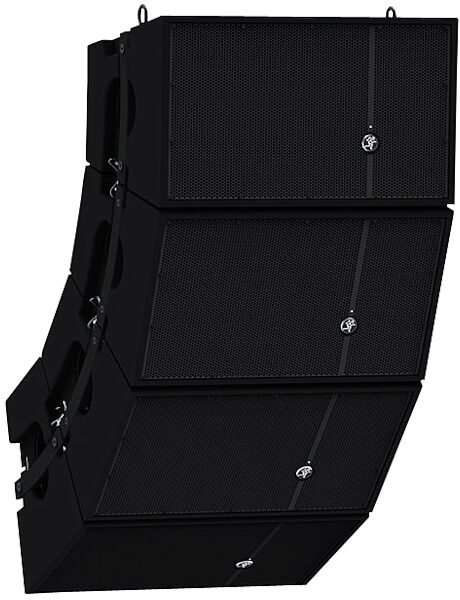

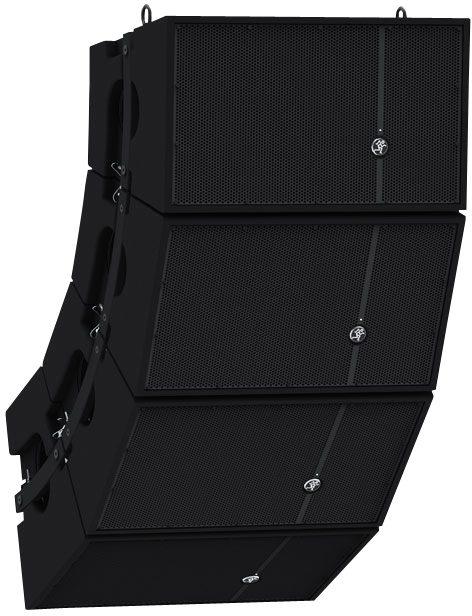

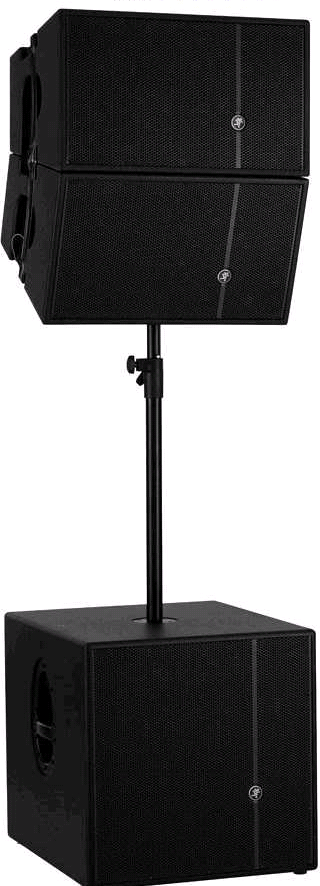

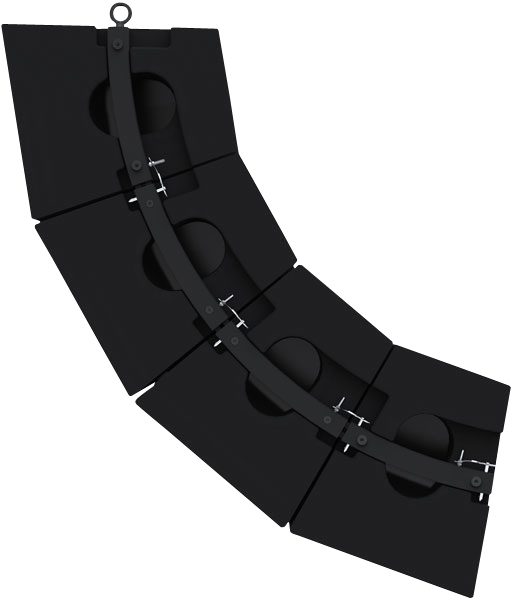

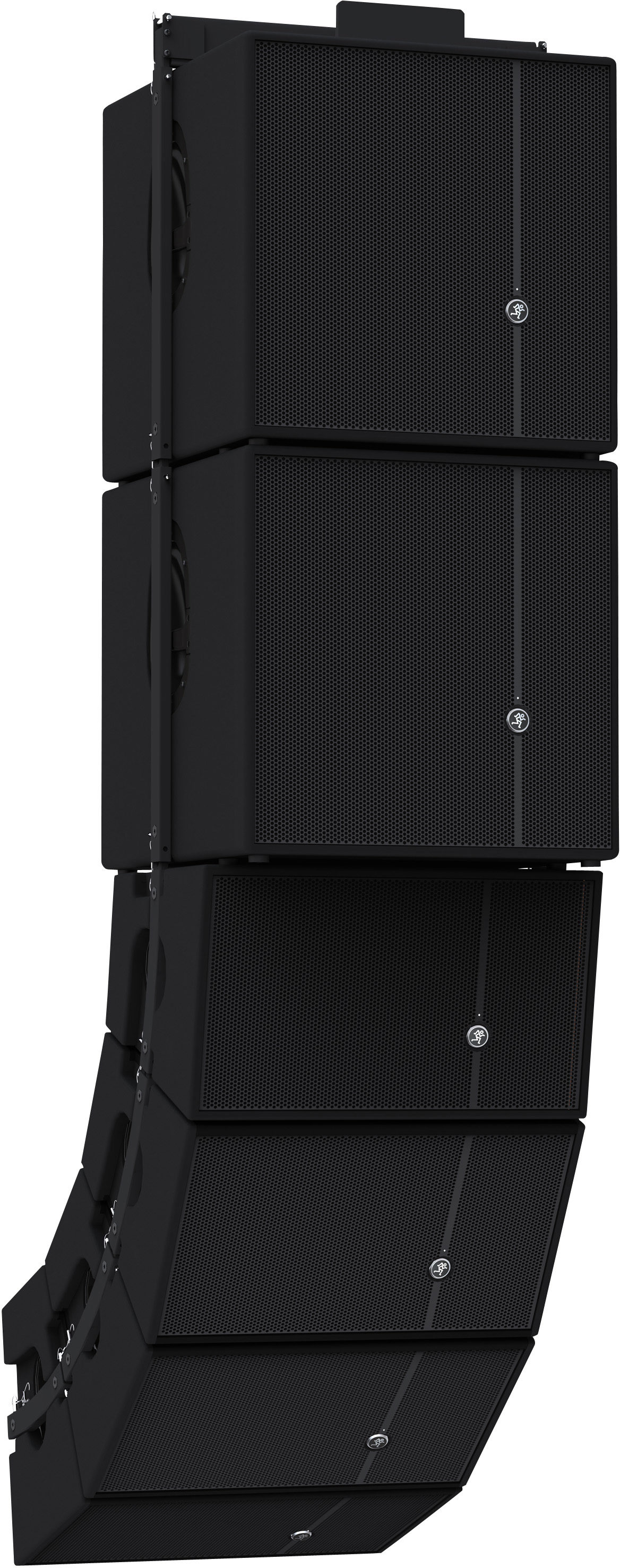

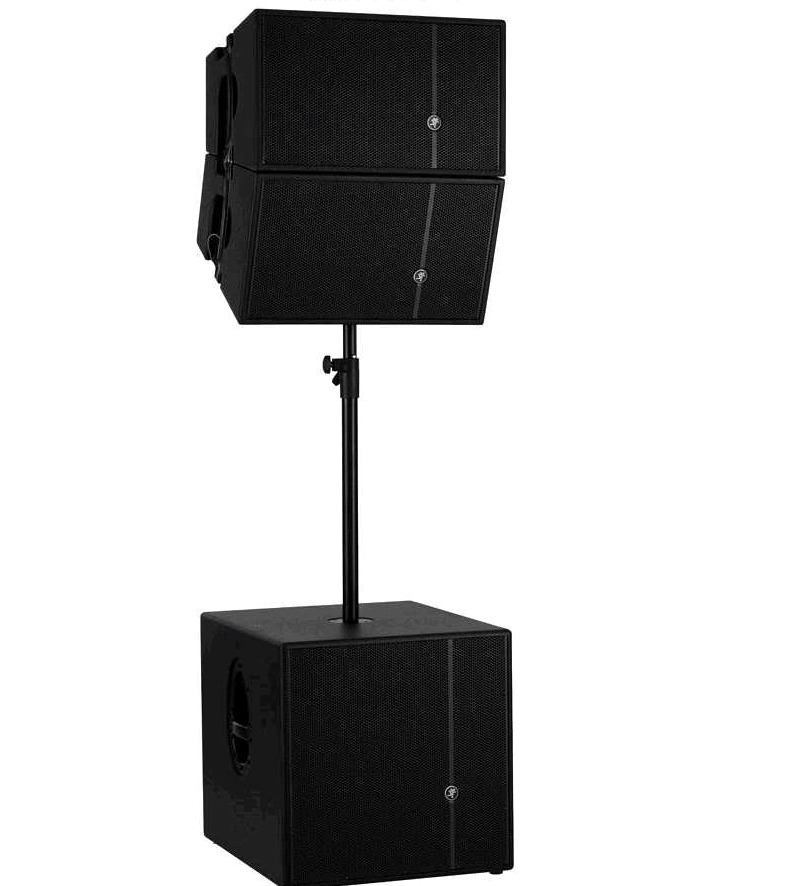

HDA is a scalable, arrayable solution to many possible applications. This makes it the perfect choice for installers, rental houses or portable PA users that want their system to grow as needed for larger venues. A full HDA array uses four HDAs and two HD1801s per side, rigged for maximum coverage and delivering excellent low frequency directivity. And since the system is scalable, you can easily dial down the array to meet the needs of the venue. Pros on the go can ground stack HDAs on the flybar or on top of an HD1801 for situations without truss, or even pole-mount a couple HDAs on an HD1801 for the ultimate high-output, portable rig.
As you can see, an HDA system delivers unmatched system versatility. But let's take a look at an individual HDA unit to better understand how professional and powerful HDA really is.
Powerful Class-D Fast Recovery(tm) Amplification
HDAs are bi-amplified, delivering 1200W of peak system power: 500W RMS for LF, 100W RMS for HF. They use Class-D amplifiers, which are ultra-efficient and cool running, providing all the power needed to push the high-output drivers in a design that is lightweight. Mackie amplifiers incorporate our Fast Recovery circuitry, which helps to smooth nasty distortion when things get pushed too hard. Power runs are industry standard Neutrik(r) PowerCons with an AC pass-through, reducing clutter and confusion.
EAW Inside
Every Mackie loudspeaker features custom-designed drivers perfectly suited for the task at hand. HDA features three drivers, each high-output and designed specifically for use in an HDA system. The HDA features a 12-inch neodymium woofer with a 3-inch voice coil to handle the 500W delivered by the dedicated LF amplifier. Designed by EAW, this LF driver delivers deep, rich bass performance in a lightweight neodymium design built to last until the wee hours of the morning.
For the dual 1.7-inch HF compression drivers, Mackie turned to the experts at Beyma(r), well-known for their high-performance drivers. Built using heat-treated titanium diaphragms, the dual HF drivers deliver pristine high-frequencies and are mounted into a custom-designed dual exit horn, providing precise coverage that's as wide as it is awesome.
HDA is a perfectly tuned system that is truly greater than the sum of its parts. Collaboration with the line array experts at Eastern Acoustic Works (EAW) made this possible. The engineering team at EAW not only provided acoustical and mechanical design right from the start, they then fine-tuned the system for complete optimization, ensuring maximum efficiency and performance. After all, EAW knows arrays and Mackie likes EAW. They always bring the best side dish to a potluck.
HD Digital Processing
Part of Mackie's HD Series, HDA incorporates Mackie's proven HD Digital Processing. Even the most expensive loudspeakers on the market have inherent sonic issues that arise from the very nature of loudspeaker design. Horn-loaded drivers tend to have a "honkiness" to them and there are physical resonances in the upper range of cone drivers that can sound nasty.
Introducing Mackie High-Definition Audio Processing. The key to high-definition live sound is the detailed measurement and analysis of the inherent problems of horns and woofers. After that, the creation and application of some seriously NASA-esque (and patented) acoustic correction algorithms work to correct these very issues. Vocals become clean and intelligible and the highs are smooth and never harsh. The resulting experience is not only high-definition, it is truly a moment of clarity for anyone within earshot.
Simple, but Powerful Array Voicing
Proper array voicing is probably one of the most time-consuming and difficult tasks related to arrays. HDA makes voicing easier than ever with a three-position voicing switch, allowing for easy customization of each box in the array. These optimized settings tailor the low frequency output to the number of boxes in use, keeping the voicing consistent as more boxes are added. If you're only using one or two boxes, you can simply set the switch to the corresponding position and call it a day. For rigs with three or more boxes, use the 3-4 setting and, for larger venues, use the long throw setting to help your top box reach the cheap seats by compensating for high frequency air loss. More advanced users can integrate EAW's Resolution software, which calculates array placement and flybar pickpoints, showing you the resulting coverage for the venue. Array voicing has never been easier or more predictable.
Professional Grade Cabinet

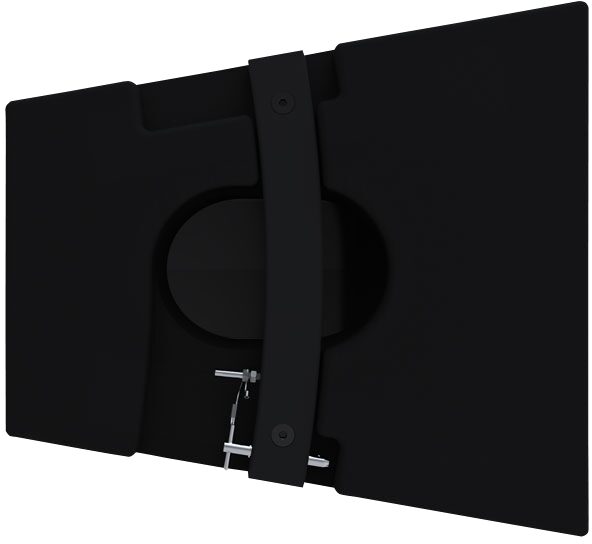

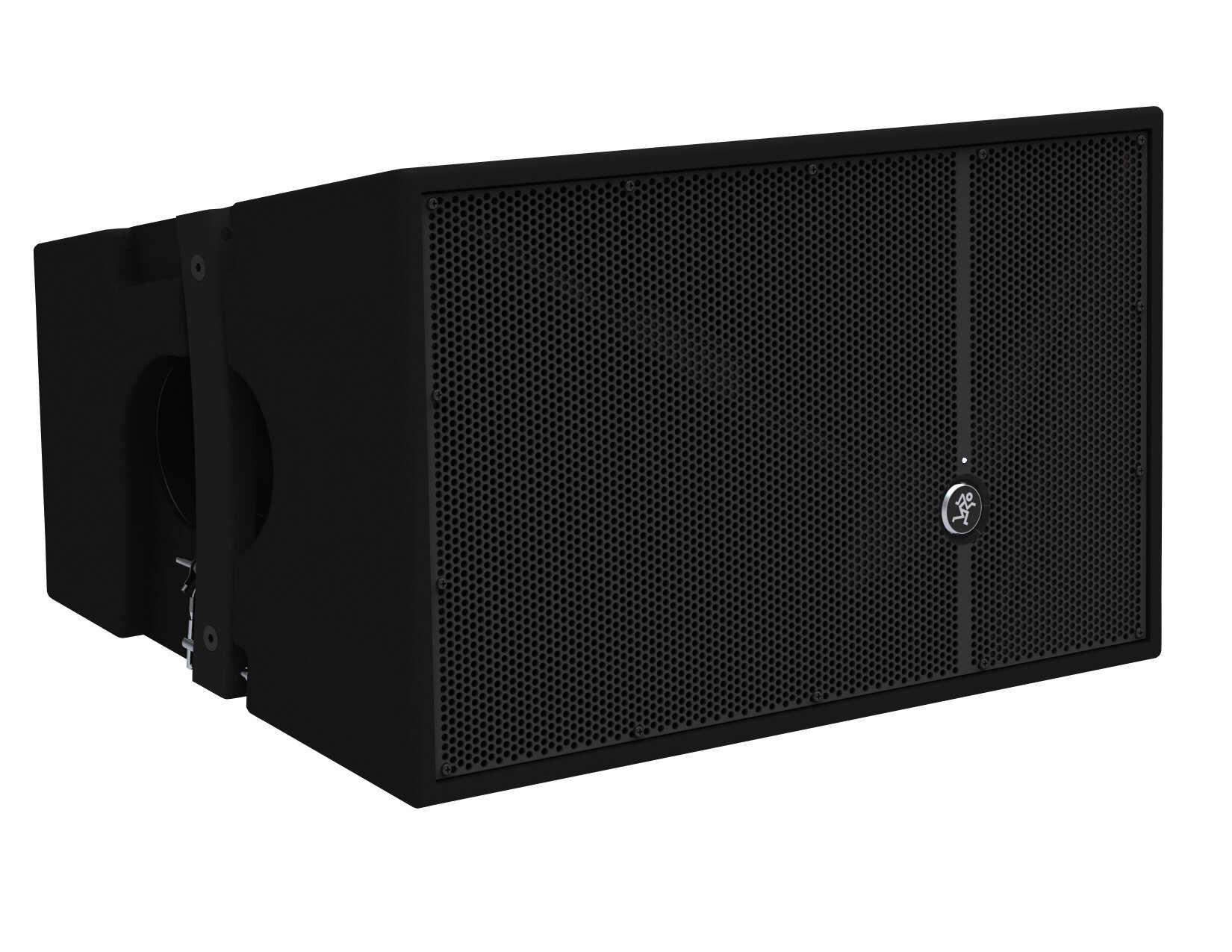

The HDA is meant to last, with a robust all-wood enclosure built using 15mm birch plywood. But it's also built for rigging, featuring proven EAW rigging channels for easy setup and teardown of a vertical array. The dedicated flybar option allows for easy raising and lowering of the entire system.

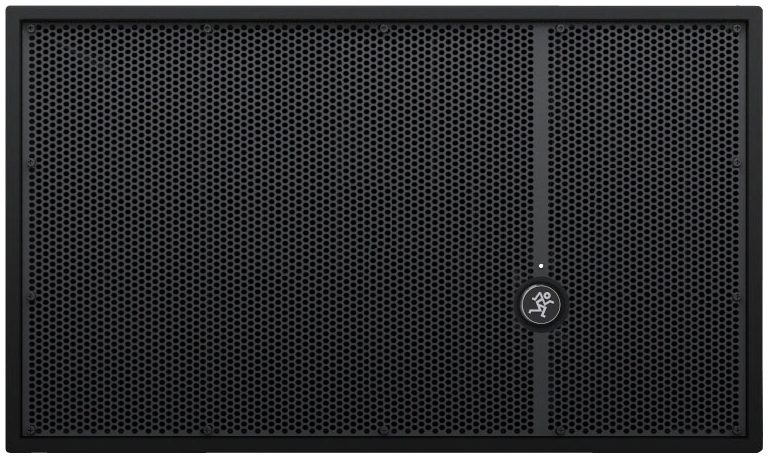

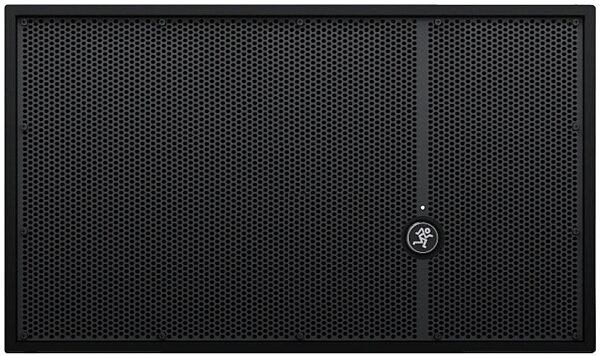

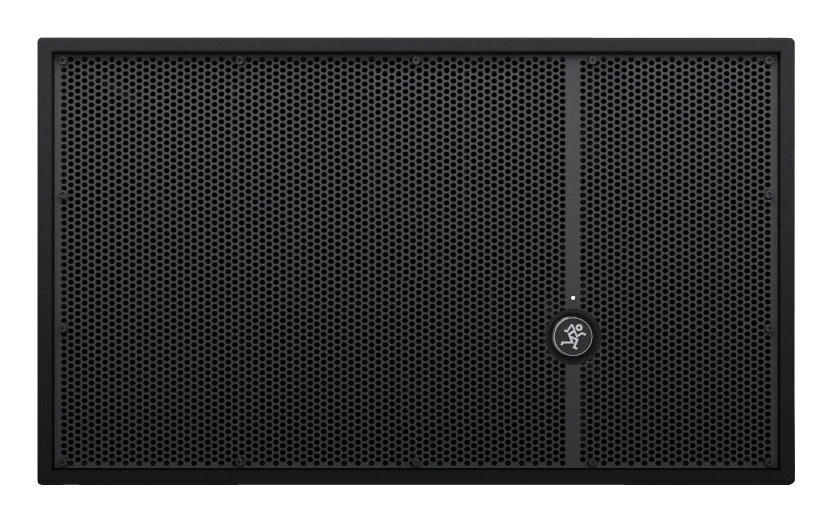

It also has four integral rigging points, or you can pole mount a couple on top of a subwoofer using the dual angle pole cup ... the choice is yours, but know that HDA is "Built-Like-A-Tank" and ready for the road. Toughness is great, but Mackie knows that a speaker should also look good and have features that make it easily fit into any venue. That's why the HDA has a sleek, professional look and Mackie's trademark blue light on the front (yes, you can turn it off for stealthy applications). Dang, Mackie thought of everything.

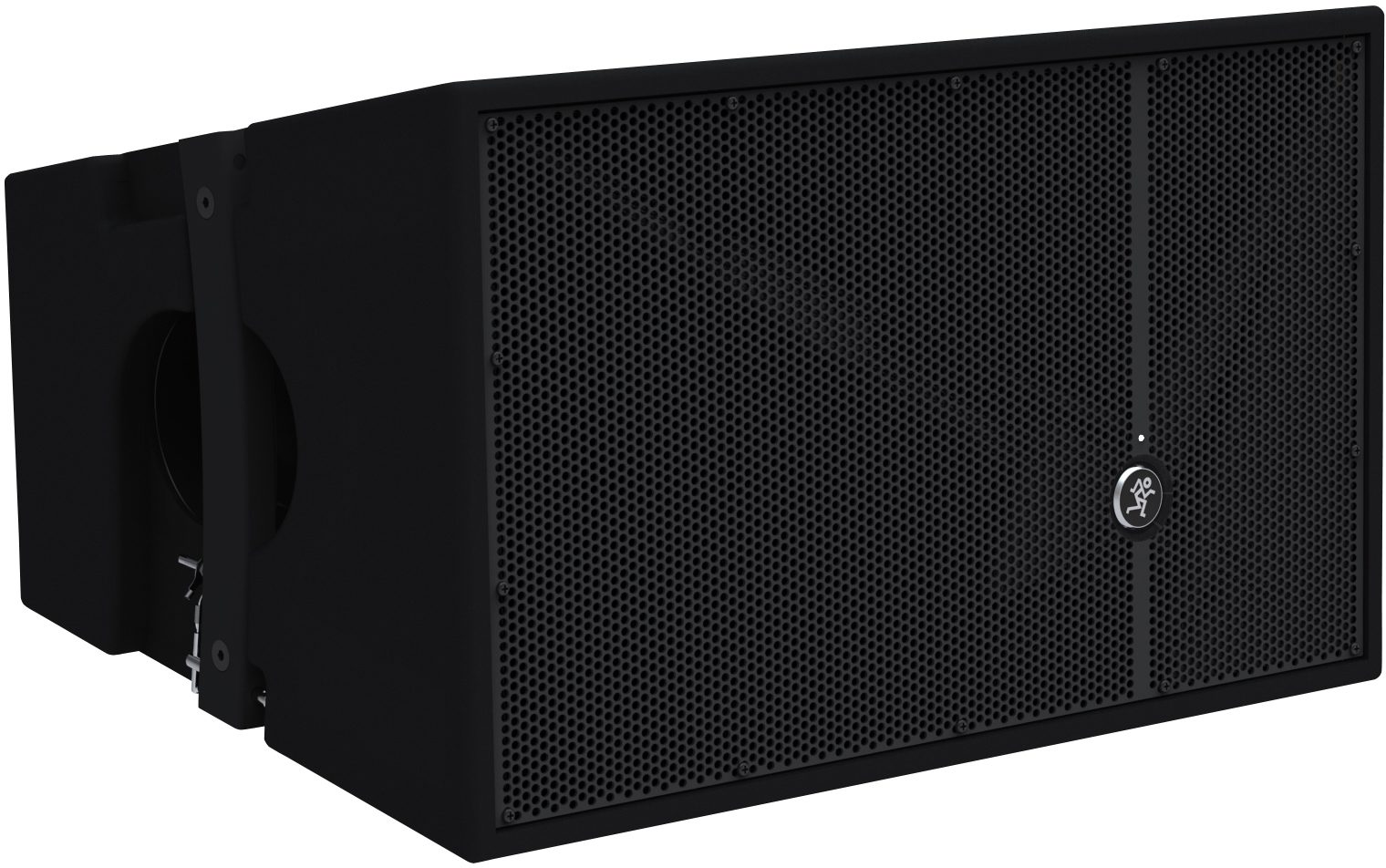

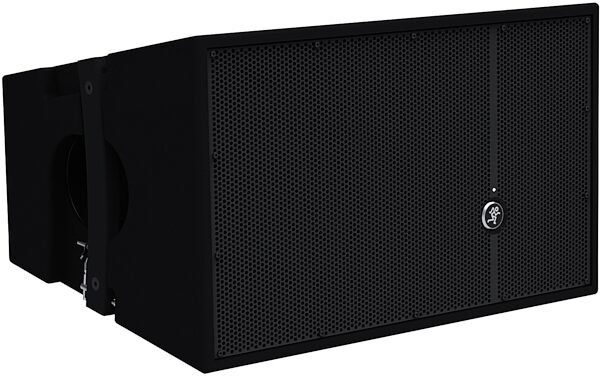

Product image is in use, only 1 single speaker included.
zZounds is an authorized dealer of
Mackie products.
110-degree x 20-degree constant curvature line array: - Scalable and arrayable with a multitude of configuration options - Maximum flown system supports up to 4 x HDA and 2 x HD1801 subwoofers - Ground stack up to 3 x HDA on HD1801 subwoofer or flybar - Pole mount up to 2 x HDA on HD1801 subwoofer or tripod using dual angle pole cups
