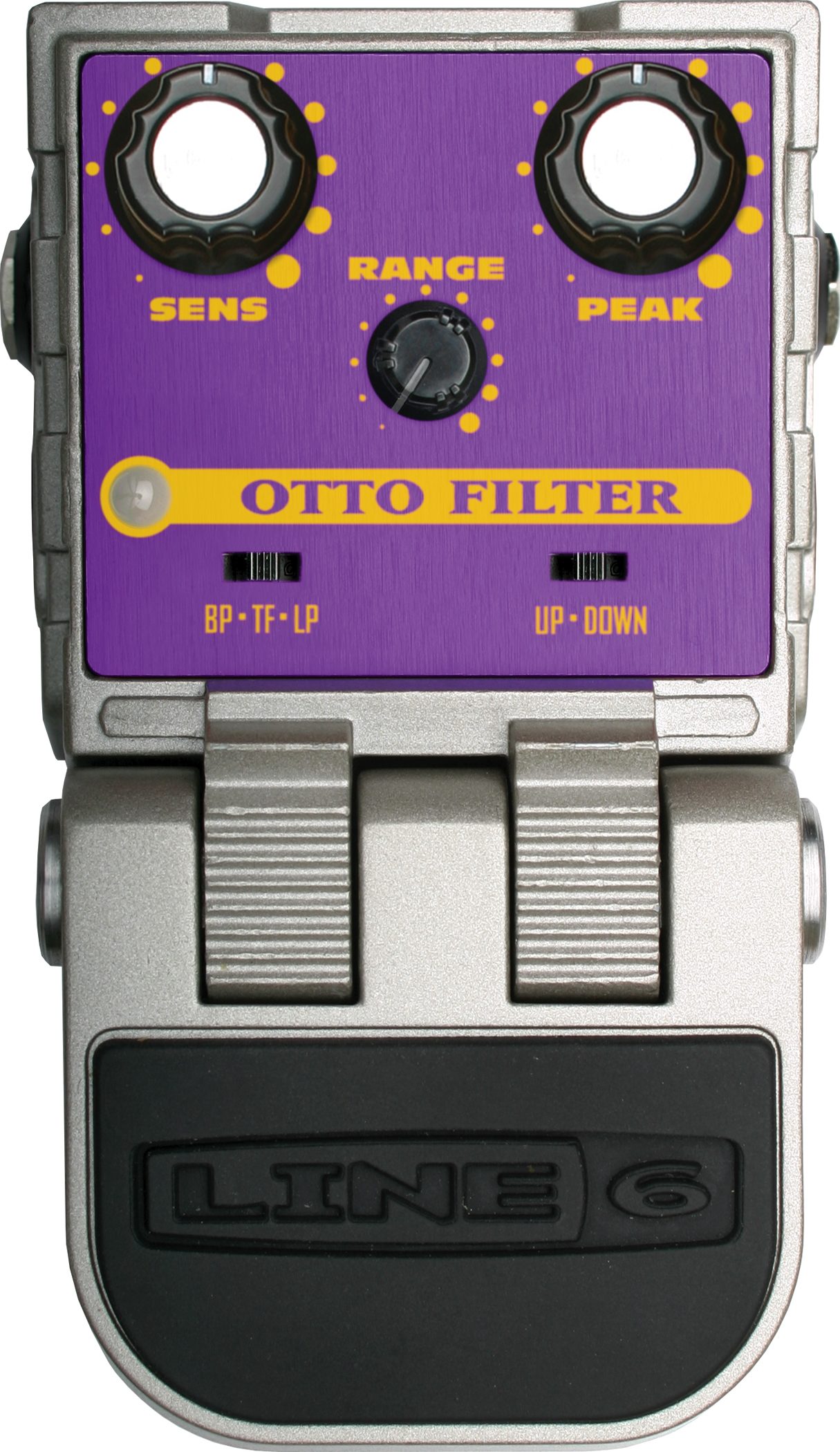

Get your hands on tones that are truly funky with the ToneCore Otto Filter pedal. Otto Filter delivers a splendid cornucopia of auto wah filter effects with Band Pass, Low Pass, and custom Line 6 Twin Filter models that bring ultra-funky and experimental sounds to your pedal board.
Filter Switch
This switch is used to select three distinctly different filter types:
BP Band Pass - Low frequencies and high frequencies are cut, leaving only the frequencies in between. The center frequency of the band moves in response to the dynamics of your playing.
TF Twin Filter - Two band-pass filters move in opposite directions of each other. One band moves from high to low, the other from low to high. The center frequency of each band moves in response to the dynamics of your playing.
LP Low Pass - Low frequencies are passed while high frequencies are cut. The cutoff frequency of the band moves in response to the dynamics of your playing.
Mode Switch
Selects if the filter moves Up or Down the frequency spectrum:
Up - The filter travels from low frequencies (when your playing soft) to higher frequencies (when you play louder).
Down - The filter travels from high frequencies (when playing soft) to low frequencies (when playing louder).
Other Controls
Sens - The Sensitivity knob controls how the filter responds to the dynamics of your playing. Higher sensitivity settings make it easier to get the filter in motion during quiet passages. At low sensitivity settings you must play harder to get the filter moving.
Range - Range knob tells the filter how far up or down the frequency spectrum you want the filter to travel. Low range settings will accentuate lower frequencies; increased range will accentuate higher frequencies.
Peak - The Peak knob controls the filter's shape. Increase Peak to narrow the filter for a more dramatic effect. For a milder effect, decrease Peak to widen the filter.
Technical Info
Power Requirements
Single 9-Volt Battery, or
Line 6 DC-1 9-Volt DC Power Supply
Size & Weight
Width 3.375 in.
Depth 5.625 in.
Height 2.875 in.
Weight 2lbs 4oz
