Lexicon MX400XL 4-Channel Effects Processor with USB and XLR

Plug In Programming & Recall with the Power of Lexicon Hardware
You want the rich, luscious sound that's defined studio reverb for 3 decades: a genuine Lexicon hardware processor. But you also want the flexibility of programming high-quality effects right insideyour DAW program... without bogging down your CPU or resorting to expensive processing cards.

Have it all with the MX400. All parameters of every reverb, delay and dynamic effect in this powerhouse quad processor are available inside any VST or AU compatible DAW program. Just link your computer to the MX400 with a USB cable and control all automation and recall parameters exactly as you would with any software plug-in -- while enjoying the sonic benefits only Lexicon hardware can provide.

Along with the unique 'hardware plug-ins' for PC and Mac, Lexicon has also included MX-Edit Librarian software so you can store and recall custom programs or pull up your choice of 223 genuine Lexicon settings including 25 dedicated Surround Programs. At its heart, the MX400 is everything you would expect from the company that invented digital reverberation. Seventeen Lexicon reverbs, delays and modulation effects plus dbx compression and de-essing. A generous LCD display and big comfy knobs you can getyour hands around.

Get a demo at your Lexicon dealer. And then get on the road to creating a hit.

Features:
17 legendary Lexicon reverbs

Lexicon delays and modulation effects

dbx compression and de-essing

Quad-processor design

7 effect routing options

99 Factory/99 user programs for Stereo mode

99 Factory/99 user programs for Dual-Stereo mode

25 Factory/25 user surround programs

USB 'Hardware Plug-In' feature with

VST and Audio Units plug-in software

MX-Edit Editor/Librarian software

Dual S/PDIF Digital Input/Output

24 bit, 48kHz/44.1kHz sample rates

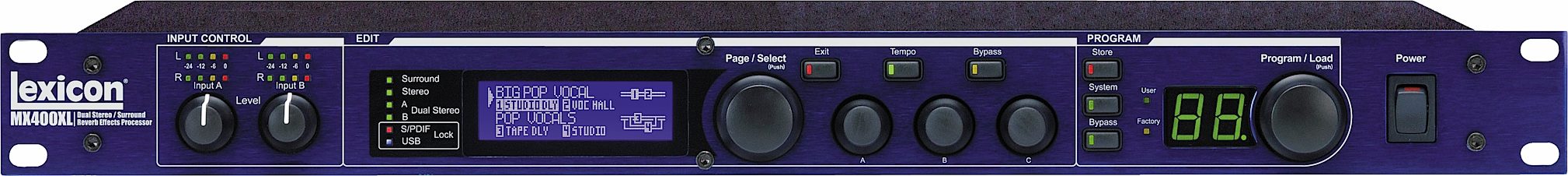

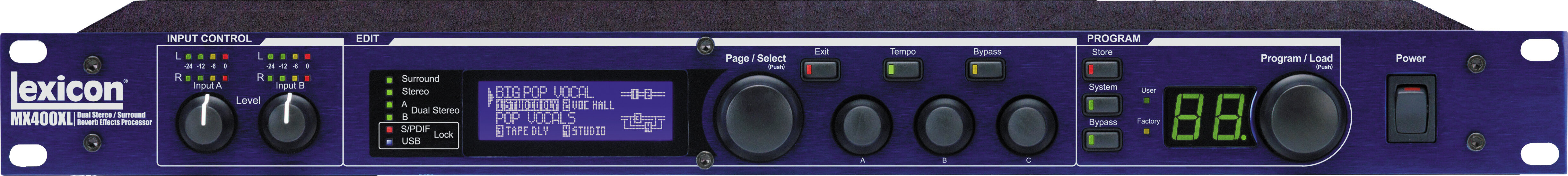

Large front panel LCD display

MIDI IN and THRU

XLR balanced I/O

4-In/4-Out Versatility, Hands-On Control and Road-Rugged Construction
Meet the most Lexicon power ever offered in a super-affordable 1RU effects processor. Perfect for band PAs, churches and clubs. You need to be able to make changes quickly, so they designed the MX400's intuitive front panel to be a bare minimum of knob tweaks away from any adjustment or effects change. For example, 3 individual, assignable parameter controls mean you don't have to page through menus to fine tune a reverb tail. Because you can use its built-in dbx compression and de-essing in tandem with reverb, the MX400 is the perfect tool for taming problem vocalists. Finally, you can rely on the MX400 for years to come, through countless load-ins and loadouts -- although its sound is A-studio-quality, Lexicon designed the MX400 to withstand dust, moisture, shock, power surges and all the other rigors of live sound use.

The first time you ever heard reverb on an album track, chances are you were hearing Lexicon. They invented digital processing. And they've been perfecting it for 30 years.

7 Effects Routing Options
The MX400 lets you switch effect routings automatically via front panel controls, so you don't have to spend time behind yoru rack changing cables to instantly re-purpose its four powerful processors.

From basc quad mono, to sterero to more complex dual stereo configurations, you can have 'em all at the twist of a knob.

Reverbs
Small Hall
Large Hall
Surround Hall
Small Plate
Large Plate
Room
Chamber
Gated
Reverse
Vocal Hall
Vocal Plate
Drum Hall
Drum Plate
Ambience
Studio
Arena
Spring

Delays
Studio Delay
Digital Delay
Tape Delay
Pong Delay
Mod Delay
Reverse Delay
2-Tap Delay

dbx Dynamics
Compressor
De-Esser

Effects
Chorus
Flanger
Phaser
Tremolo / Pan
Rotary
Vibrato
Pitch Shift
Detune

All MX400 reverbs, delays, dynamics and effects parameters can be accessed and edited from the inlcuded VST and Audio Units plug-ins.

Technical Info

Analog Audio Inputs
Connectors: (4) XLR balanced

Impedance: 50k Ohms bal., 25k Ohms unbal.

Input Level: +4 dBu nominal, +24 dBu maxium 48kHz or 44.1kHz

A/D Conversion: 24-bit, 48kHz 128 x oversampling

Analog Audio Outputs
Frequency Response: 10Hz - 20kHz +0 dB/-0.5 dB

THD+N: <0.0019% 10Hz - 20kHz

Dynamic Range: >109dB (A-weighted) A/A

Crosstalk: Typical <-80 dB 20Hz - 20kHz

Digital Input and Output
Connectors: Dual RCA phono (S/PDIF)

Format: S/PDIF 24-bit

Sample Rate: 44.1 or 48kHz

Frequency Response: 10Hz to 22kHz +/-0.5 dB @ 48kHz

Control Interface
USB: USB 1.0 for MX-EDIT Editor/Librarian and VST/Audio Units plug-ins

MIDI: In/Out 5-pin DIN

Foot Pedal: 1/4 in. phone jack

General
Power: 117 VAC or 230 VAC, 18 Watts

Size (W/H/D): 19 in. x 1.75 in. x 7.25 in.*/6.375 in.

Weight: 5.8 lbs. (2.6 kg)

Specifications subject to change without notice
