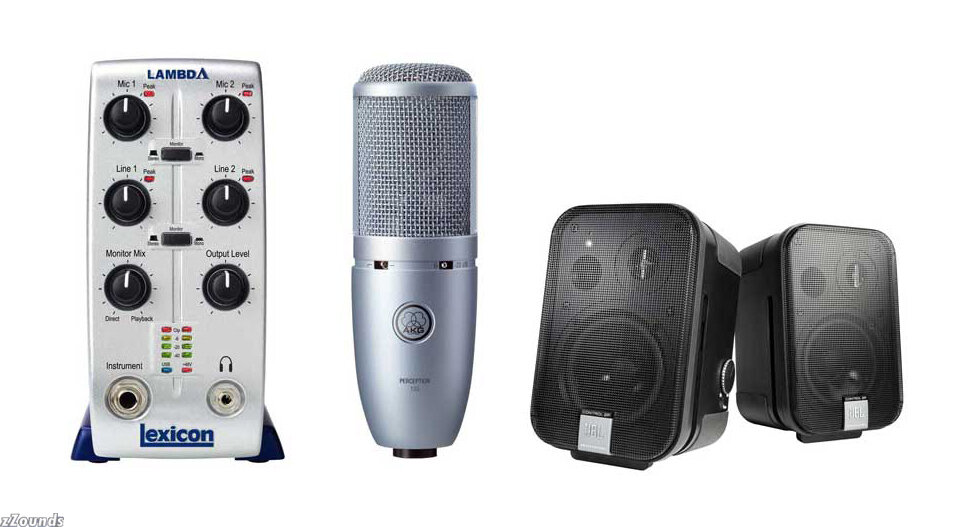

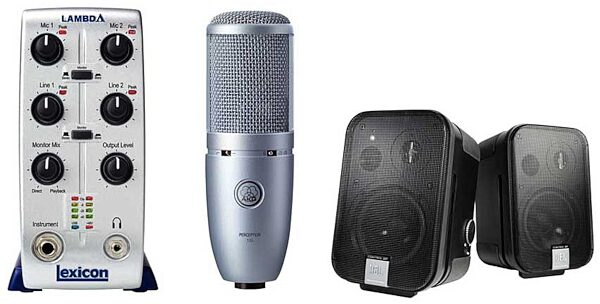

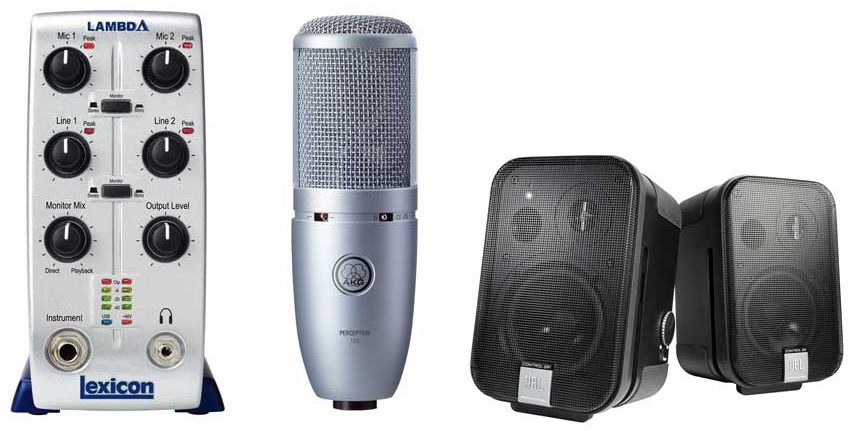

Lexicon Lambda with JBL Monitors and AKG Mic Studio Package

Manufacturer's Description for Lexicon Lambda with JBL Monitors and AKG Mic Studio Package

The Lexicon Lambda Desktop Recording Studio's 4x2x2 bus powered USB I/O Mixer is based on a recording studio mixer paradigm instead of a patch-bay style I/O system.

Lexicon Lambda
Unlike standard computer I/O boxes based on a patch bay concept, the Lexicon Lambda Studio is built around a mixer paradigm. A 4-input, 2-bus, 2-output USB I/O mixer with inserts, instrument input, MIDI I/O and complete metering and monitoring functions give you the freedom to record and mix anywhere with professional quality results.

This structure lets you connect to the unit's (2) Phantom powered XLR mic-pre inputs, (2) 1/4-inch insert points, (2)1/4-inch balanced line inputs, and MIDI I/O at all times while controlling input levels, stereo/mono routing, and monitoring from the units front panel. Steinberg's powerful Cubase LE recording platform offers recording of 48 audio and 64 MIDI tracks as well as full volume, pan, mute, and effects automation with advanced editing options. The included Lexicon Pantheon VST Reverb plug-in provides 35 presets, 6 reverb types and the legendary sound that only Lexicon can offer. The Lambda Desktop Recording Studio is a serious recording option for a beginner or the seasoned professional needing a portable solution.

Lexicon Lambda Features
- MIC LEVELS: Control input gain of the two mic preamps.
- LINE LEVELS: Control input level of balanced line inputs.
- MONITOR MIX: An easy way to balance audio source between live input and playback mix levels while recording. Zero latency input monitoring is a knob turn away.
- INTSRUMENT IN: The ultra-Hi-Z input, designed for magnetic and piezo pickups, won't load down your instruments and rob them of their high end. Conveniently located on the front panel for easy access.
- PEAK INDICATORS: Make sure nasty, distortion-causing peaks don't sneak into your recordings.
- STEREO/MONO: Select monitor inputs in mono or stereo.
- METERING: Lambda Mobile Studio features a 2-channel, 4-segment bargraph meter to monitor exact levels at the A/D converters.
- HIGH POWERED HEADPHONE AMP: Lambda Studio's headphone amplifier offers ultra clear monitoring while delivering ample power for all types of headphones.
- LINE INPUTS: RF-fi ltered TRS active-balanced inputs accept either balanced or unbalanced signals.
- TRS INSERTS: Easy access to your favorite outboard processors with the TRS insert points.
- MIC PREAMPS: Two worldclass mic preamps present high-end studio condenser mics with an immaculate front end. Their extremely low noise design makes them stellar performers when using more common dynamic microphones as well.
- MIDI IN/OUT: Fully opto-isolated MIDI input eliminates ground loop hum and MIDI talk-through noise. MIDI output has rock-solid sync to USB frame rates.
- LINE OUTPUTS: RF-filtered, TRS servo-balanced, active outputs are smart enough to know whether they are connected to balanced or unbalanced equipment
- +48V PHANTOM POWER: Provides clean +48V DC to high-quality condenser mics requiring phantom power.
- USB POWERED: Connect to your computer with the included USB cable. No need for a power supply.

STEINBERG CUBASE LE
Multi-Track Recording Software for PC or Mac

Steinberg is a leader in computer-based recording. From first idea to complete compositions, Cubase LE is the virtual studio for musicians looking for a powerful creative tool. It integrates seamlessly with the Lambda I/O Mixer includes all of the modules for to tracking, editing and mixing your masterpiece.

- 48 audio and 64 MIDI tracks
- Professional audio editing and processing features
- Full automation of volume, pan, mute and effects
- MIDI score editor with advanced quantization and logical presets
- Supports up to 8 VST instruments
- 2 insert and 4 effect sends per channel
- VST system link and ReWire 2 compatible

LEXICON PANTHEON
World Class VST Reverb Plug-In for PC or Mac

The Lexicon name is synonymous with the world's best reverb. Pantheon continues this legacy and delivers that Lexicon Sound used on most of today's recorded music and movies.

- Gives recordings the legendary Lexicon Sound
- 35 factory presets
- 6 reverb types
- 16 editable parameters per reverb type
- Mono and stereo operation
- Advanced yet easy-to-use interface
- Floating point DSP processing
- Efficient CPU utilization
- 16 and 24-bit compatible

AKG Perception 120
The AKG Perception 120 is a 2/3-inch diaphragm true condenser microphone offering excellent value and performance. The low-mass diaphragm delivers a clear sound with accurate sonic detail. A switchable 20 dB pre-attenuation pad and bass cut filter make the Perception 120 an excellent choice for a wide range of recording and live sound applications. Backed by AKG's six decades of experience in making microphones and input from sound engineers around the world, the Perception 120 now brings AKG studio quality to musicians and project studio applications.

AKG Perception 120 Features
- General-Purpose Condenser Microphone
- 2/3-Inch Cardioid Capsule delivers beautifully-balanced response with excellent transients
- Switchable 20 dB pre-attenuation -usable in sound fields as high as 155 dB!
- Switchable bass cut filter eliminates noise and boominess
- Rugged die-cast housing and dent-resistant stainless steel grille screen

JBL Control 2P
The JBL Control 2P Powered Studio Monitors combine JBL's legendary speaker design with powerful amplification. Delivering an accurate representation of any mix even in some of the most demanding audio applications, the Control 2P is compact, rugged and professional. The Control 2P Compact Powered Reference Monitor is used ideally for desk-top recording, video production, audio visual presentations, professional broadcasting, and as a monitor for instruments with built-in electronics.

JBL Control 2P Features
- Accurate Studio quality transducers
- Rich bass response (80 Hz - 20 Khz)
- 35 watt per-channel power amplifier
- High sensitivity drivers
- Exceptional output (115 DB max SPL per pair)
- Balanced XLR, 1/4 inch, and unbalanced RCA inputs
- Stereo headphone jack for monitoring using headphones
- Ergonomic, side-mounted volume control simultaneously controls both speakers
- High frequency adjust control to contour HF response to application requirements
- Magnetically-shielded transducers for use near magnetically sensitive equipment
- Internal peak limiter and overload protection circuit
- Included snap-on pedestals optimize listening angle for desktop applications zZounds is an authorized dealer of Lexicon products.

Specifications

Lexicon Lambda
Microphone Inputs: (2) Female XLR Pin 2 Hot

Phantom Power: +48 Volt DC

Gain: +50dB

Insert Inputs: (2) 1/4-inch TRS

Line Inputs: (2) 1/4-inch TRS balanced or unbalanced

Instrument Input: (1) 1/4-inch mono jack

Line Outputs: (2) 1/4-inch TRS balanced or unbalanced

Headphone Output: (1) 1/8-inch stereo jack

MIDI Interface: 5 pin DIN connectors for MIDI IN and MIDI OUT

D/A and A/D Conversion:
- Sample Rate: 44.1 kHz or 48 kHz (determined by computer application)
- Dynamic Range:
++ A/D (24 Bit) 104dB typical, A-weighted, 20Hz - 20kHz
++ D/A (24 Bit) 105dB typical, A-weighted, 20Hz - 20kHz

USB Type B Socket: Version 2.0 Full Speed

Dimensions: 3.375 W x 6.5 H x 6.75 inches D (86 x 165 x 172mm)

Weight: 1.9 lbs. (product only; not shipping weight)

AKG Perception 120
Type: 2/3 inch Diaphragm True Condenser

Polar pattern: cardioid

Frequency range: 20 to 20,000 Hz

Sensitivity: 22 mV/Pa (-33 dBV)

Maximum SPL: 130/150 dB (0/-20 dB) for 0.5% THD

Equivalent noise level: 22 dB-A (IEC 60268-4)

Signal/noise ratio (A-weighted): 62 dB

Preattenuation pad: 0 dB, -20 dB

Bass filter: 12 dB/octave at 300 Hz

Impedance: <200 ohms

Recommended load impedance: >= 1,000 ohms

Current consumption: <3 mA

Power requirement: 48 V phantom power to DIN/IEC

Connector: 3-pin XLR

Finish: metallic blue

Dimensions: 53 dia. x 165 mm (2.1 dia. x 6.5 in.)

Net weight: 525 g (18.5 oz.)

Shipping weight: 955 g (33.7 oz.)

JBL Control 2P
Transducers:
- LF: 135 mm (5.25 inch) low frequency loudspeaker
- HF: 19 mm (.75 inch) Polycarbonate dome tweeter
Frequency Range: 80 Hz - 20 kHz

Amplifier Power: 35 Watts per channel

Maximum SPL Per Pair: 115 dB

Crossover Frequency: 4.2 kHz

Input Sensitivity: +4 dBu XLR 1/4 inch (0 dBu RCA)

Signal Input Connectors (x2):
- Balanced Neutrik Combo XLR 1/4 inch TRS
- Unbalanced RCA
Power Requirements: 19 VDC / 3.42 A (use only supplied power supply)

Headphone Jack: 1/8 inch (3.5 mm)

Dimensions: 9.3 x 6.3 x 5.6 inches (235 x 159 x 143 mm)

Net Weight: 10 lbs (4.8 kg)
