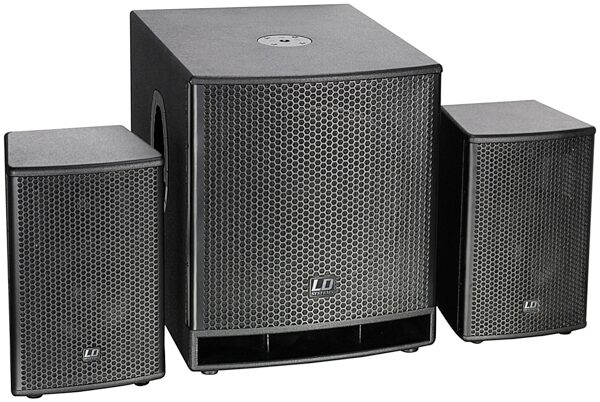

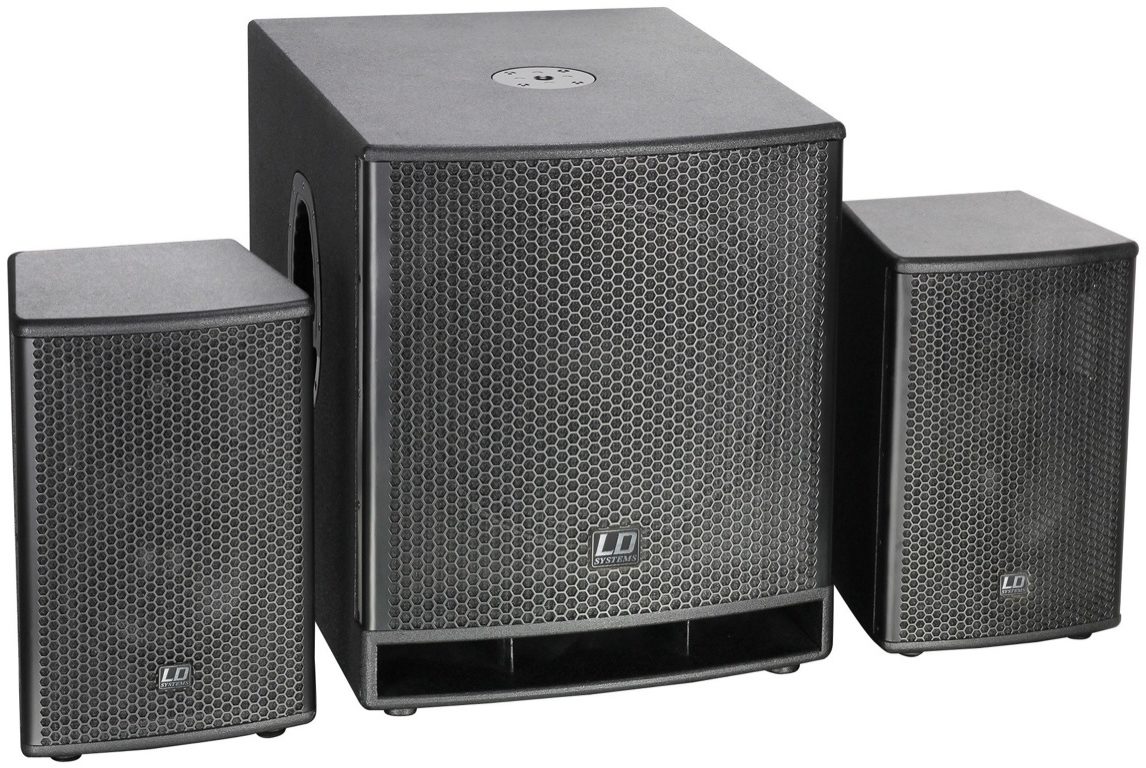

LD Systems DAVE 15 G3 Portable Sound System, Main

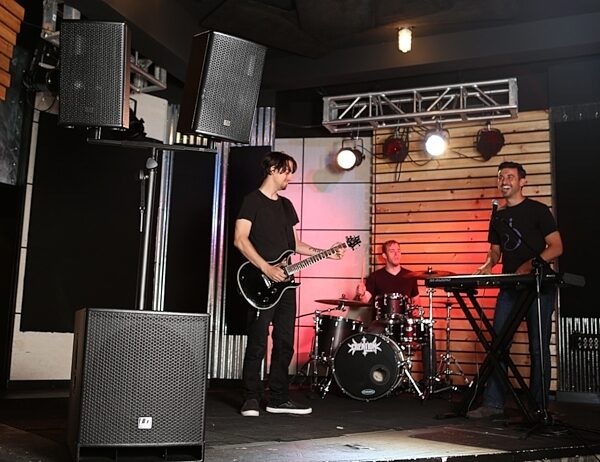

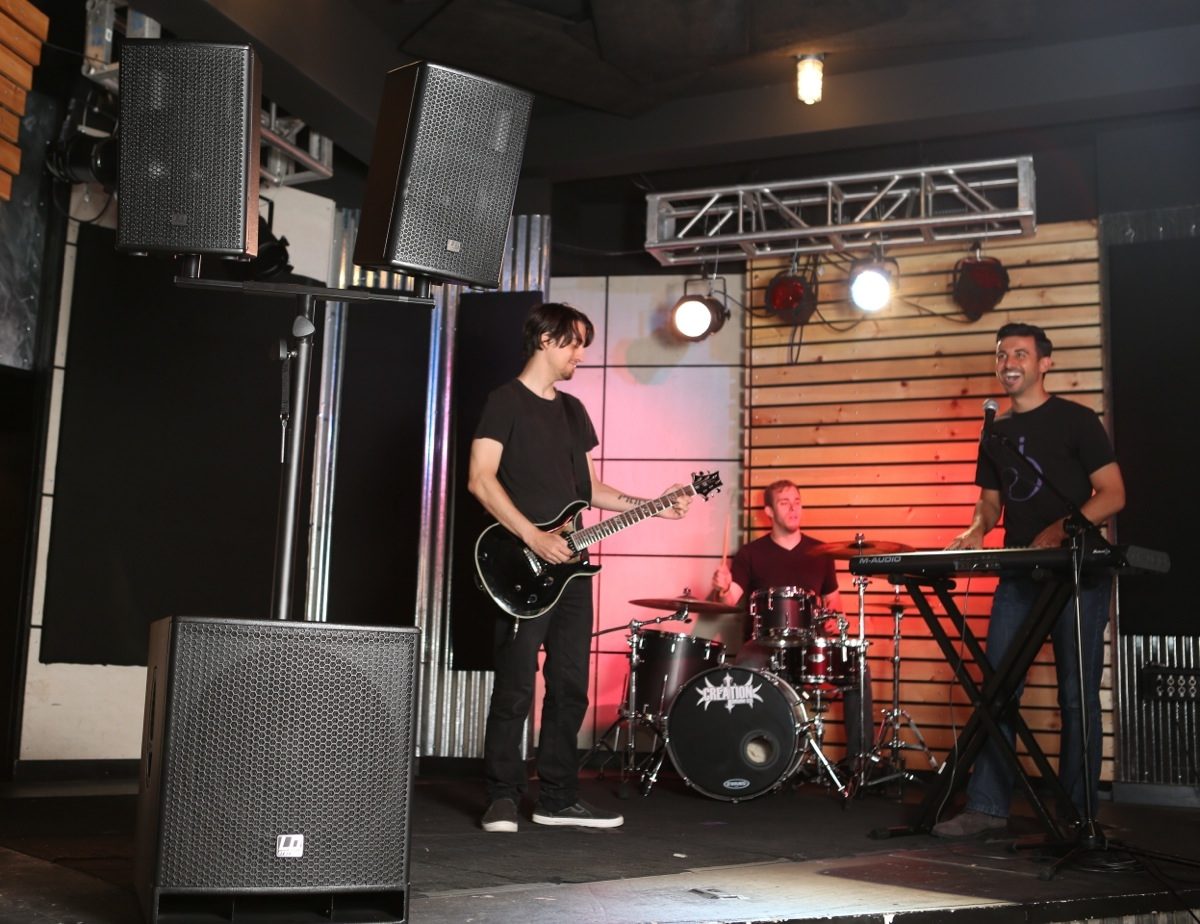

LD Systems DAVE 15 G3 Portable Sound System, Glamour View
LD Systems DAVE 15 G3 Portable Sound System, Handle

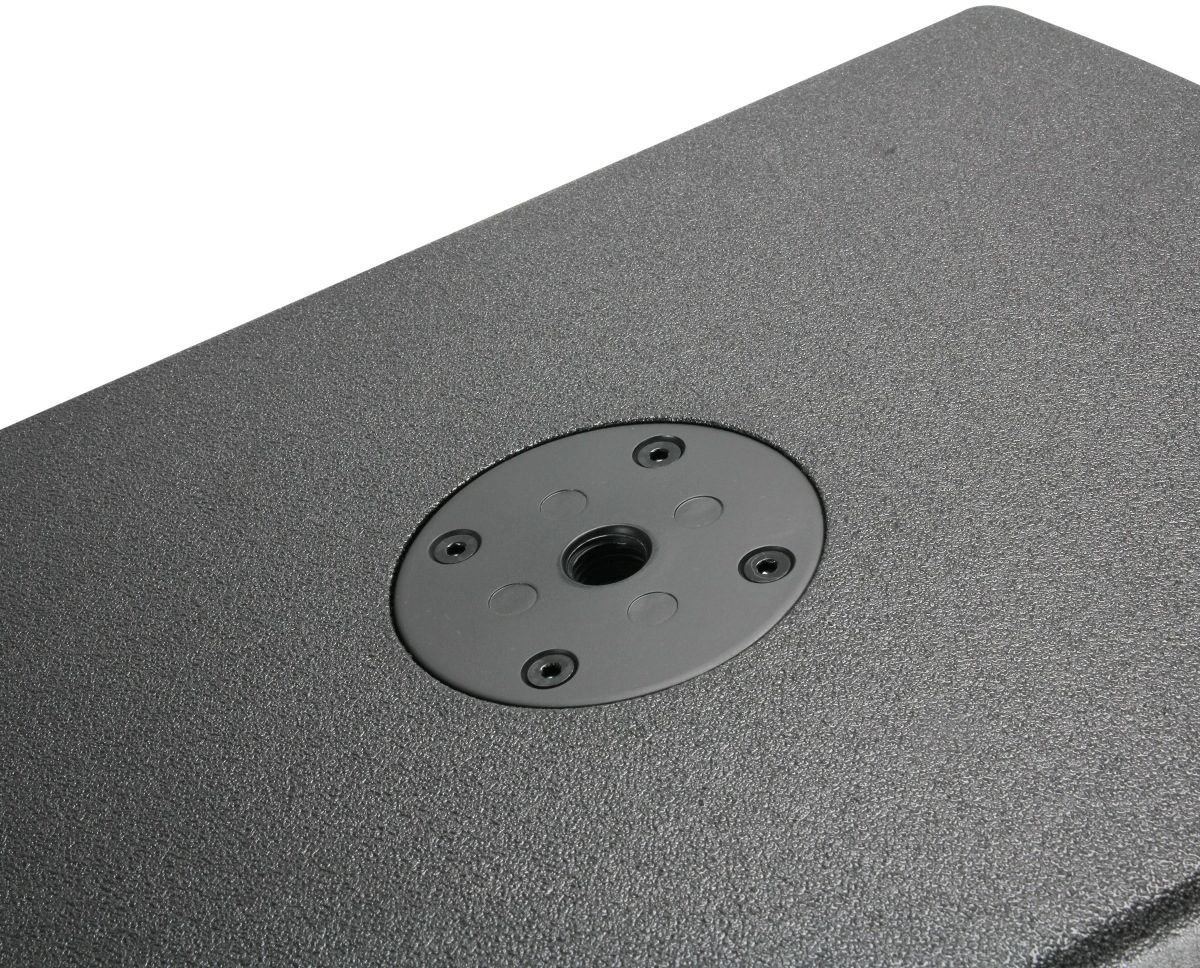

LD Systems DAVE 15 G3 Portable Sound System, Pole Insert

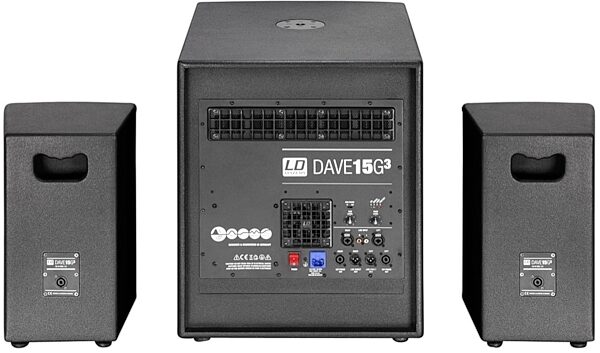

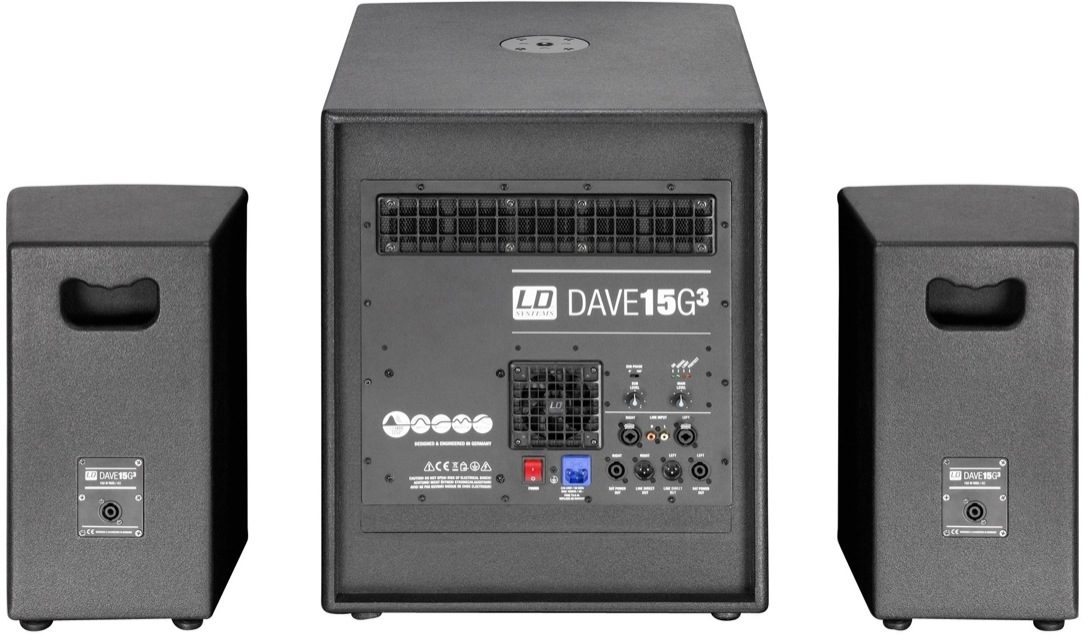

LD Systems DAVE 15 G3 Portable Sound System, Rear

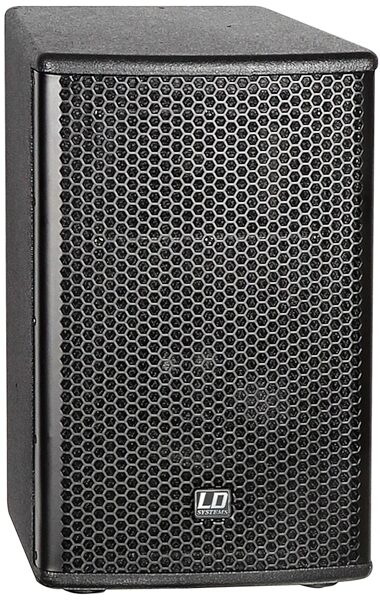

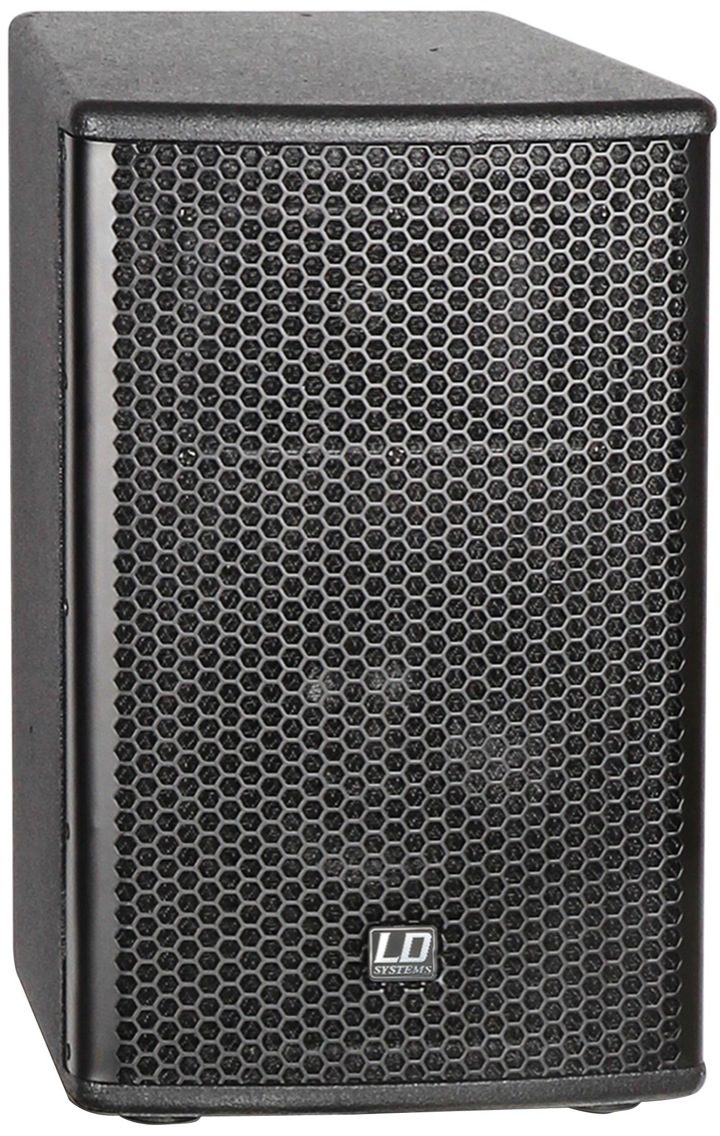

LD Systems DAVE 15 G3 Portable Sound System, Speaker Front

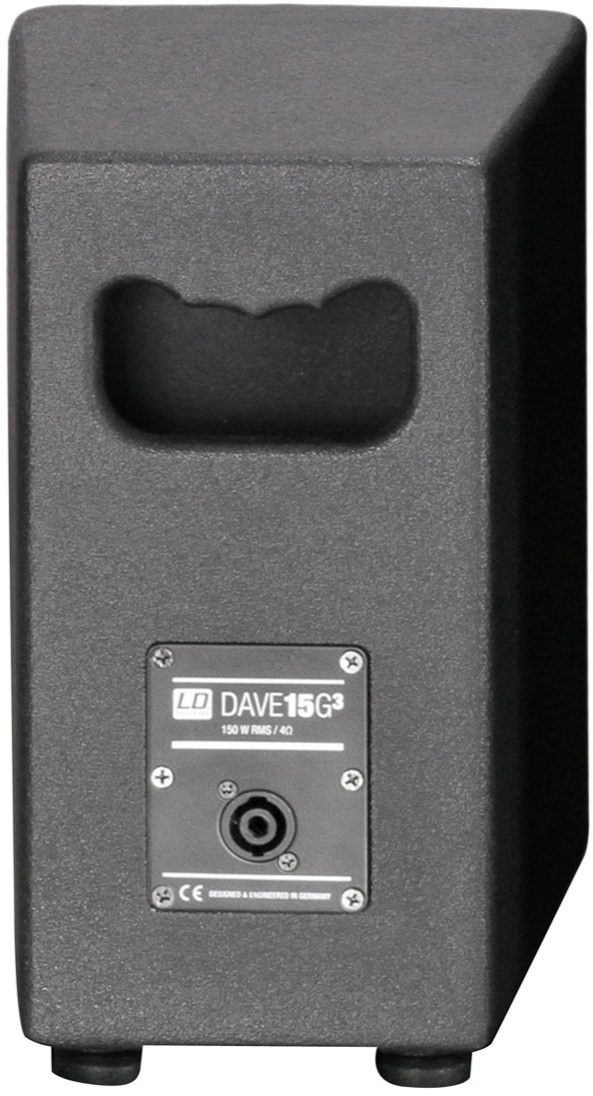

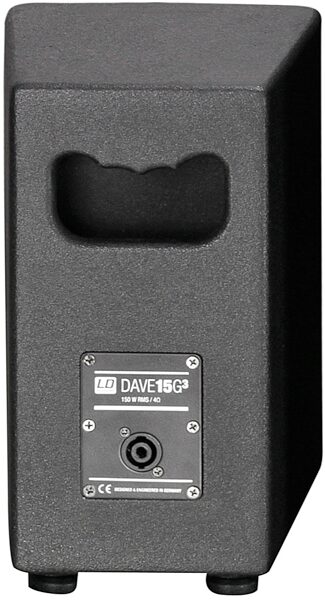

LD Systems DAVE 15 G3 Portable Sound System, Speaker Rear

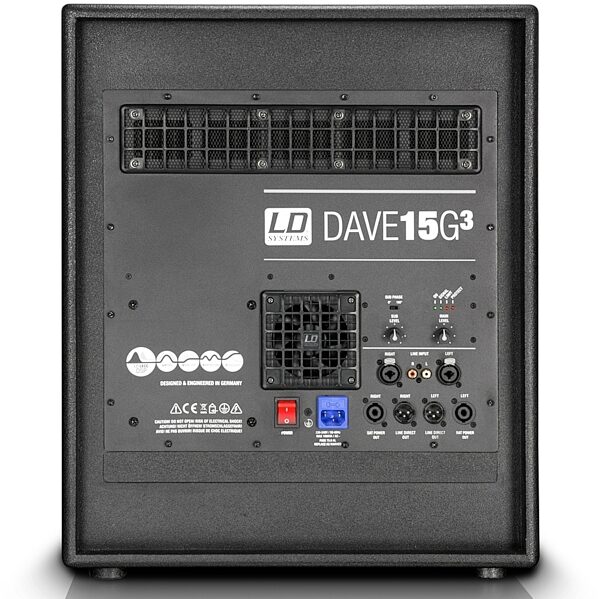

LD Systems DAVE 15 G3 Portable Sound System, Sub Rear
LD Systems DAVE 15 G3 Portable Sound System, Main LD Systems DAVE 15 G3 Portable Sound System, Glamour View LD Systems DAVE 15 G3 Portable Sound System, Handle LD Systems DAVE 15 G3 Portable Sound System, Pole Insert LD Systems DAVE 15 G3 Portable Sound System, Rear LD Systems DAVE 15 G3 Portable Sound System, Speaker Front LD Systems DAVE 15 G3 Portable Sound System, Speaker Rear LD Systems DAVE 15 G3 Portable Sound System, Sub Rear
With a dynamic DSP system, and a powerful 15" subwoofer at its core, the LD Systems Dave 15 G3 delivers enormous sound while remaining easy to transport.

The DAVE 15 G3 is LD Systems' most powerful active compact system. A bass reflex subwoofer with a 15" driver constitutes the massive, powerful foundation. The satellites with 8" drivers and HF horns are responsible for a natural sounding, assertive midrange and transparent treble. The subwoofer incorporates a 2.1 power amp module that drives the components of the DAVE 15 G3 with 2800W of peak power.

The LD LECC DSP digital processor ensures perfectly tuned functioning of the system. It includes specially amplitude and low-latency optimized crossovers, separate equalizers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.

The thoroughly professional features of the DAVE 15 G3 active PA system include sturdy multiplex cabinets, all-important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped recessed handles. The LD "Evolutive" handles of the subwoofer are especially worthy of mention: the innovative design with a metal ring handle permits secure, convenient handling from all sides. For accurate vertical orientation, the speaker supports of the satellites are vertically adjustable by +/- 13.5* max. in seven increments.

Like all systems in the DAVE series, the DAVE 15 G3 is suitable for portable use and for permanent installation.

- Product number: LDDAVE15G3
- Product type: PA system
- Type: active
- Color: black
- Max. SPL (continuous): 121dB
- Max. SPL (peak): 132dB
- Frequency response: 35 - 19000Hz
- Dispersion (H x V): 90 x 40"
- Weight: 60.9kg

Subwoofer:
- Low/mid driver dimensions: 15"
- Low/mid driver dimensions (mm): 381mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 3"
- Woofer voice coil (mm): 76.2mm
- Cabinet construction: vented
- Cabinet material: 18 mm Plywood
- Cabinet surface: texture paint
- Subwoofer Dimensions: (W x H x D) 480 x 570 x 635mm
- Subwoofer features: LD Systems "Evolutive" handles, threaded flange M20

Mid/Hi System:
- Midrange size: 8"
- Midrange size: 203.2mm
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 1.5"
- Midrange voice coil: 38.1mm
- Horn: CD horn
- Tweeter dimensions: 1"
- Tweeter dimensions (mm): 25.4mm
- Tweeter magnet: Ferrite
- Tweeter brand: Custom-made
- Tweeter voice coil: 1"
- Tweeter voice coil (mm): 25.4mm
- Mid/Hi system impedance: 4Ohm(s)
- Loudspeaker inputs: 1
- Speaker input connections: Speakon compatible
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: 15 mm Plywood
- Mid/Hi system cabinet surface: texture paint
- Mid/Hi system Dimensions: (W x H x D) 275 x 430 x 260mm
- Mid/Hi system features: ergonomically shaped insert handles, SM707 stand mount 36 mm

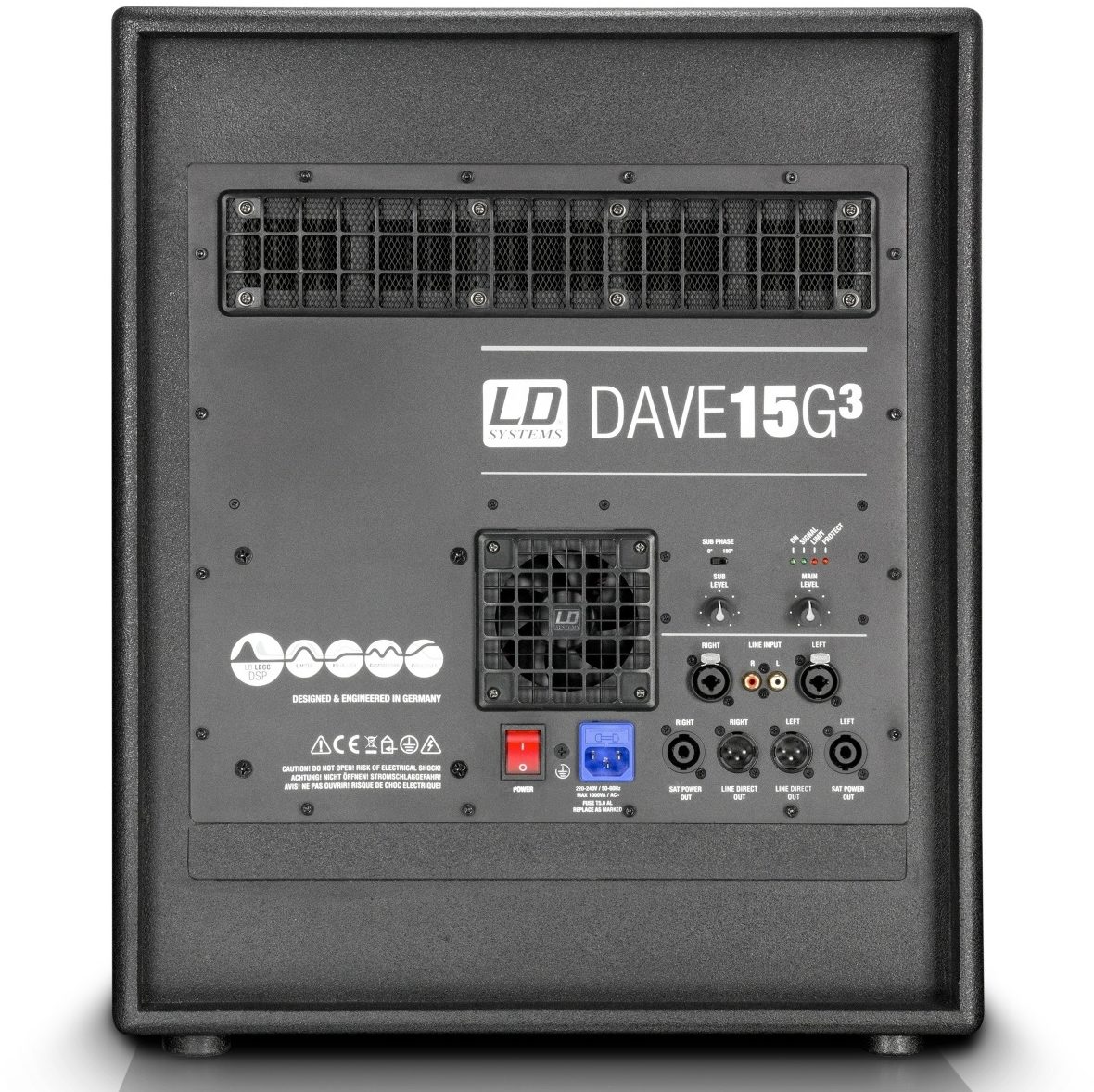

Amplifier Module (integrated in Subwoofer):
- Amplifier: Class A/B
- Amplifier Output System (RMS): 700W
- Amplifier Output System (Peak): 2800W
- Protection circuits: limiter, short circuit, overload
- Cooling: volume-controlled fan
- Controls: Power, volume, sub level, Subwoofer Phase Reverse
- Display: protect (protection circuit engaged), on/off, signal, limit
- Operating voltage: transformer, 220 V AC - 240 V AC
- Power consumption: 1000VA
- Line inputs: 2
- Line input connectors: XLR, 6.3 mm Jack, RCA
- Line output connectors: XLR
- Loudspeaker outputs: 2
- Speaker output connections: Speakon compatible
