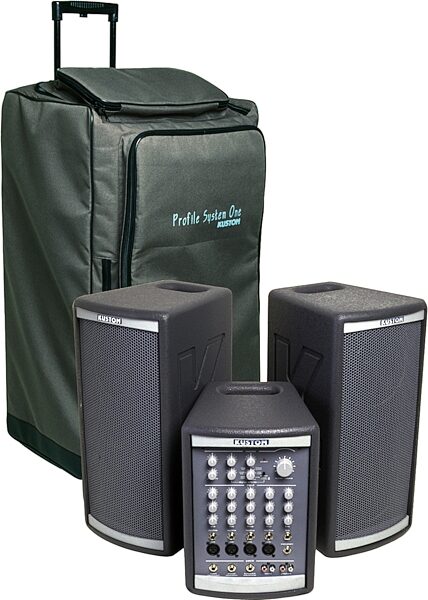

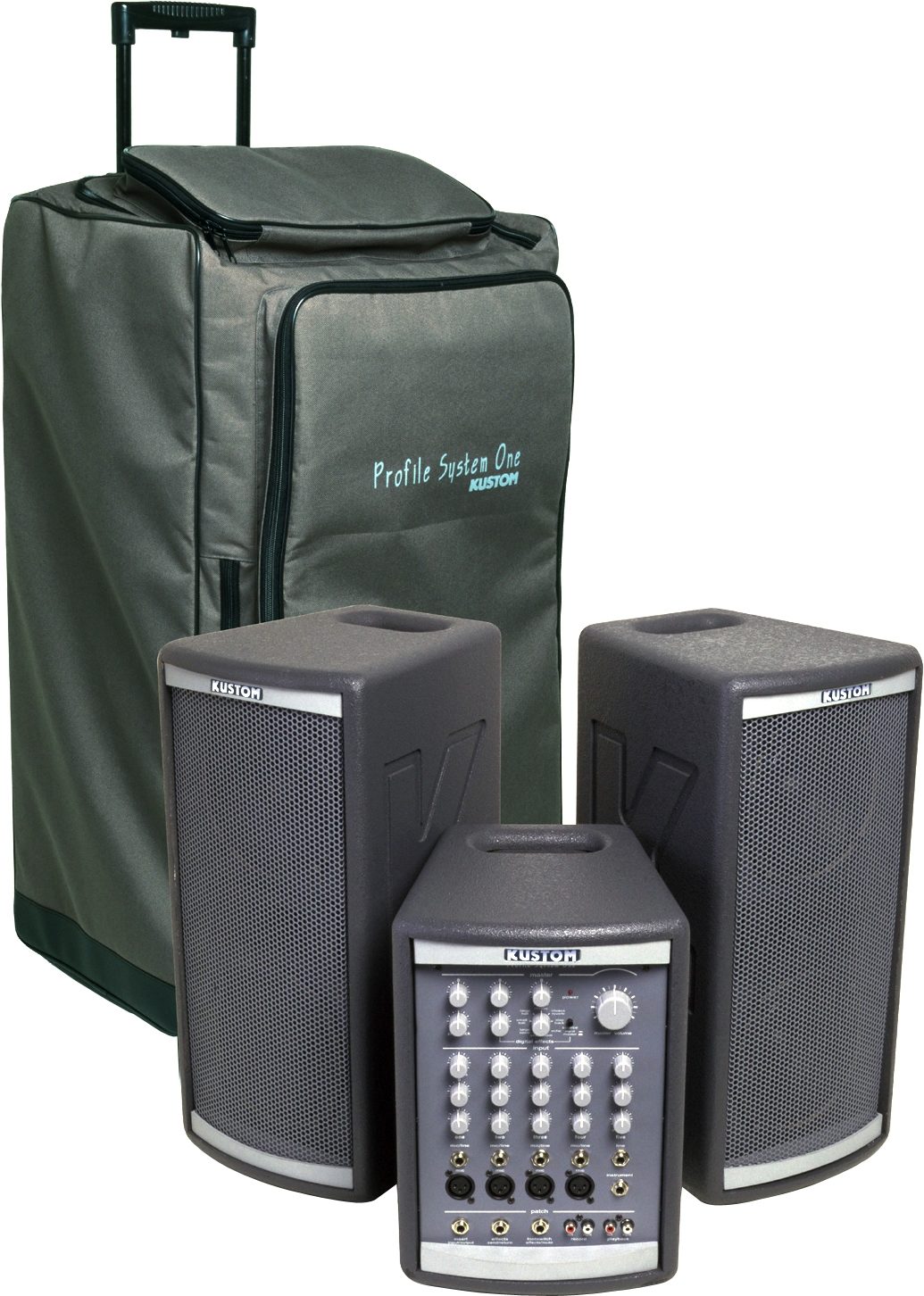

Product DescriptionKustom Profile 1 PA Package with Roller Bag
Profile's 100 watts of power and the focused audio dispersion pattern of the Line Array speakers enable the system to reach deeper into the audience - giving your message clarity and attention. You can bet they're going to hear what you have to say. The more you use your Profile System One, the more you'll appreciate it's comforting, compact size and incredibly big sound. Acoustic guitarists will love the contoured instrument input, especially when you add a hint of hall reverb into your mix. Four balanced XLR inputs, with phantom power, allow you to use every type of microphone available, even condenser mics for use with pianos and other hard-to-mic instruments. Five line level inputs - enough to accommodate every keyboard, drum machine, and sampler you own. Connect youre favorite outboard pedal or rack effect into Profile's effect bus and simultaneously use Profile's digital effects. Lastly, the integrated, ergonomic carry handles and the compact design of the line array cabinets make stage setup and tear down a breeze.
Profile's 24-bit effects offer you 4 stage environments and 4 studio effects
Line Array Speakers
Line array technology is the reason why the Profile is able to deliver great sound with deeper penetration into the listening audience than conventional speaker systems.
Line array technology focuses sound energy where it is needed.
Additionally, the use of two speakers in a line array results in a 6db increase in SPL (sound pressure level) or greater volume.
The Profile System One speaker cabinets are equipped with an internal 1 in. (25mm) pole mount cup for use with 1 in. speaker stands.
The Profile mixer is equipped with internal 5/8 threads for mounting on the optional KPSSS100 stand or with a trifold microphone stand.
XLR Inputs with Phantom Power
These inputs are designed for low-impedance microphones or equipment that has a mic-level, balanced output (often called a direct out).
Also these XLR inputs are phantom powered. Phantom power is a small amout of power that is necessary when using most condenser mics. Condenser mics allow you to capture frequencies that are unachievable by most dynamic mics. Most condenser mic require either an internal battery or an expensive adapter. The Profile System One mixer provides 15-volts of power the the XLR jacks which will not cause damage to any dynamic or non-condenser microphone.
zZounds is an authorized dealer of
Model: KPS-PM100 Profile System One Powered Mixer
Frequency Response: 20Hz-20kHz
Actual response is tailored to speaker cabinet for accurate acoustical response.
Total Harmonic Distortion: Less than 0.4%
Measured at 1 VRMS (0dBv) at record output, effects send, or insert output
Hum & Noise:
-115dB Mic Input Rs=150 ohm, 20-20kHz
-52dB Residual Noise, all level controls 0% (minimum)
-50dB Nominal System Noise, all level controls at 50%
All measurements made at 1kHz
77dB Mic to Power Amp Out (Ch 1 - Ch 4)
57dB Line to Power Amp Out (Ch 1 - Ch 5)
53dB Instrument to Power Amp (Ch 5)
32dB Playback to Power Amp
57dB Mic to Record Output
44dB Mic to Effects Send
52dB Mic to Insert Output
25dB Insert Input to Power Amp Output
Crosstalk: 80dB Channel to channel, 1kHz
Input Channel Equalization: Special curve that adjusts bass, mid, and treble frequencies
Master Equalization: 100Hz (Bass), 1kHz (Mid), 10kHz (Treble) all +/-12dB
Digital Effects: 24 bit DSP, 8 effects; small room, large room, small hall, large hall, chorus, chorus reverb, slap back (delay), echo
Phantom Power: +15V, Applied to all Mic Inputs thru 3.3K resistors
Footswitch: Digital effects ON/OFF and Channel ON/OFF (playback remains active)
Power Requirements: 120VAC/60Hz, 100W nominal
mm/kg: 326 (Height) x 226 (Width) x 270 (Depth), 8.2 kg
Inches/pounds: 12-7/8 (Height) x 8-7/8 (Width) x 10-5/8 (Depth), 18.0 lbs
