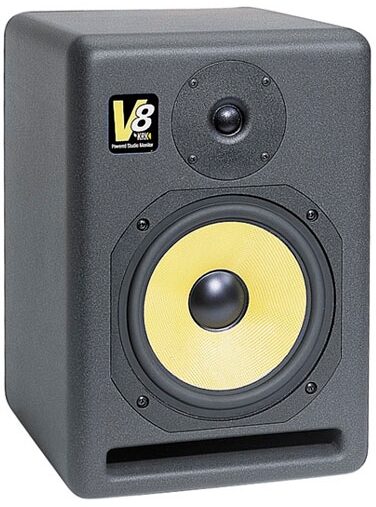

For the professional who needs an active near field monitor able to satisfy the most critical listening requirements, yet be portable enough to take on location, the new V8 studio reference monitor is the answer. The V8 uses a separate power amplifier for the woofer and tweeter with an electronic crossover so that the power and frequency response is tailored to each transducer. The V8's Kevlar woofer is extremely fast and does not have audio band resonances that color the sound. Using the Neutrik Combo connector, the V8 can handle both XLR and 1/4 in. phone plug inputs. Video shielding is standard.
Technical Info
Video Shielding: Standard
Drivers:
HF 1 in. Silk Dome
LF 8 in. Woven Kevlar¬
Input:
XLR - 1/4 in. TRS Combo
XLR 10K Ohm Balanced
Pin 2 + Tip = High
Pin 3 + Ring = Low
Pin 1 + Sleeve = Ground
Controls:
System Gain +6dB -30dB Variable
HF Adjust +1dB, Flat, -1dB 3 Position Switch
LF Adjust -3dB Point @45Hz, @50Hz
Amplification:
HF 60 Watts
LF 120 Watts
Frequency Response: 47Hz -20kHz ±2dB
Maximum SPL @ 1m:
108dB Music
111 dB Peak
Dimensions (H x W x D): 16 x 11 x 12 in. (40.6 x 27.9 x 30.48 cm)
Shipping Weight: 38 lbs. (17 kg) each
