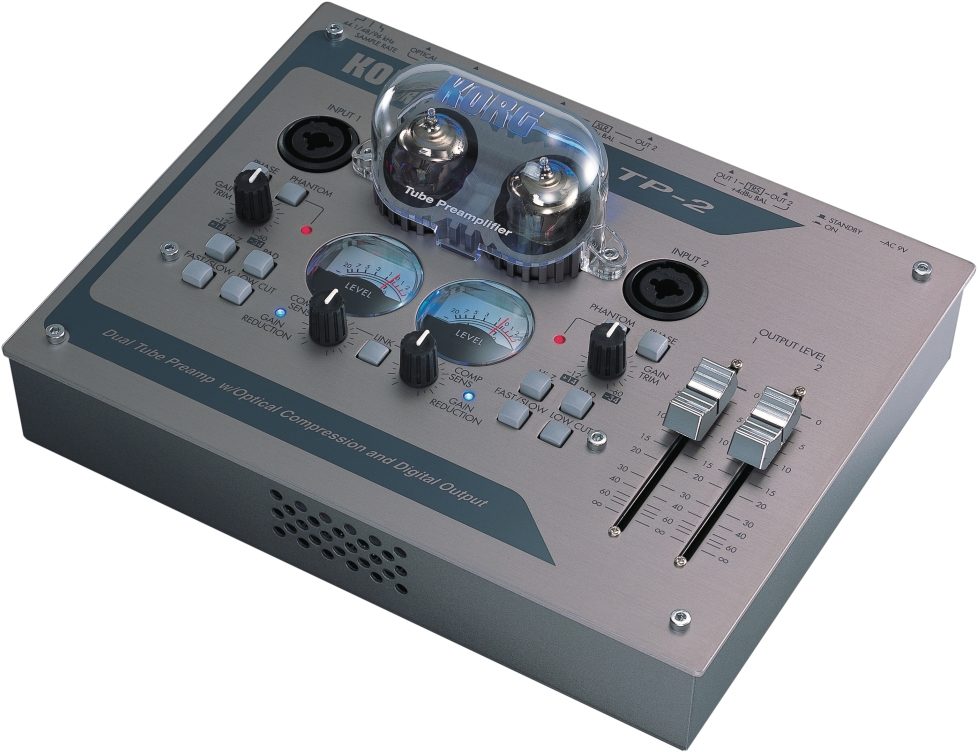

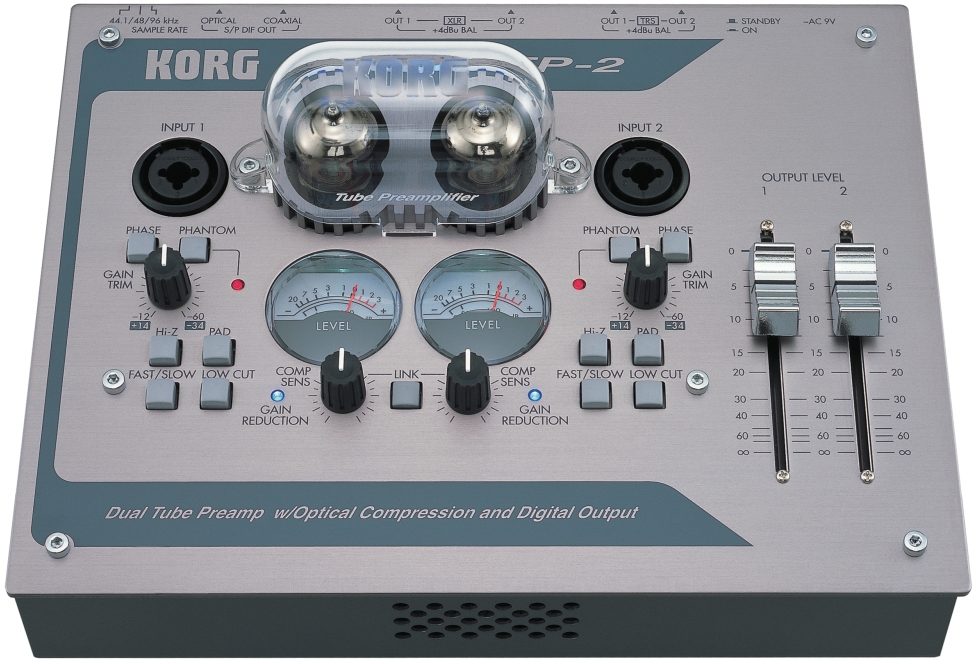

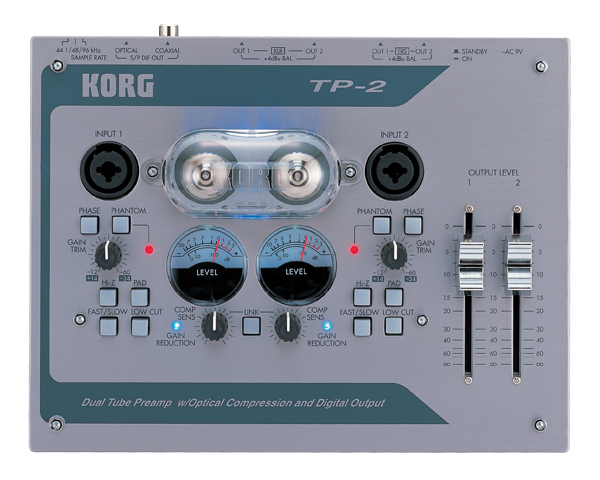

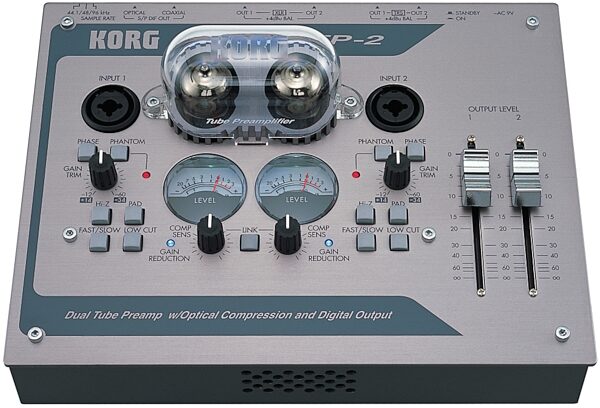

Korg TP2 Desktop Tube Compressor and Microphone Preamp

Product Description

In this era of digital audio, more and more musicians, engineers and producers are longing for the warm, full-bodied sound produced by vacuum tubes. Say hello to the all-new TP-2. In one rugged and compact unit, the TP-2 combines a dual channel tube preamp, optical compression and digital outputs -- a total solution for your demanding audio applications.

2 for One!
The TP-2 offers 2 completely independent preamps, with individual realtime controls. Each channel is driven by its own 12AX7 tube. A 'Stereo' switch on the front panel allows both preamps to work in tandem when processing a stereo source.

Full-Featured Mic Preamps
Using a specially tuned version of the Valve Force technology so widely acclaimed in the Electribe X series and the TRITON Extreme, the new TP-2 tube-driven preamp imparts a robust warmth and a rich musical character that is ideal for your critical and challenging acoustic sources. Each preamp channel accepts either XLR or 1/4 in. TRS inputs, and switchable phantom power is provided. Equipped with a Hi-Z switch, 26dB pad button and a variable trim knob, the TP-2 assures the optimal gain setting for any source, from a premium microphone to a direct bass or guitar signal. A pair of faders controls the output level, and a low-cut switch and a phase reverse button offer even more flexibility.

Transparent Optical Compression
By using state-of-the-art optical compression, the TP-2 is able to respond quickly, breathing life and luster into your sound. In addition to enhanced response times, optical compression provides a wide range of dynamic control - without coloring the source material in adverse ways. Compression sensitivity knobs on the front panel are teamed with Fast/Slow release time buttons and audiophile analog VU meters for intuitive realtime control.

Best of Both Worlds
While the TP-2 works hard in the analog domain to achieve warm, smooth and musical results, its digital characteristics are no less stellar. Analog-to-digital conversion is 24-bit, using 64-times oversampling for error-free reproduction. Sampling rates of 44.1, 48 and 96 kHz are offered, and the digital output is provided in both S/P DIF optical and coaxial formats. Analog outputs are also provided.

Use it Anywhere
While the TP-2 is obviously well suited to enrich your hardware or software based digital recordings, it is perfect for a variety of applications. Live, the TP-2 can be used to add warmth to any vocal mic or acoustic instrument. As a mastering tool, the TP-2 provides superior dynamic control. You can even use it as a preamp when preparing audio samples for your keyboard or computer.

XD Series Plug-In Version
For those of you who are already using Korg's D32XD or D16XD Digital Recording Studios, the full functionality and feature set of the TP-2 is available as an optional enhancement for these Xtended Definition recorders in the TPB-2. The TPB-2 mounts directly into the option bay on the D16XD or D32XD front panel. zZounds is an authorized dealer of Korg products.

Input Connector:
XLR-3-31 type (+48 V phantom power, switchable)
1/4 TRS phone jack (balanced, unbalanced when Hi-Z is On)

Input Impedance:
4k Ohms (XLR-3-31)
10k Ohms (TRS phone Jack)
1M Ohms (TRS phone Jack Hi-Z)

Input Level:
-60dBu ~ -12dBu @ TRIM = max. ~ min., PAD OFF
-34dBu ~ +14dBu @ TRIM = max. ~ min., PAD ON

Max. level:
-48dBu ~ 0dBu @ TRIM = max. ~ min., PAD OFF
-22dBu ~ +12dBu @ TRIM = max. ~ min., PAD ON

Source Impedance: 600 ohm

Tube: 12AX7

Method of Compression: Vacuum tube gain reduction using a photocoupler

Frequency Response:
10Hz ~ 20kHz +/- 1dB @fs44.1kHz, +4dBu, 10k ohm
10Hz ~ 22kHz +/- 1dB @fs48kHz, +4dBu, 10k ohm
10Hz ~ 44kHz +/- 1dB @fs96kHz, +4dBu, 10k ohm

S/N: TBD

Dynamic Range: TBD

A/D Conversion: 24-bit, 64 times oversampling

Sampling Frequency: 44.1kHz, 48kHz, 96kHz

Analog Outputs:
Connector: XLR-3-32 type, 1/4 in. TRS phone jack (balanced)
Output Impedance: 150 ohm
Standard Output Level: +4dBu
Max. Output Level: +16dBu
Impedance: Over 10k ohm

Digital Outputs:
Connector: Optical, Coaxial
Format: 24-bit S/P DIF (IEC60958, EIAJ CP-1201)

Dimensions:
8.82 in. (W) x 6.97 in. (D) x 3.46 in. (H)
224 (W) x 177 (D) x 88 (H)mm

Weight: 2.93 lbs. / 1.3 kg

Accessories: AC power supply, Owners manual

Specifications subject to change without notice
