Keyboard: 61-key: Natural Touch Semi Weighted[Tone Generator]
Synthesis Types: 9
SGX-1 Premium Piano (Acoustic Piano)
EP-1 MDS Electric Piano (Electric Piano)
HD-1 High Definition Synthesizer (PCM Virtual Memory Technology)
AL-1 Analog Synthesizer (Analog Modeling)
CX-3 Tonewheel Organ (Tonewheel Organ Modeling)
STR-1 Plucked String (Physical Modeling)
MOD-7 Waveshaping VPM Synthesizer (VPM Synthesis)
MS-20EX (CMT Analog Modeling)
PolysixEX (CMT Analog Modeling)
SGX-1: 100 voices*3
EP-1: 104 voices
HD-1: 140 voices
AL-1: 80 voices
CX-3: 200 voices
STR-1: 40 voices
MOD-7: 52 voices
MS-20EX: 40 voices
PolysixEX: 180 voices
*1 Maximum polyphony depends on the kind of synthesis engines and the number of effects being used.
*2 KRONOS dynamically allocates voices to multiple synthesis engines when they are used simultaneously.
*3 100 dual-stereo notes (It corresponds to 400 voices in the maximum.)
Number of Programs/Combinations/Drumkits:
1,664 user memory programs
(1510 or more [760 or more HD-1+750 or more EXi] come preloaded)
1,792 user memory combinations
(448 or more come preloaded)
152 user memory drumkits
(77 or more come preloaded)
256 GM Level2 preset programs+ 9 GM Level2 drum preset programs
314 MB (ROM 1,505 multisamples, 1388 drum samples)
Build-in Expansion PCM Libraries:
EXs1 - ROM Expansion
EXs2 - Concert Grand Piano
EXs3 - Brass & Woodwinds
EXs4 - Vintage Keyboards
EXs5 - ROM Expansion 2
EXs6 - SGX-1 German D Piano
EXs7 - SGX-1 Japanese C Piano
EXs8 - Rock Ambience Drums
EXs9 - Jazz Ambience Drums
Capacity of PCM RAM:
*4 The memory available for RAM samples will change based on the use of Expansion PCM libraries. About 273MB is available when shipped from the factory (when loading the file named "PRELOAD.KSC").
374 user memory, 160 or more preload
EXs6 - SGX-1 German D Piano; EXs7 - SGX-1 Japanese C Piano
32 or more
Damper Resonance, Damper Noise, Mechanical Noise, Note Release[EP-1 Program]
MDS Electric Piano:
Electric Piano Model Types: 6
Tine EP I, Tine EP II, Tone EP V, Tine EP DMP, Reed EP200, Reed EP200A
Harmonic Sound Level, Attack Noise, Level, Release Noise Level, Attack Brightness, Hammer Width
Tine Type: Preamp Volume, Tone (Treble, Bass), Vibrate (On/Off, Intensity, Speed), Amp/Cabinet (On/Off, Drive)*5
Reed Type: Preamp Volume, Tone (Treble, Bass), Vibrate (Intensity, Speed), Amp/Cabinet (On/Off, Drive)*5
*5 Each electric piano type has own amp/cabinet character.
Effect Types: 9
Small Phase, Orange Phase, Clack Phase, Vintage Chorus, Black Chorus, EP Chorus, Vintage
Flanger, Red Comp, VOX Wah[HD-1 Program]
Advanced Vector Synthesis:
Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.
Single: only OSC1, Double: OSC1 and OSC2.
Double mode lets you layer two completely separate synth voices, each with their own velocity-switched oscillator, dual filter, EGs, LFOs, etc.
Two completely separate drumkits.
VMT (Virtual Memory Technology) supported.
8 velocity zones per oscillator, with switching, crossfades and layering
Each zone can play mono or stereo Multisamples or Wave Sequences
Two multi-mode filters per voices (low-pass, high-pass, band-pass and band-reject),
Four-mode filter routings (single, serial, parallel and 24dB mode)
Per voice non-linear driver and low boost circuit
Three bands, with sweepable mid
Three envelope generators, two LFOs per voice, common LFO, four key tracking generators, AMS (Alternate Modulation Source), two AMS mixers[EXi Program Common]
Advanced Vector Synthesis:
Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.
Common Step Sequencer, AMS (Alternate Modulation Source), Common LFO,
2 Key Tracking Generators
Three bands, with sweep-able mid[AL-1 Program]
OSC1, OSC2, Sub-oscillator and noise generator; ring modulation, FM and Sync
Run real-time audio through the synthesis engine
Two multi-mode filter (low-pass, high-pass, band-pass and band-reject) with four types of filter routings (single, serial, parallel and 24dB mode), MultiFilter mode (only Filter-A; modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects)
Per-voice non-linear driver and low boost circuit
Five Envelope generators, four per-voice LFOs, two AMS Mixers;
Per-voice Step Sequencer.[CX-3 Program]
Tonewheel Organ Modeling:
Phase-synchronous tonewheels (clean and vintage modes), percussion, key click, wheel brake
Four additional, user-specified drawbars, and expanded percussion.
Rotary speaker, vibrato/chorus, amp modeling with overdrive, 3-band EQ
Controlled via nine front-panel sliders (via Tone Adjust)
Upper, Lower (even in EX mode)
Two AMS mixers[STR-1 Program]
Physically Modeled String:
Includes physically modeled damping, decay, dispersion, nonlinearity, harmonics, dual pickups, and more
Three independent excitation sources can be used simultaneously: Pluck, Noise, and PCM. 16 preset "pluck" types, with modulatable width and randomization. Noise generator with saturation and dedicated lowpass filter
Korg's ultra-low-aliasing technology, as introduced in the HD-1; 4 velocity zones per oscillator; Uses any mono ROM, EXs, or RAM multisamples; PCM can either be used as an excitation signal, or layered with the output of the string.
Dedicated 2-pole multimode filter for shaping the string excitation; Filter can be enabled/disabled separately for each excitation source. Low Pass, High Pass, Band Pass, and Band Reject modes
Audio Input and Feedback:
Run real-time audio through the string, including feedback through effects. Modeled feedback includes modulate-able instrument-to-amp distance and orientation.
Dual multi-mode filters per voice; Single, Serial, Parallel (with split stereo output), and 24dB (4-pole) configurations. Low Pass, High Pass, and Band Reject modes
Multi Filter mode (Filter A only):
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects
5 Envelopes, 4 per-voice LFOs, 2 Key Track generators, String Tracking generators, 4 AMS Mixers.[MOD-7 Program]
Waveshaping VPM Synthesizer:
Combines Variable Phase Modulation (VPM), waveshaping ring modulation, PCM sample playback, and subtractive synthesis; Able to convert-load SYX files.
6 VPM/Waveshaper/Ring Modulation Oscillators:
Phase and modulatable pitch per oscillator; 101 Waveshaper tables plus modulatable Drive and Offset; Use as oscillators, or as Waveshapers or Ring Modulators for other signals.
Korg's ultra-low-aliasing technology, as introduced in the HD-1. 4 velocity zones per oscillator; Uses any mono ROM, EXs, or RAM multisamples; PCM can be used as an FM modulator and/or layered with the VPM Oscillators. Noise generator with saturation and dedicated low pass filter.
Run real-time audio through the VPM Oscillators and filters.
Dual multi-mode filters per voice. Parallel and 24 dB (4-Pole) configurations; Low Pass, High Pass, Band Pass, and Band Reject modes
Multi Filter mode (Filter A only):
Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects
Supports both algorithm (78 types) selection and free patching; Three 2-in, 1-out mixers for scaling and merging audio, fully modulatable, with phase inversion. Main 6-input stereo mixer, with modulatable pan and volume, plus phase inversion
10 Envelopes, 4 per-voice LFOs, 9 Key Tracking generators, Per-voice Step Sequencer, 4 standard AMS Mixers plus 4 simple AMS Mixers.[MS-20EX Program]
Ultra-low-aliasing oscillators; VCO1, VCO2, Ring Mod, Pink and White Noise Generator
Run real-time audio through the synthesis engine and ESP (External Signal Processor)
12dB/octave High Pass and Low Pass self-resonant filters
24dB/octave Low Cut and High Cut filters, available per voice.
Patchable audio and modulation, at audio rates
Keyboard CV Out, Keyboard Trigger Out, VCO1+VCO2 CV In, VCO2 CV In
VCO1+VCO2 External Frequency Control In, VCO1 Out, VCO2 Out
External Signal In, External HP Filter Cutoff Frequency Control In, External LP Filter Cutoff Frequency Control In, HPF Out, LPF In, LPF Out
Total External Modulation In
External Initial Gain Control In, VCA In
EG1 Envelope Signal Normal Out, EG1 Envelope Signal Reverse Out, EG1+EG2 Trigger In, EG1 Trigger In, EG2 Envelope Signal Reverse Out
Triangle Out, Rectangle Out
Pink Noise Out, White Noise Out
Sample and Hold:
Clock Trigger In, Sample Signal In, S/H Out
Control Voltage In, Signal In, Signal Out
Control Wheel Out, Momentary Switch
Signal In, AMP Out, BPF In, BPF Out, F-V CV Out, Envelope Out, Trigger Out
EXi Audio In, Mixer 1 In, Mixer 1 Out, Mixer 2 In, Mixer 2 Out
ESP (External Signal Processor):
Use incoming audio as a trigger and/or CV source.
Original DAR and HADSR EGs 1 & 2, original MG (with MIDI sync), Sample-and- Hold, MVCA; 4 additional multi-stage Envelopes, 4 additional per-voice LFOs, and 4 AMS Mixers[PolysixEX Program]
Saw, Pulse, PWM
Off, 1 octave below, 2 octaves below
24dB/octave Low Pass self-resonant filter
Integrated Polysix Chorus, Phase, and Ensemble
Integrated MIDI-synced arpeggiator, with adjustable Range, Mode, and Latch
Original ADSR EG and MG (with MIDI sync), 2 additional multi-stage Envelopes, 2 additional per-voice LFOs, and 4 AMS Mixers[Combination]
Number of Timbres:
Master Keyboard Functionality:
Keyboard and velocity splits, layers, and crossfades of up to 16 Programs and/or external MIDI devices
Advanced Vector Synthesis:
Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.[Drumkit]
Assignable stereo/mono samples with 8 velocity zones per oscillator (with crossfade functions)[Sampling]
Open Sampling System (resampling, In-Track sampling)
Bit Depth/Sampling Frequency:
16-bit/48 kHz stereo/mono sampling, maximum 512 MB memory
4,000 samples/1,000 multisamples (128 indexes per multisample)
Direct sampling (ripping) from audio CD (CD-DA)
Korg format, AKAI S1000/S3000 data (with advanced Program parameter conversion); SoundFont 2.0, AIFF, and WAVE formats
Time Stretch, Time Slice, Crossfade Loop, and other standard editing features.[Effects]
Insert Effects: 12
Stereo in / stereo out
Master Effects: 2
Stereo in / stereo out
Total Effects: 2
Stereo in / stereo out
High, low, and mid band
Effect Types: 185
Dynamic Modulation and Common LFO
Effects Control Busses:
Two stereo side chains
Effect Presets: 783
Maximum 32 per 1 effect (Preset User)[KARMA]
One module in Program mode, four modules in Combination and Sequencer modes
Generated Effects (GE):
2,048 presets, 1,536 Users (96 come Preload)
On/Off, Latch, Chord, Assign, Module, Control, KARMA Realtime Control Sliders  - , KARMA Scene  - , KARMA Switches  - , KARMA Wave-Sequencing, GE Sub Category, Freeze Randomize, Time Signature Control, Tempo Synchronize, Auto RTC (Real Time Control) setup[Drum Track]
Drum Track Patterns:
697 preset (common with the preset patterns of the MIDI sequencer)[Sequencer/HDR]
16-track MIDI sequencer + 16-track hard disk recorder + master track.
Number of Songs:
40.00 - 300.00 (1/100 BPM resolution)
400,000 MIDI events
or 300,000 audio events
16 tracks plus the master track
697 preset/100 user patterns (per song)
18 preset/16 user template songs,
Korg (KRONOS, OASYS) format, SMF formats 0 and 1.
16-track playback, 4-track simultaneous recording, WAV file format 16bit/24bit. Maximum single-file recording time
Volume, Pan, EQ, and Send1/2; 5,000 regions (max.), Event Anchors, BPM Adjust
RPPR (Realtime Pattern Play and Record):
1 Pattern set per song.[General]
Load, save, utility, audio CD burning, audio CD playback, data filer function (save/load MIDI System Exclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1. *6
*6 Need to use with External USB CD Drive, etc.
Vector joystick, joystick, ribbon controller, switches 1 & 2
Control Assign Switches:
Assigns the Control Surface to Timber/Track, Audio, External, Realtime Knobs/KARMA, or Tone Adjust.
Mixer Knobs Switch:
Assigns the Mixer Knobs to either Channel Strip or Individual Pan, Reset Control Switch, Solo Switch, Knobs 1-8, Switches 1-8 (Upper Row), Switches 1-8 (Lower Row), Sliders 1-8, Master Slider
On/Off, Latch, Chord Assign, module Control
TouchView graphical user interface, 8 inch TFT, SVGA (800x600 dots), adjustable brightness
1/4" Balanced; 170 ohms Stereo; 85 ohms Mono (L/MONO Only), Nominal Level: +4.0 dBu, Maximum Level: +16.0 dBu (when load impedance is 600 ohms or greater)
1/4" Balanced; 170 ohms Stereo; 85 ohms Mono, Nominal Level: +4.0 dBu, Maximum Level: +16.0 dBu (when load impedance is 600 ohms or greater)
1/4" stereo phone jack, output impedance: 33 ohms, Maximum Level: 60+60 mW (when load impedance is 33 ohms),
Optical, 24-bit, IEC60958, EIAJCP-1201, 48 kHz, (the same signals as L/MONO, R)
24-bit, 48 kHz, 2 channels (the same signals as L/MONO, R)
Audio Inputs 1 and 2:
1/4" Balanced; Input Impedance: 10 kohms, Nominal Level: +4.0 dBu, Maximum Level: +16 dBu,Source Impedance: 600 ohms, S/N: 95 dB (Typical), Dynamic Range: 95 dB (Typical), Crosstalk: 95 dB (at 1 kHz, Typical)
Optical, 24-bit, IEC60958, EIAJCP-1201, 48 kHz
24-bit, 48 kHz, 2 channels
Damper pedal (half damper supported), assignable switch, assignable pedal
In, Out, Thru
Two high-speed USB 2.0 A connectors (for external USB devices)
30 GB SSD (2.5")
Dimensions: (W x D x H)
61-key: 41.42" x 14.25" x 5.28"
1,052 x 362 x 134 mm
61-key: 27.56 lbs. / 12.5 kg
AC cord, Quick Start Guide, Accessory DVD Disk (Restore Data, KORG USB Driver, Manual PDF, etc.)[Optional Accessories]
XVP-10: Expression/Volume Pedal
EXP-2: Foot Controller
DS-1H: Damper Pedal
PS-1: Pedal Switch
PS-3: Pedal Switch
*Sound processed with INFINITY.
*Developed under license of physical modeling patents (listed in http://www.sondius-xg.com) owned by Stanford University, USA, and by Yamaha Corporation.
*Appearance and specifications of this product are subject to change without notice.
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 36 lbs

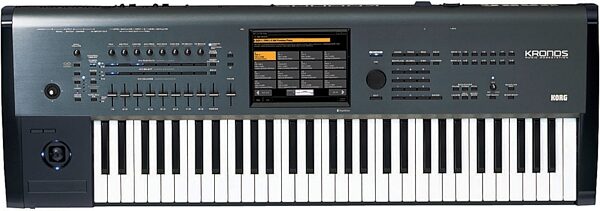

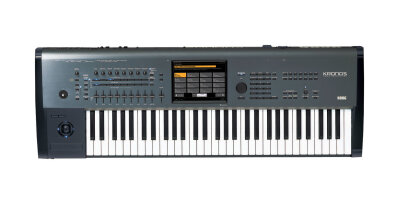

Prepare to be amazed with the new Korg Kronos 61 synthesizer workstation. For nearly half a century, Korg has set the standard for technical innovation, leadership, and superior sound. Korg has created entire categories of musical products, and has produced some of the top-selling synthesizers and keyboard instruments ever; the instruments favored by musicians around the globe. In 1988, Korg defined the workstation category with the revolutionary M1. Today, in 2011, Korg redefines and reimagines the music workstation, revolutionizing the capabilities of the hardware instrument and exceeding the demands of the modern player: introducing the KRONOS Music Workstation.
The Game Has Been Changed
KRONOS is more than a new instrument. It is a milestone in synthesis and workstation evolution; one that embodies fresh ideas and breakthrough technologies. KRONOS brings together multiple sound engines working in harmony and new interactive performance features that reflect the way musicians play. Most importantly, KRONOS provides a seemingly inexhaustible supply of breathtaking, spectacular sounds. Prepare to be amazed.
Nine Engines; a Universe of Sound
KRONOS unites nine individual synthesis engines in a single instrument, each providing the finest sound creation techniques available. Together, they represent not only the rich legacy of Korg, but the history of the electronic keyboard industry itself. Dig into the classic sounds of timeless instruments that are still loved to this day. Enjoy unique sounds that once startled the world. Venture into new sonic territory with sounds that have become possible now.
The Next-Generation Instrument for Live, Production, and Sound Design
The KRONOS Music Workstation is the single instrument designed for live performing musicians; for artists creating in a studio or computer-based production environment; and for musicians and sound designers seeking the ultimate synthesizer. In creating KRONOS, they have listened to many musicians and have heard their requests. And KRONOS delivers.
LIVE - for the performing keyboard player
KRONOS provides the absolute finest in keyboard sounds; accurate and responsive to the player's technique. The expansive control surface offers joysticks, sliders, knobs, switches, a ribbon controller, assignable pedal inputs, and of course the improved resolution color TouchView(tm) display. New additions include the easy-to-use Set List mode for song-specific and gig-ready sound selection, and the Smooth Sound Transition feature. Plus, they've included their finest RH3 keybed on both the 73 and 88 key models for a solid performance; the 61 key enjoys the responsive action shared with the Korg M3-61.
For many, the studio is where the work gets done; from laying down tracks, to building up grooves for an on-stage extravaganza, to delivering the soundtrack for today's media rich world. For these creative leaders, Korg has equipped the KRONOS Music Workstation's sequencer with 16-track MIDI tracks plus 16 audio tracks, their Open Sampling System, dazzling hi-fidelity effects, as well as flawless plug-in integration with many popular DAW platforms. Of course, KRONOS is equipped with phenomenal sound, dynamic drums, and an impressive array of premium sound effects. Add to that the ability to use KARMA, the Drum Track, and the sequencer's RPPR to greatly speed up and enrich the music creation process.
In addition to being Korg' premier workstation, KRONOS has it in its blood to satisfy the programmer, sound designer, and synthesizer enthusiast; the musician who dreams of turning visions of the cosmos into sound, of tweaking parameters to conjure invisible sounds from the ether. KRONOS rekindles Korg's founding dream that is at the core of synthesis: the exhilaration and enjoyment of creating new sounds, sounds never before heard. A variety of exclusive Korg technologies drive the synth engines to provide astounding results - VMT (Virtual Memory Technology); CMT (Component Modeling Technology); Physical Modeling, Digital Synthesis, Wave Sequencing, MDS (Multi-Dimensional Synthesis); KARMA(r) and more.
Nine Synthesizer Engines
KRONOS contains nine distinct synthesizer/sound engines. While each is worthy of a separate product in its own right, KRONOS brings them all together into a single, integrated musical instrument. Dynamic voice allocation and new technologies allow all sound engines to smoothly share a stable, enhanced hardware platform. The results are nothing less than spectacular.
SGX-1 Premium Piano
You've never heard pianos like this on any workstation. To accurately capture the rich character of a concert piano, Korg abandoned working within the limitations of existing sampling methods and took advantage Virtual Memory Technology (VMT), able to play large samples directly from the internal high-capacity Solid State Disk (SSD). The SGX-1 Premium Piano sound engine offers two distinctive grand pianos; a rich German D piano, and a robust Japanese C model. Each uses superb, un-looped stereo samples sampled at eight velocity levels for each and every key. Thoughtful attention to detail preserves the realism and warmth of the piano sound; this extends even to sampling and reproducing the body resonances of the grand piano, as well as the mechanical noise that occurs when the keys are played, or the damper pedal is pressed and released. The foundation of any keyboard instrument is the piano; the SGX-1 engine allows KRONOS to confidently deliver on this sonic ideal.
EP-1 MDS Electric Piano
The EP-1 sound engine is dedicated to faithfully recreating six of the most popular classic electric pianos. The MDS (Multi-Dimensional Synthesis) technology eliminates the transitions between velocity-switched samples, and does away with the unnatural behavior of looped samples. It also provides the user with unique control over the tines, reeds, and noise elements that make up the essential character of these timeless and coveted electromechanical instruments. The MDS sounds respond smoothly to the subtleties of the player's keyboard touch. This technology also delivers an astounding dynamic range - far superior to what one might expect from digital technology - so that the energy of climactic passages is accurately preserved. Each of the six electric piano models provides realistic simulations of the period amp, cabinet, speaker, and even the hard-to-find vintage effects that gave the original instruments their distinctive sound. From the sounds, to the touch, to the effects; every element has been coordinated in a single package to create the ultimate electric piano experience.
CX-3 Tonewheel Organ
The original Korg CX-3 combo organ went on sale in 1980. Loved by musicians around the world, this classic organ reappeared in 2000 as a new product with the same name, but using the latest technology of the time to faithfully model the tonewheel organ sound. In KRONOS, the CX-3 engine precisely models this classic tonewheel instrument. Proprietary Korg technology has been used to perfectly reproduce the vacuum tube amp, and effects such as Vibrato/Chorus and the "must-have" rotary speaker. Even the instability, fold-back, leakage, and noise of the tonewheels have been obsessively analyzed and recreated. Take full advantage of Korg's exclusive EX mode and switch from 9 to 18 drawbars (13 footages plus 5 to define the percussion) and generate even richer and more detailed sounds. The organ sounds heard in legendary performances - some recreated here by the original artists - are now yours for the playing. Go ahead and experience these classic organ sounds, reborn for the present day.
HD-1 High Definition Synthesizer
They named the HD-1"High Definition" because of its superior sound, starting with Korg's proprietary low-aliasing sample playback oscillators, full-bandwidth multimode resonant filters, and extraordinarily fast & smooth envelopes and LFOs. Once again, their SSD and Virtual Memory Technology (VMT) gives the HD-1 access to a larger sample set - gigabytes in size - than could be normally stored using internal memory. The HD-1 covers all of the essential sounds in exquisite detail, from orchestral to classic rock to hip-hop, all instantly available. The extensive array of samples provided by KRONOS is unparalleled by previous hardware synthesizers or samplers, and is a superb fit for film, video and sound effect work.
First introduced on the Korg WAVESTATION, and used here as part of the HD-1, Wave Sequences play a series of samples over time, creating distinctive rhythmic timbres or smooth, complex evolving sounds. Additionally, step-sequencer modulation outputs allow Wave Sequences to control any modulate-able Program parameter.
The HD-1 sound engine also includes the "Ambient Drums." Take advantage of this rich sample content to create incredibly realistic drum parts. The Ambient Drums feature two kits. Each provides three different mic'ing positions, capturing the whole kit, (with the snare on and off), plus the individual hits. The HD-1 voice architecture allows the custom blending of the drum's direct sound and ambient sound layer, adding a finished quality to the track.
High-Fidelity Sound Engine
Feature-packed, the AL-1 is the same premium analog modeling sound engine that was first featured on the Korg OASYS, the Open Architecture Synthesis Studio back in 2005. Its patented ultra-low-aliasing oscillators (using completely different technology than the HD-1) recreate all the power and glory of true analog synthesis-- without the artifacts that can plague lesser instruments. Morphing waveforms allow you to change the oscillator shapes in real-time. Resonance modeling lets you choose between classic filter sounds, and the extraordinarily flexible MultiFilter lets you create your own hybrid filter shapes. Hard sync, analog-style FM, drive, low-boost, and ring modulation offer plenty of tone-twisting power.
MS-20EX Legacy Analog Collection
Debuting in 1978, the MS-20 unified a 37-note keyboard with a vertically oriented control panel, and was easily obtainable by those smitten by expensive and gigantic furniture-sized synthesizers. With a thick and solid sound, aggressive filters, and patching that opened up limitless potential for creating sounds, the MS-20's rich personality captivated countless synth freaks. Using Korg's CMT (Component Modeling Technology) the MS-20EX faithfully reproduces the MS-20 while dramatically expanding its patch panel functionality. Modulate filters with audio-rate oscillators; turn audio inputs into control signals; control all of the original knobs with mod sources including additional envelopes, LFOs, and real-time controllers. It's a tweaker's dream, but even without the patch panel, the MS-20EX would make waves with its unique, aggressive tone--due in large part to its signature filters, which are completely different from those in either the AL-1 or the PolysixEX. And of course the KRONOS version is now majorly polyphonic.
PolysixEX Legacy Analog Collection
The Polysix first appeared in 1981, offering six-voice polyphony, program memory, and a surprisingly competitive price tag. With its self-oscillating four-pole filter, smooth analog oscillator and sub-oscillator, plus a lush Chorus/Ensemble effect, the PolysixEX extends the abilities of the original in many creative ways. The strings and pads that were such a major feature of the Polysix will be invaluable when you need the sounds of the early '80s. The classic arpeggiator built into the original Polysix is also provided. They've added modulation of every control on the front panel, for a world of sounds impossible on the original. It's also very well-suited to hands-on control via the KRONOS' Tone Adjust; with a knob, slider, or switch for almost all of the original Polysix controls. As a bonus, it's also capable of extremely high polyphony.
MOD-7 Waveshaping VPM Synthesizer
Combine Variable Phase Modulation (VPM), wave-shaping, ring modulation, samples, and subtractive synthesis, plus a modular patch-panel system, and you have the MOD-7. Exceptionally versatile, it offers everything from classic FM keyboards, bells and basses (including the ability to import sounds from vintage DX synths) to rhythmic soundscapes and sparkling, epic pads. "Vast" sample-mangling capabilities, with incredible flexibility and power, let you create intensely rich processing environments: combine multiple stages of filtering, waveshaping, and ring modulation - even use samples as FM modulators - all patched together however you like.
STR-1 Plucked String Synthesizer
Based on the physical modeling know-how Korg developed over the course of many years, this struck/plucked-string physical modeling sound engine takes advantage of cutting-edge technology. The STR-1 begins with highly playable sounds whose tone responds to your touch in ways that are difficult for a PCM sound engine to replicate. These include acoustic guitar, electric guitar, harpsichord, clavinet, harps, bells, and ethnic instruments. Then the STR-1 goes beyond, allowing the creation of sounds that obey physical laws, but that don't exist in reality. Play harmonics on a metal bar "plucked" by a piano or sing into a guitar string; with the STR-1, it's all possible. You can also process samples and live audio input through the physical model--including audio feedback from any of the KRONOS effects. While some of the KRONOS engines look back in time, this a sound engine of the future, one that allows the synthesizer programmer to construct truly new sounds.
Premier Artist Contributions
In order to take full advantage of these nine sound engines, Korg called on respected musicians to guide the sound design team towards their individual ideals. Responding positively, numerous world-class players contributed their time, energy, and critical listening to help them zero in on making the sound respond the way they hear it. Certain artist signature sounds were tested, judged and tweaked by the likes of Jordan Rudess, Russ Ferrante, Lyle Mays, George Duke, Tom Coster, Jeff Lorber, Frank McComb, John Novello and several other artists known for their serious love of sound and for their critical, demanding ears.
Put It All Together
Packed with unlimited sound potential, KRONOS is much more than a synthesizer. KRONOS comes complete with all of the extras required of a modern workstation, plus so much more. From music production to live performance, the KRONOS Music Workstation integrates a world-class list of tools into a single, reliable instrument. Under the hood, all nine engines share the same hardware, with no separate cards to manage or polyphony barriers between them--and no "CPU overs" to worry about. KRONOS dynamically allocates power between the engines as you play, automatically and in real time, providing an integrated experience no PC can match. In addition, KRONOS smoothly functions as a plug-in with many popular DAWs, providing your studio with native, unprecedented sonic power.
First appearing on Korg's Karma Music Workstation in 2001, this revolutionary algorithmic music technology instantly produces sophisticated phrases, drum grooves and full-blown backing tracks. Based on the notes and chords you play and the intuitive operations you perform with the knobs, sliders, and switches, you'll easily produce musical effects that exceed anything you imagined. Now in its greatly-enhanced second generation and offering features like KARMA Wave-Sequencing, Note Mapping and 8 scenes per layer, KARMA is standard equipment on your new KRONOS. It will expand your conception of a song, and will be an enormous asset to your live performances.
*KARMA(Kay Algorithmic Real-time Music Architecture) and the KARMA Logo are registered trademarks representing patented technology licensed from Stephen Kay, Karma Lab LLC, www.karma-lab.com
KRONOS also borrows the Drum Track feature from the M3 and M50 Music Workstations. Drum Tracks can create everything from a simple reference beat to an outline rhythm track on up to a full-blown drum track for your music productions. KRONOS now includes professional drum performances from artists such as Ricky Lawson, able to generate grooves reproducing the distinctive feel of a pro drummer. Applications and extras have been unstintingly poured into this single feature. The Drum Track can go beyond rhythm machines, and is fully capable of standing on its own.
Open Sampling System
No matter whether you're in Program, Combination, or Sequencer mode, you can always use KRONOS to sample an external audio source, or to resample the performance of the KRONOS itself. User samples can be edited using operations such as truncate, normalize, time stretch, or time slice. Edited samples can also be exported in AIFF or WAVE format. You can also load external samples in AIFF, WAVE, SoundFont 2.0, and AKAI S1000/3000 formats via USB memory. By loading samples that you've previously created on other instruments or on a PC, you can set up your music production system on the KRONOS - no additional equipment required.
16-Track Recorder / MIDI Sequencer
KRONOS features a sequencer/recording section that offers both 16 MIDI tracks plus 16 audio tracks; a great resource for putting together a dazzling performance or a brilliant production. MIDI sequencing makes it easy to capture ideas, inspiration, and pro-quality phrases using the KARMA, Drum Track, or RPPR (Realtime Pattern Play/Recording) functions. The 16-track audio recorder simultaneously captures up to four tracks of 16-bit/24-bit uncompressed data at a sampling rate of 48 kHz. Play along with recorded tracks, add effects, and then resample the KRONOS itself and place the resampled WAVE files directly in a track. When polishing your tracks, feel free to use mixer automation and editing functions such as copy, paste, and normalize to get the results you want. Plug in a USB CD-burner and assemble your album right from the TouchView display.
Premium-Quality Effects Suite
KRONOS provides 16 internal effects to add impact to your sonic creations. Each of the 12 Insert effects can be applied to individual or multiple timbres in a combination, or to individual or multiple tracks of the sequencer. In addition, two Master effects can be applied to sends 1/2, and two Total effects can be applied to all tracks at the final stage of the sound. Each effect offers 185 distinct effect types, covering every possible sound-shaping need. Examples include a high-resolution reverb, chorus, delay, guitar amp and cabinet modeling, even vocoding. Each effect provides up to 72 adjustable parameters, as well as numerous realtime modulation possibilities, delivering outstanding versatility. A separate three-band EQ is provided for every timbre, for every sequencer track, and for every audio track for adjusting subtle tonal balances or for creatively modifying the overall sound.
New Performance Power
In creating KRONOS, they listened to many musicians from around the world. The goal was to change the way musicians interacted with their instrument to provide a more fluid, expressive, and natural experience. At one level, this meant providing a comprehensive yet intuitive control surface. But with KRONOS, they wanted to take these ideas even further, creating an instrument ideally suited to the way musicians play.
Set List Screen
The new Set List screen lets you instantly recall your favorite programs, combinations, or song data with a single touch, regardless of mode. There are 128 Set List locations, and each one can have 128 slots. Sixteen of these slots appear at a time as buttons in the TouchView display, color-coded to ensure easy visibility even in dim lighting. This is a great convenience during a live performance or in the production workplace. You can also leave notes for yourself using the Set List page, to remember the key of a song, for example. The Set List also provides a stereo graphic EQ at the final stage of the main audio output, which can be used to compensate for the acoustical character of the performance venue.
Smooth Sound Transition
KRONOS features the new Smooth Sound Transition technology. This powerful new addition is designed to maintain any currently held, played, or sustaining notes (with their effects), helping to prevent drop-outs from occurring when you switch sounds or change from Program mode to Combi mode. A high level of technology has been applied to finally bring this sought-after ability to reality, fulfilling the requests of many musicians.
Korg's TouchView graphical user interface is based on a new large, color 8-inch (800 x 600 pixel) touch screen. The TouchView display is the centerpiece of Korg's intuitive design, providing easy-to-view information and simple touch control. In developing KRONOS, they also incorporated numerous images of actual instruments and their respective controls into the display, to ensure that the musician enjoys the feeling of playing an instrument - rather than controlling a machine.
In addition to the parameters accessible directly from the TouchView display, KRONOS also offers a wealth of realtime controllers to enhance any performance and to aid navigation. A four-way joystick, ribbon controller, and two assignable switches are located to the left of the keyboard. An additional Vector joystick is nearby. Above the keyboard, nine sliders, eight knobs and a number of switches provide realtime interaction with features at the heart of the KRONOS' impressive sound. The damper pedal input supports half-damping, providing another level of piano realism. In addition to the damper pedal jack, there are also two assignable pedal inputs, one footpedal type and one footswitch style.
Korg's Finest Keyboard Action
The 61-key version features the same great-feeling, responsive semi-weighted keybed found in the M3-61 Music Workstation. Acclaimed for their solid feel and tactile response, these keys provide a seamless, expressive connection to the many forms of synthesis KRONOS provides. The 88-key model of the KRONOS features the same RH3 real weighted hammer action keyboard used on Korg's upper-end piano models and on the SV-1. The hammer weighting is graded, providing a heavier feel in the lower register and a lighter feel in the upper register, just as on a grand piano, offering superb playability. Boldly, the 73-key model also features this same RH3 keyboard, creating a more compact and transportable instrument that still provides superior piano and electric piano sounds teamed with an authentic piano touch. KRONOS is notable for its slim design, showing an integration of function and design.
KRONOS can send MIDI signals to and from your computer via USB. Using the KRONOS Editor software (free download), sounds and settings can be edited directly from your computer. The KRONOS Plug-in Editor (free download) lets you use KRONOS from within many popular DAW systems, as if it were a plug-in instrument. KRONOS can also be used as an audio I/O for your computer, sending and receiving two channels of audio via USB. In a music production system using your KRONOS and a computer, there is no need to purchase any additional hardware, creating the simplest possible set-up.
Audio Inputs and Outputs
The KRONOS provides a total of six channels of audio input: 2 analog channels, 2 digital channels (S/P DIF optical, 48 kHz/24-bit), and 2 USB channels. As audio outputs, you have the 2 main channels (L/MONO, R) as well as four independent audio outputs, 2 digital channels (S/P DIF optical, 48 kHz/24-bit), and 2 USB channels (note: the 2 digital channels and 2 USB channels output the same signal as the main L/R output). All analog inputs and outputs support TRS balanced connections. The analog inputs provide a MIC/LINE select switch and an independent level control for each channel, offering the flexibility to meet any situation. In addition to the type-B USB connector used for communicating with your computer, there are two type-A USB 2.0 ports for use with external storage media such as flash memory, hard drives, or CD-R/RW and DVD drives. The output of the KRONOS can be resampled to a USB storage device such as a hard drive, or connected to USB CD-R/RW drive to create audio CDs.
- 9 Sound engines, each offering a unique sound-creation technology (see list below)
- 16-part Combis allow all engines to function together in perfect harmony; Dynamic Voice Allocation keeps the polyphony high.
- Available with 61, 73 or 88 keys. The 73 and 88 key models feature Korg's finest RH3 Graded Hammer Action. The 61 key model borrows the responsive synth action from the Korg M3-61.
- Comprehensive interface, based around a new large 8" TFT TouchView display
- Virtual Memory Technology (VMT), aided by a fast SSD (Solid State Disk) provides high polyphony and massive, ultra-long, and unlooped samples; offering unheard of performance from a hardware instrument
- Smooth Sound Transition: this often-requested feature allows held or sustained notes to keep sounding when changing sounds or modes.
- Set List mode: Organize the Programs, Combis, and Songs you need to perform your set in a single, easy-to-select screen - including performance notes
- Use up to 16 premium-quality effects at once; individual effects rival dedicated units
- 12 Insert effects
- 2 Master effects
- 2 Total effects
- On-board sequencer offers 16 MIDI tracks + 16 audio tracks (24-bit, 48kHz recording quality)
- Open Sampling System - Instant sampling and resampling from any mode: Program, Combination or Sequencer.
- Sophisticated KARMA technology generates infinitely variable performance-driven phrases, musical effects, and backing tracks to catalyze your creativity
- Expanded Drum Track for play-along grooves and inspiration
- Signature sounds created with guidance from world class musicians
