Product Description
Go from your initial idea to a superb-sounding final mix burnt onto an audio CD using 1 piece of gear: the new D1200CD Digital Recording Studio - a sophisticated, portable digital recording studio designed for guitarists and songwriters.

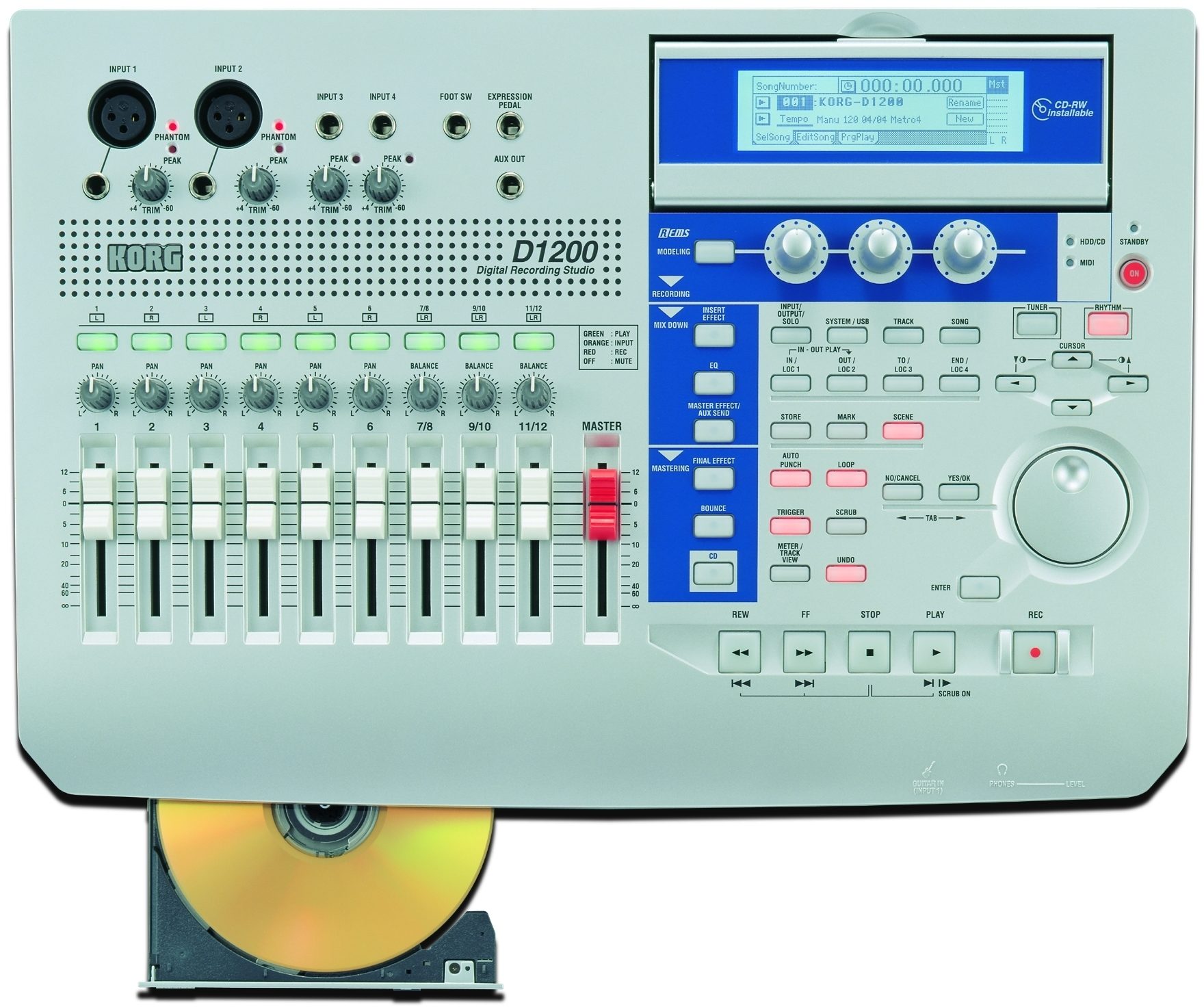

Ergonomically Designed Front Panel
Korg digital recording studios are known for their logical, easy-to-use controls, and the D1200CD is no exception. The controls are arranged to follow the recording process from start to finished CD. Even the angle of the backlit 240 x 64 pixel LCD display can be adjusted for comfortable viewing.
All the Right Connections
To ensure the highest audio quality, the D1200 uses high-performance balanced preamps on all analog inputs. Two XLR inputs provide high-quality mic preamps and are equipped to deliver +48V phantom power. A dedicated guitar input jack is also provided. The S/P DIF digital input automatically converts incoming 48 kHz and 32 kHz data into 44.1 kHz for recording.
Full-Featured Mixer Section
The D1200CD's 16-channel, 4-bus mixer section provides a separate 3-band EQ on each analog input and each playback channel: high and low shelving EQ, and a mid-range peaking EQ with adjustable center frequency. The fader, EQ, pan, and effect settings of the mixer section can be stored in one of 100 scene memories.
High-Performance Recorder
The D1200CD records and plays back either 16 or 24-bit 44.1 kHz audio data. The D1200 uses no data compression, so the sound you put in is exactly the sound you get back. A maximum of all 12 tracks can be played back simultaneously and up to four tracks can be recorded simultaneously. Each track contains 8 virtual tracks, giving you a total of 96 tracks per song.
Abundant Effects, Including REMS Modeling
The D1200CD provides 3 independent effect systems (44-bit internal processing). Up to 8 insert effects can be assigned to individual channels. Two master effects provide polish to your mix, and the final effect can add the best overall EQ, compression/limiting, etc. to the master L/R channels. Combinations using up to five of the 98 available effect algorithms provide 128 insert, 32 master, and 32 final effects. You can edit any of these 192 preset programs and save them to any of the 192 user program memories.
For the guitarist, bassist or singer/songwriter, the D1200CD simplifies the initial set-up process. Just turn on the Modeling mode and choose Guitar, Bass, or Mic. The D1200CD will automatically route the effects to your input, assign the appropriate modeling effects to the three dedicated knobs, and will arm the first 2 tracks for recording.
Sophisticated and Flexible Track Editing
D1200CD is packed with powerful non-destructive editing tools. It's easy to move sections of your tracks or song around using the Copy, Insert, Swap and Delete commands. Powerful pro-level functions include Normalize and Time Compression/Expansion.
High-Capacity 40 GB Hard Drive Plus USB Connector
The D1200CD contains a large 40 GB hard drive, which offers a whopping 122 hours of recording time (at 16 bit recording, one track). Within the hard drive, 2 GB of space (FAT 16 format) is automatically allocated as a USB drive that can be accessed directly from a computer by simply connecting the 2 devices with a common USB cable. By saving song data or .WAV files in this area, you can easily backup or restore song data, import or export .WAV files, or load system data. This makes it easy to move your songs into computer-based applications, and to even email song files via the Internet.
Internal CDRW-1 Burner
The CDRW-1 allows you to backup and restore your songs and effect data, import/export .WAV data, and create your own audio CDs. The D1200CD can synchronize with a PC or other external sequencers, recorders or rhythm machines that support MIDI clock or MTC. The D1200CD includes many other great features like an Auto Save function, built-in auto chromatic tuner and a high-quality PCM tone generator that provides 96 different metronome patterns and 215 rhythm patterns.
Specifications subject to change without notice.
zZounds is an authorized dealer of
Korg products.
Tracks: 96 tracks (including virtual tracks), 12 tracks simultaneous playback, 4-track simultaneous recording@16-bit, 6 tracks simultaneous playback, 4-track simultaneous recording@24-bit
Recording Format: 24-bit/16-bit uncompressed, 44.1kHz
Recording Time: 122 hours maximum (one track, when using 16 bit recording and 40 GB hard drive); 61 hours maximum (one track, when using 24 bit recording and 40 GB hard drive)
Songs: 100 Songs per drive
Length of one song: Maximum 12 hours
Counter Display (MSM): '720:000.000'
Locate Points: 4 points per song
Mark Points: 100 points per song
Metronome / Rhythm Patterns: 96/215 patterns
MMC function: Transmission/reception
Synchronization: MTC transmission/reception, MIDI Clock transmission, Tempo map (200 points per song), Sync track, Tempo rec
CD-R/RW Functionality: Create audio CD (Disk At Once/ Track At Once), back up / restore, import / export WAV file (ISO9660)
USB Functionality: back up / restore (FAT 16), import / export WAV file (FAT 16)
Track editing: Copy, insert, erase, delete, swap, reverse, time expansion/ compression, fade, normalize, optimize
Song editing: Copy, move, delete, rename, protect
Counter/Locator Format: Min/Sec/mSec, Meas/Beat/Tick, Min/Sec/Frame (30 NDF only)
MIDI Functionality: Mixer control, effect control, MMC transmission/reception, MTC transmission/reception, MIDI Clock transmission
Mixer Structure: 16-channel input, 4 bus, 1 AUX, 1 MASTER
Signal Processing: 32-bit 44.1kHz
Equalizer: HIGH (f:10kHz+_ 15dB), MID (f:0.1~20kHz G:+_ 15dB), LOW (f:100Hz G: +_ 15dB)
Scene Memory: 100 scenes per song
