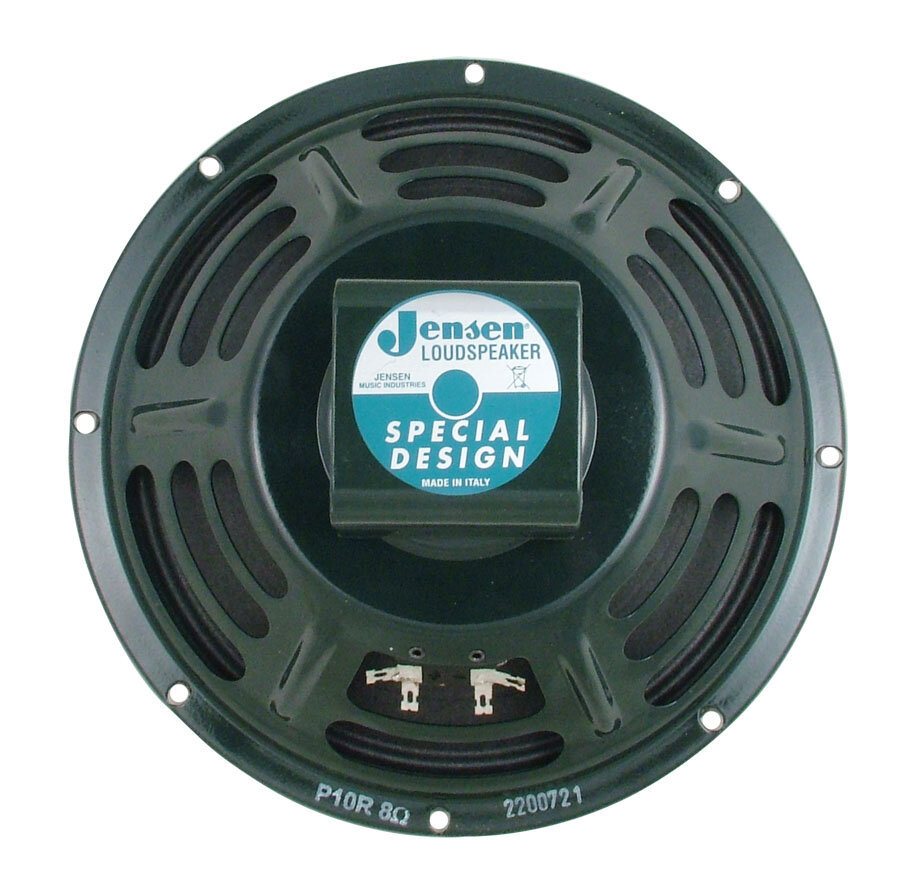

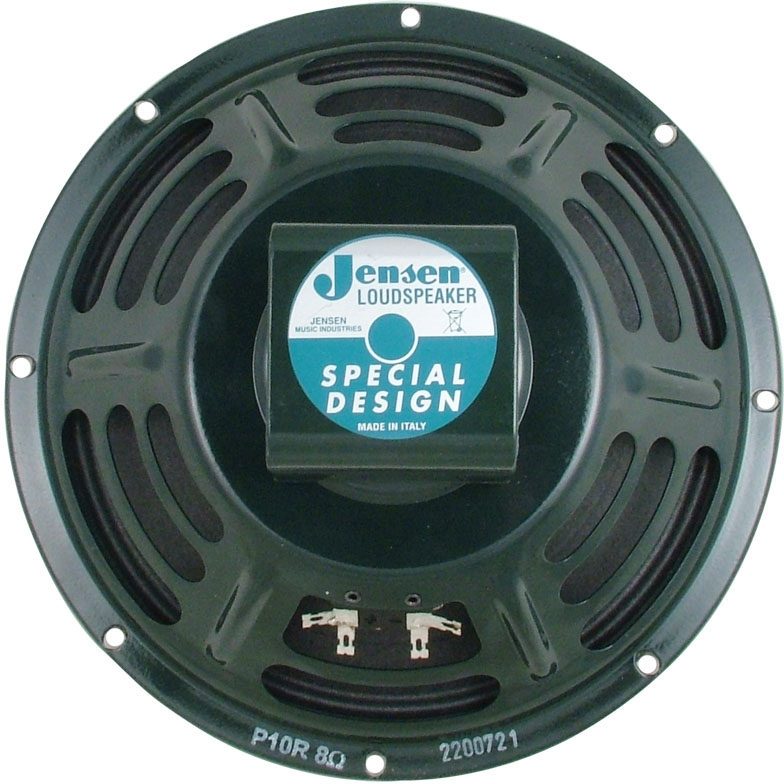

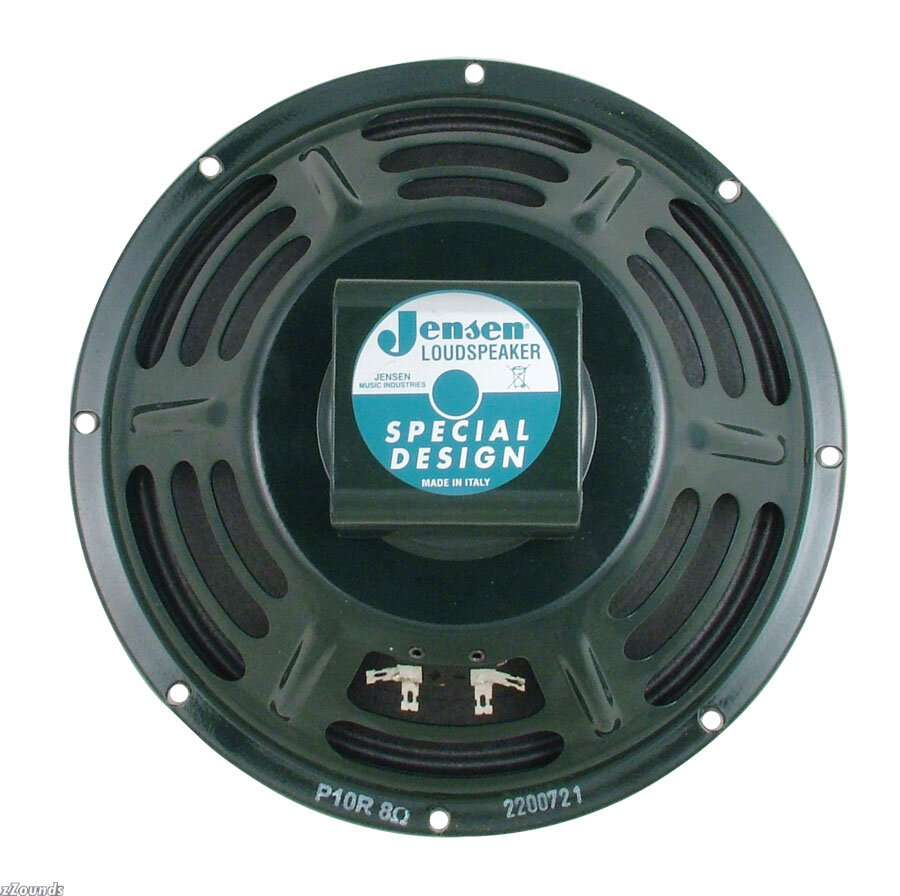

Jensen P10R Vintage AlNiCo Guitar Speaker (25 Watts, 10 in.)
Rich, warm tone. Accentuates higher frequencies in sparkling detail.
Additional Images:
Loading...
This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened. details
About This Product!
Description
Docs, Multimedia
News
The P10R has a rich, warm tone. In addition, it accentuates the higher frequencies in sparkling detail.

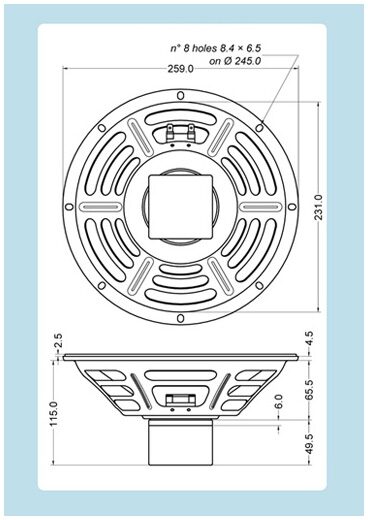

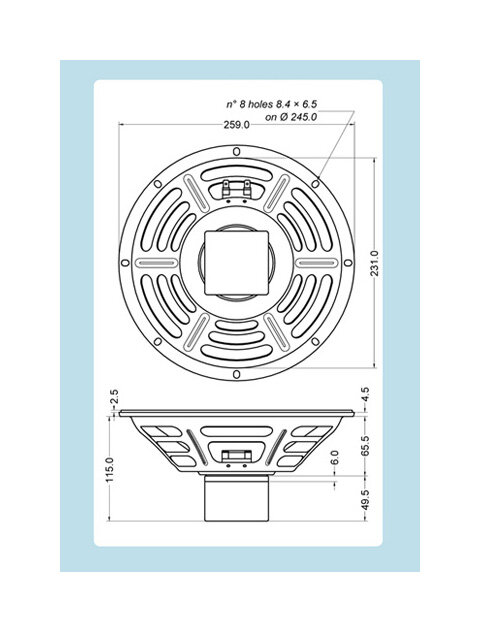

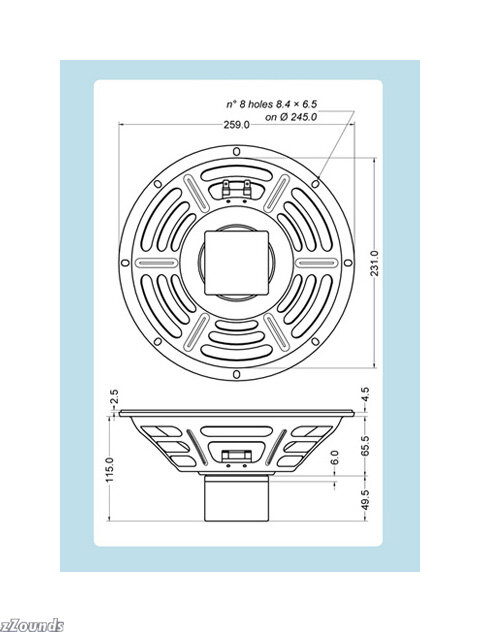

Nominal Overall Diameter: 259 mm, 10 in
Nominal Voice Coil Diameter: 25 mm, 1 in
Magnet Weight: 200 g, 7.0 oz
Overall Weight: 3.15 lbs
Flux Density: .96 T
Thiele-Small Parameters
Voice Coil DC Resistance RE: 6.70 Ohm
Resonance Frequency fS: 97.0 Hz
Mechanical Q Factor QMS: 23.55
Electrical Q Factor QES: 1.60
Total Q Factor QTS: 1.50
Mechanical Moving Mass MMS: 13.1 g
Mechanical Compliance CMS: 207 um/N
Force Factor BxL 5.86: Wb/m
Equivalent Acoustic Volume VAS: 31.6 lt.
Maximum Linear Displacement XMAX: 0.8 mm
Reference Efficiency nO: 1.7 %
Diaphragm Area SD: 330.0 cm2
Losses Electrical Resistance RES: 102 Ohm
Voice Coil Inductance @ 1kHz LE: 0.54 mH
Constructive Characteristics
Magnet: AlNiCo
Voice Coil: Winding Copper
Voice Coil: Former Kapton
Cone: Paper
Surround: Treated Cloth
Dust: Dome Felt
Basket: Pressed Sheet Steel
Electrical Characteristics
Nominal Impedance: 8 Ohm
Rated Power: 25 W
Musical Power 50 W
Sensitivity@1W,1m 95.0 dB
Technical Info
General CharacteristicsNominal Overall Diameter: 259 mm, 10 in
Nominal Voice Coil Diameter: 25 mm, 1 in
Magnet Weight: 200 g, 7.0 oz
Overall Weight: 3.15 lbs
Flux Density: .96 T
Thiele-Small Parameters
Voice Coil DC Resistance RE: 6.70 Ohm
Resonance Frequency fS: 97.0 Hz
Mechanical Q Factor QMS: 23.55
Electrical Q Factor QES: 1.60
Total Q Factor QTS: 1.50
Mechanical Moving Mass MMS: 13.1 g
Mechanical Compliance CMS: 207 um/N
Force Factor BxL 5.86: Wb/m
Equivalent Acoustic Volume VAS: 31.6 lt.
Maximum Linear Displacement XMAX: 0.8 mm
Reference Efficiency nO: 1.7 %
Diaphragm Area SD: 330.0 cm2
Losses Electrical Resistance RES: 102 Ohm
Voice Coil Inductance @ 1kHz LE: 0.54 mH
Constructive Characteristics
Magnet: AlNiCo
Voice Coil: Winding Copper
Voice Coil: Former Kapton
Cone: Paper
Surround: Treated Cloth
Dust: Dome Felt
Basket: Pressed Sheet Steel
Electrical Characteristics
Nominal Impedance: 8 Ohm
Rated Power: 25 W
Musical Power 50 W
Sensitivity@1W,1m 95.0 dB
09/04
Price lowered, New, 10 Inch, 8 Ohms, save $14.00, now only $77.95.
06/05
New on zZounds! New, 10 Inch, 8 Ohms, be the first on your block to order!
05/18
New to zZounds, New, 10 Inch, 8 Ohms, orders being accepted.
