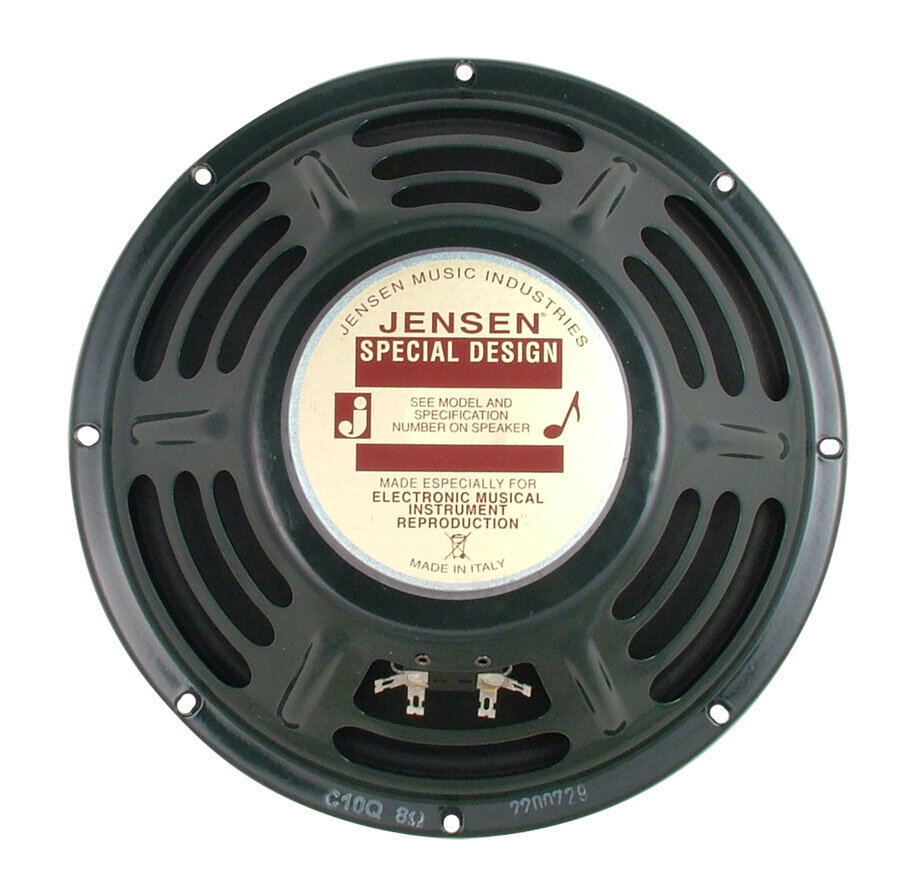

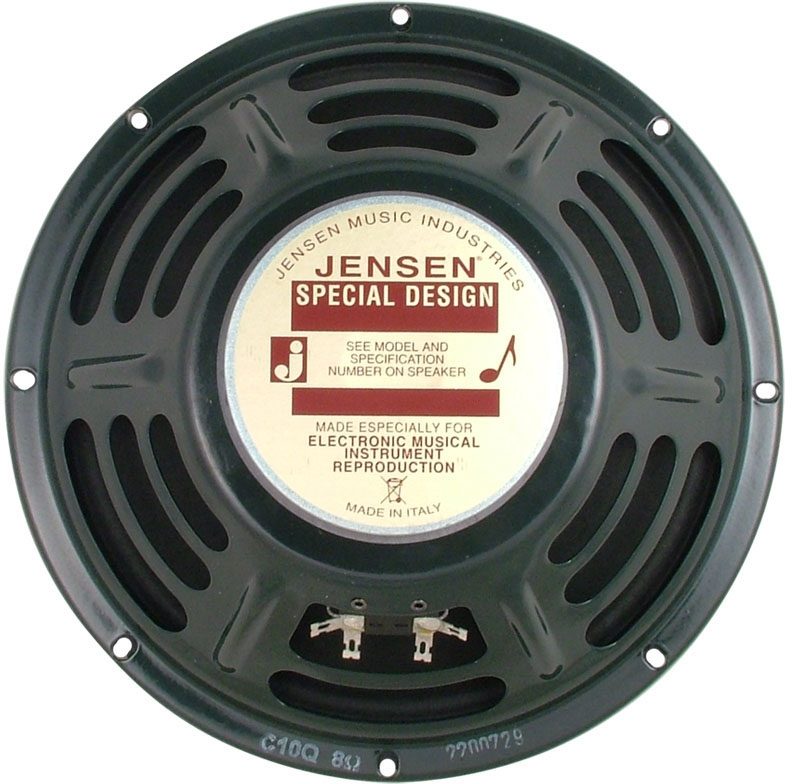

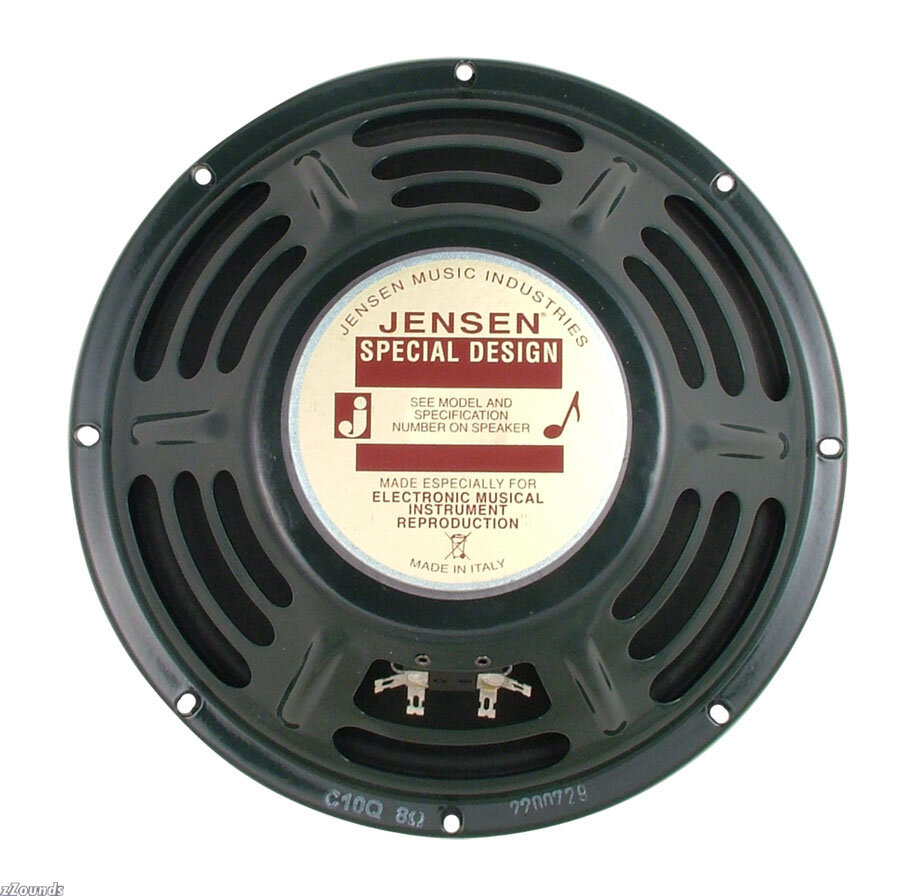

Jensen C10Q Vintage Ceramic Guitar Speaker (35 Watts, 10 in.)

The C10Q offers straightforward tone with mid-frequency bite. When presented with overdrive distortion, it can sound edgy.

Technical Info

General Characteristics

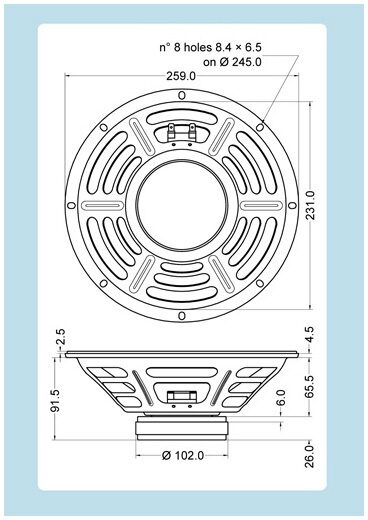

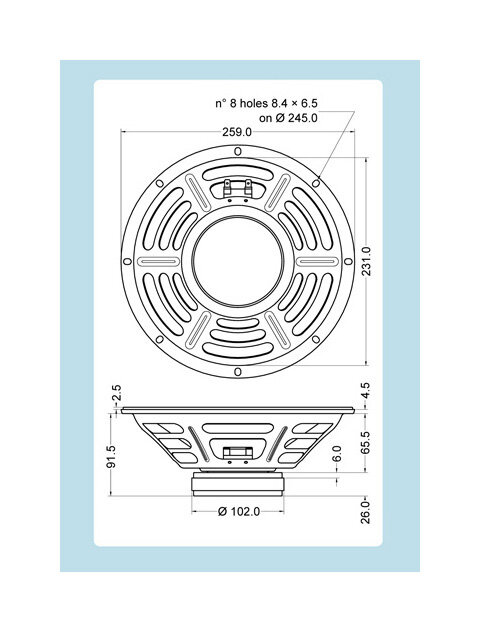

Nominal Overall Diameter: 259 mm, 10 in

Nominal Voice Coil Diameter: 32 mm, 1.25 in

Magnet Weight: 426 g, 15 oz

Overall Weight: 3.65 lbs

Flux Density: 0.92 T

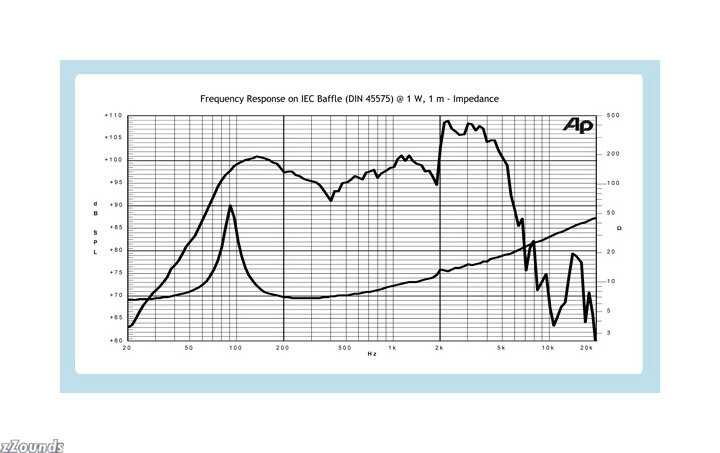

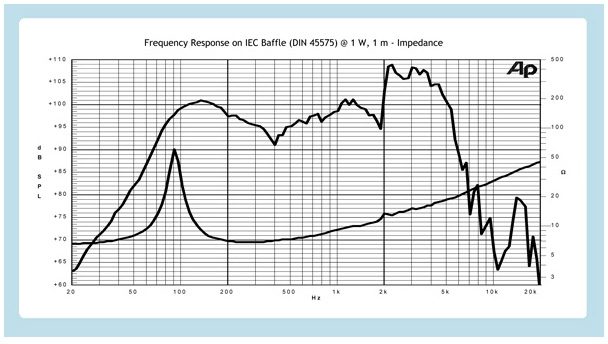

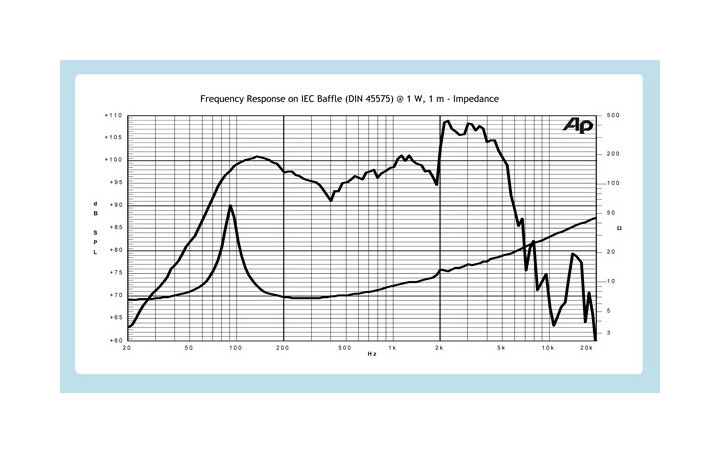

Thiele-Small Parameters
Voice Coil DC Resistance RE: 6.0 Ohm

Resonance Frequency fS: 96.0 Hz

Mechanical Q Factor QMS: 11.57

Electrical Q Factor QES: 1.34

Total Q Factor QTS: 1.20

Mechanical Moving Mass MMS: 16.6 g

Mechanical Compliance CMS: 168 um/N

Force Factor BxL: 6.68 Wb/m

Equivalent Acoustic Volume VAS: 25.7 lt.

Maximum Linear Displacement XMAX: 1.5 mm

Reference Efficiency nO: 1.61 %

Diaphragm Area SD: 330.0 cm2

Losses Electrical Resistance RES: 52 Ohm

Voice Coil Inductance @ 1kHz LE: 0.62 mH

Constructive Characteristics
Magnet: Ferrite

Voice Coil Winding: Copper

Voice Coil Former: Epotex

Cone: Paper

Surround: Integrated Paper

Dust Dome: Solid Paper

Basket: Pressed Sheet Steel

Electrical Characteristics
Nominal Impedance: 8 Ohm

Rated Power: 35 W

Musical Power: 70 W

Sensitivity@1W,1m: 95.2 dB
