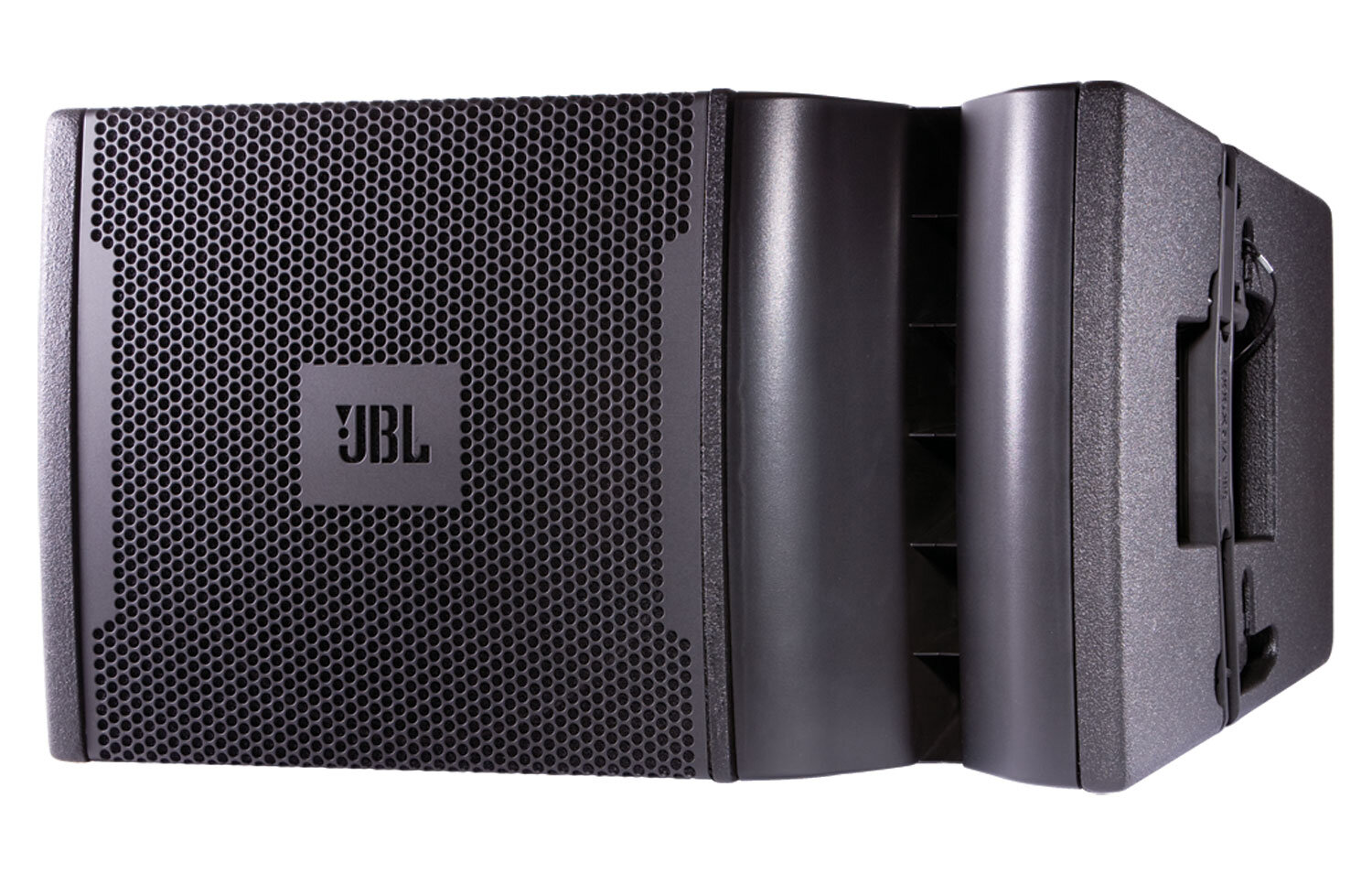

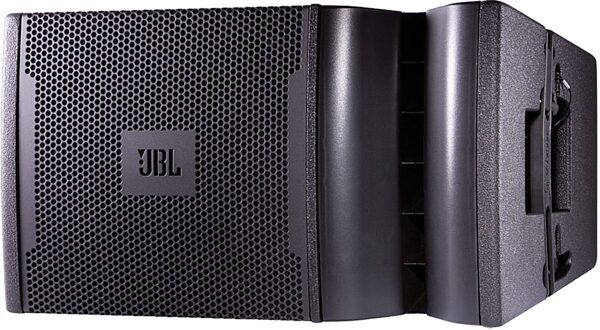

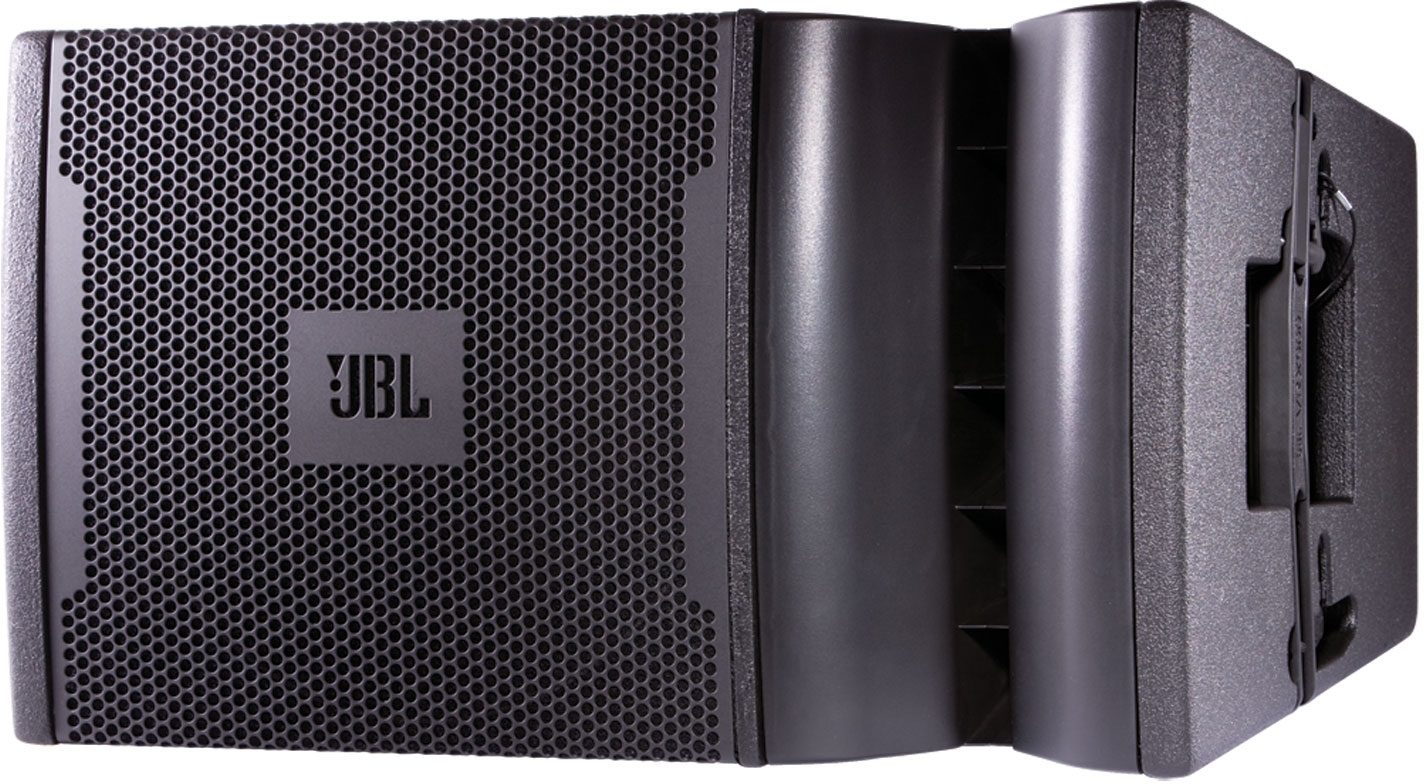

JBL VRX932LA1 2-Way Line Array Loudspeaker (800 Watts, 1x12 in.)

The VRX932LA1 is a light-weight (46 lb / 21 kg) compact 12 inch two-way line array speaker system designed for use in arrays of up to six units.

Features
JBL's exclusive neodymium magnet Differential Drive(R) woofer for high-power capacity and light-weight.

VRX932LA1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.

Constant Curvature waveguide for unprecedented array coherence.

Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.

Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.

Array Configuration Selector permits "array shading" in passive mode.

JBL's VERTEC(R) Series Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VERTEC, the VRX900 Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers. JBL's VRX900 Series speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning JBL sound in an attractive, easy to handle and affordable package.

Technical Info

Power Rating: 800 W / 1600 W / 3200 W

Frequency Range: 57 Hz - 20 kHz (-10 dB)

Dimensions (H x W x D): 343 mm x 597 mm x 376 mm (13.5 in x 23.5 in x 14.8 in)

Frequency Response: 75 Hz - 20 Hz (+/-3db)

Coverage Pattern: 100 x 15 nominal

Crossover Modes: Bi-amp / passive, externally switchable

Crossover Frequency: 132 dB SPL peak 1.2 kHz

System Maximum SPL: Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak

System Sensitivity (1w @ 1m): Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL

LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive(R) woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.

HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver

Nominal Impedance: Passive: 8 ohm Bi-amp LF: 8 ohm Bi-amp HF: 8 ohm

Active Tunings: Tunings available at www.jblpro.com

Enclosure: 18 mm, 11-ply birch plywood

Suspension / Mounting: Optional VRX932LA-AF line array frame kit

Finish: Black DuraFlex(TM) finish

Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam

Input Connectors: Neutrik(R) Speakon(R) NL-4 (x2)

Net Weight: 21 kg (46 lb)

Optional Accessories: VRX932LA-AF: Suspension array frame SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole, 41 in (1041 mm) SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
