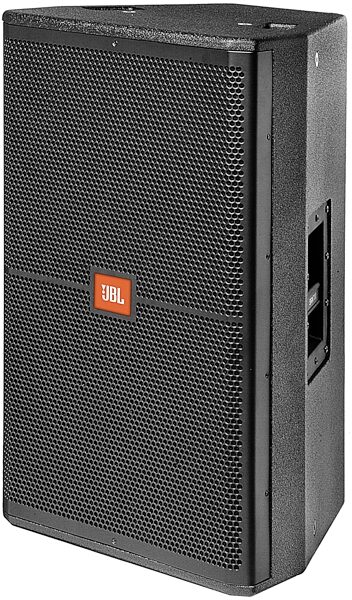

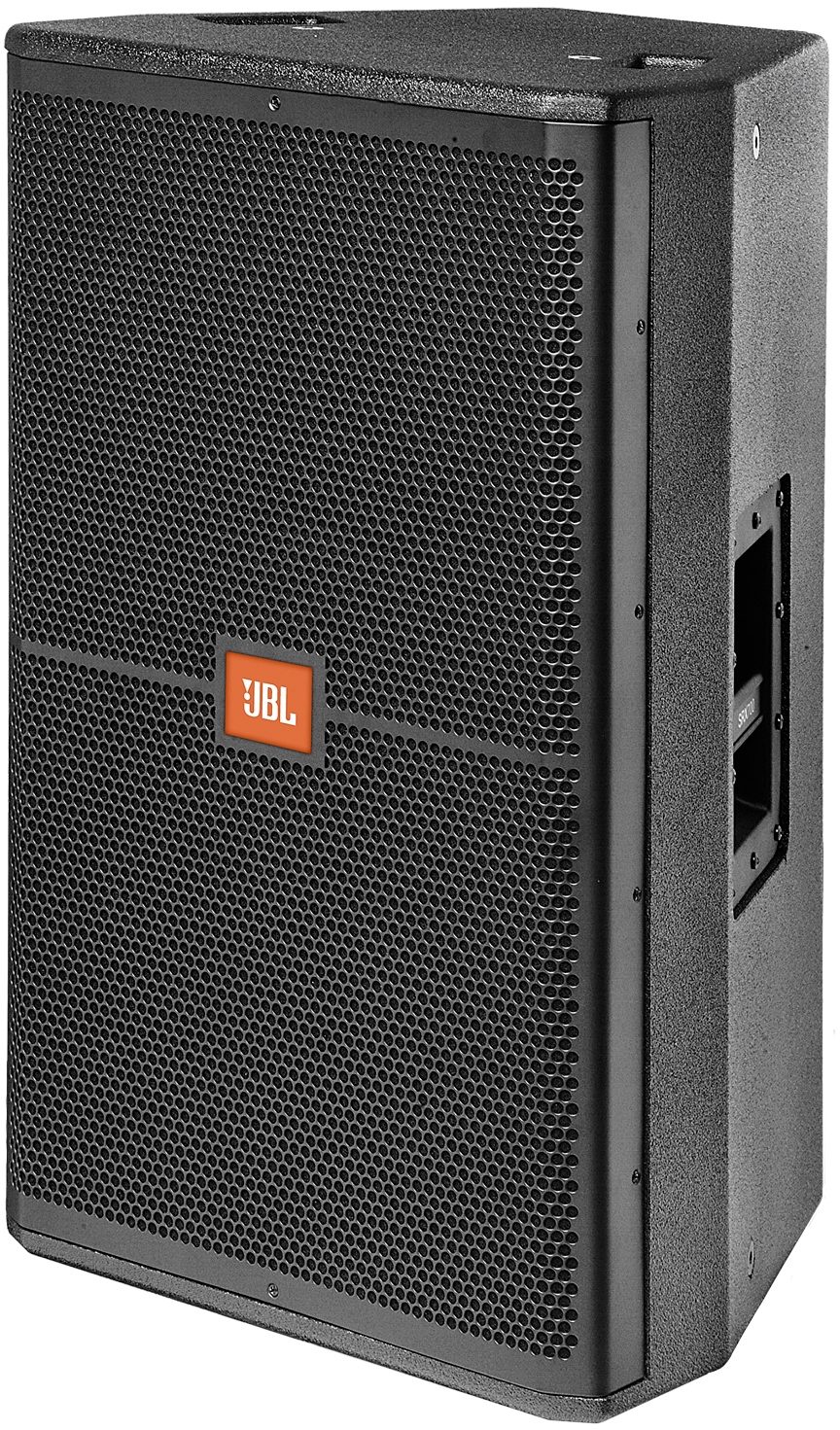

JBL SRX715 2-Way Loudspeaker (800 Watts, 15 in.)

The SRX715 offers the highest level of performance available from a portable, pole or tripod mountable speaker. The 2265H Differential Drive woofer handles 800 watts (continuous) while weighing only 48 lbs (22kg). A 2431H 3-inch diaphram, neodymium compression driver on a 75° x 50° horn makes the SRX715 the best choice for general purpose sound reinforcement, live performance, music playback or speech. When the application calles for increased low-frequency extension, add the SRX728S or SRX718S subwoofer.

Technical Info

Frequency Range (-10 dB): 43 Hz – 20 kHz

Frequency Response (±3 dB): 53 Hz – 20 kHz

Coverage Pattern: 75° x 50° nominal

Crossover Modes: Bi-amp / passive, externally switchable

Crossover Frequency: 1.2 kHz

Power Rating (Continuous1; Program; Peak):
- Passive: 800 Watts; 1600 Watts; 3200 Watts
- Bi-amp LF: 800 Watts; 1600 Watts; 3200 Watts
- Bi-amp HF: 75 Watts; 150 Watts; 300 Watts

Maximum SPL2: 131 dB SPL peak

System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)

LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive woofer with neodymium magnet and dual voice-coils

HF Driver: 1 x JBL 2431H 75 mm (3 in) voice-coil, neodymium magnet compression driver

Nominal Impedance:
- Passive: 8 ohms
- Bi-amp LF: 8 ohms
- Bi-amp HF: 8 ohms

Active Tunings: dbx DriveRack, all models.

Enclosure: Trapezoidal, 15 mm, 11-ply birch plywood

Suspension / Mounting: Dual-angle (0° or -10°) 35 mm pole socket

Transport: 2 x steel handles

Finish: Black DuraFlex finish

Grille: Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.

Removable JBL badge and punched JBL logo.

Input Connectors: Neutrik Speakon NL-4 (x2)

Dimensions (H x W x D): 28 in x 17.3 in x 16 in (711 mm x 439 mm x 406 mm)

Net Weight: 48 lbs. (22 kg)

Powerful, portable all-around speakers! High-performance operation for music, speech, and AV applications. The 2-way, 800-watt SRX715 has a 15" woofer and 3" compression driver. The dual-woofer, 2400-watt SRX725 offers full-range performance perfect for mobile DJ's. Two-way design with 4" compression driver.
