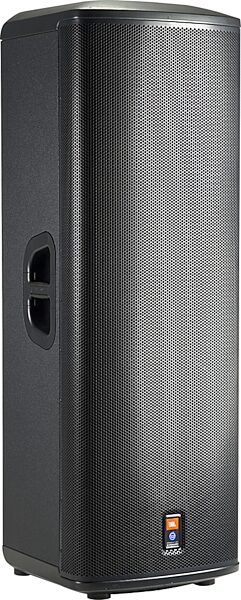

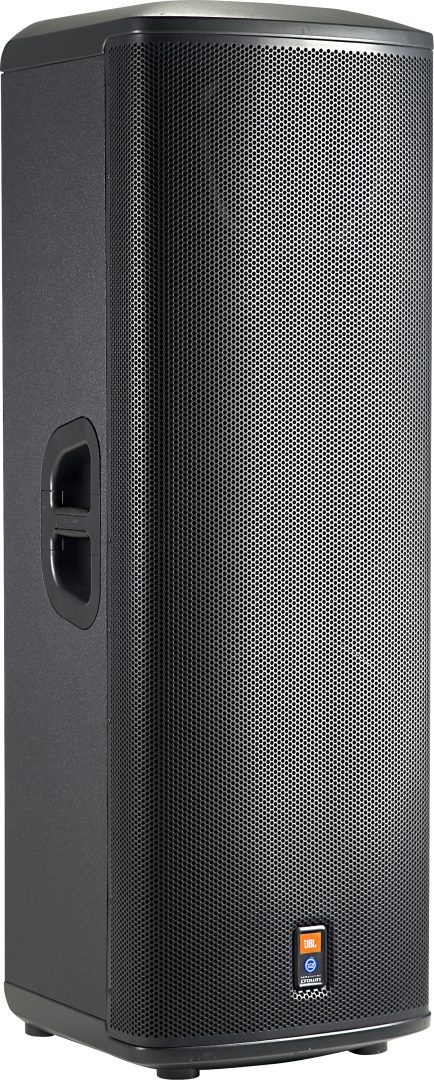

JBL PRX525 2-Way Powered Speaker (650 Watts, 2x15 in.)

For every musician, DJ, venue and audio/video provider, high-performance self-powered speaker systems offer a degree of simplicity unmatched by traditional amp and speaker PA systems. Not only are all components matched right out of the box, but they are optimized for maximum reliability. By considering every element in each system and its contribution to the final application PRX500 redefines high performance portable PA. Through design, PRX500 delivers the power, performance and simplicity you need in a package that's been designed to move.

If a simple set-up is required and full bandwidth output at high levels is a must, then the PRX525 is most likely the optimum solution. With the same foot print as the PRX515 the addition of another 15 in. woofer only increases the weight by 24 lbs., yet the increase in performance negates the requirement for an extra subwoofer in live music and many music playback applications. For live music, recorded music playback and speech the user has the option of tailoring the EQ, 'flat' for speech intelligibility and 'boost' for enhanced bass and crisp highs in recorded music playback. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications.

Features:
Dual Differential Drive® woofers

1.5 in. annual polymer diaphragm compression driver

Class-D, Crown® digital amplifier

DSP input section with crossover, dynamic limiting, component optimization, selectable system EQ

Professional XLR line and 1/4 in. Mic/Instrument inputs with loop through

Illuminated logo for clear Power-On status

DuraFlex™ coated plywood construction

Polypropylene end-caps enhance durability

Wrap around heavy duty steel grille provides protection without obstructing performance.

Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort

The PRX525 is a self-powered, lightweight 2-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth. The PRX525 is comprised of two 380 mm (15 in) 265F Differential Drive® woofers, a 2408H 37.5mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 70° by 70° horn, all driven by a multi-channel Crown International Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

The enclosure is constructed of quality plywood and coated in JBL's rugged DuraFlex™ finish. Durable polypropylene end-caps add extra protection for the cabinet. The CNC-machined steel grille wraps around the sides of the enclosure so there are no protruding lips on the front of the box to create acoustical interference. The grille is also lined with an acoustically transparent foam to provide additional driver protection.

The amplifier input panel offers XLR or 1/4 in. jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.

Technical Info

Frequency Range: 40 Hz - 20 kHz

Frequency Response: 52 Hz - 20 kHz

Nominal Impedance: 64 K Ohms (balanced), 32 K Ohms (unbalanced)

Power Capacity: 650 W continuous, 1300 W peak

Rated Maximum SPL: 135 dB SPL peak

Coverage Pattern: 70 x 70 degrees nominal

Dimensions (H x W x D): 1300 mm x 440 mm x 465 mm (51 in x 17.25 in x 18.25 in)

Weight: 38 kg (84 lb)

High Frequency Driver : 1 x JBL 2408H 37.5 mm (1.5 in) annular polymer diaphragm,
neodymium compression driver

Low Frequency Driver: 2 x JBL 265F 380 mm (15 in) Differential Drive® woofer

Pair of 15" woofers, 1.5" HF compression driver. 650 watts continuous. Frequency response 52Hz - 20kHz.
