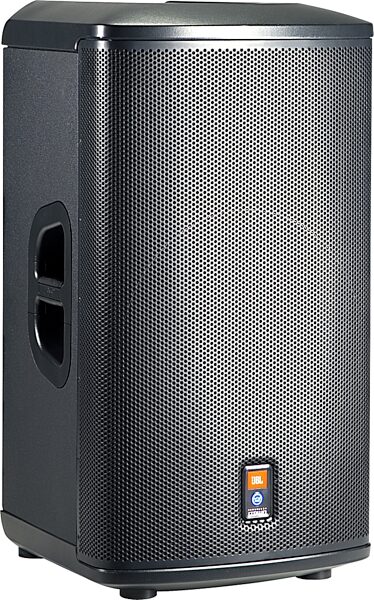

JBL PRX515 2-Way Powered Speaker (500 Watts, 1x15 in.)

For every musician, DJ, venue and audio/video provider, high-performance self-powered speaker systems offer a degree of simplicity unmatched by traditional amp and speaker PA systems. Not only are all components matched right out of the box, but they are optimized for maximum reliability. By considering every element in each system and its contribution to the final application PRX500 redefines high performance portable PA. Through design, PRX500 delivers the power, performance and simplicity you need in a package that's been designed to move.

The 2-way 15 in.; the most recognizable form of portable PA loudspeakers, the perfect balance between size and performance. The PRX515 truly is an exception; it’s smaller and lighter without compromising on performance. For applications requiring full bandwidth sound reproduction, using only a pair of speakers, the PRX515 delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ, ‘flat’ for speech intelligibility, and ‘boost’ for enhanced bass and crisp highs in recorded music playback. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications.

Features:
Differential Drive woofer

1.5 in. annual polymer diaphragm compression driver

Class-D, Crown® digital amplifier

DSP input section with crossover, dynamic limiting, component optimization, selectable system EQ

Professional XLR line and 1/4 in. Mic/Instrument inputs, with loop through

Illuminated logo for clear Power-On status

Integrated pole mount socket

DuraFlex coated plywood construction

Polypropylene end-caps enhance durability

Wrap around heavy duty steel grille provides protection without obstructing performance.

Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort

The PRX515 is a self-powered, lightweight two-way loudspeaker system capable of delivering a very high level of performance. The PRX515 is comprised of a 380 mm (15 in) 265F Differential Drive woofer, a 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 70° by 70° horn, all driven by a multi-channel Crown International Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

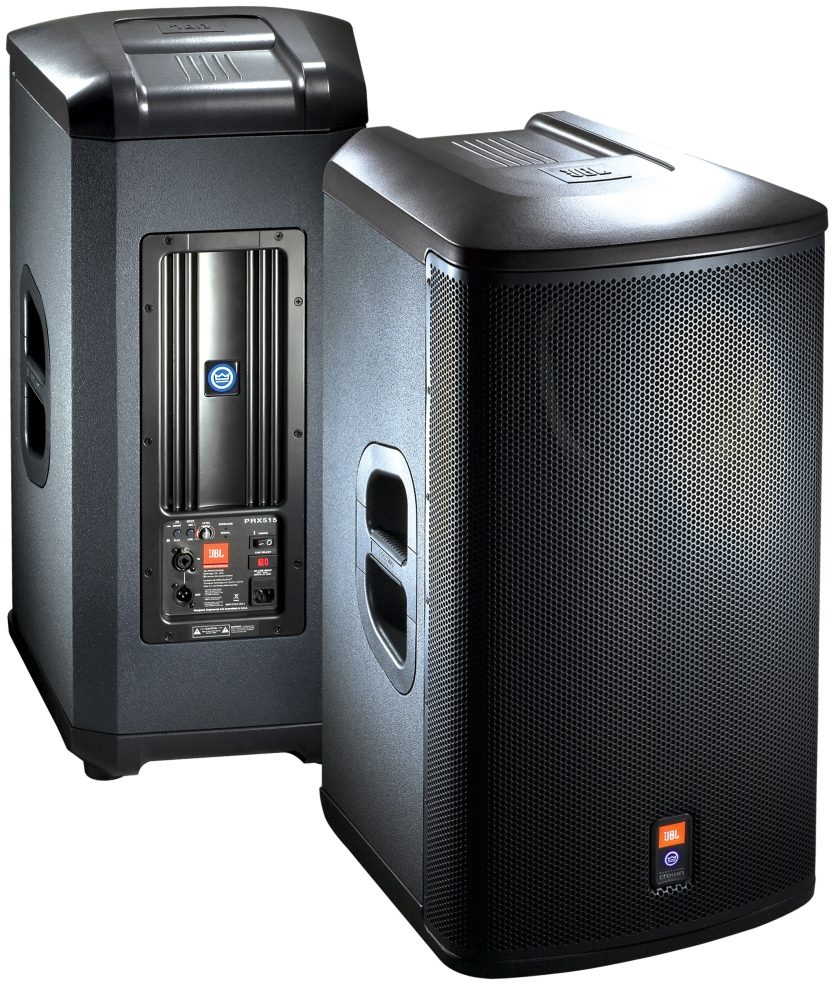

The enclosure is constructed of quality plywood and coated in JBL’s rugged DuraFlex finish. Durable polypropylene end-caps add extra protection for the cabinet. An integrated pole mount on the bottom endcap enables easy deployment. The CNC machined steel grille wraps around the sides of the enclosure so there are no protruding lips on the front of the box to create acoustical interference. The grille is also lined with an acoustically transparent foam to provide additional driver protection.

The amplifier input panel offers XLR or 1/4 inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.

Technical Info

Frequency Range: 45Hz - 20kHz

Frequency Response: 52Hz - 20kHz

Nominal Impedance: 64 K Ohms (balanced), 32 K Ohms (unbalanced)

Power Capacity: 500 W continuous, 1000 W peak

Rated Maximum SPL: 133 dB SPL peak

Coverage Pattern: 70º x 70º nominal

Dimensions (H x W x D): 32 x 17.25 x 18.25 in. (815 x 440 x 465 mm)

Weight: 26 kg (57 lb)

High Frequency Driver: 1 x JBL 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Low Frequency Driver: 1 x JBL 265F 380 mm (15 in) Differential Drive woofer

15" woofer, 1.5" HF compression driver. 500 watts continuous. Frequency response 52Hz - 20kHz.
