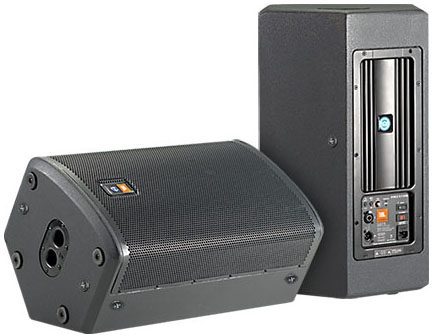

JBL PRX512Mi Powered 2-Way Speaker (500 Watts, 1x12 in.)

The PRX512Mi is the most compact and versatile speaker in the PRX500 Series. It has been designed to deliver the most performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX512Mi is a perfect match with a PRX518S subwoofer, offering a high performance self-powered sub/sat system.

Features
# Dual angle enclosure for both front-of-house and floor monitor applications

# Eight M10 fly points for horzontal or vertical suspension. One M10 pull-back point.

# Optimized EQ for monitor or front-of-house applications

# JBL Differential Drive(R) woofer

# 1.5-inch annular polymer diaphragm compression driver

# Class-D, Crown(R) digital amplifier.

# DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ

# Professional XLR line and 1/4-inch Mic/Instrument inputs, with loop through

# Illuminated logo for clear Power-On status

# Dual angle pole mount socket

# DuraFlex coated plywood construction

For every musician, DJ, venue and audio/video provider, high-performance self-powered speaker systems offer a degree of simplicity unmatched by traditional amp and speaker PA systems. Not only are all components matched right out of the box, but they are optimized for maximum reliability. By considering every element in each system and its contribution to the final application PRX500 redefines high performance portable PA. Through design, PRX500 delivers the power, performance and simplicity you need in a package that's been designed to move.

Technical Info

Power Rating: 500 W continuous, 1000 W peak

Frequency Range: 46 Hz - 20 kHz (EQ in main position); 60 Hz - 20 kHz (EQ in monitor position)

Dimensions (H x W x D): 650 mm x 380 mm x 350 mm (25.5 in x 15 in x 14 in)

Frequency Response: 76 Hz - 20 kHz (EQ in main position); 90 Hz - 20 kHz (EQ in monitor position)

Coverage Pattern: 70 x 70 degrees nominal

Directivity Index (DI): 10.2 dB

Directivity Factor (Q): 10.8

Crossover Modes: DSP controlled 48 dB/Oct. filter slope

Crossover Frequency: 1.6 kHz

Distortion: Less than 0.1% at rated power

Maximum Peak Output: 133 dB SPL

Signal indicators: Overload: Red LED indicates input overload condition

Signal: Green LED indicates signal present

Input sensitivity: Mic position: -25 dBu to 0 dBu

Line Position: +28 dBu to +10 dBu

Input Impedance: 64 K Ohms (balanced); 32 K Ohms (unbalanced)

LF Driver: 1 x JBL 262F 380 mm (12 in), Differential Drive(R) woofer

HF Driver: 1 x JBL 2408H-1 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Enclosure: Trapezoidal, 18 mm, plywood

Suspension / Mounting: Dual 36 mm pole socket, eight M10 suspension points and
one M10 pull-back point

Input Connectors: Balanced XLR / 1/4 inch combo jack with XLR loop through

Net Weight: 18 kg (40 lb)
