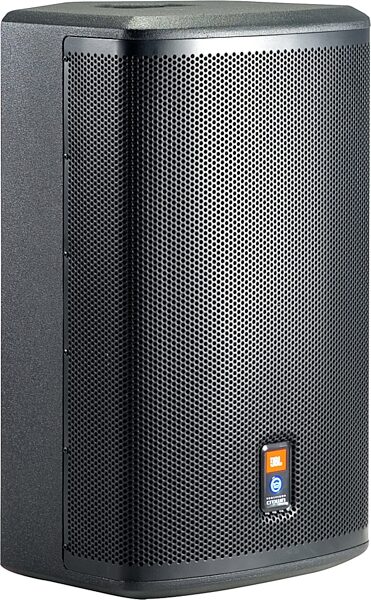

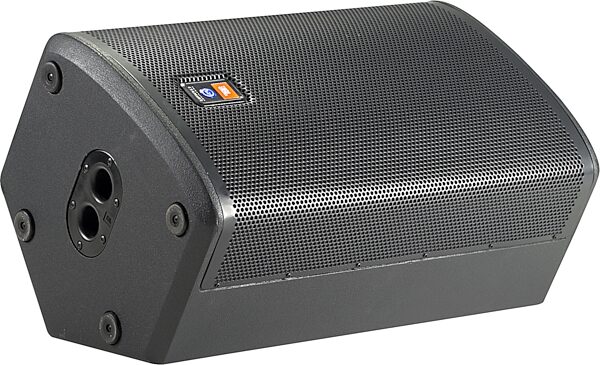

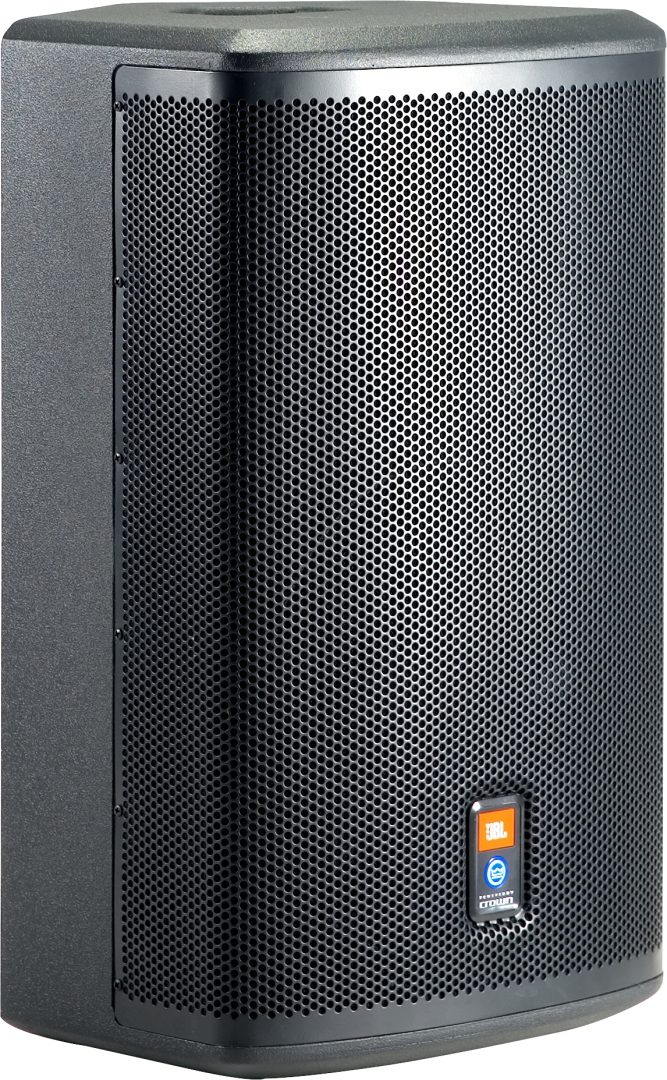

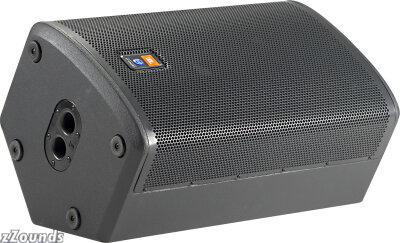

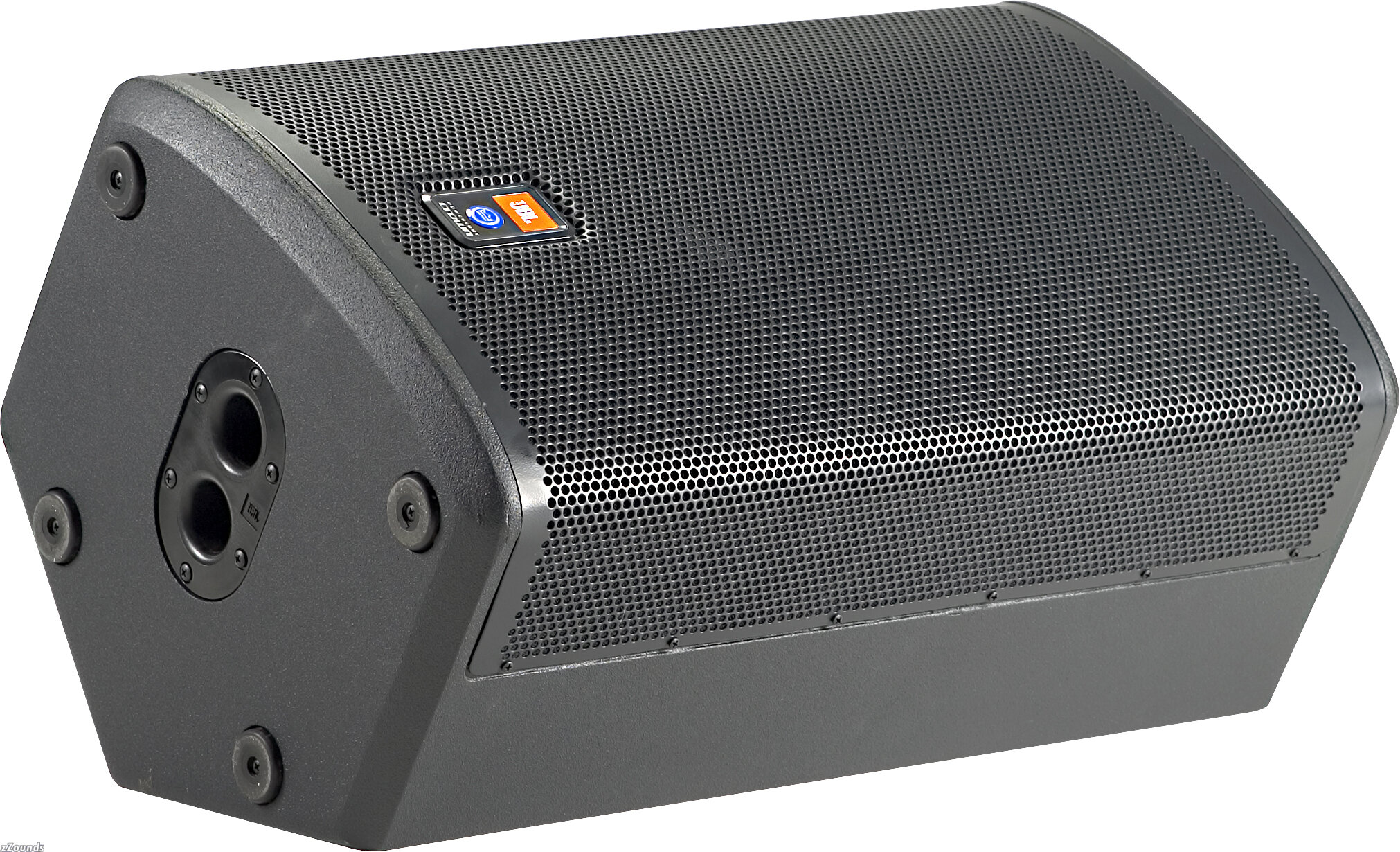

JBL PRX512M 2-Way Powered Monitor (500 Watts, 1x12 in.)

Manufacturer's Description for JBL PRX512M 2-Way Powered Monitor (500 Watts, 1x12 in.)

For every musician, DJ, venue and audio/video provider, high-performance self-powered speaker systems offer a degree of simplicity unmatched by traditional amp and speaker PA systems. Not only are all components matched right out of the box, but they are optimized for maximum reliability. By considering every element in each system and its contribution to the final application PRX500 redefines high performance portable PA. Through design, PRX500 delivers the power, performance and simplicity you need in a package that's been designed to move.

PRX512M is the most compact and versatile speaker in the PRX500 Series. It has been designed to deliver the most performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX512M is a perfect match with a PRX518S subwoofer, offering a high performance self-powered sub/sat system.

Features:
Dual angle enclosure for both front-ofhouse and floor monitor applications

Optimized EQ for monitor or front-ofhouse applications

JBL Differential Drive® woofer

1.5 in. annual polymer diaphragm compression driver

Class-D, Crown digital amplifier: lightweight, compact, multi channel, heritage

DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ

Professional XLR line and 1/4 in. Mic/Instrument inputs, with loop through.

Illuminated logo for clear Power-On status

Dual angle pole mount socket

DuraFlex coated plywood construction

The PRX512M is a self-powered, lightweight two-way multipurpose loudspeaker system. The PRX512M is comprised of a 262F 305 mm (12 in.) Differential Drive woofer, a 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 70° by 70° horn, all driven by a multichannel Crown International Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, crossover functionality, dynamic limiting and discrete component optimization.

The enclosure is constructed of quality plywood and coated in JBL’s rugged DuraFlex finish. An integrated dual angle pole mount on the bottom enables easy deployment and aiming. The CNC-machined steel grille wraps around the sides of the enclosure so there are no protruding lips on the front of the box to create acoustical interference. The grille is also lined with an acoustically transparent foam to provide additional driver protection.

The amplifier input panel offers XLR or 1/4 in. jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob. zZounds is an authorized dealer of JBL products.

Frequency Range: 46Hz - 20kHz

Frequency Response: 76Hz - 20kHz

Nominal Impedance: 64 K Ohms (balanced), 32 K Ohms (unbalanced)

Power Capacity: 500 W continuous, 1000 W peak

Rated Maximum SPL: 133 dB SPL peak

Coverage Pattern: 70º x 70º nominal

Dimensions (H x W x D): 25.5 x 15 x 14 in. (650 x 380 x 350 mm )

Weight: 18 kg (40 lb)

High Frequency Driver: 1 x JBL 2408F 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Low Frequency Driver: 1 x JBL 262F 380 mm (12 in) Differential Drive woofer
