JBL LSR4326P Powered Studio Monitor (220 Watts, 1x6.25 in.)

zZounds' Take on JBL LSR4326P Powered Studio Monitor (220 Watts, 1x6.25 in.)

Success in mixing boils down to one thing: trust. You've got to trust your ears, you've got to trust your gear, and you've got to trust your room. You already take good care of your built-in listening mechanisms, and you know you can trust a pair of monitor speakers with the JBL name on the front, but can you trust your room? If your reference monitors are a pair of JBL LSR4326P Powered Studio Monitors, you don't have to. These highly accurate monitors are made all the more so by their built-in analysis and intelligent correction technology, which automatically adjusts the speakers' frequency response to transparently compensate for common acoustics issues. Never again will a less-than-perfect control room setup keep you from hearing what your music really sounds like. JBL calls this technology Room Mode Correction, and it's just one of the features that make the JBL LSR4326P Powered Studio Monitor the obvious choice for any project or recording studio.

Monitors That Come With A Mic?

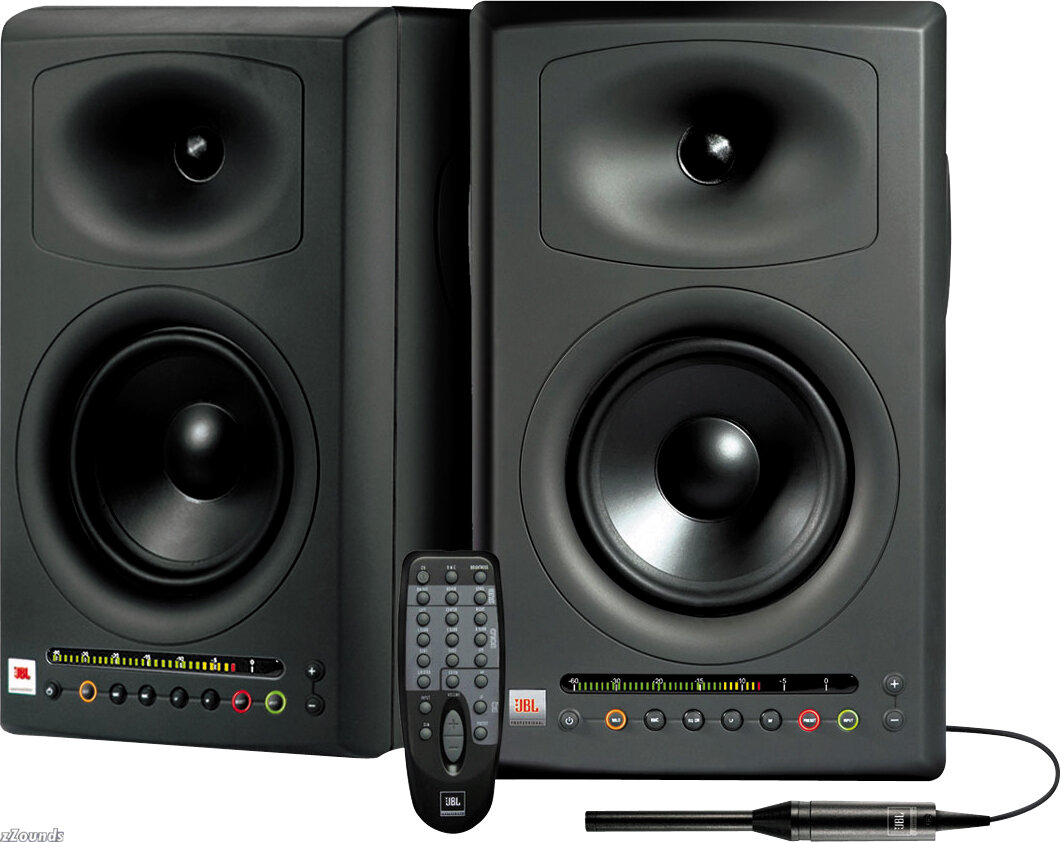

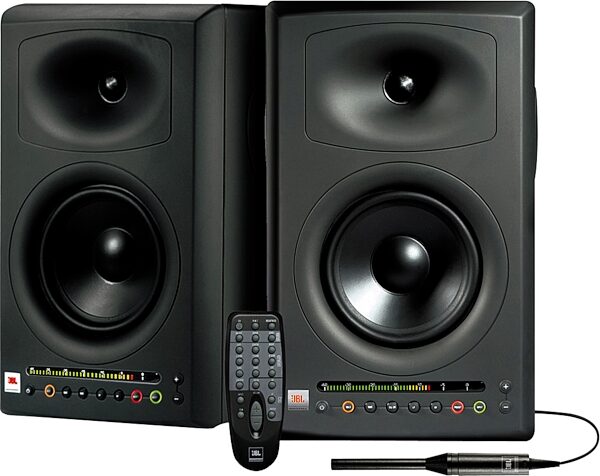

The first thing you might be struck by is the inclusion of a measurement microphone in the above product image. Yes, that mic ships with a pair of JBL LSR4326P Monitors, and it's the key to the RMC acoustic correction electronics built into the monitors. When you first set up your JBL LSR4326P pair, simply plug in the mic and push a button on the monitor. The speakers will produce a test tone that is picked up up by the omnidirectional, flat-response microphone, and the fed back into and read by the monitors. They sense common issues like standing bass waves and boundary coupling, and automatically adjust their output frequency response to compensate. That's all it takes to perfectly tune your reference monitors to your control room and ensure that what you're listening to is your mix and nothing else.

Start With Great Speakers

Of course, the most effective acoustic correction in the world won't improve inaccurate speakers, but these LSR4326P monitors are truly worthy of the cutting edge RMC technology built into them. With 220 watts of amplification power on board, you won't have to worry about finding a matching external power source, and you'll have plenty of headroom to mix without the risk of distortion. Each individual cabinet is precision bi-amped, with the hi-range-tweeter and mid- and low-range woofer matched to their own discrete amplifier. Incoming frequencies are split at a crossover frequency that's not only calibrated for ultimate speaker driver efficiency, but also to the LSR4326P's physical "waveguide" housing. JBL calls this holistic calibration technique "Linear Spatial Reference Technology," which is fancy way of saying that these monitors stay out of their own way, delivering your mix to your ears with maximum transparency and minimum coloration. Designed as high-end monitors for a digital production studio, the JBL LSR4326P features S/PDIF inputs in addition to its high-quality analog inputs, and ships with software that lets you manage your monitors directly from your computer workstation.

Simple Surround

Any post-production studio simply has to be able to mix in surround. Surround 5.1 has become standard in Television and Film, and if you're still waiting to upgrade to a surround mix monitor system, you don't have much time left before you become obsolete. You may be telling yourself that setting up a 5.1 mixing studio is overly complicated, but the intelligent networking capabilities of the JBL LSR4326P moots that excuse. Expanding from stereo to 5.1 within the LSR4326P framework is literally as easy as adding speakers. The intelligent networking electronics in each monitor keeps it in communication with the rest of the monitors in a network, allowing the speakers to calibrate as a single entity. If your control room is a little tight, and you don't think you've got the space for correct 5.1 placement, a plug-and-play surround network of JBL LSR4326P's will auto-time align to ensure that the most accurate sound possible reaches the listening zone, regardless of spatial restrictions.

There are many hurdles to accurate mix monitoring, but the JBL LSR4326P goes a long way in eliminating all of them. From ease of setup to revolutionary, on-board RMC correction technology, these state-of-the-art reference monitors provide a direct conduit between you and your music. And the music is what it's all about.

Manufacturer's Description for JBL LSR4326P Powered Studio Monitor (220 Watts, 1x6.25 in.)

The biggest challenge for anyone producing audio is creating a mix that sounds great on all playback systems. Much of the problem is caused by the mixing room interacting with the studio monitors and creating an inaccurate picture at the mix position. JBL Professional, continuing its long tradition of revolutionary products, decided it was time to fix the problem.

Introducing the new JBLLSR4300 Studio Monitors featuring RMC Room Mode Correction, JBL's exclusive technology that automatically analyzes and corrects the response of each speaker in the room for absolute accuracy at the mix position. The first studio monitors with powerful network intelligence built into each speaker specifically designed to deliver an accurate mix in any room, the LSR4300s are the ultimate monitor for modern production studios. The LSR4300 models feature stunning JBL sound, provide accurate mixes in any workspace, and are priced well within the reach of any project studio. The first self aware monitoring system, they're the only choice for music, post, broadcast, Surround 5.1, and beyond.

Stunning Sound

Stunning sound and revolutionary intelligence to analyze and correct the problems in any room.

Recording and mixing for long hours requires a superb sounding monitor with wide dynamic range, low distortion, and crystal clear response. The LSR4300 delivers. Starting with application built transducers engineered for extremely accurate response and superb power handling, the 4300's stunning sound makes long mix sessions a pleasure. For long-term reliability, the LSR4300 Series withstood the JBL loudspeaker torture test in which the system is driven to extraordinary levels for over 100 hours. Meeting higher standards than any other loudspeaker manufacturer, JBL's demanding test ensures that the LSR4300s will give you accurate mixes year after year.

Beyond Accurate

Great mixes start with an accurate monitor. The 4300 Series incorporates JBL's Linear Spatial Reference Technology that matches the exact geometry of the 4300's waveguide design with its transducers and crossover network to optimize the frequency response at the mix position. To ensure that this incredibly accurate monitor delivers superb mixes in the room you're working in, JBL's next generation RMC Room Mode Correction system incorporates a powerful analyzer into each speaker that automatically analyzes and compensates for problems caused by low frequency standing waves and proximity to boundaries. Truly putting technology to work, all of this is accomplished by simply plugging the LSR4300 calibration microphone into the speaker and pushing a button. A JBL first, the LSR4300 meter provides a reference of the output from each speaker in the system. The results are a revolution in professional mixing: a calibrated listening environment where the monitors truly work in harmony with the room. This creates a stunningly clear and articulate sound stage enabling reliable mixes that translate faithfully to the outside world.

Engineered for Digital Production

Today's digital production environments are all about precision and control. The LSR4300s powerful DSP platform provides full system networking and communication. Comprehensive LSR4300 Control Center Software provides total control of all system parameters directly from the workstation desktop. High resolution digital and analog inputs, plus a 'virtual monitor section' with input switching, master volume, mute and solo controls, enhance functionality of the entire system and provide comprehensive control at the mix position. The first professional studio monitor with automatic room compensation, centralized system control, and user-friendly simplicity, the LSR4300 Series is the most elegant and intelligent advancement of technology on behalf of better mixes ever offered in a studio monitor.

Surround Smart

The LSR4300 Series includes three models: The LSR4326P bi-amplified system with 6 in. woofer and 1 in. dome tweeter; the LSR4328P bi-amplified system with 8 in. woofer and 1 in. domed tweeter, and the LSR4312SP, 300 watt, powered 12 in. subwoofer. Designed for any application from simple stereo mixing to complex surround production, LSR4300 Series systems can be configured with up to eight main speakers in any desired mix of 6 in. and 8 in. models and two subwoofers. Since the small studio may lack the space to position surround channels at the optimal physical distance from the mix position, the system is automatically aligned so the sound arriving at the mix position from all speakers is synchronized producing a precise image regardless of each speaker's actual physical placement.

A system configured with the LSR4312SP subwoofer provides professional bass management of the main channels, plus LFE (low frequency effects) input, adjustable crossover points, and powerful features for surround sound production.

System Intelligence

Control of System Level, Individual Speaker SOLO, Input Source Selection, high and low frequency EQ settings, and adjustment of all parameters can be made from each speaker's front panel, with the system's infrared remote control, or with LSR4300 Control Center Software. For unprecedented performance and convenience the LSR4300 Series incorporates the new Harman HiQnet protocol that enables a coordinated calibration of all speakers, intelligent configuration of surround sound systems, and synchronized control of all speakers in the system.

Reinforced for Mounting

Reinforced mounting points on each speaker allow convenient positioning and installation of multi-channel surround systems for any mixing application, in any environment.

LSR4326P

The 4326P is designed for working in home studios or small project studios, for music and audio elements for television, feature films and electronic games.

Features

- Advanced Linear Spatial Reference design ensures flatter-off-axis response for greater clarity at the mix position
- RMC Room Mode Correction provides electronic control of room modes.
- Integrated bi-amplification with factory calibrated sensitivities.
- Silk dome transducer with Elliptical Oblate Spheroidal waveguide for precise pattern control.
- Magnetically shielded transducers minimize interference when used in close proximity to video monitors.
- Reinforced enclosure and convenient mounting points for mounted installation.
- Integral handles facilitate ease of positioning. zZounds is an authorized dealer of JBL products.

Frequency Response: +/-1.5 dB: 55 Hz -- 20 kHz, -3 dB: 47 Hz -- 22 kHz, -10 dB: 39 Hz -- 32 kHz

SPL / 1m (Continuous/Peak): 106 dB / 112 dB

Transducers: 6.25 in. 436H / 1 in. 431 G; Self- Shielded, Neodymium Motor Structures

Sensitivity +4 dBu, -10 dBV: 94 dB / 1m

Amplification: 150 w/ 70 w

Digital Processing: 24 Bit, 96 kHz

Analog Inputs: XLR, 1/4 in. Balanced, +4 dBu, -10 dBV

Digital Inputs: AES/EBU XLR, S/PDIF RCA

Data Connections: Harman HiQnet Network, USB, RMC Mic

Weight: 12.7 kg (28 lb)

Dimensions (H x W x D): 387 mm x 236 mm x 262 mm; 15.25 in. x 9.3 in. x 10.3 in.

Dimensions and Weight in Packaging

Shipping Weight: 74 lbs

Shipping Dimensions: 28 x 22 x 16 in
