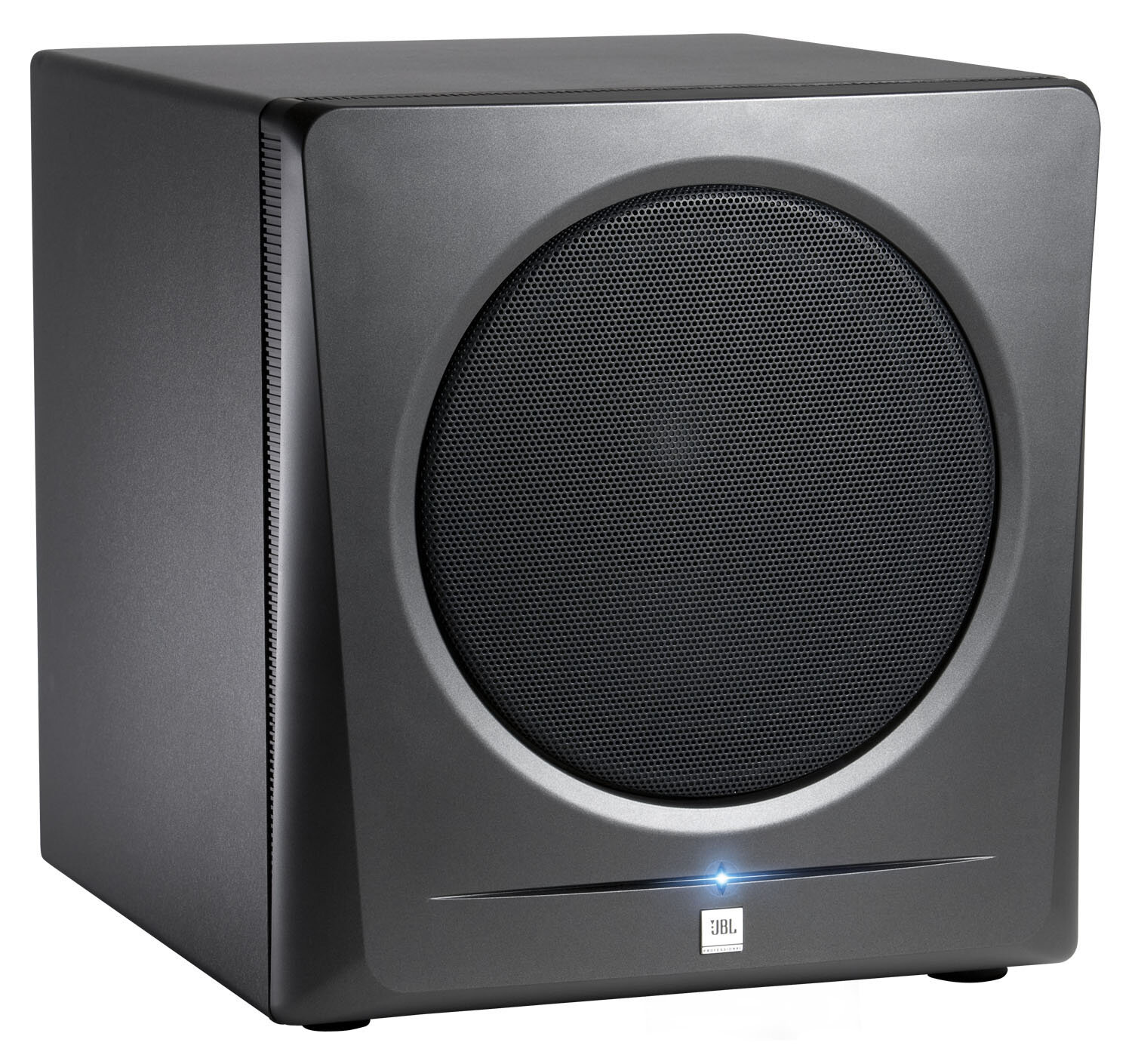

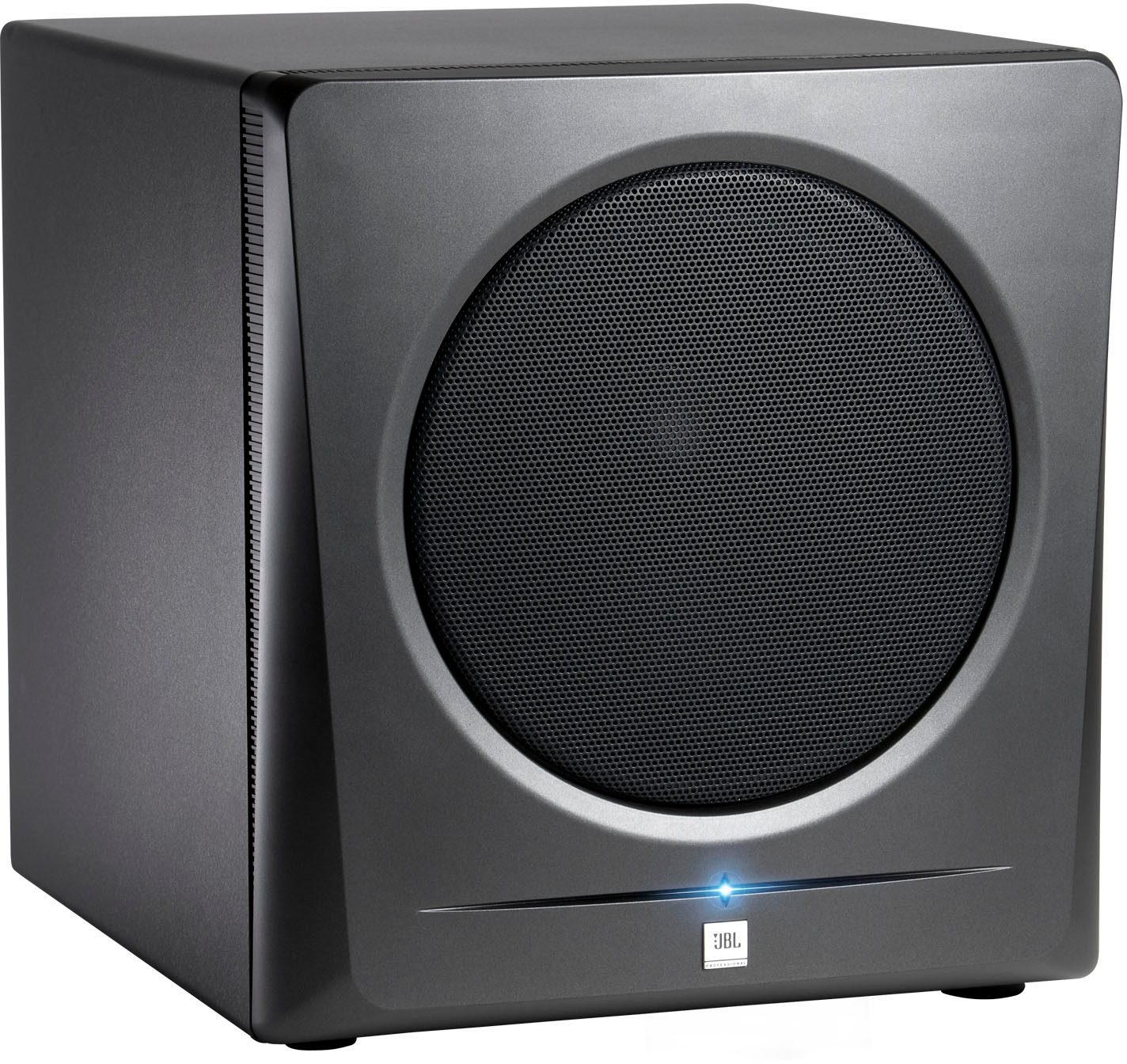

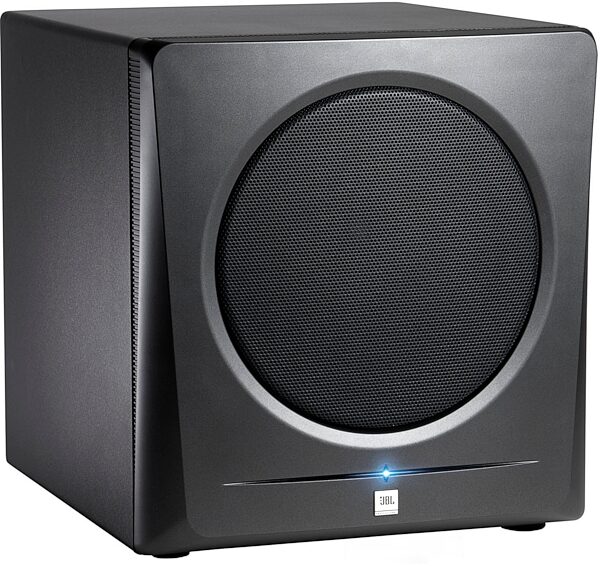

JBL LSR2310SP Powered Studio Subwoofer (180 Watts, 1x10 in.)

Added to a stereo system, the JBL LSR2310SP Powered Studio Subwoofer extends the low frequency response of the system below 30Hz. In a surround sound system the sub provides stunning reproduction of the LFE (low frequency effects) channel.

The LSR2310SP is packed with professional features including two sets of balanced XLR, balanced 1/4 inch and unbalanced RCA input connectors, selectable crossover settings and two sets of balanced outputs to allow connection of Left and Right main speakers. A detented level control allows independent adjustment of the subwoofer output to balance the subwoofer in your system.

Features
180 Watts

2 sets of balanced XLR, balanced 1/4 inch and unbalanced RCA input connectors

Magnetic Shielding

Level Control

Technical Info

System Type: 10 inch Powered Studio Subwoofer

Drivers (LF): 10 inch 230H

Magnetic Shielding: Yes

Level Control: Yes

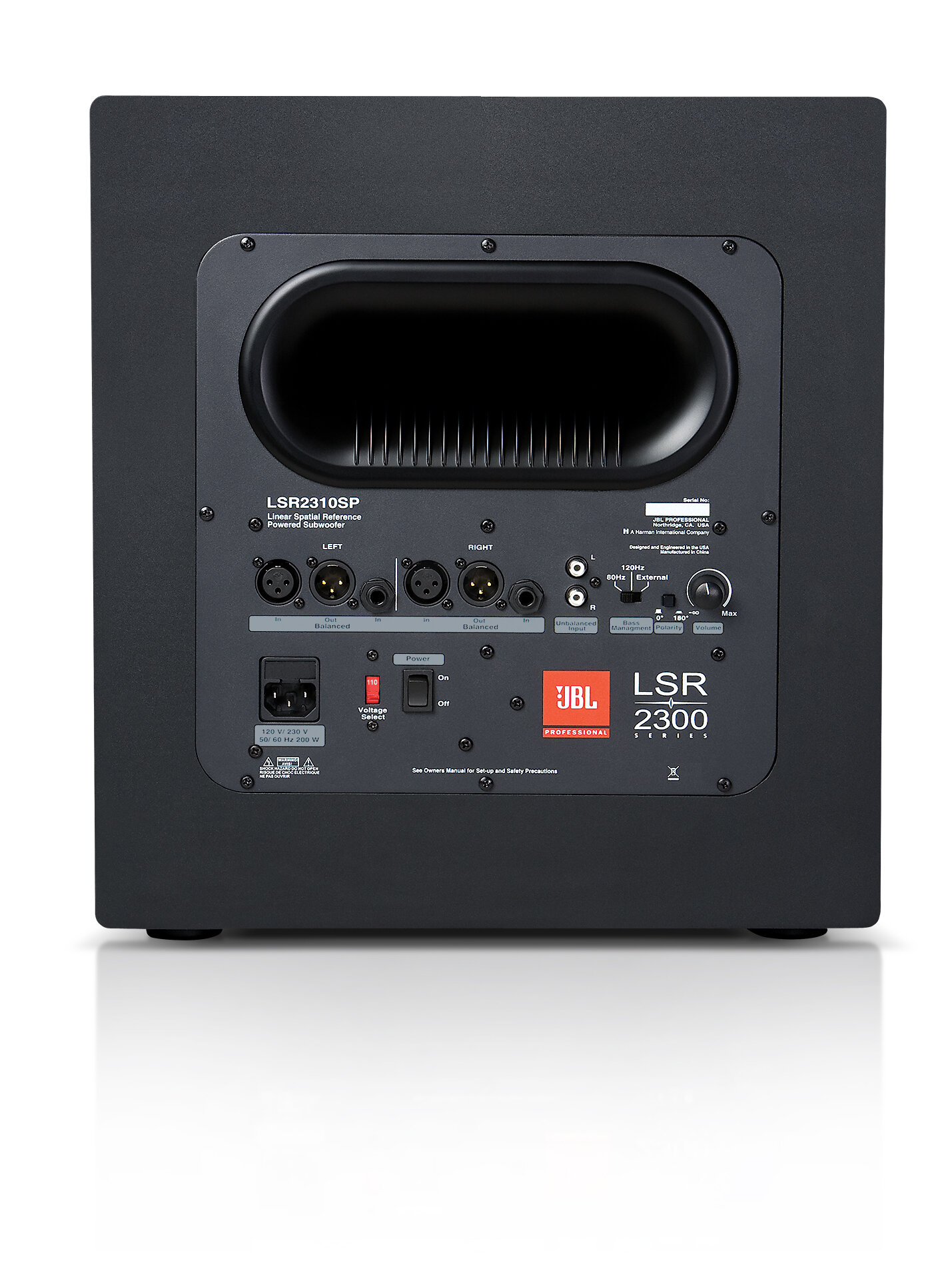

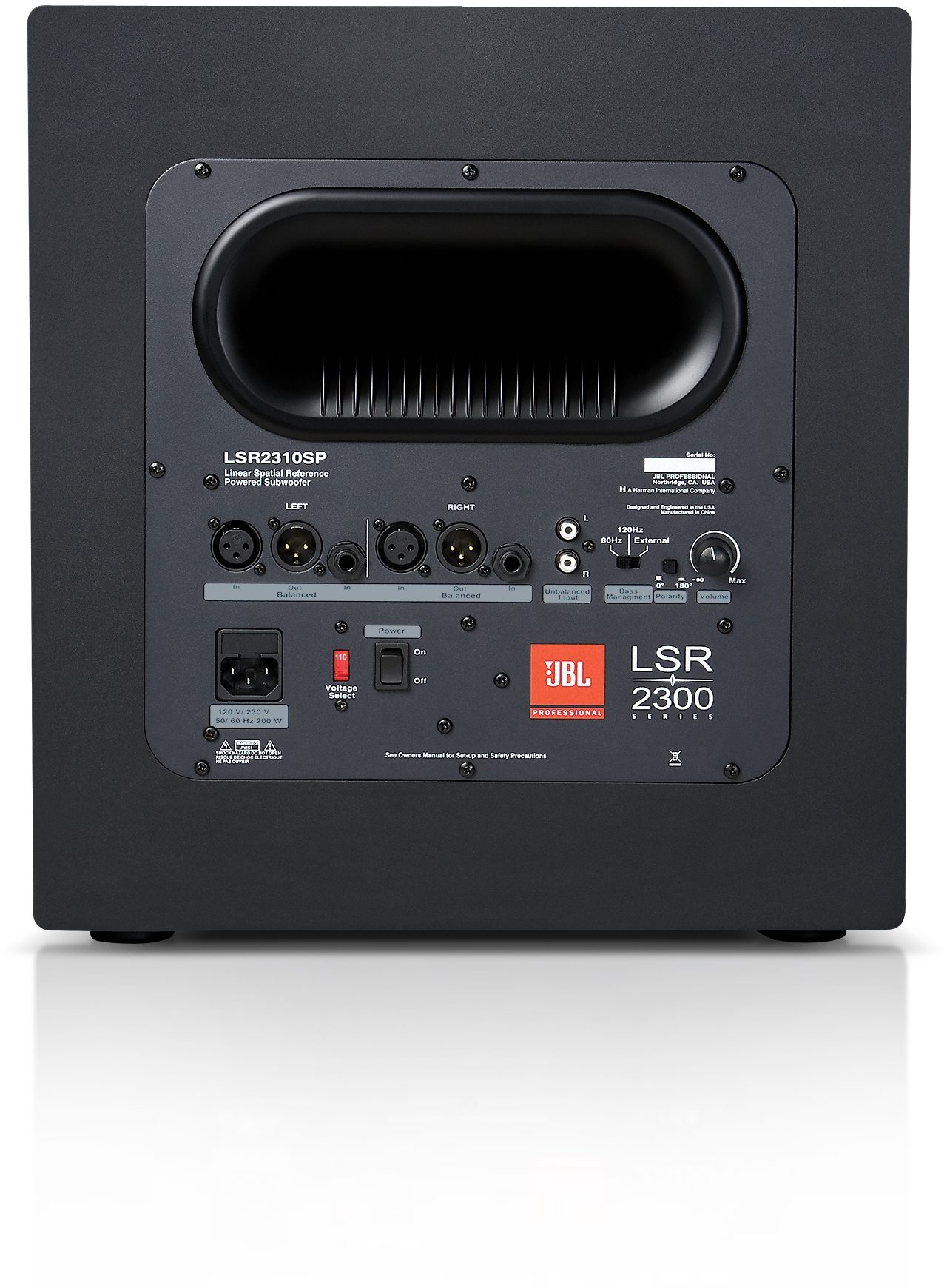

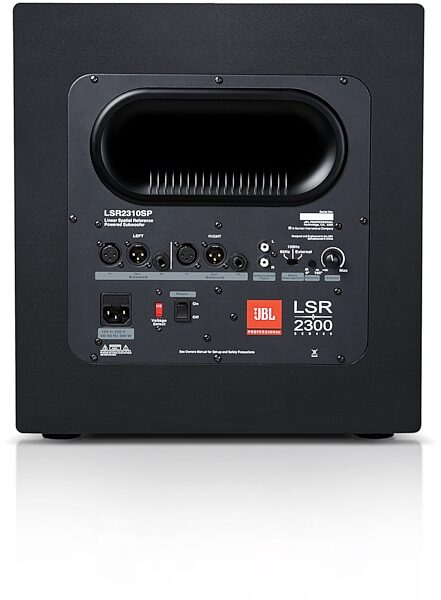

Input Connectors: L&R, Balanced XLR, 1/4 inch TRS, RCA

Output Connectors: L&R, Balanced XLR, 1/4 inch TRS

Frequency Range (+/- 3 dB): 31 Hz - 150 kHz (-6dB)

Selectable Crossover: 80 Hz/ 120 Hz/ External

Low Frequency extension (-10 dB): 29 Hz

Amplifier Power: LF: 180 W

Max SPL Continous: > 103 dB

Max SPKL Peak: > 113 dB

Input Sensitivity: 96 dB SPL / 1m (80 Hz crossover)

Enclosure : 18 mm (3/4 in) MDF

Finish: Metallic Anthracite Pain / Dark Matte Black PVC

Dimensions (H x W x D): 16.12 in x 15 in x 17.25 in. (415 x 381 x 438 mm)

Net Weight: 44.5 lbs. (20.2 kg)
