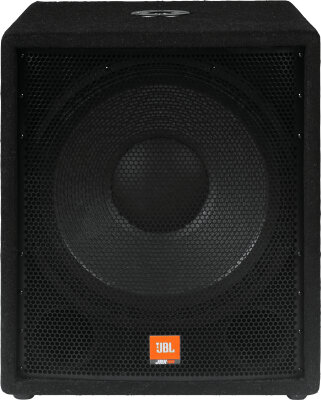

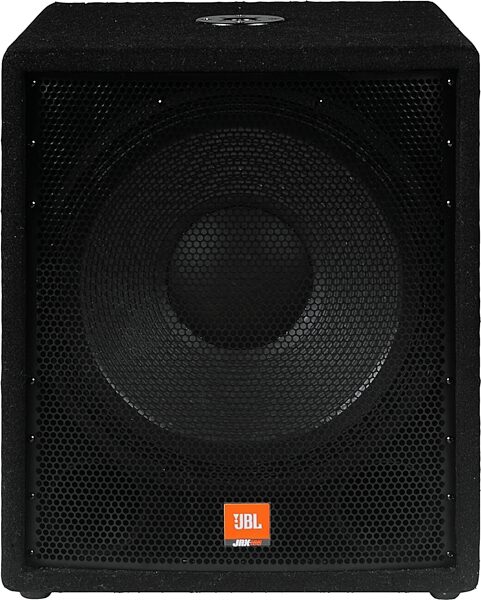

JBL JRX118S Passive PA Subwoofer (350 Watts, 1x18 in.)
1400 watts peak, 350 watts continuous. 3 in. voice-coil.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
From Our Catalog
JBL JRX118S
The JRX118S is a 1x18 in. compact (passive) subwoofer, rated at 1400 watts peak power capacity and 350 watts continuous. It includes a newly designed JBL 18 in. woofer with a cast frame and 3 in. voice-coil.
About the JRX100 Series
JBL designed the new JRX100 series for cost-conscious musicians, DJs and other users of live sound reinforcement speakers. All full-range models feature Neutrik Speakon and 1/4 in. input connectors. JRX100 cabinets are constructed of carpet-covered, 3/4 in. MDF -- a material that is structurally and acoustically superior to the particleboard that is used by many competitive products. To minimize distortion, heavy gauge wire is used for inductors and SonicGuard high-frequency driver protection guards against damage caused by inadvertent overpowering of the system. The JRX115 and JRX112M's innovative, new dual-angle pole socket allows them to be mounted in either a conventional, vertical position, or with a 10 degree down angle. By aiming the speaker down, you get more even audience coverage and reduce the destructive acoustic reflections from walls. JBL constructs the JRX enclosures with advanced adhesives and closely mechanically spaced fasteners, not just glue. They use non-resonant, all metal handles, and an 18-gauge, full metal grille. All JRX100 models have passed the same 100-hour, full rated-power torture test that JBL high-end touring systems must survive.
Frequency Response: (3dB): 55Hz - 300Hz
Sensitivity (1W/1m): 96dB SPL
Nominal Impedance: 4 Ohms
Power Capacity (continuous, 100-hour power test): 350 Watts
Peak Power Capacity: 1400 Watts
Recommended Amplifier Power: 350 Watts to 700 Watts into 4 Ohms
Recommended Crossover Settings: 30Hz HPF, 24dB/octave; 80 – 100Hz LPF, 24dB/octave
Maximum SPL: 127dB
Dimensions: 23.5 x 20.3 x 22 in. (597 x 516 x 559mm)
Weight: 71 lbs. (32.2 kg)
Low Frequency Driver: JBL 2043-G
Input Connector: Neutrik Speakon NL-4 (x2); 1/4 in. TS phone jack (x1); parallel
The JRX118S is a 1x18 in. compact (passive) subwoofer, rated at 1400 watts peak power capacity and 350 watts continuous. It includes a newly designed JBL 18 in. woofer with a cast frame and 3 in. voice-coil.
About the JRX100 Series
JBL designed the new JRX100 series for cost-conscious musicians, DJs and other users of live sound reinforcement speakers. All full-range models feature Neutrik Speakon and 1/4 in. input connectors. JRX100 cabinets are constructed of carpet-covered, 3/4 in. MDF -- a material that is structurally and acoustically superior to the particleboard that is used by many competitive products. To minimize distortion, heavy gauge wire is used for inductors and SonicGuard high-frequency driver protection guards against damage caused by inadvertent overpowering of the system. The JRX115 and JRX112M's innovative, new dual-angle pole socket allows them to be mounted in either a conventional, vertical position, or with a 10 degree down angle. By aiming the speaker down, you get more even audience coverage and reduce the destructive acoustic reflections from walls. JBL constructs the JRX enclosures with advanced adhesives and closely mechanically spaced fasteners, not just glue. They use non-resonant, all metal handles, and an 18-gauge, full metal grille. All JRX100 models have passed the same 100-hour, full rated-power torture test that JBL high-end touring systems must survive.
Technical Info
Frequency Range (-10dB): 38Hz - 300HzFrequency Response: (3dB): 55Hz - 300Hz
Sensitivity (1W/1m): 96dB SPL
Nominal Impedance: 4 Ohms
Power Capacity (continuous, 100-hour power test): 350 Watts
Peak Power Capacity: 1400 Watts
Recommended Amplifier Power: 350 Watts to 700 Watts into 4 Ohms
Recommended Crossover Settings: 30Hz HPF, 24dB/octave; 80 – 100Hz LPF, 24dB/octave
Maximum SPL: 127dB
Dimensions: 23.5 x 20.3 x 22 in. (597 x 516 x 559mm)
Weight: 71 lbs. (32.2 kg)
Low Frequency Driver: JBL 2043-G
Input Connector: Neutrik Speakon NL-4 (x2); 1/4 in. TS phone jack (x1); parallel
Affordable thunder! The JBL JRX118S is a passive PA subwoofer with a huge 3" voice coil pushing its 18" driver. Max power handling is 1400 watts; continuous rating is 350 watts.
What Our Customers Say About zZounds
"This is the 3rd time I have used zZounds, and I'm overjoyed!" - customer on November 5, 2009
Call
866.ZZOUNDS (996.8637)
and mention priority code: 782VBZN
Item: JBLJRX118S
Choose a model below and select "Add to Cart"
related accessories
from $19.95
from $10.95
from $116.96
from $279.95
JBL JRX118S Passive PA Subwoofer (350 Watts, 1x18 in.) Reviews
9 out of 10
"Lots of Power = Lots of Thump"
Feature:
Compact for an 18. Neutriks and 1/4" make most hook ups easy. Heavy steel grill. Needs corner protection. I add them...
Quality:
Needs factory corner protection.
Value:
Add lots of pwoer and they sound like subs costing 3x as much.
Desirability:
It's JBL!
Sound:
No better buy out there. The subs do require lots of power to sound good. JBL Pro recommends doubling the RMS power.. so a minimum of 700 watts per speaker. I'm using (2) mono block amps with 1060 watts into each sub and (4) JRX115s with 1060s watts on each pair of 115s Sounds Great. Headroom galore. I thought I might need two more but the 1060 watts on each 18" sub does it. Great low end fundamentals and no clipping. These subs just cruise along with that kind of power.
Ease of Use:
Plug in and go...
Support:
I've used them in the past. Not great but not horrible..
Overall:
Deep Low End...
Compact for an 18. Neutriks and 1/4" make most hook ups easy. Heavy steel grill. Needs corner protection. I add them...
Quality:
Needs factory corner protection.
Value:
Add lots of pwoer and they sound like subs costing 3x as much.
Desirability:
It's JBL!
Sound:
No better buy out there. The subs do require lots of power to sound good. JBL Pro recommends doubling the RMS power.. so a minimum of 700 watts per speaker. I'm using (2) mono block amps with 1060 watts into each sub and (4) JRX115s with 1060s watts on each pair of 115s Sounds Great. Headroom galore. I thought I might need two more but the 1060 watts on each 18" sub does it. Great low end fundamentals and no clipping. These subs just cruise along with that kind of power.
Ease of Use:
Plug in and go...
Support:
I've used them in the past. Not great but not horrible..
Overall:
Deep Low End...
Submitted: 05/01/2008
Style of Music: All
10 out of 10
"Smack down impressive sub!"
Feature:
Has 1/4in., 2 speakon jacks as well as a very useful pole mount on the top of the cab.
Quality:
Sounds incredible for the price.
Value:
You get more then what you paid for.
Sound:
Clean,Clear and Crisp. This sub will handle anything you through at it flawless.
Support:
No need for it with this sub.
Overall:
Great Value.
Has 1/4in., 2 speakon jacks as well as a very useful pole mount on the top of the cab.
Quality:
Sounds incredible for the price.
Value:
You get more then what you paid for.
Sound:
Clean,Clear and Crisp. This sub will handle anything you through at it flawless.
Support:
No need for it with this sub.
Overall:
Great Value.
Submitted: 10/23/2005
Style of Music: Christian rock, Worship, Dance, Trance, Alterative, Acoustical, Techno.
