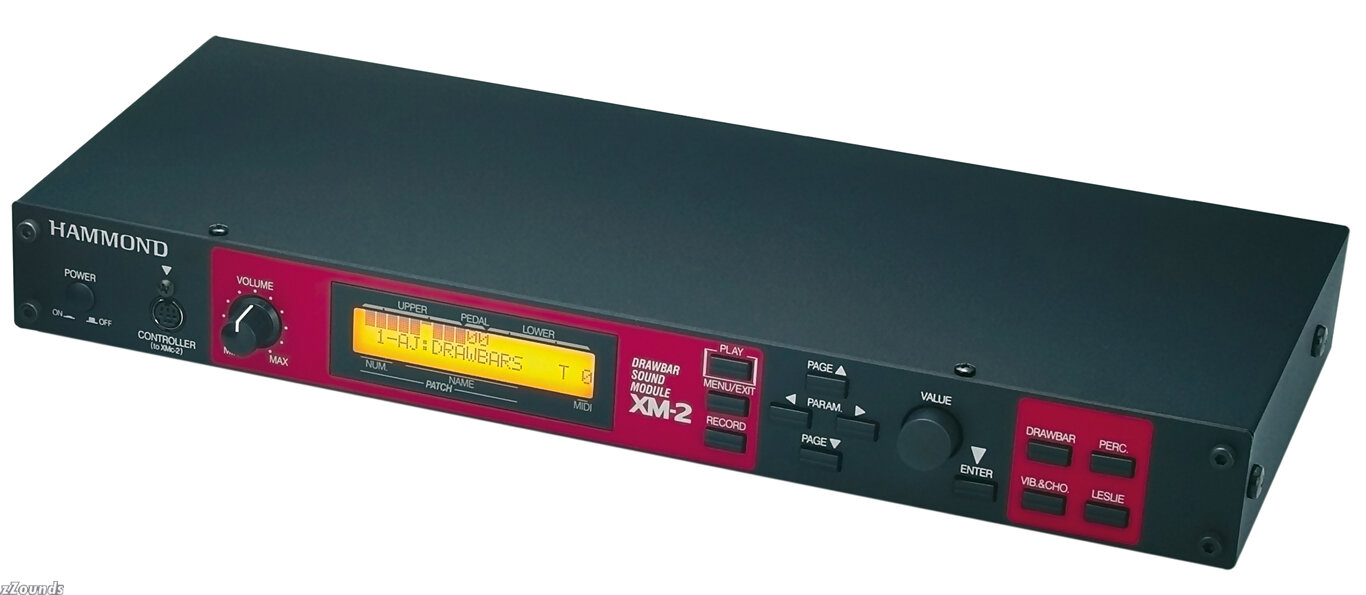

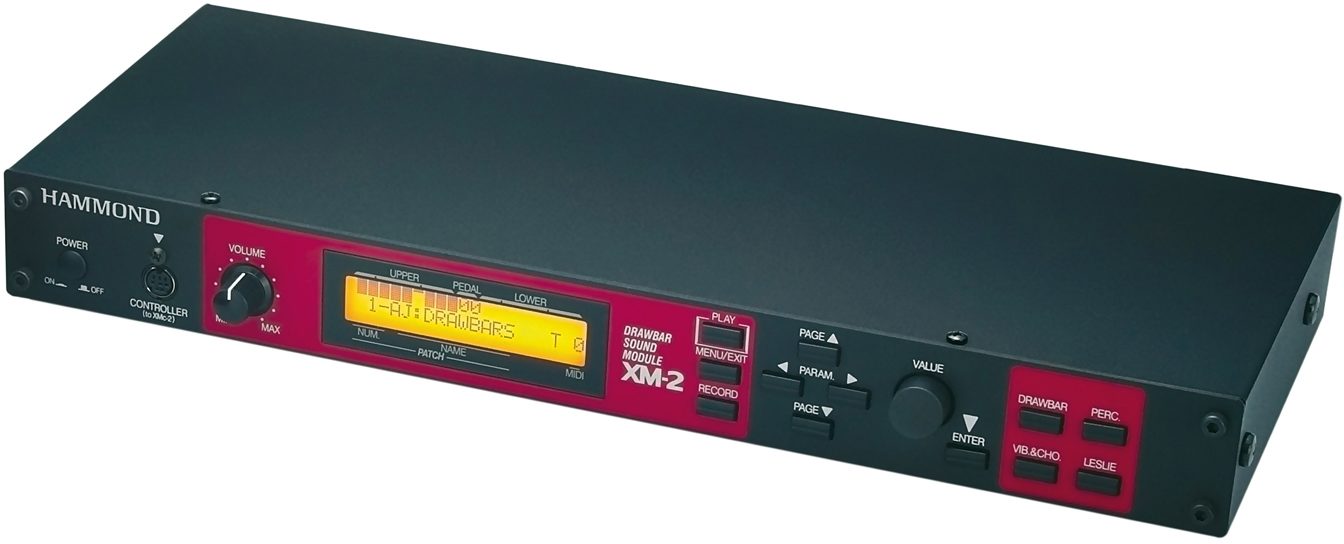

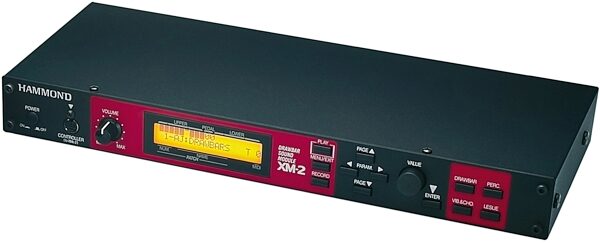

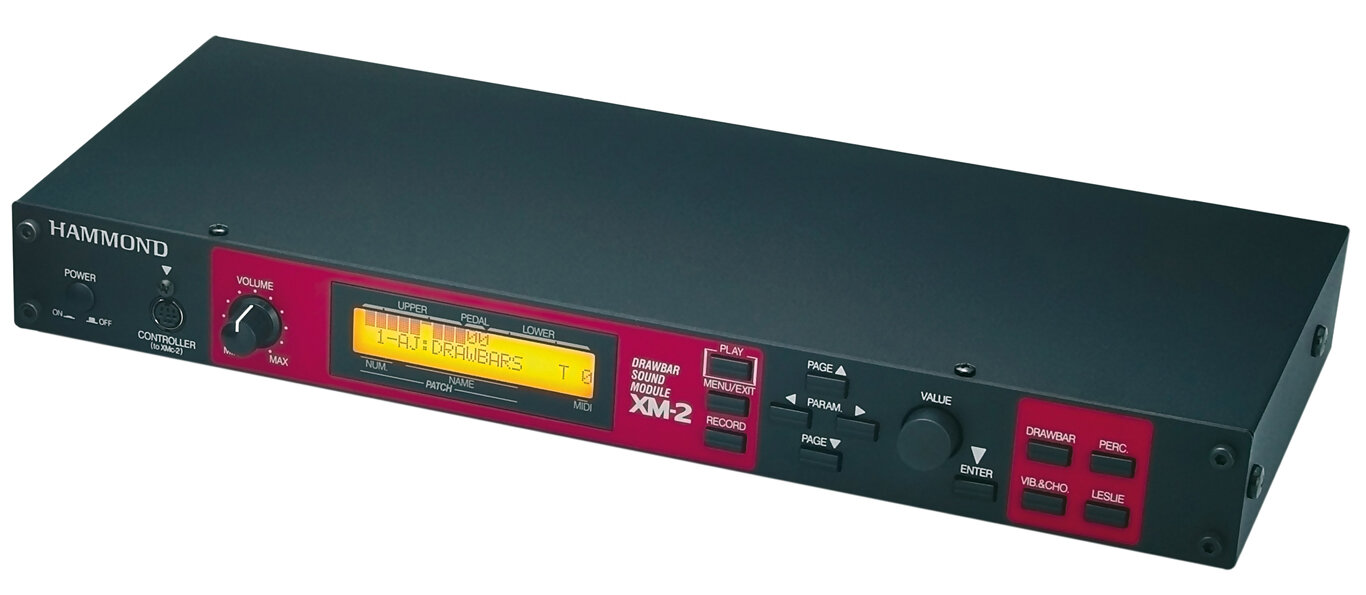

Hammond XM2 Drawbar Module

This exciting new Pro drawbar module is powered by the most advanced VASE3 Digital tone wheel generator. The XM-2 utilizes many outstanding sounds and features found in Hammond's famous XK-3 keyboard.

Hammond's new drawbar module consists of 2 separate components.

First there is the XM-2 which is the sound-generator that can reproduce all the unique Hammond organ-sounds using 'Digital Tone-wheels' powered by a double VASEIII-engine. This unit can operate on its own as a module in a studio environment.

To truly achieve full flexibility and create live new drawbar-settings on the fly, you should add the XMc-2 (sold separately). This unit operates as a (remote) controller but cannot create sound on its own. Its purpose is to command the XM-2 module in a very fast and user-friendly way.

The XM-2 module gives the incomparable sound of the legendary Hammond B-3 to your MIDI keyboard.

Technical Info

Sound generator: 2 x VASE III as Digital Tone-wheel

Harmonic drawbars:
-- Pitches: 9 Pitches (Upper & Lower), 2 Pitches (Pedal)

-- Wavefrom: B-type/Mellow/Brite(Upper and Lower)/Muted/Normal/Synth1/Synth2(Pedal)

Percussion:
-- Harmonics: Second, Third, Fast Decay, Soft

-- Adjustable: Touch, Velocity, Decay (Fast, Slow), Level (Soft, Normal)

Tuning:
-- Master: 430 ~450 (1Hz Steps)

-- Transpose: -6 ~ 0 ~ +6 semitones

Effects:
-- Internal Leslie: On, Fast, Brake, Digital 2 Rotors, Leslie-presets: 122,147,710,760,825(adjustable)

-- Vibrato and Chorus: V1, V2, V3, C1, C2, C3, Upper&Lower, On/off, Speed:5(6,10Hz~7,25Hz)

-- Overdrive: Digital Overdrive

-- Equalizer: 3 Bands

-- Reverb: 10 Programs

-- Sustain: 5 Lengths (Pedal)

Keymap:
-- Functions: Split, Manual Bass

-- Adjustable: Split Point, Lower Octave, Pedal Top Key

Patches: 128 Patches

Display: 20 characters, 2 lines with 8 control switches and rotary encoder

Storage: None

MIDI: Templates: 4

Connections: DC-Input(9v), MIDI In1, In2, Out, Expression Pedal (Phone jack), Foot switch, Line out L/Mono,R, Headphones, 8-pin Leslie

Accessory: AC-Adaptor

Dimensions: 396mm(W) x 172mm(D) x 50mm(H)

Weight: 3.5 kg
