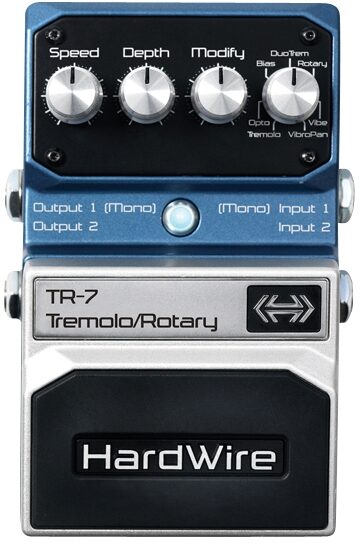

HardWire TR-7 Tremolo and Rotary Speaker Pedal

No longer available at zZounds
Simulate a rotary cabinet, undulating tremolo or smooth vibrato with this versatile pedal. The Stomplock knob prevents accidental adjustments on stage.

Transforming your sound is a just a matter of stomping on the HardWire TR-7 tremolo/rotary effects pedal. Ideal for guitarists in need of something genuinely smooth, the TR-7 is a true stereo tremolo, rotary, and vibrato pedal with a wide range of tones to suit your style. Satisfy jazz licks with traditional tremolo, rock out with a detailed rotary cabinet, and warm up the vibe with traditional vibrato effects.

Set the Tone for the Stage: 7 Tremolo/Rotary Settings

With multiple settings to choose from, the HardWire TR-7 gives you many ways to experiment with your sound. Choose from Tremolo, Opto Tremolo, Bias Tremolo, Duo Tremolo, Rotary Speaker, UltraVibe, and Vibropan settings. True-bypass circuitry preserves your tone in bypass, so you can focus on playing great music rather than fiddling with your gear. Stereo I/O preserves signal quality and makes for better blending within the mix. Speed, Depth, Modify, and Effect knobs are right where you need them for straightforward tweaking, and an On/Off switch is there for, well, you know what.

Constant High-Voltage Operation

Whether you're using the TR-7 in your amp's effects loop or a pedalboard before your amp, constant high-voltage operation comes courtesy of 9 VDC input or a 9V battery. A single 9-volt battery lasts a little over five hours for interruption-free, low-distortion performance.

Accessories Included

HardWire pedals don't ship solo. The TR-7 comes with the following stage accessories: a Stomplock knob read more guard that locks your tone in place and prevents tampering or accidental knob adjustments onstage; a pedal switch glow sticker for easy viewing in adverse stage lighting conditions; and a custom-cut hook and loop pedalboard pad to attach and lock your pedals to your pedalboard. Get this pedal on your board and rock out!

Features:

- Tremolo, rotary, and vibrato effects pedal for guitar
- True bypass circuitry preserves your tone in bypass
- Stereo I/O
- Constant high-voltage operation for tonal quality and noise reduction
- Tremolo, Opto Tremolo, Bias Tremolo, Duo Tremolo, Rotary Speaker, UltraVibe, and Vibropan settings
- Separate left and right 1/4" unbalanced TS ins and outs
- Speed, Depth, Modify, and Effect Type knobs
- On/Off foot switch
- 9 VDC power input
- Battery life of 5.25 hours on a single 9V battery
- Accessories included: stomplock knob guard, pedal switch glow sticker, hook and loop pedalboard pad
- Dimensions: 3.5" (W) x 5.5" (L) x 2.25" (H)
- Weight: 1.3 lbs.
read less

Inputs/Outputs:
- Inputs: Separate Left and Right 1/4-in. Unbalanced (Tip-Sleeve)
- Input Impedance: 1 MOhms (stereo), 500 kOhms (mono) - effect on
- Outputs: Separate Left and Right 1/4-in. Unbalanced (Tip-Sleeve)
- Output Impedance: 1 kOhm - effect on

Controls:
- Speed, Depth, Modify, and Effect Type knobs
- On/Off foot switch

Power:
- Power Input: 9 VDC
- Power Consumption: 630mW
- Current Draw: 70mA
- Battery Type: Single 9 VDC
- Battery Life: 5.25 Hours

Optional Power Supply:
- US and Canada: 120 VAC, 60 Hz Adapter: PS200R - 120

General:
- Dimensions: 3.5" Width x 5.5" Length x 2.25" Height
- Weight: 1.3 lbs

Specifications are subject to change without notice.

For support or warranty questions, please contact the manufacturer:
Phone: 801-566-8800

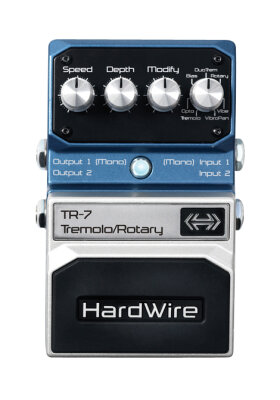

HardWire TR7 Tremolo/Rotary Pedal

The HardWire TR-7 is a true stereo tremolo, rotary, and vibrato pedal. Tones range from traditional tremolo to a highly-detailed rotary cabinet. Vibrato effects finish the mix for the world's most advanced pedal of its kind.

With its high-voltage operation, the TR-7 is at home both on a pedalboard or in the effects loop of an amp where standard pedals distort due to the large signal from the amplifier's loop. The TR-7 also features true stereo I/O allowing for complex connections and sounds with extreme flexibility.

Features:

- True Bypass circuitry preserves your tone in bypass
- True Stereo I/O
- Constant high-voltage operation for tonal quality and noise reduction
- Tremolo, Opto Tremolo, Bias Tremolo, Duo Tremolo, Rotary Speaker, UltraVibe, and Vibropan settings

HardWire Pedals include the following stage accessories:
- Stomplock(TM) knob guard locks your tone in place and prevent tampering or accidental knob adjustments onstage
- Pedal Switch Glow Sticker helps you locate the pedal in adverse stage lighting
- Custom-cut Hook and Loop Pedalboard Pad to attach and lock your pedals to your pedalboard

Reviewers gave this product an overall rating of 5 out of 5 stars. (2 ratings)
Submitted March 27, 2011 by a customer from comcast.net

"Tremol -oh yeah!"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
I think this pedal will last me for years to come, I own the entire line of Hardwire pedals except the new phase pedal but I will own that soon! I use this and all the Hardwire pedals to find the sonic utopia that is my sound!
Sound
I really dig this pedal, got exactly what I hoped for, a lush tremolo with exacting adjustments
Features
This pedal came with the usual accessories packed in the box for the Hardwire series, I use the stomp lock cover and the velcro is handy but not needed by me and the glow sticker...well, no, just no
Ease of Use
All these pedal are basically simple, just sit down and make your adjustments and go....
Quality
I am totally impressed with the overall quality of this and the other Hardwire pedals, top stuff here!
Value
I think overall these are a great value, not the bargain basement and not some cheesy over priced boutique garbage....
Manufacturer Support
I've contacted Digitech for support on a few occasions, fast courteous and know their stuff!
The Wow Factor
I think these are some of the best looking and attractive pedals out there!

Musical Background:

Active Musician

Musical Style:

Rock, Metal, Blues and more!
19 of 20 people (95%) people found this review helpful. Did you?
