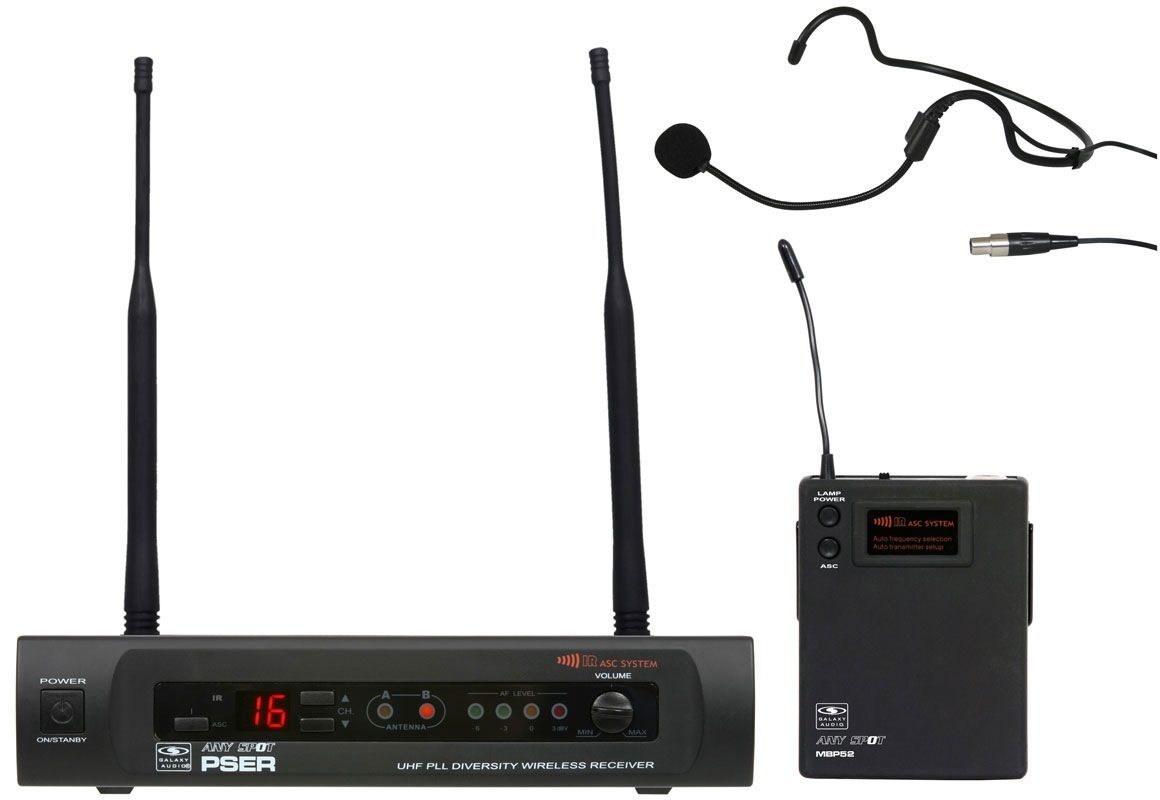

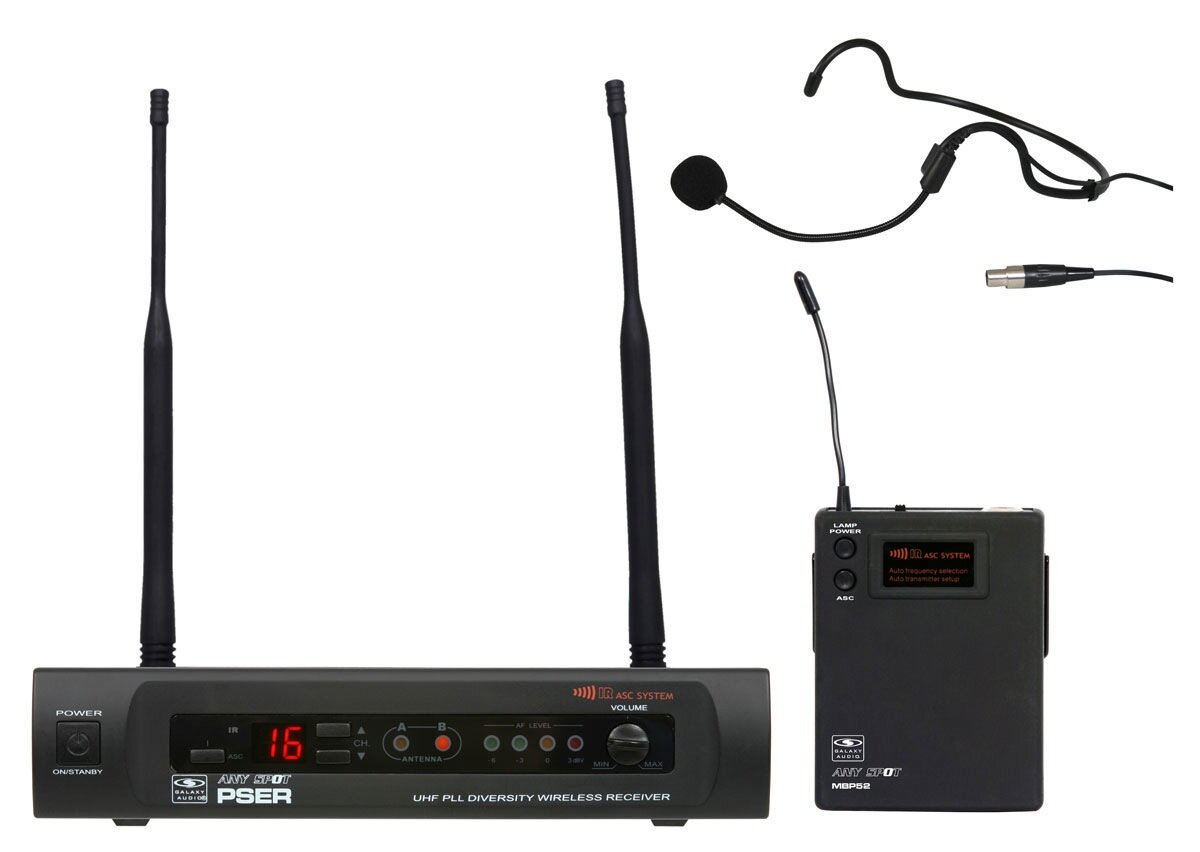

open zoom image for Galaxy Audio PSER52HSL UHF Wireless Headset System, Main

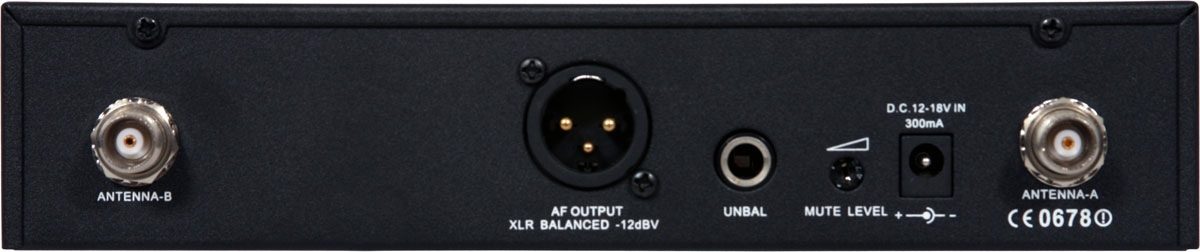

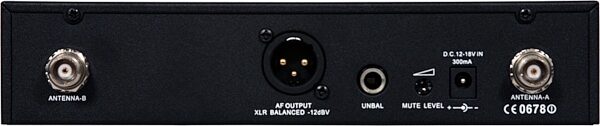

open zoom image for Galaxy Audio PSER52HSL UHF Wireless Headset System, Receiver - Back

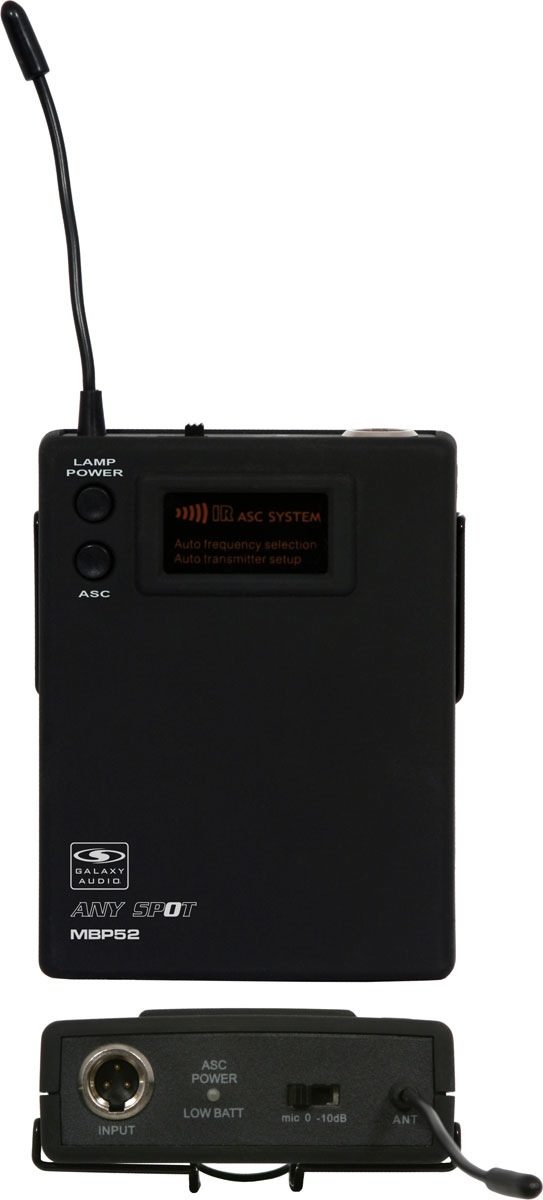

open zoom image for Galaxy Audio PSER52HSL UHF Wireless Headset System, Transmitter
Galaxy Audio PSER52HSL UHF Wireless Headset System, Main Galaxy Audio PSER52HSL UHF Wireless Headset System, Receiver - Back Galaxy Audio PSER52HSL UHF Wireless Headset System, Transmitter
zZounds Gear Experts Say...
Play hard with this Galaxy Audio wireless system. It boasts the PSE receiver with 16 selectable UHF frequencies, 1-touch sync and other advanced features.

Help clear the stage of unwanted clutter and provide a more professional appearance with the Galaxy PSER52HSL UHF Wireless Headset System.

The PSE Receiver (PSER) is in an all metal half rack chassis. The PSER has two rear mounted diversity antenna (front/remote mounting available), both XLR & inch outputs, and squelch adjustment. The PSER has 16 selectable UHF frequencies. RF & AF indicator, channel number, volume output control, channel selector and IR sensor. Once the channel is selected, it will sync the frequency with a body pack transmitter with just the push of a button.

The HH52 has a gain control and an on/off switch. The transmitter is powered by 2AA batteries.

Includes a single rack mount kit.

Receiver
Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV 1/4 inch connector (into 3KOhms load) -18dBV

Output Impedance:
- XLR connector: 200 Ohms
- 1/4 inch connector: 1 K Ohms

XLR output: Impedance balanced
- Pin1: Ground (cable shield)
- Pin2: Audio
- Pin3: No Audio

Sensitivity: -93dBm for 30dB

Image Rejection: >90dB

Dimensions (H x W x D): 1.7 x 8.3 x 6.3 inches (44 x 212 x 160 mm)

Weight: 31 oz (880 g)

Power Requirements: 12-18 V dc at 400mA, supplied by external power supply

Bodypack Transmitter
Max Audio Input Level: 0 dBV to + 10dBV

Gain Adjustment Range: 20dB

Input Impedance: 5K

Dimensions (H x W x D): 3.3 x 2.6 x 1 inches (85 x 65 x 24 mm)

Weight: 3.0oz (85 g) (without batteries)

Power Requirements: 2 AA Batteries alkaline or rechargeable batteries

Battery Life: About 8 hours

For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
