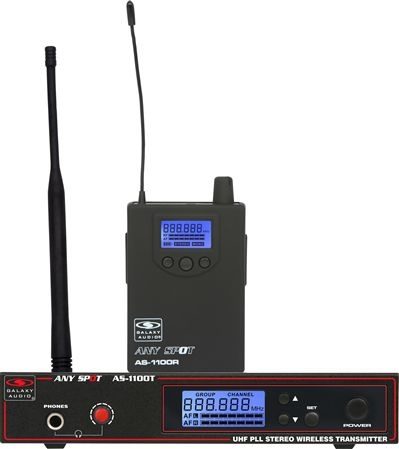

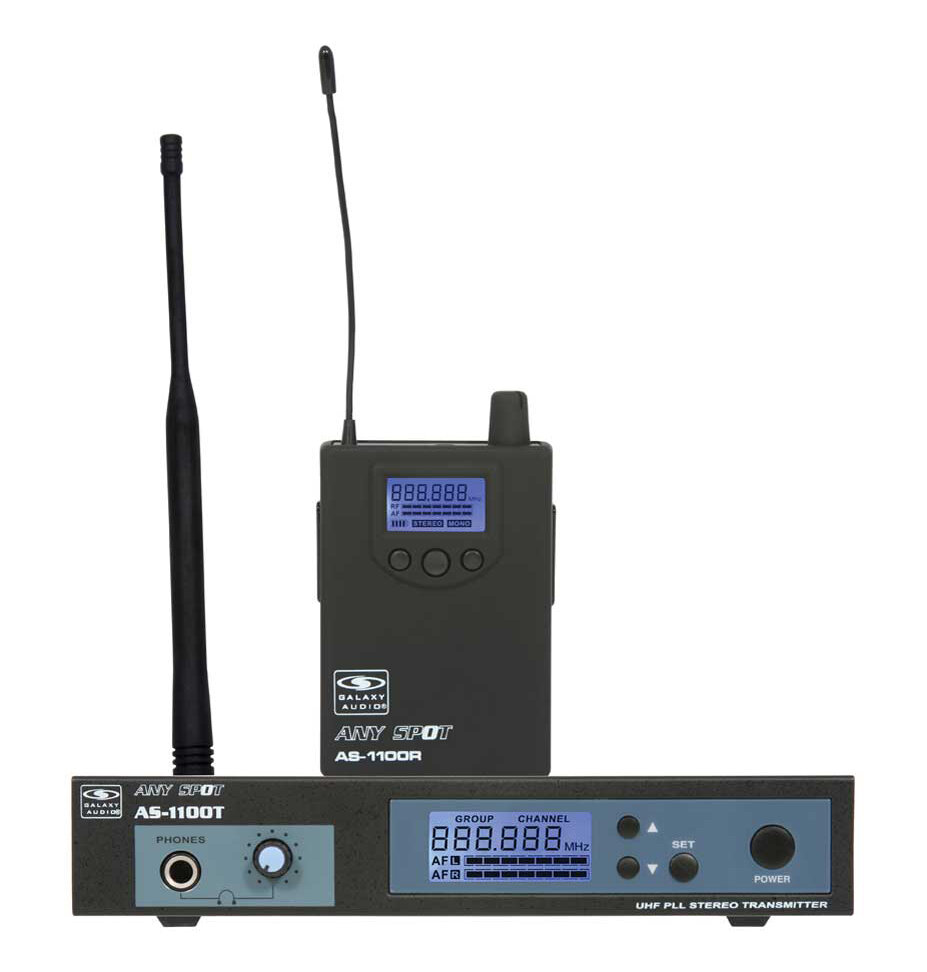

Galaxy Audio AS1100 Wireless In-Ear Personal Monitor System

The AS-1100 packs an amazing punch. The transmitter has stereo XLR/1/4-inch inputs, headphone output, and LCD display which displays the channel and input level. The Receiver has an LCD with channel, battery level, and RF/AF indicator. The AS-1100 is perfect for anyone looking for their first system or to upgrade to the next level.

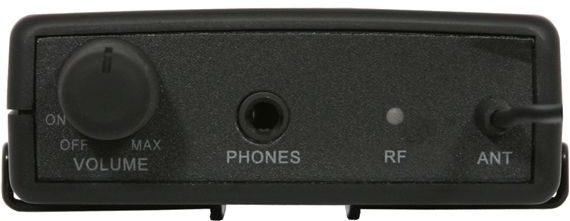

AS1100R Receiver
- LCD Display with Backlight

- Headphone Output Volume Control

- 4 Bar Battery Life Indicator

- RF and AF Indicator

- 100 mW Headphone Output

- 2 AA Batteries

- Ear Buds Included

- 80 mW Audio Output

- 3.5 oz (100 g)

- 300 ft Range

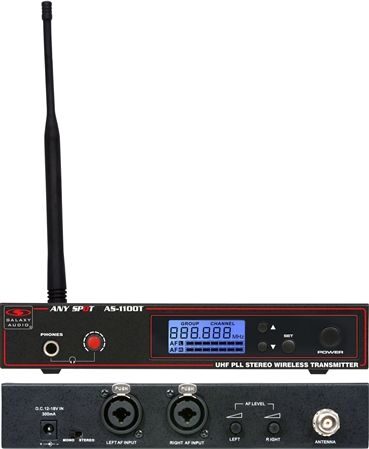

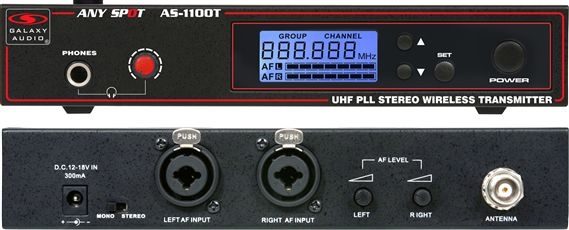

AS1100T Transmitter
- Transmits in Stereo or Mono

- Light Up LCD Display

- Channel Number and Frequency

- 120 Selectable Channels

- XLR-1/4 inch Combo Input

- AF L/R Indicator

- RF Output

- 10 mW

Comes with Earbuds.

Technical Info

AS110T Transmitter
Max Audio input level: +6dBV

Gain Adjustment Range: 40dB

Input Impedance: 100K

Dimensions: 1.5 x 8.3 x 3.78 in. (38mm x 212mm x 96mm) (HxWxD)

Weight: 21oz. (605 g)

Power Requirements: 12-18 V dc at 300mA supplied by external power supply

XLR input:
- Impedance balanced
- Pin1 Ground (cable shield)
- Pin 2 Audio
- Pin 3 No Audio

AS1100R Receiver
Audio Output Level: 100mW

Sensitivity: -94dBm for 30dB

Image Rejection: >55dB

Dimensions: 3.74 x 2.6 x 1 inches (95mm x 65mm x 25mm) (HxWxD)

Weight: 3.5oz (100 g) without batteries

Power Requirements: 2 (AA)size alkaline or rechargeable batteries

Battery Life: About 5 hours
