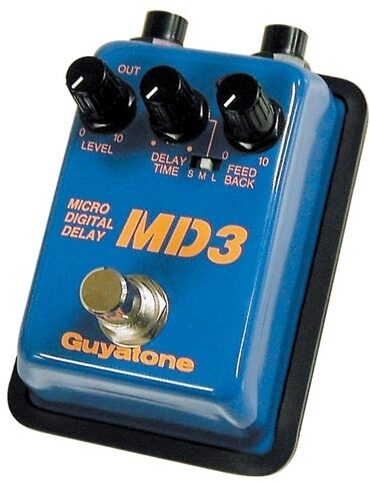

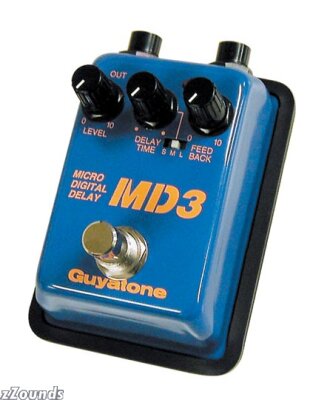

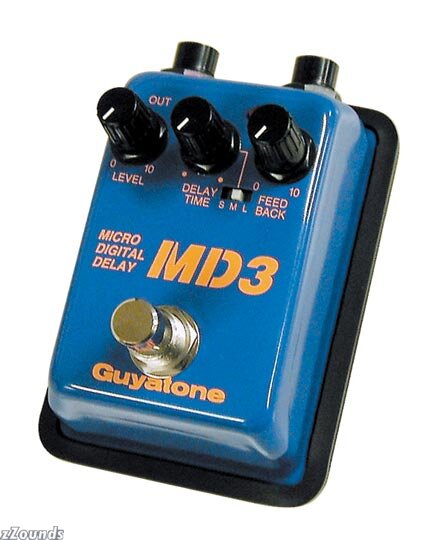

Guyatone MD3 Micro Delay Pedal

If you've ever played a tape echo, you know that their tone is not dark sounding like some people claim, but actually quite bright and clear. The MD-3 gives the user the crispness and clarity of a tape echo combined with the longer delay time of a digital, while its controls react like an analog unit. 30-2600 milliseconds of delay time are available, more than enough to create an entire range of classic delay effects from Rockabilly slapback to Arena-rock washes of excess and everything in between.

At higher Feedback settings (above 3 o'clock) the MD-3 will self-oscillate like an analog delay, creating cacophonous cascades of repeats, UFO-landings, ray guns, and other bizarre sound effects. At lower Feedback settings (around 2 o'clock) the MD-3 can be used for multi-layering of short parts, creating beautiful, ethereal soundscapes that slowly fade into infinity. In addition, the MD-3 has a lower current draw than other digital units, which means you'll spend less time changing batteries and more time playing!

Quite possibly the smallest delay, unarguably the best: Try the MD-3 and discover what perfection is all about!

Technical Info

Input Impedance: 470K ohm

Input Jack: 1/4 in. standard phone jack

Output Impedance: 1k Ohm

Output Jack: 1/4 in. standard phone jack

Output: 1

Controls: DELAY TIME, DELAY RANGE 1/2/3, EFFECT LEVEL, FEEDBACK

Switch: NORMAL/EFFECT

Max Input Level: 1v

Max Output Level: 1v

Delay Time: 1: 20 - 160m/sec; 2: 80 - 650m/sec; 3: 330 - 2600m/sec

Power Supply: 9V Manganese dry cell battery or special AC Adapter

Power Voltage: DC9V (Battery)/DC9 V (AC Adapter)

Current Consumption: 60 mA

AC Adapter: Guyatone AC2 (optional) Input: AC120V Output: DC9V/200 mA (Center -/Sleeve +)

Dimensions (W x L x H): 2.75 x 3.875 x 1.5 in.

Weight (without battery): 8.3 oz

Accessories: 9V Manganese dry cell battery, User's Manual, Warranty Card

Audio Samples
