Gemini UX16H Wireless Headset System

Gemini is proud to present the UX-16, professional 16 channel UHF PLL wireless headset microphone. This wireless microphone unit features 16 band UHF synthesizer controlled frequencies, phase locked loop (PLL) circuitry, super high sensitivity with extremely low noise transmission & reception, stable & quality SMT assembled PCB module, and comes with an HSM-2 electret condenser mic. The UX-16 operates on AA batteries and has a fixed-length UHF antenna permanently mounted on the unit and has an operating range of 250 feet . The UX-16 is the perfect wireless microphone unit for professor in a large class room, drummers in a loud band, and of course DJs overrun with wired connections.

Features
16 band UHF synthesizer controlled frequencies

Phase locked loop (PLL) circuitry

Super high sensitivity with extremely low noise transmission & reception

Stable & quality SMT assembled PCB module

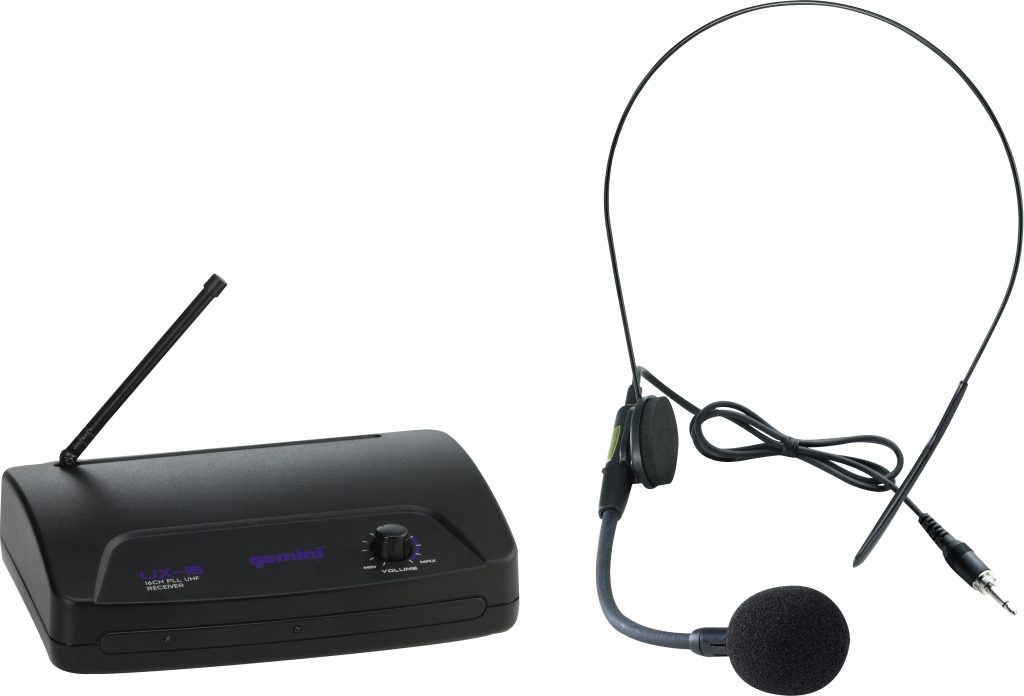

UX-16H includes UX-16 receiver, XB-16 body pack transmitter & HSM-2 headset

Technical Info

UX-16:
-- Frequency range: 790 -- 806MHz

-- Case: mini case

-- Receiving system: PLL synthesized

-- Receiving mode: 16CH, single channel, non-diversity

-- Frequency stability: +/- 0.05%

-- Receiving sensitivity: At 8 dBuV over 80dB S/N ratio

-- Image & spurious rejection: 80 dB minimum

-- Selectivity: > 50dB

-- Modulation mode: FM

-- IF frequency: 1st: 56MHz 2nd: 10.7MHz

-- Dynamic range: >96dB

-- Tone signal: 32.768KHz

-- S/N response: Over 94dB, at 48KHz deviation and 60dBuV antenna input

-- AF response: 50Hz to 15KHz(+/-3dB)

-- T.H.D. : <1%(at 1KHz)

-- Power supply: DC 12 ~ 18V

-- Audio output: unbalanced 1/4 in. output

-- Current consumption: 130mA +/- 10mA

-- Dimensions (W x H x D): 5.1 x 1.4 x 3.6 in.

XB-16:
-- Mic type: 16CH, bodypack transmitter

-- Frequency range: USA: 790 -- 806MHz/Europe: 863 -- 865MHz

-- RF power output: 10mW(max.)

-- Oscillation mode: PLL synthesized

-- Frequency stability: +/- 0.005%

-- Maximum deviation: +/-48KHz with limiting compressor

-- Spurious emission: >60 dB below carrier frequency

-- T.H.D. : <1%(at 1KHz)

-- Battery: DC 3V(1.5v x 2 AA size batteries)

-- Tone key: 32.768KHz

-- Mic unit: unidirectional condenser unit

-- LED undicator: power ON-OFF and low battery

-- Current consumption: 65 +/- 5mA

-- Dimensions (W x H x D): 2.6 x 3.8 x 1 in.
