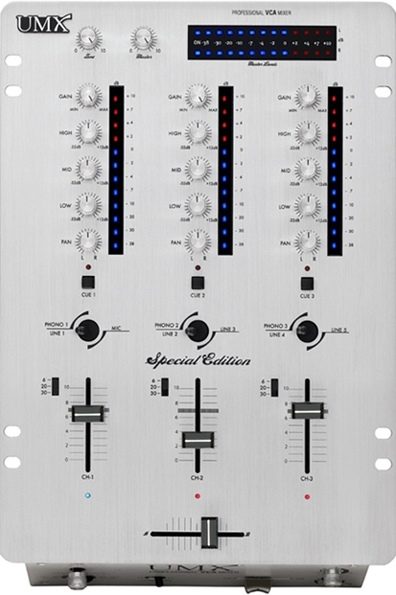

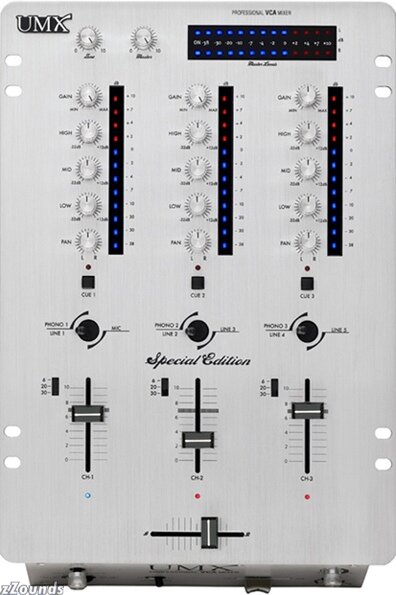

Gemini UMXSE 3-Channel VCA Mixer

Introducing the UMX Special Edition, the perfect battle mixer from the clubs or street, with a stylish design, including a steel-reinforced VCA X-Fader and precise metal EQ-Gain knobs. The UMXSE also includes a cue line fader and an X-Fader curve control.

Features
3 Stereo Channels with Individual Low, Mid, High, & Gain Controls Plus Stereo Panning

Cut Feature for Low, Mid, & High EQ Knobs

Total of 3 Phono, 5 Line & 1 Microphone Inputs

3 Phono/Line Convertible Inputs

State of the Art Push Button Cueing with Volume & Fader Controls

Assignable VCA X-Fader with Reverse (Hamster) Switch & Curve Control Knob

Channel Slide Curve Control with 3 Settings

Master, Zone, Record Outputs with separate Master & Zone Controls

Balanced XLR & Unbalanced Master Outputs

Blue/Red Master & EQ VU Meter LED

Gold Input Connections & Ground Screws

Adjustable Line Input Assign Switches

Technical Info

Inputs
Mic: 1.5 mV, 2 kOhm Balanced

Phono: 3 mV, 47 kOhm

Line: 150 mV, 27 kOhm

Outputs
Master (Balanced): 0 dB 2 V 800 Ohm

Max: 40 V Peak to Peak

Master/Zone (Unbalanced): 0 dB 1V 400 Ohms

Max: 20 V Peak to Peak

Rec: 225 mV 5 kOhm

General
Low (Chnls 1-3): + 12dB/- 32 dB

Mid (Chnls 1-3): + 12dB/- 32 dB

High (Chnls 1-3): + 12dB/- 32 dB

Gain (Chnls 1-3): 0 to -20dB

Frequency Response: 20 Hz - 20 kHz +/- 2dB

Distortion: 0.08%

S/N Ratio: Better Than 80dB

Headphone Impedance: 16ohm

Power Source: 230V 60/50Hz 20W

Unit Dimensions: 10 in. W x 14.75 in. H X 4.25 in. D (254mm x 375mm x 108 mm)

Weight: 9 lb. (4 kg)
