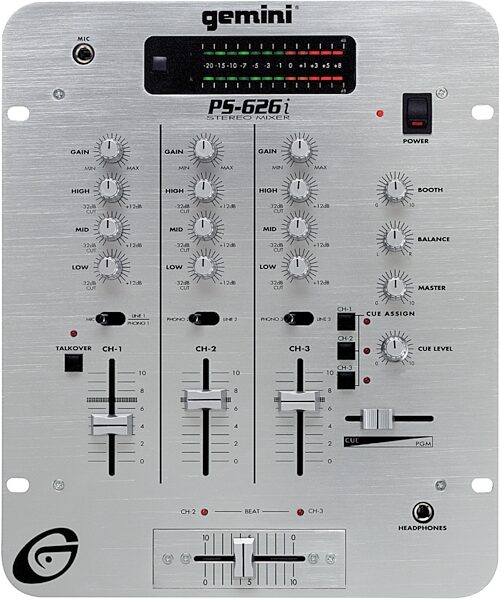

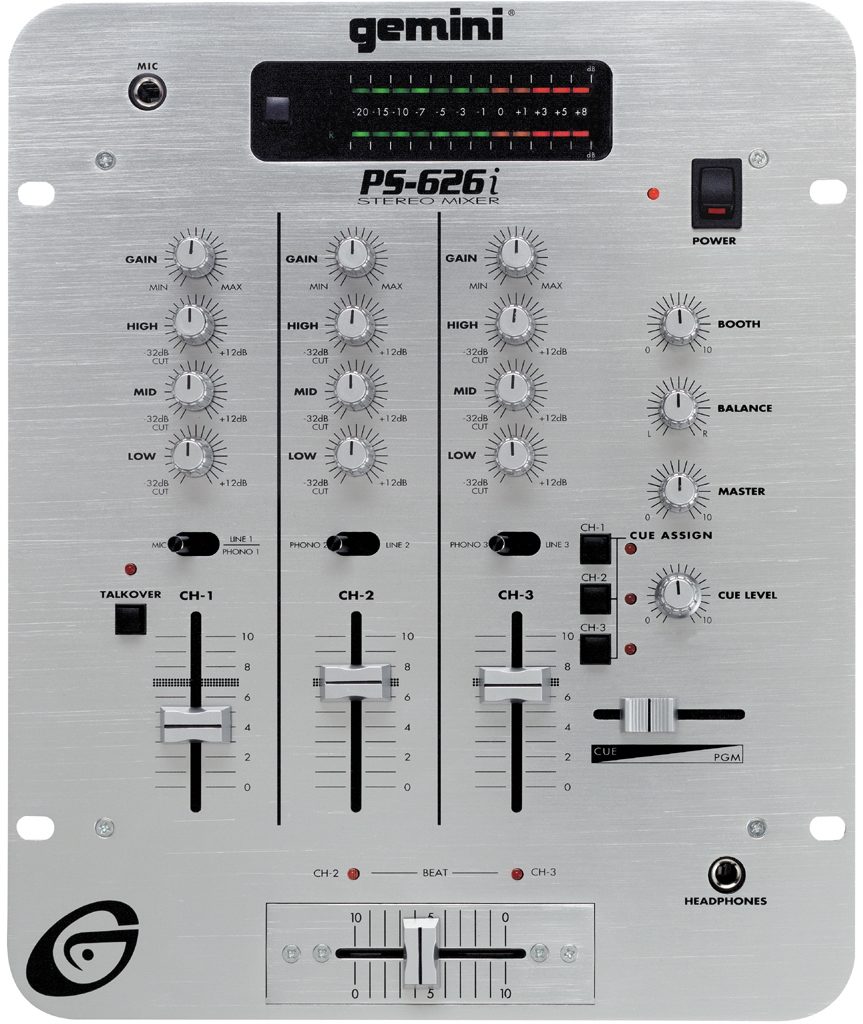

Gemini PS626i Platinum Series Stereo Preamp Mixer

This 10 in. stereo preamp DJ Mixer has a cool, removable fader has a curve control and dual stainless rails that allow the slider to ride smoothly and accurately from end to end. The beat indicator LEDs flash at the low frequency peak level, allowing you to match the beats visually. With talkover and cue functions, as well as a booth output and balanced main outputs, this is one of the most versatile DJ mixers Gemini has ever offered.

Features:

3 Channels w/gain controls

3 Phono inputs

3 Line inputs

1 Mic input

Beat Sync Indicators

Removable Rail-Glide fader with curve control

Hampster switch

Balanced Outputs

Inputs
DJ Mic: 1.5mV 2 kW unbalanced
Phono @ 1 kHz: 2 mV 47 kW
Line: 100 mV 27 kW

Outputs
Amp/Booth: 0 dB 775mV 400 W
Max: 24V Peak-to-Peak
Rec: 225mV 5 kW

General:
Bass: + 12dB/- 32 dB
Mid: + 12dB/- 32 dB
Treble: + 12dB/- 32 dB
Gain (Mic): 0 to -40dB
Gain (Chnls 1-3): 0 to -20dB
Frequency Response: 20Hz - 20kHz +/- 2dB
Distortion: less than 0.02%
S/N Ratio: better than 80dB
Talkover Attenuation: 16dB
Power Source: 115/230V 50/60Hz 20W
Dimensions: 254mm W x 305mm D x 112mm H (10 W x 12 D x 4 7/16 H in.)
Weight: 6.5 lbs. (3 Kg)
