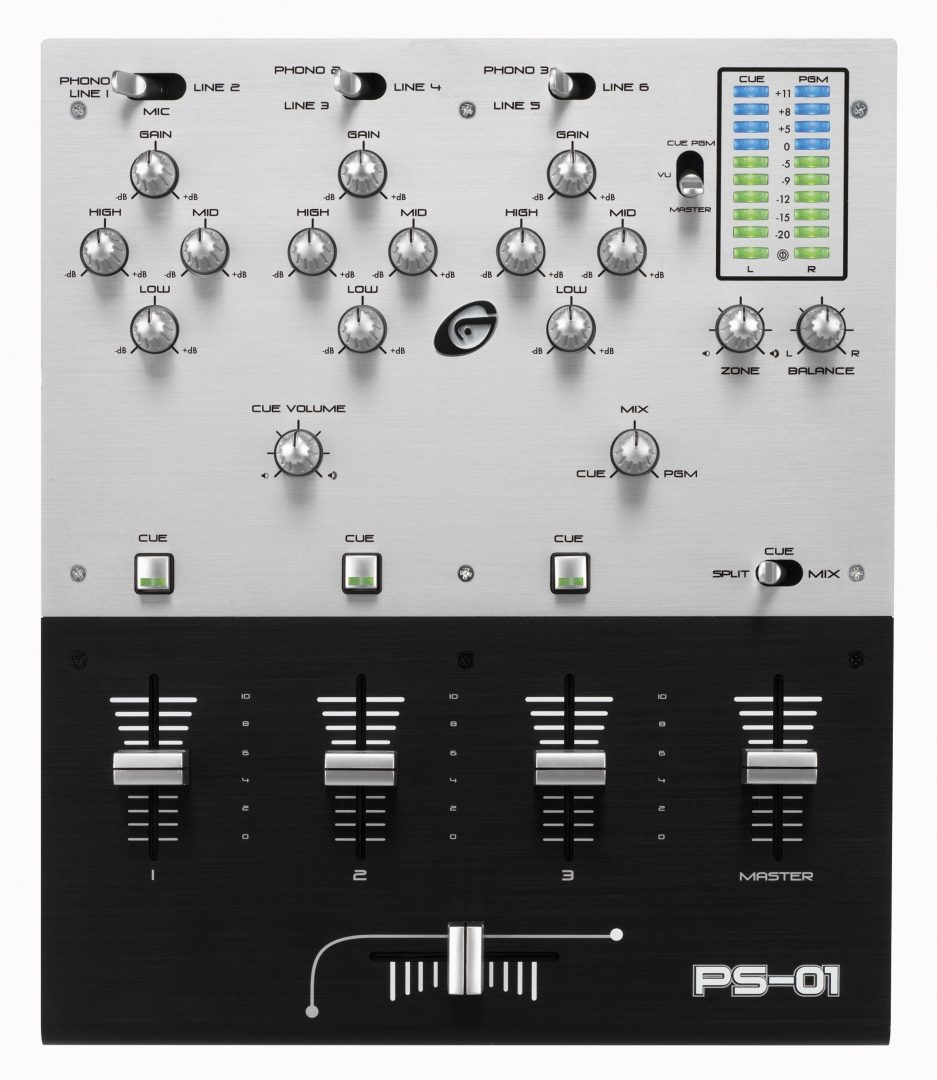

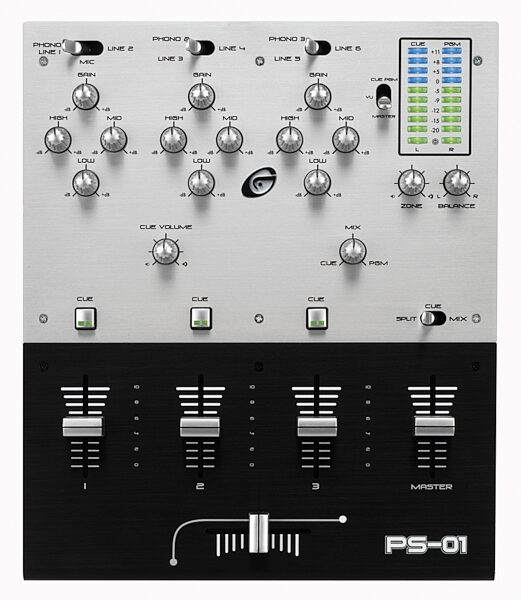

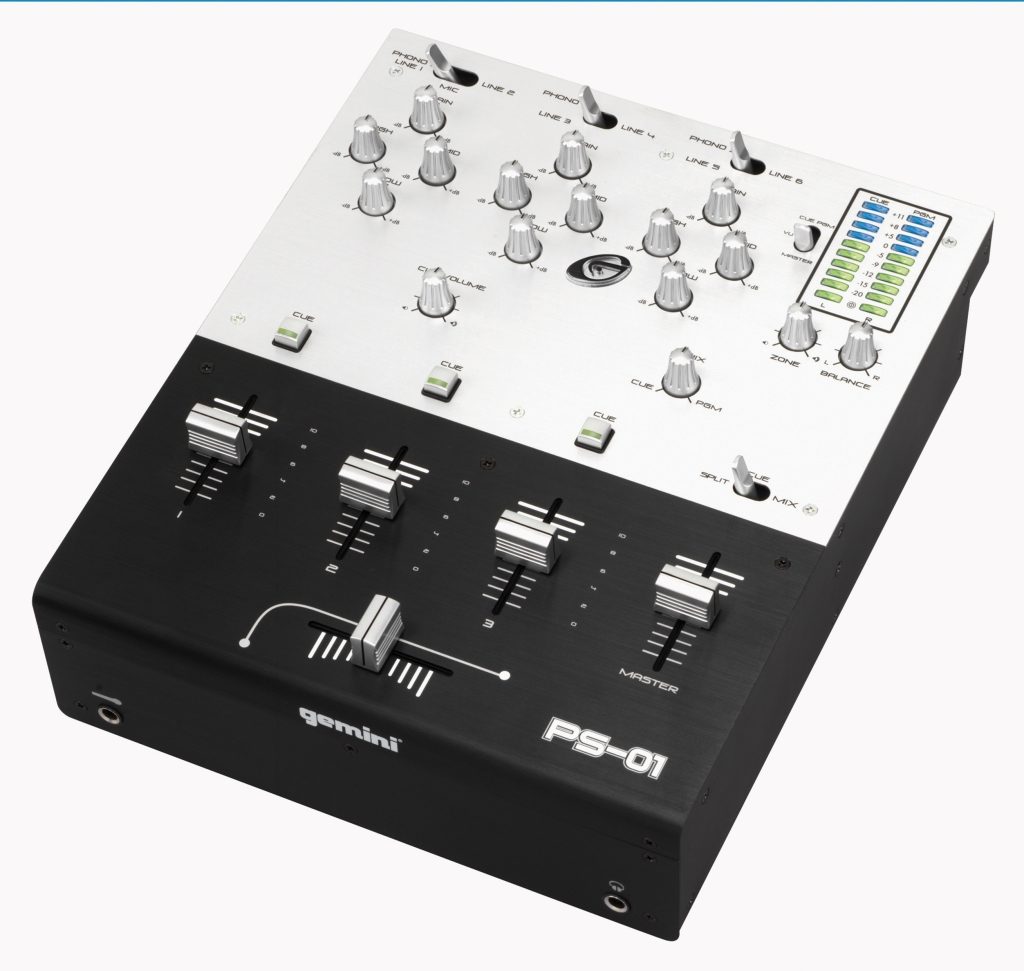

Gemini PS01 3-Channel 10 in. DJ Mixer

Gemini Sound Products is proud to announce the release of the newest line of mixers, in a long line of classic mixers, introducing the PS series three channel stereo mixers. The first marks all of the standard features of the PS series. The PS series two color, shiny grey and black, metal chassis has an ergonomic, smooth curve front panel gives this series a sleek, refined look.

The PS-01 features 6 line, 3 convertible phono/line, RCA inputs, 1/4 in. balance outputs, triple ground screws for easy connectivity, removable face plate for user replaceable Rail Glide cross fader, lighted push button cue section with Cue split/mix switch, dual VU display with bright LED and switch mode, and 1/4 in. headphone output and mic input. The PS series from Gemini is the continuation of Gemini's long tradition with the conception of innovative products, tools for the practical DJ.

Features
10 in. 3 stereo channel mixer

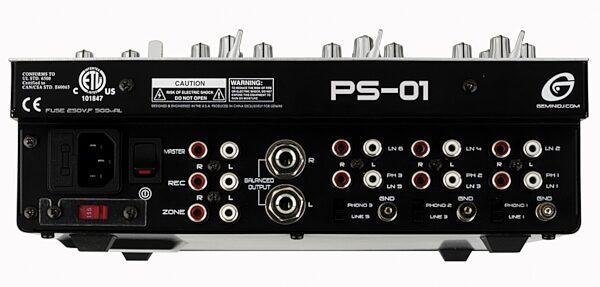

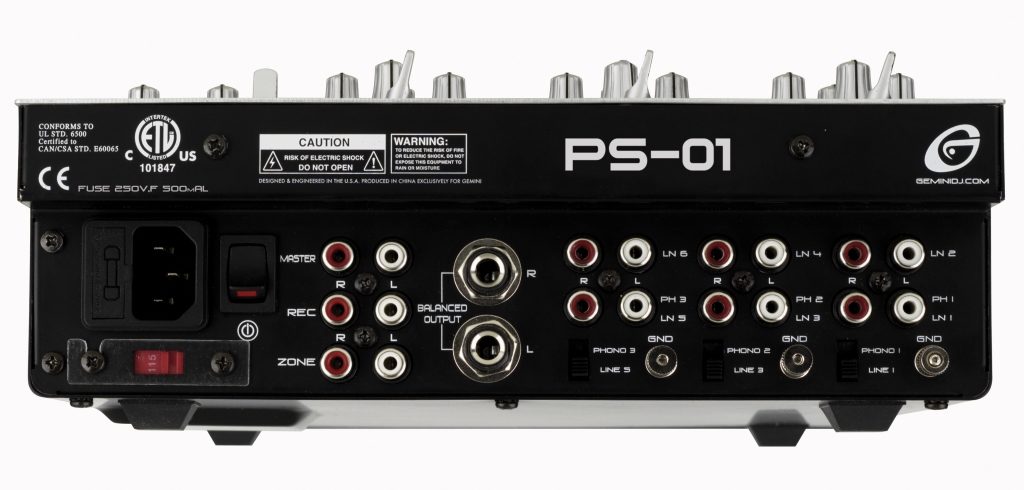

6 line, 3 convertible phono/line, RCA inputs

Master, record, & zone RCA outputs

1/4 in. balanced outputs

Triple ground screw for easy connectivity

Face
Removable face plate for user replaceable Rail Glide cross fader

3 band rotary line EQ with cut feature & rotary gain channel control

Lighted push button cue section with Cue Split/Mix switch

Rotary cue volume, CUE/PGM, zone, & balance control

Dual VU display with bright LED & mode switch

Master volume fader control

Front

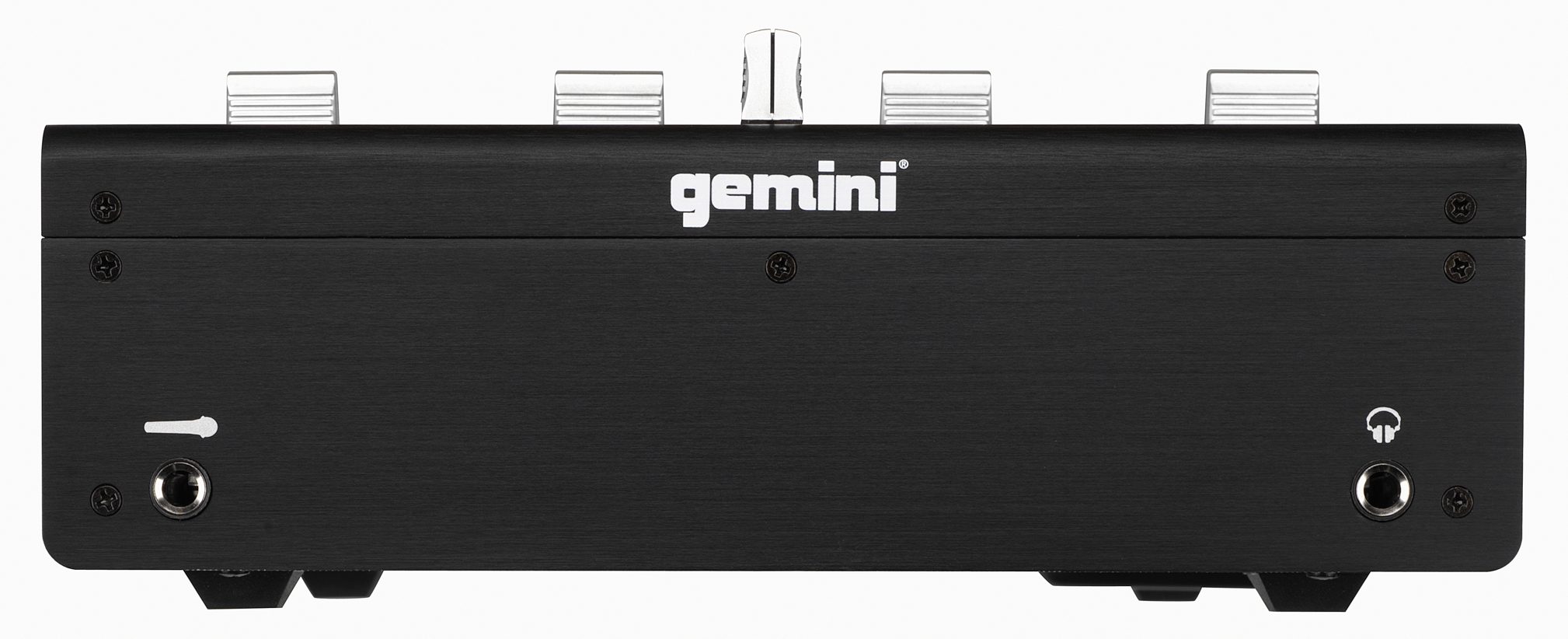

1/4 in. headphone output & Mic input

Free rack strip included for rack mounts

Technical Info

Inputs
Phono: 3 mV, 47 KOhm

Line: 150 mV, 27 KOhm

Mic: 1.5 mV, 1 KOhm Balanced

Outputs
Amp/Zone: 0 dB 1V, 400 Ohm

Max: 20V Peak-to-Peak

Rec: 225 mV, 5 KOhm

Balanced Master: 2V, 400 Ohm

General
Frequency Response: 20Hz - 20KHz +/- 2 dB

Distortion: < 0.02%

S/N Ratio: Better Than 80 dB

Headphone Impedance: 16 Ohm

Power Source: 115/230 V, 60/50 Hz, 20 W

Weights & Dimensions
Unit Dimensions (W x H x D) 10 x 3.3 x 11.9 in. (254 x 84 x 303 mm)

Weight: 6.93 lbs (3.15 kg)
