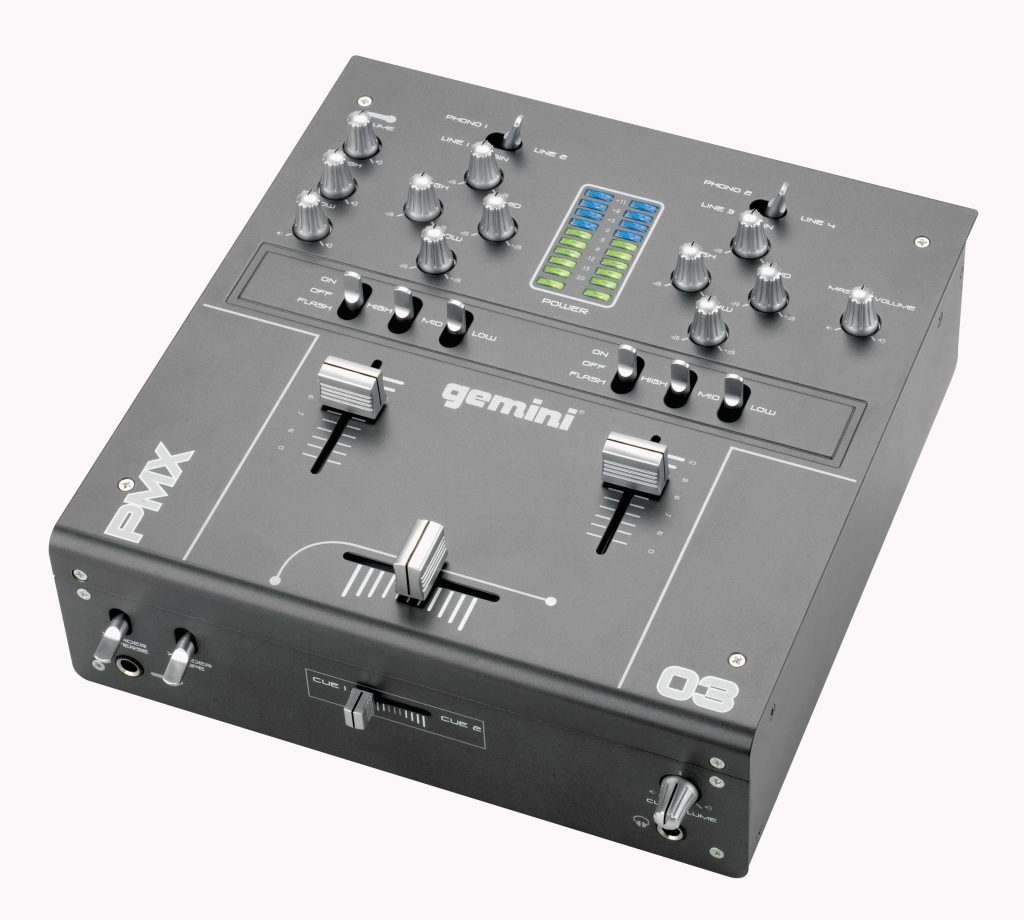

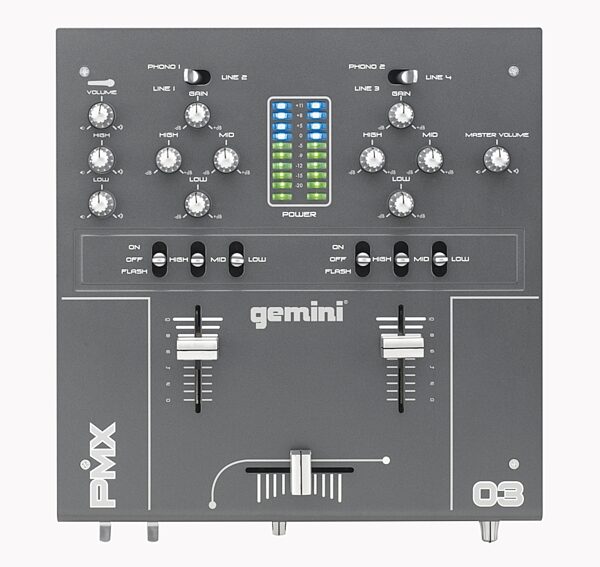

Introducing the PMX-03, professional 10 in. 2 channel stereo mixer from Gemini. The PMX-03 is the perfect battle mixer, designed with the latest advancements to enhance your DJ experience. The gun metal gray, PMX-03 comes equipped with three band EQ Kill switches with flash effect, 4 line inputs, 2 convertible phono/line inputs, hamster/reverse and curve fader controls, and an easily removable cross fader, for fader replacement.
Features
10 in. 2 stereo channel mixer
4 line, 2 convertible phono/line, RCA inputs
3 band rotary line EQ with cut feature
EQ Kill switches w/ flash Effect
Easy removable face plate for user replaceable Rail Glide cross fader
Ergonomically designed to be flush with turntable
Smooth curved face plate

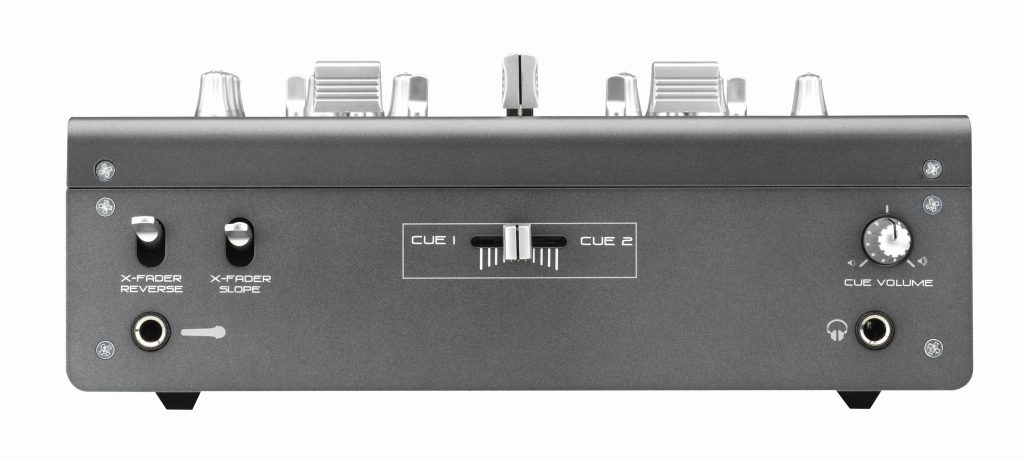

Front located hamster/reverse & cross fader curve control switches
Rotary gain channel control
Dual display with bright LED
Front located rotary cue volume control & cue section fader allowing cue mix
Face plate located 2 band rotary mic EQ & volume controls
Front located 1/4 in. mic input & headphone output
Dual ground screws for easy connectivity
Technical Info
Inputs:
-- DJ mic: 1.5 mV 1 kilohm balanced
-- Phono: 3 mV 47 kilohm
-- Line: 150 mV 10 kilohm
Outputs:
-- Amp: 0 dB 1V 400 ohm
-- Max: 20V peak to peak
General:
-- Bass (channels 1-2): +12dB/-36dB
-- Mid (channels 1-2): +12dB/-36dB
-- High (channels 1-2): +12dB/-36dB
-- Gain (channels 1-2): 0 to -20 dB
-- Frequency response: 20 Hz-20 kHz +/- 2 dB
-- Distortion: less than 0.02%
-- S/N ratio: better than 80 dB
-- Headphone impedance: 32 Ohm
-- Power source adapter: 115V/15V AC 0.5A
