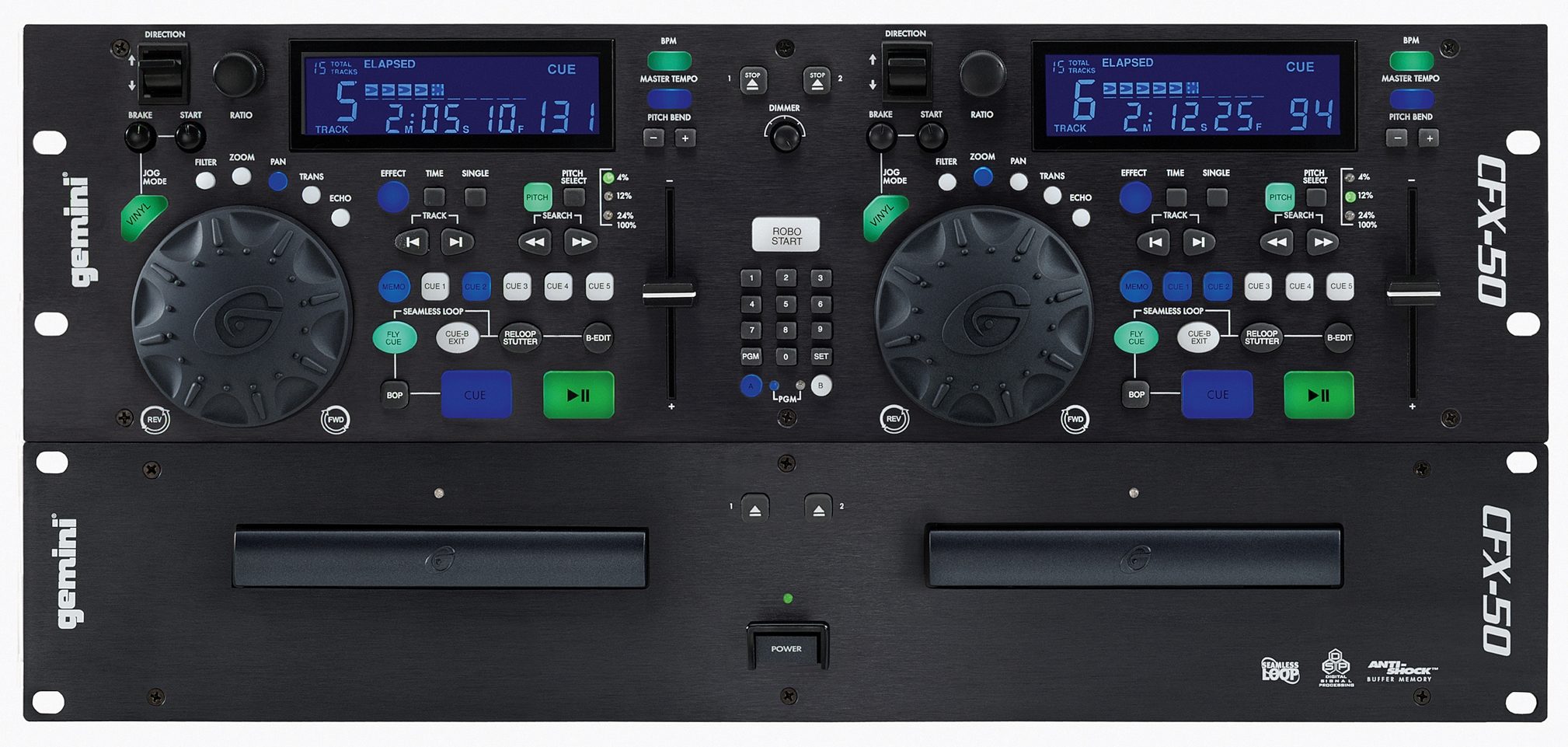

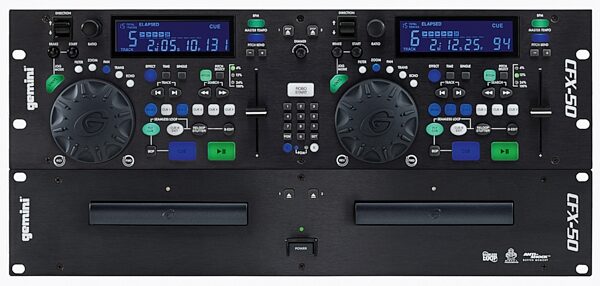

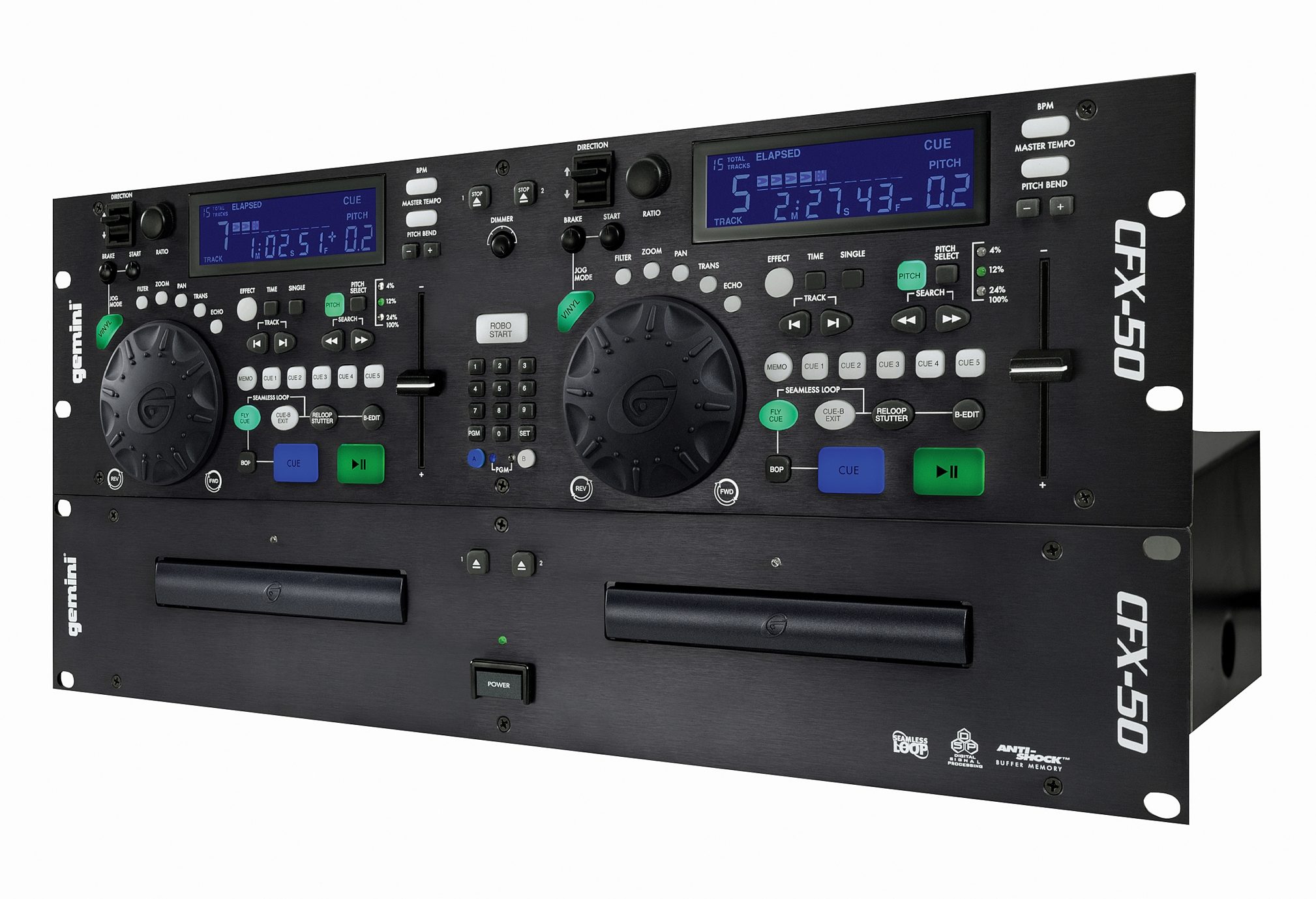

The CFX-50 is the ultimate 3U dual anti-shock professional CD player, absolutely crammed with features for the creative DJ such as master tempo, real time scratching, auto BPM and countless more!! Fitted with bright LEDs for superb illumination.
Features
Audio CD, CD-R, and CD-RW compatible
5 hot cue points and BOP feature
5 DSP effects: filter, zoom, trans, pan and echo
Parameter control via ratio rotary control
"State of the art" master tempo
Robo start
Beats per minute counter
Vinyl/CD jog mode function
Anti-shock(TM) using RAM buffer memory
Fully programmable direct access keypad
Single auto-cue/continuous play mode
Seamless looping with re-loop/stutter and loop editing
Pitch bend via jog wheel or buttons
Three mode time selection
Frame accurate search and cue
Large blue backlit LCD display w/ dimmer control
LED target light for draw mechanism
Coaxial RCA digital output
Rubber jog wheel with finger grooves
Variable pitch control range of 4%, 12%, 24%, and 100%
Soft touch buttons with bright LEDs
Technical Info
Type: dual mechanism compact disc player w/wired remote
Disc type: standard compact discs (12 cm and 8 cm)
Time display: track elapsed, track remain, or total remain
Variable pitch: ± 4%, ± 12%, ± 24%, and ±100% slider with resume switch
Pitch bend: ± 20% maximum
Instant start: within 0.015 seconds
Track selection: 1 to 99 tracks
Installation: 19 in. rack mountable player unit, 3 U, 19 in. rack mountable control unit, 2 U
Audio section
Quantization: 1 bit linear/channel, 3 beam laser
Oversampling rate: 8 times
Sampling frequency: 44.1 kHz
Frequency response: 20 Hz to 20 kHz
Digital output: IEC958
Total harmonic distortion: less than 0.05%
Signal to noise ratio: 104 dB
Dynamic range: 98 dB
Channel separation: 90 dB (1 kHz)
Output level: 1.9 Volts R.M.S.
Power supply: AC 120/230V, 60/50 Hz
Accessories
Operating instructions: 1
Warranty card: 1
Power cord: 1
Remote control cables: 2
Stereo RCA line cables: 2
Dimensions and Weights
Remote control: W 19 in. x H 5.1 in. x D 3 in. (482 x 131 x 76mm)
Main unit: W 19 in. x H 3.5 in. x D 10 in. (482 x 88 x 254mm)
Remote control: 4 lbs (1.8 kg)
Main unit: 10.2 lbs (4.6 kg)
