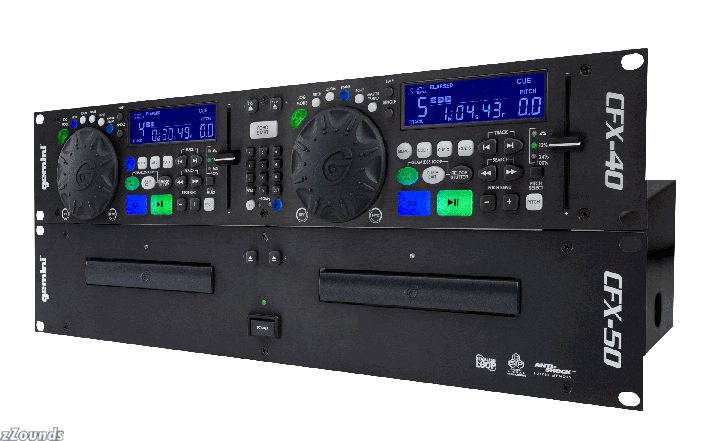

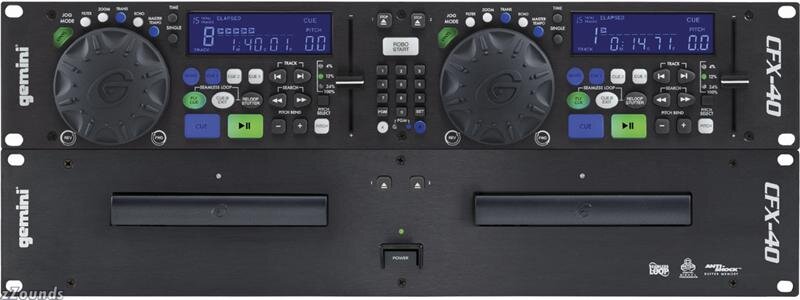

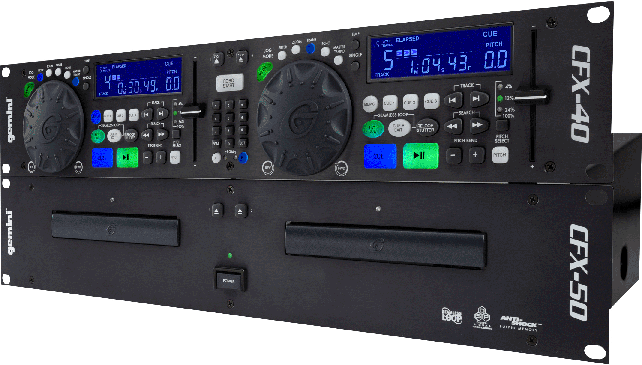

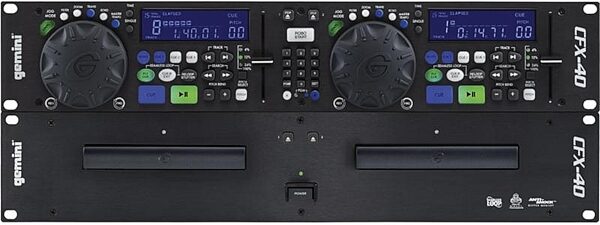

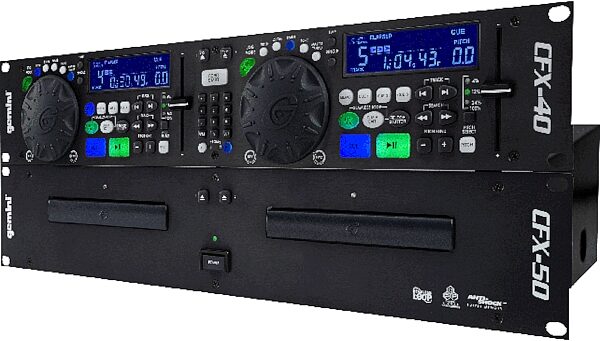

Gemini CFX40 Rackmount Scratch CD Player with Effects

The CFX-40 is a 2U dual anti-shock professional CD player, Loaded with features such as seamless looping, hot cue points & DSP effects. Fitted with a new blue LCD for excellent illumination, Perfect for the mobile DJ right through to club installations.

Features

4 DSP Effects with Jog Wheel Parameter Control

New ?State of the Art Master Tempo with Fully Functional Pitch

3 Hot Cue Points

Seamless Looping

Real Time Scratching

Anti-shock Using RAM Buffer Memory

Large Soft Touch Rubber Jog Wheel

Variable Pitch Control (4% 12% 24% & 100%)

Large LCD Screen with Blue LED Backlight.

Direct Access Keypad with Full Programmable Feature

LED Target Light for Draw Mechanism

Pitch Bend

Technical Info

General

Type: Dual Mechanism Compact Disc Player w/wired remote

Disc Type: Standard Compact discs (12 cm & 8 cm)

Time Display: Track Elapsed, Track Remain, or Total Remain

Variable Pitch: +/- 4%, +/- 12%, +/- 24%, & +/-100% Slider with Resume Switch

Pitch Bend: +/- 20% Maximum

Instant Start: Within 0.015 seconds

Track Selection: 1 to 99 Tracks

Installation: 19 in. Rack Mountable Player Unit, 2 U, 19 in. Rack Mountable Control Unit, 2U

Audio Section

Quantization: 1 Bit Linear/Channel, 3 Beam Laser

Oversampling Rate: 8 Times

Sampling Frequency: 44.1 kHz

Frequency Response: 20 Hz to 20 kHz

Digital Output: IEC958

Total Harmonic Distortion: Less Than 0.05%

Signal to Noise Ratio: 104 dB

Dynamic Range: 98 dB

Channel Separation: 90 dB (1 kHz)

Output Level: 1.9 Volts R.M.S.

Accessories

Remote Control Cables: 2

Stereo RCA Line Cables: 2

Operating Instructions: 1

Warranty Card: 1

Power Cord: 1

Dimensions & Weights

Remote Control: W 19 in. x H 3.5 in. x D 2.75 in. (482 x 88 x 70mm)

Main Unit: W 19 in. x H 3.5 in. x D 10 in. (482 x 88 x 254mm)

Remote Control: 4 lbs (1.8 kg)

Main Unit: 10.2 lbs (4.6 kg)
