Galaxy ECM UHF Lavalier Wireless Microphone System

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

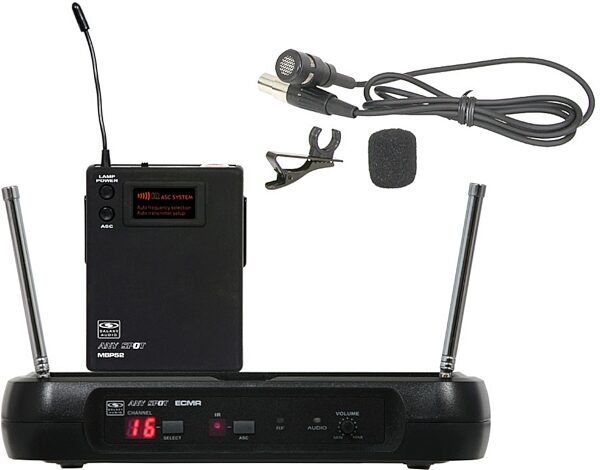

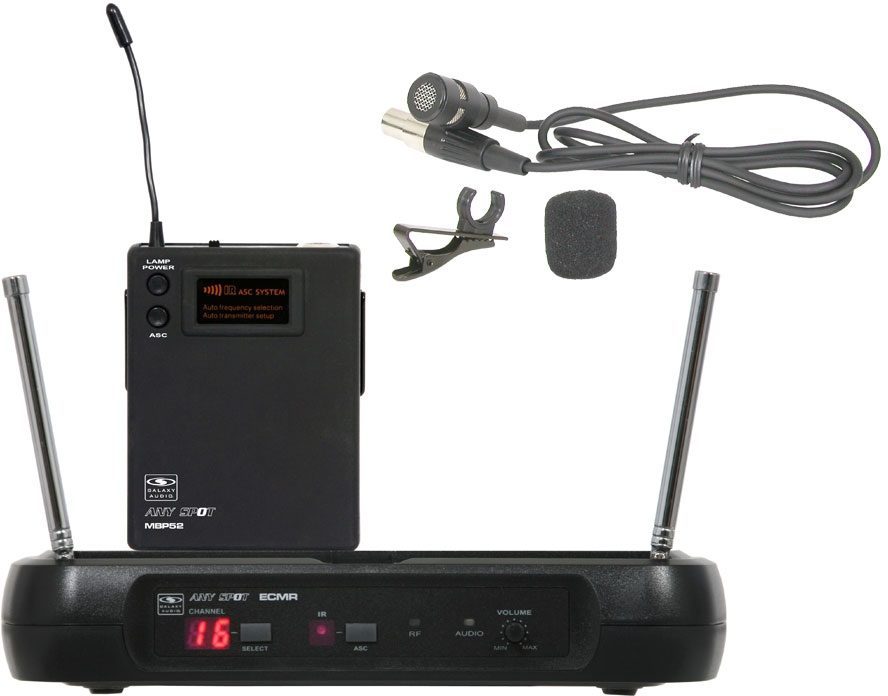

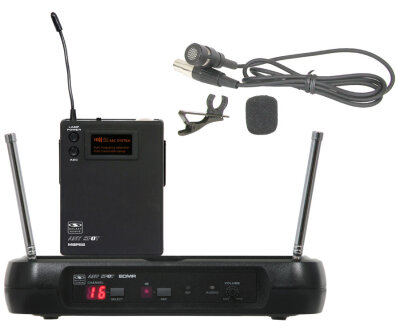

Galaxy ECM UHF Lavalier Wireless Microphone System, Main

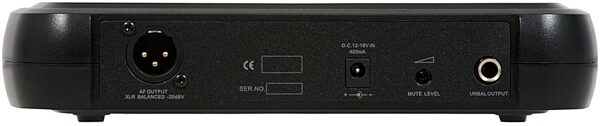

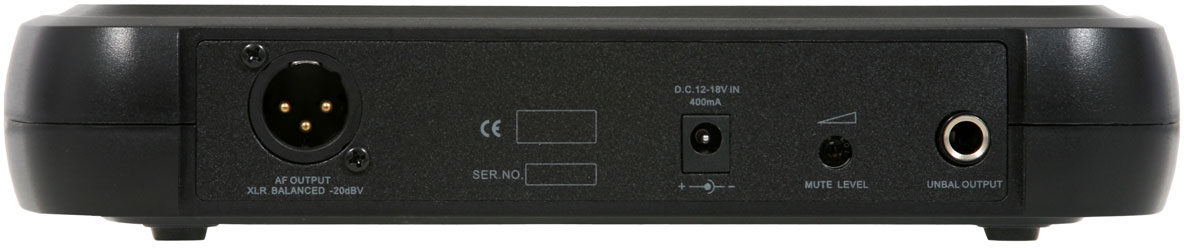

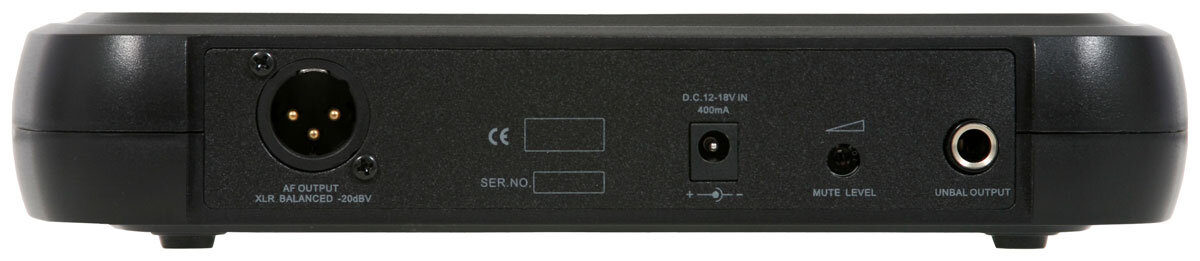

Galaxy ECM UHF Lavalier Wireless Microphone System, Rear
Galaxy ECM UHF Lavalier Wireless Microphone System, Main Galaxy ECM UHF Lavalier Wireless Microphone System, Rear
Perfect for those performers who desire a hands-free performance, this lavalier wireless microphone system from Galaxy also has output volume control.

The economical hands free operation of the Galaxy ECM lapel wireless system provides unmatched performance for any application. The system features the ECMR receiver with 16 user selectable channels and diversity reception. Infrared (IR) channel sync is possible between the receiver and transmitter. An ideal choice for educators or performers, the Galaxy ECM wireless lapel has excellent clarity for general speech applications, presentations and more.

Features:

ECM Receiver:
- 16 Selectable Channels
- 200 Foot Range
- Diversity Antennas
- Frequency Range 655 to 679 MHz
- Output Volume Control
- AF Level Indicator
- IR Sync
- Squelch Adjustment
- XLR and 1/4 inch Outputs
- Rugged Plastic Casing

MPB52 Bodypack:
- IF Sync
- 2 AA Batteries
- Mic/0/-10 dB
- 3 Position Swith
- Low Battery Indicator
- 2.8 oz (80 g)
- TA3F connector

The ECM lapel wireless system includes the ECMR receiver, one TA3F to 1/4-inch cable, MPB52 bodypack, lapel mic, power adapter and manual.

System
- Frequency Range: 655~679MHz
- Transmitter Output Level: 10dBm
- Band: UHF
- Operating Range: Under Typical Conditions 150' (50m)
- Note: actual range depends on RF signal absorption, reflection, and interference
- Audio Frequency Response: +/-3dB 70Hz~16KHz
- Total Harmonic Distortion: +/-30KHz deviation 1KHz tone <1%
- Dynamic Range: >90dB A-weighted
- Operating Temperature: Range 14oF to 122oF (-10 Co to +50 Co)
- Note: battery characteristics may limit this range

ECM Receiver
- Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV 1/4 inch connector (into 3KOhms load) -18dBV
- Output Impedance: XLR connector 200Ohms 1/4 inch connector 1KOhms
- XLR output: Impedance balanced
- Pin1:Ground (cable shield)
- Pin2:Audio
- Pin3:No Audio
- Sensitivity: -93dBm for 30dB
- Image Rejection: >90dB
- Dimensions (HxWxD): 1.75" x 9.25" x 4.75", (44.45 mm x 235 mm x 121 mm)
- Weight: .85lbs (.39kg)
- Power Requirements: 13.5 V dc at 300mA, supplied by external power supply.

MBP52 Bodypack Transmitter
- Max Audio Input Level: 0 dBV to +10 dBV
- Gain Adjustment Range: 20dB
- Input Impedance: 5K?
- Dimensions (HxWxD): 3.3" x 2.6" x 1" (85 mm x 65 mm x 24 mm)
- Weight: 3.0oz (85 g) (without batteries)
- Power Requirements: 2 AA Batteries alkaline or rechargeable batteries
- Battery Life: About 8 hours

For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
Manual

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (1 ratings)
Submitted June 28, 2011 by a customer from aol.com

"A great product for small gathering use"

Overall: 4.5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
We will have to grow first The product serves our present needs. I woul say within a couple of years, we may need to upgrade.
Sound
This product does not give the type of performance that I expected. It is good for that which it has been purchased for, small assembly sound.
Features
The accessories are great.
Ease of Use
The adjusting to the receiver and the transmitter is on a delay/relay. THis is ok, but when needing to instantaneously get sound, you have to wait for the transmit between the two.
Quality
I am satisfied with the quality makeup.
Value
I think that it is comfortable to other competitions.
Manufacturer Support
I have called and there were some explaination, but even still, I think that for the cost, I should get a greater quality. Maybe, it is because of low usage that I am wanting greater of the product, but that is when I need it most, on Sunday mornings and some afternoons.
The Wow Factor
Good appearance

Musical Background:

13 years

Musical Style:

Gospel, Jazz, R&B, Drum and Base
3 of 3 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
