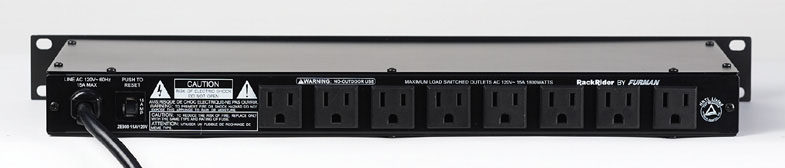

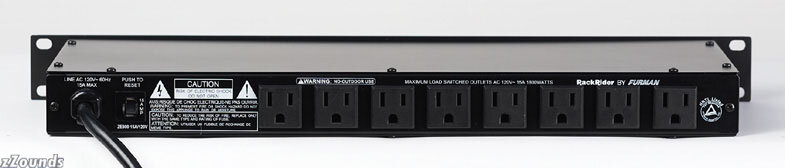

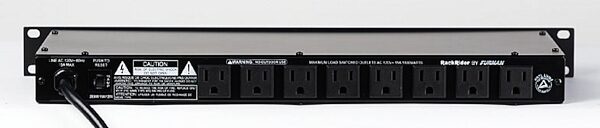

A RackRider "RR" Series Power Conditioner and Light Module is the perfect accessory for any rack-mount system. Install one in the top slot of your rack, and the 8 switched AC outlets on the rear panel will power up and protect all your equipment up to a 15 amp load.
All RR Series conditioners protect your delicate electronic equipment by combining high-voltage varistor (MOV) surge and transient suppressors. The fast-acting suppression circuit quickly responds to clamp transient voltages to safe levels. An RFI/EMI interference filter works to prevent noise from fluorescent lights, certain dimmers, radio transmitters, and similar sources of "electronic pollution" from contaminating the AC line and from there, leaking into sensitive audio, video, or computer circuits. The RR-15NL is NRTL/TUV listed.
Circuit Breaker
For safety, a circuit breaker is provided on the rear panel. If the total load on the Power Conditioner (combining all outlets) exceeds the 15A (or 1800 watt limit), the circuit breaker will trip. If this happens, it may be easily reset by pushing in the button. There is no need to replace fuses.
Switches

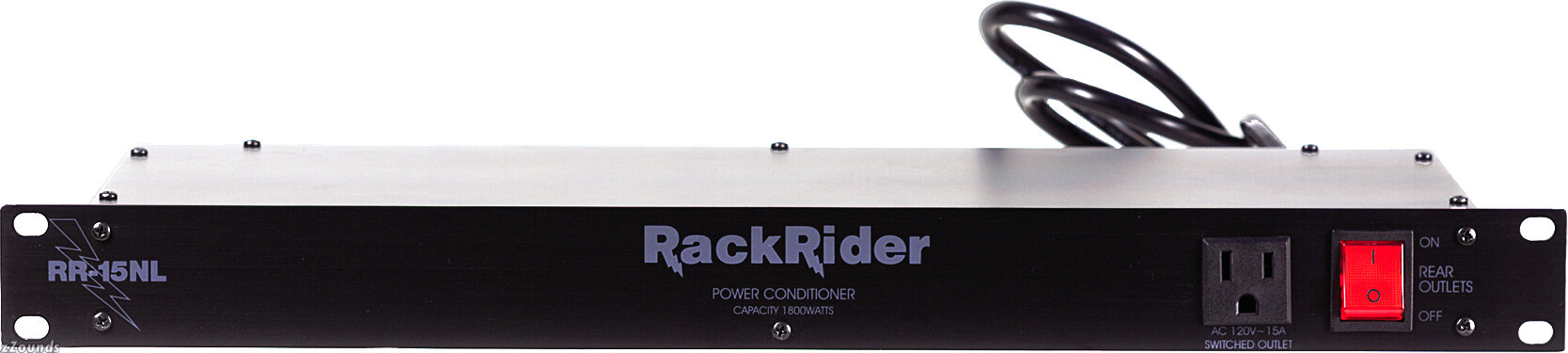

All models have a convenient master switch for the rear outlets which glows when the power is on. In models with lighting, there is a separate "Rack Lights" switch for the lamps, plus a dimmer control knob which increases the lamps' brightness.
Technical Info
Maximum output current: 15 amps (1800 watts at 120 VAC)
Line Cord: 6 ft. captive, 14 AWG, with 3-conductor Edison plug
AC Voltmeter (if present): Range 60 to 150 VAC; Accuracy +/- 2 VAC
Spike Protection Mode: Line to neutral
Clamping Voltage: 250 volts peak
Maximum surge current: 4,500 amps
Maximum spike energy: 102 joules
Noise attenuation: Transverse mode: Greater than 20 dB, 1.5 to 200 MHz
Dimensions (H x W x D): 1.75 x 19 x 7.5 in. with light tubes in; when fully extended light tubes reach 3.5 in. from front panel surface
Weight: 5 lbs. (2.3 kg)
Construction: Steel chassis, Black painted
