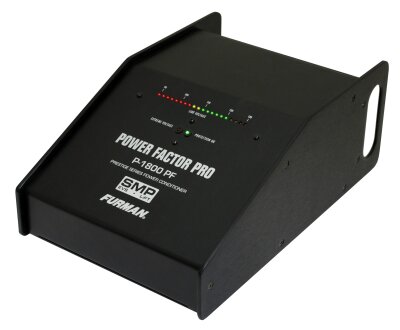

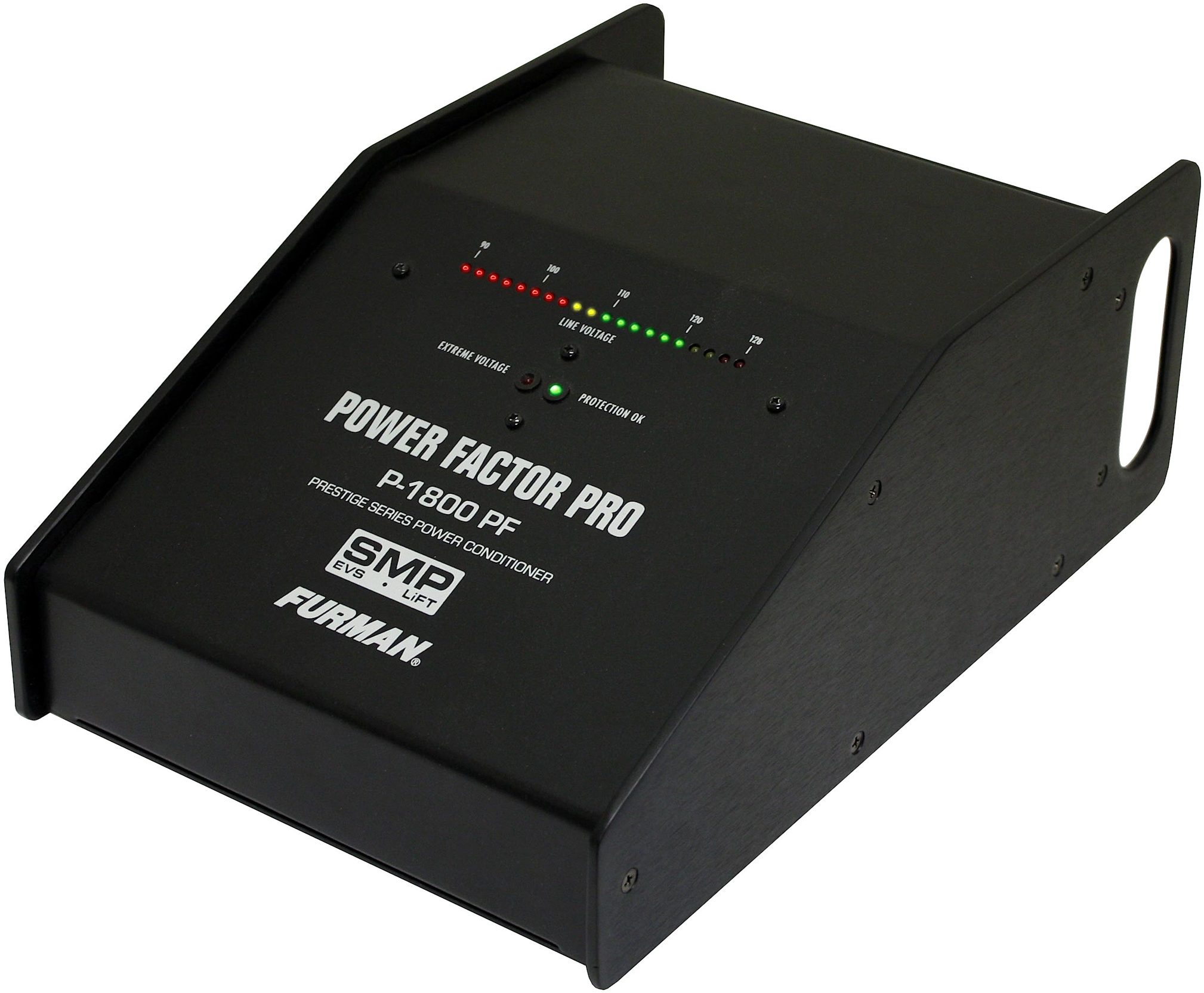

Furman P1800PF Power Conditioner

Engineered specifically for use with instrument amplifiers and other high-current equipment, the Furman P-1800 PF R offers a stable, protected and filtered low impedance powered supply for maximum performance of connected electronics. Furman's exclusive Power Factor provides a 45A peak current reservoir to minimize the detrimental effects of line impedance on high-current gear such as amplifiers and powered monitors. Clear Tone Technology provides additional line noise filtration tuned for instrument amplifiers for clean and consistent tone. Plus, equipment benefits from professional-level protection thanks to Furman's exclusive SMP and EVS technologies.

Power Factor Technology
Your amp needs a lot of power to sound its best. If you're plugging into the wall, there's a good chance your amp is not going to get the current it needs when pushed. Furman's exclusive Power Factor Technology provides a 45A peak current reservoir to give your amp the headroom it needs to operate at maximum efficiency. No matter what venue or club, or how close or far away from the power panel, Furman's Power Factor Technology keeps your instrument amplifier's tone consistent and sounding it's best.

Clear Tone Technology
Clear Tone Technology works in unison with Power Factor Technology and Linear Filtering Technology to add an additional layer of AC noise filtration specifically engineered for instrument amplifiers. Clear Tone Technology provides tuned circuits that unveil instrument tone, harmonics, and clarity, resulting in a fuller sound and improved dynamic response.

Surge Protection
Furman's exclusive SMP technology provides the highest level of surge & spike protection available.

Noise Filtration
LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

Voltage Protection
Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

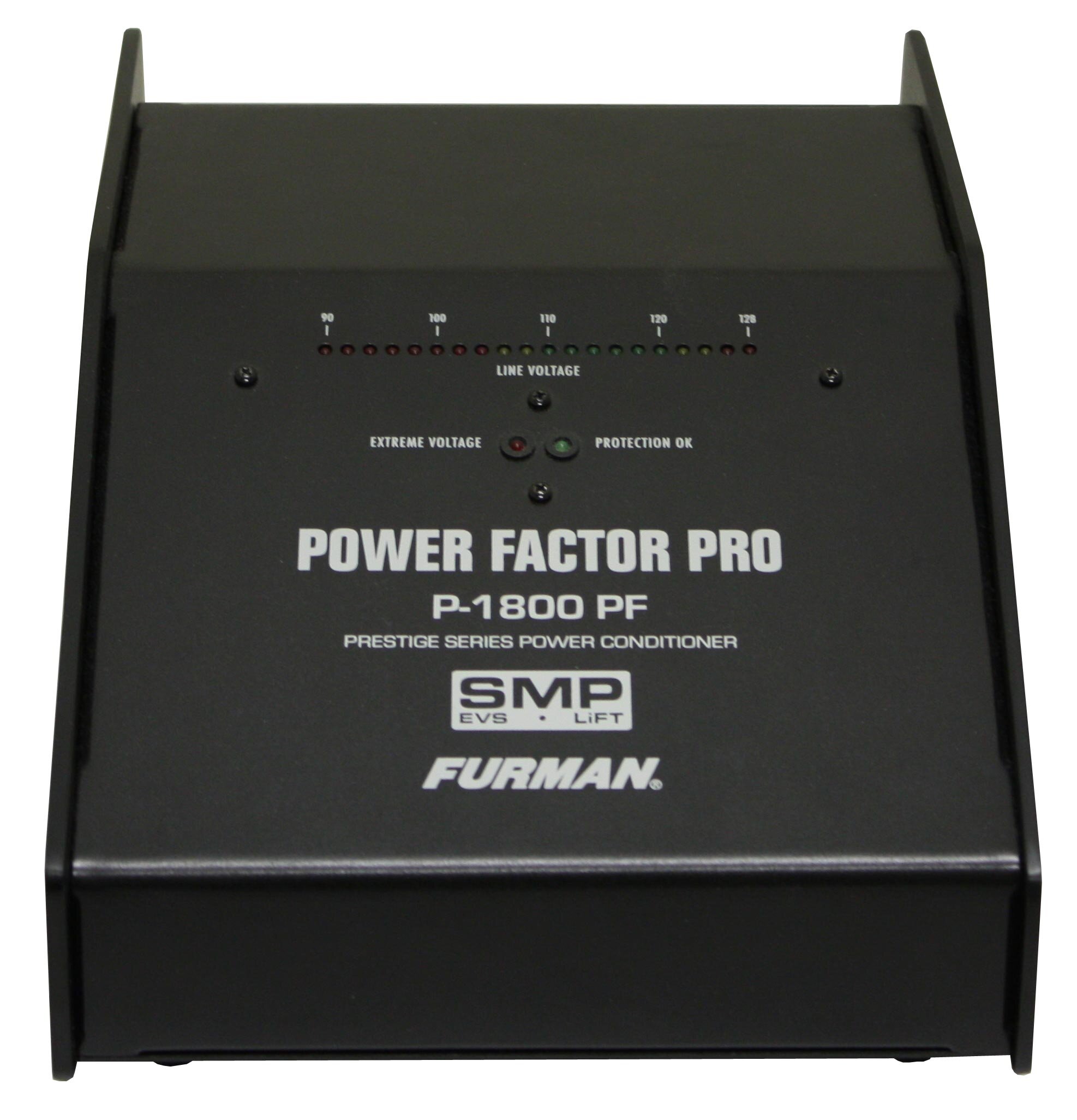

Diagnostic Lights
LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

Isolated Banks
Isolated outlet banks minimize inter-component interference and noise contamination.

Voltmeter
Large digital voltmeter with discrete dimmer button displays incoming line voltage.

Wall Wart Spacing
Three widely spaced outlets accommodate bulky AC power transformers.

15 AMP Rating
15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

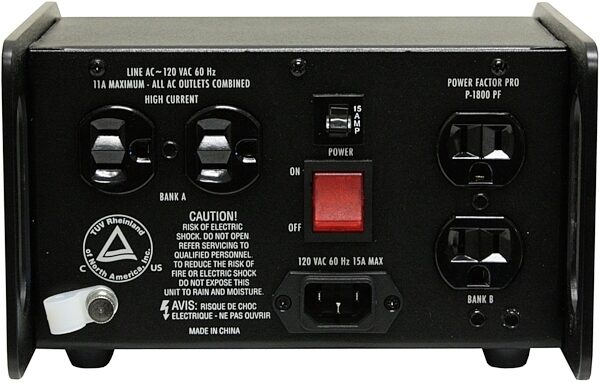

Nine Total Outlets
Nine total outlets (8 rear panel outlets and one front panel convenience outlet).

BNC Lamp Connector
Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

USB Charger
Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.

Technical Info

Specifications
Maximum Current: 15 amps @ 124 Volts

Line Cord: Captive 3/14 AWG, 10 ft. black cord with NEMA 15 plug

BNC Socket w/Switch: 12VAC 500MA maxx (lamp not included)

Operating Voltage: 90 to 139 VAC

Over-Voltage Shutdown: 140 VAC Nominal

Spike Protection Mode: Line to neutral, zero ground leakage

Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 Amps

Noise Attenuation: 30 dB @ 2 kHz, 40 dB @ 10 kHz, 50 dB @ 20 kHz, 70 dB @ 100 kHz

Dimensions (WxHxD): 19 x 12 x 1.75 in.

Weight: 13 lbs.

Power Consumption: 8 watts

Reactive Power: 460 VA
